Advance Tabco 19-18-1-ADA Hand Sinks
Description

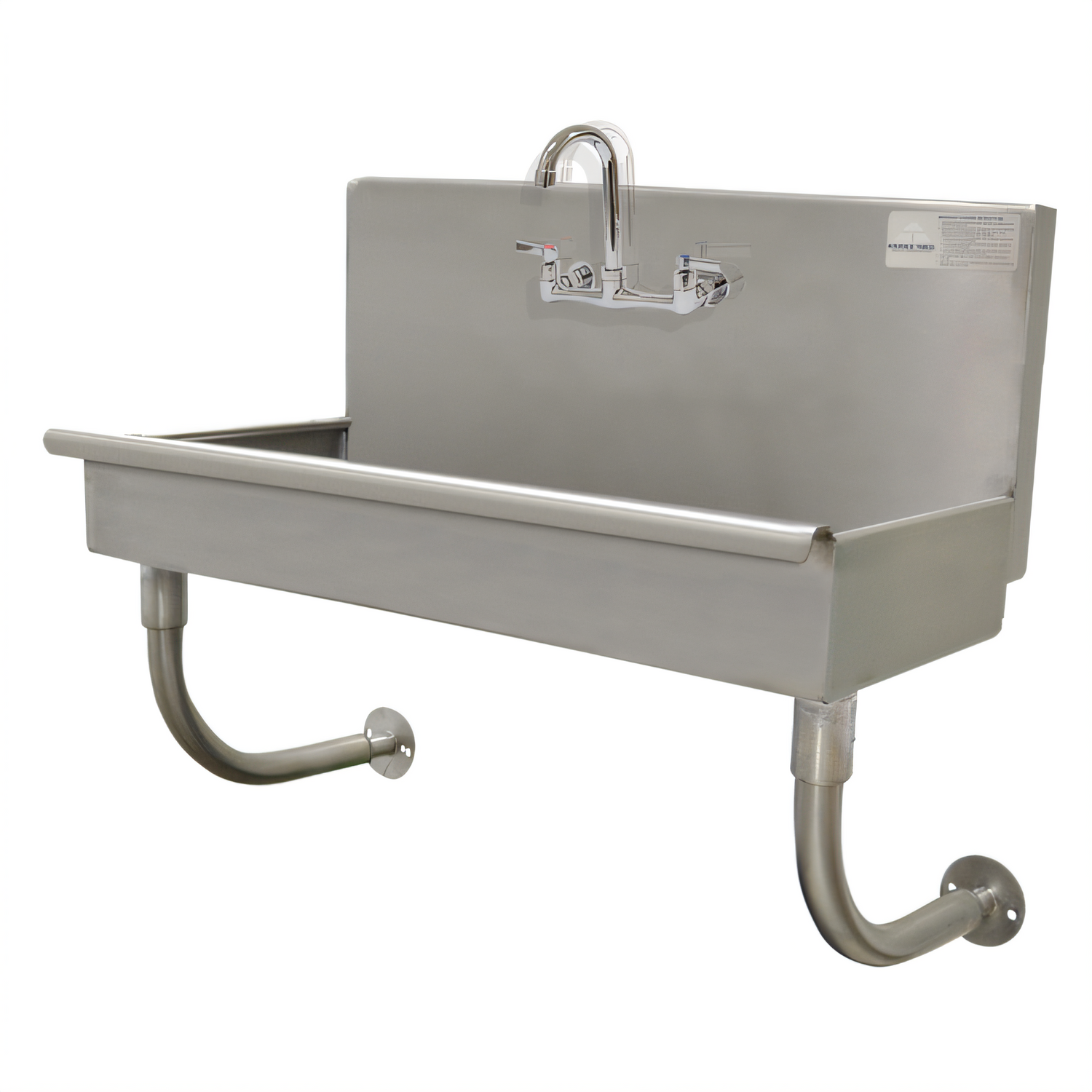

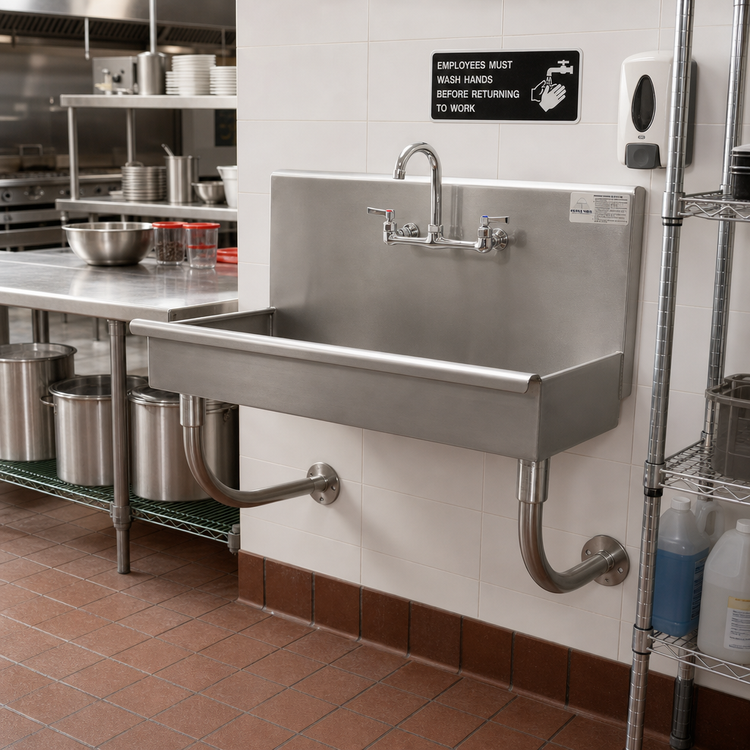

Advance Tabco 19-18-1-ADA Wall-Mounted Service Sink
40" single-station | 16 ga 304 stainless steel | ADA compliantBuilt for the toughest janitorial, food-service, and maintenance rooms, this one-station service sink combines rugged 16 gauge stainless steel construction with ADA-ready knee clearance. The wall-mounted design keeps floors clear while the deep bowl, high backsplash, and rear basket drain make daily clean-up fast and sanitary.
Key Features
- 40" wide, single-station bowl—plenty of room for mop buckets and large pails
- 16" front-to-back x 5" deep bowl (square corners) contains splashes
- 8½" integral backsplash pre-punched for one set of 8" O.C. faucet holes (faucet sold separately)
- Heavy-duty 16 gauge, type 304 stainless steel—corrosion-resistant & easy to sanitize
- TIG-welded seams ground to a uniform satin finish
- (2) 1 5⁄8" tubular 304 stainless wall supports plus stainless “Z” brackets for rock-solid mounting
- 3½" rear basket drain (K-6) included

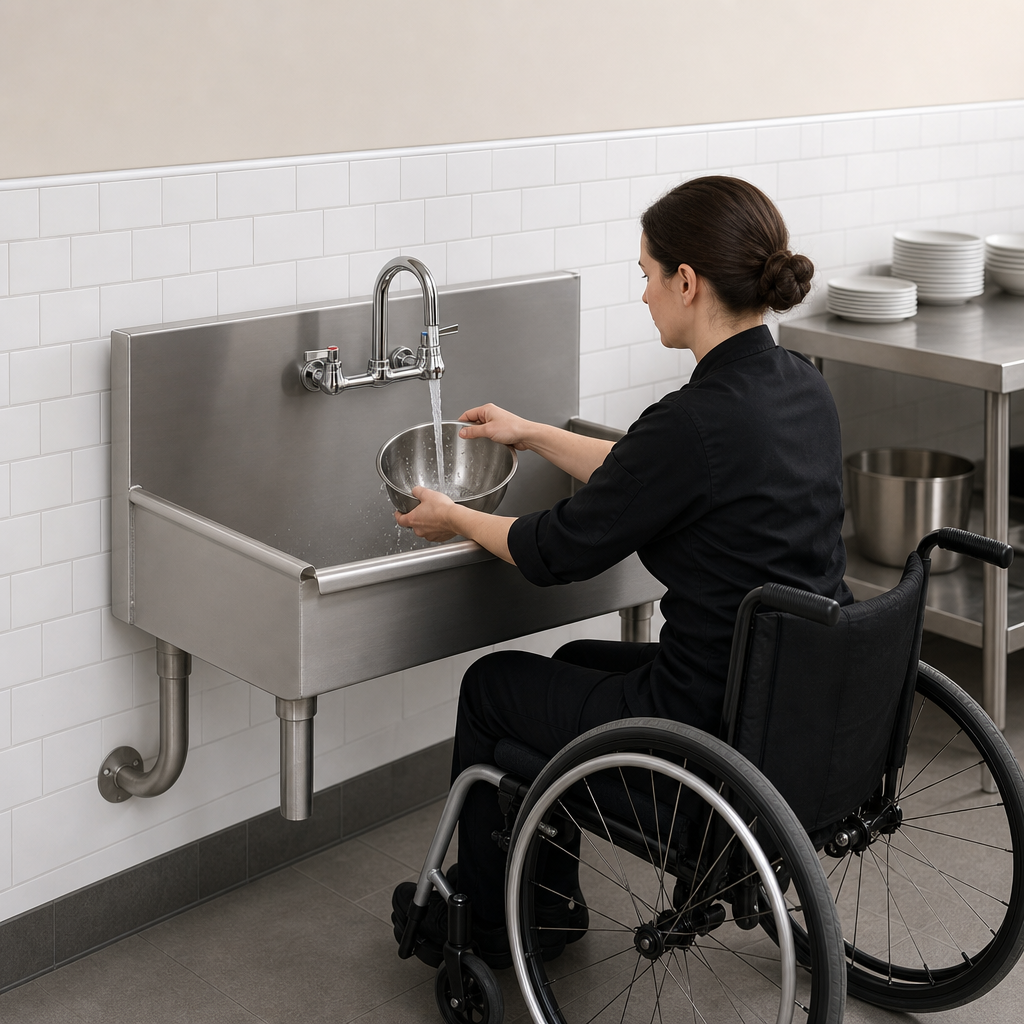

- Full knee clearance underneath meets current ADA guidelines
- Ships fully assembled—just mount, plumb, and go
Technical Specifications
| Model No. | 19-18-1-ADA |
|---|---|
| Overall Dimensions | 40" W × 19 1⁄2" D × 25 1⁄2" H |
| Usable Bowl Size | 16" F/B × 40" L × 5" D |
| Backsplash Height | 8 1⁄2" |
| Faucet Holes | (1) set, 8" on-center, 1 1⁄8" dia. |
| Drain | 3 1⁄2" rear basket drain (included) |
| Material & Thickness | Type 304 stainless steel, 16 ga (sink & supports) |
| Mounting Hardware | (2) tubular wall supports, (2) stainless “Z” brackets |
| Unit Weight | ≈ 62 lb |
| Compliance | ADA, NSF (sink only) |
Ideal For
- Commercial kitchens & commissaries
- Hospital & school custodial rooms
- Processing plants & laboratories
- Anywhere a heavy-duty utility sink is needed with ADA access
Need multi-station lengths, electronic or knee-operated valves? Reach out via our Contact page and we’ll quote the exact Advance Tabco configuration you require.
