Description

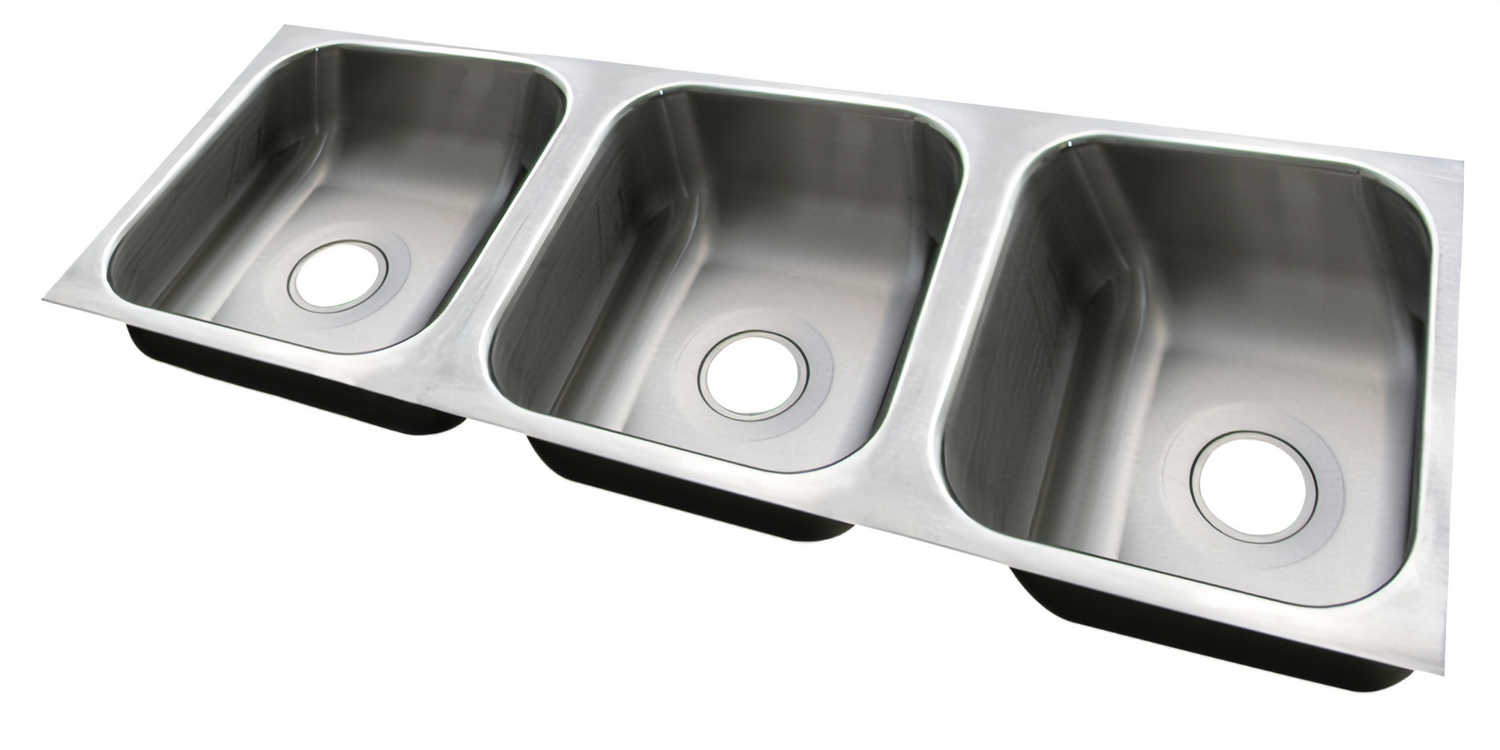

Smart Series™ 3-Compartment Undermount Sink

Model 1416-312-BAD | Advance Tabco

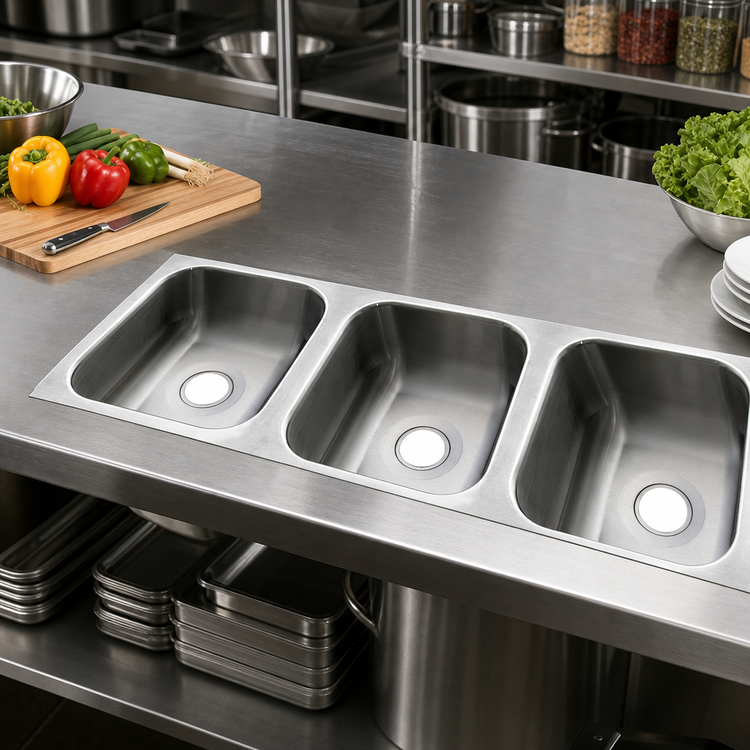

Built for high-volume kitchens that refuse to compromise on workflow or sanitation, the Smart Series™ model 1416-312-BAD installs seamlessly beneath stone, composite, or wood countertops—putting three full-size bowls right where you need them without interrupting your prep surface.

Key Features

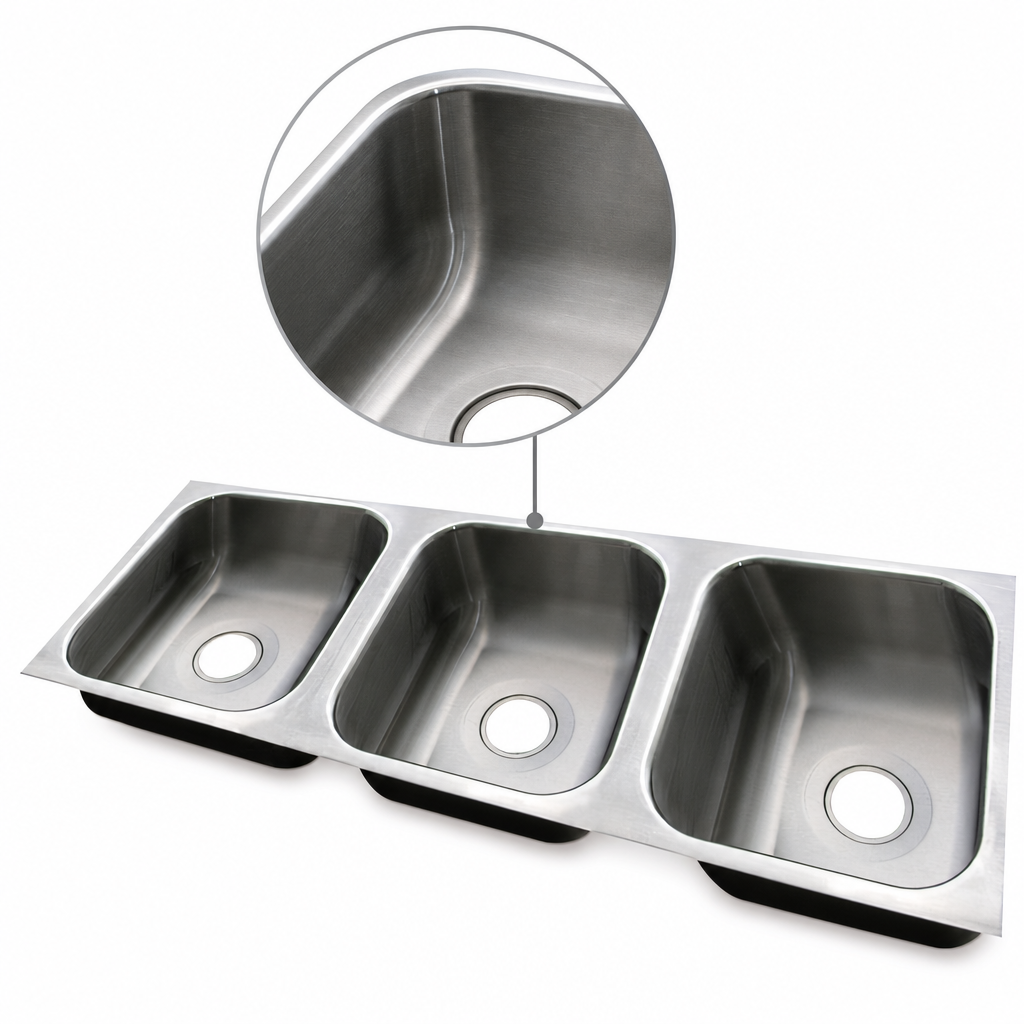

  • Three 14" W × 16" F-B × 12" D bowls formed from a single sheet of steel for a sanitary, crevice-free interior
  • Premium 18 gauge 304 stainless steel resists corrosion, chemicals, and aggressive cleaning agents
  • Advance Tabco Smart Finish™ delivers a uniform satin sheen that blends with surrounding fixtures
  • Factory-installed sound-deadening pads keep noise to a minimum during heavy use
  • Standard 3-1/2" drain openings accommodate most commercial basket strainers or disposers (drains sold separately)
  • 3" inside corner radius speeds cleaning while meeting health-code requirements
  • Undermount flange on all four sides ensures a flush, crumb-catch-free installation

Specifications

Number of Compartments 3
Interior Bowl Size (each) 14" W × 16" F-B × 12" D
Overall Trim Size 49-1/2" W × 18-1/2" F-B
Steel Thickness 18 ga (0.050") 304 SS
Drain Opening 3-1/2" Ø (basket drain optional)
Corner Radius 3"
Sound Deadening Factory-applied pads
Tolerance ± 1/8" on all dimensions

Compatible Accessories (sold separately)

  • K-6 3-1/2" basket drain assembly
  • Custom fabricated mounting channels or reinforcing frames
  • Cardboard drain templates (complimentary on request)
Installation Note: This unit is not designed for use with standard fabricated sink tables. It must be undermounted to a solid, non-stainless countertop (granite, quartz, composite, etc.) using appropriate adhesive and support methods.

Advance Tabco continuously improves its products and reserves the right to modify specifications without prior notice.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Smart Series™

Height

12.0in

Width

49.5in

Depth

18.5in

Shipping Weight

41.0lbs

Gauge

18 ga stainless steel

Compartments

3 compartment

Compartment Width (side - side)

14"

Compartment Depth (rim - drain)

12"

Compartment (front - back)

16"

Specifications

Smart Series™ Sink, undermount, 3-compartment, 14" wide x 16” front-to-back x 12" deep, 3-1/2" drain opening, 49-1/2” x 18-1/2" O.D. trim size, 18 gauge 304 stainless steel, (NOT FOR USE WITH STANDARD TABLES) (can be used as undermount on non-stainless tops)
