Advance Tabco  |  Smart Series™  |  SKU: 1014-310-BAD  |  UPC: 747545100085

Advance Tabco 1014-310-BAD Smart Series™ Commercial Faucets & Plumbing

$1,108.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Faucets & Plumbing Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

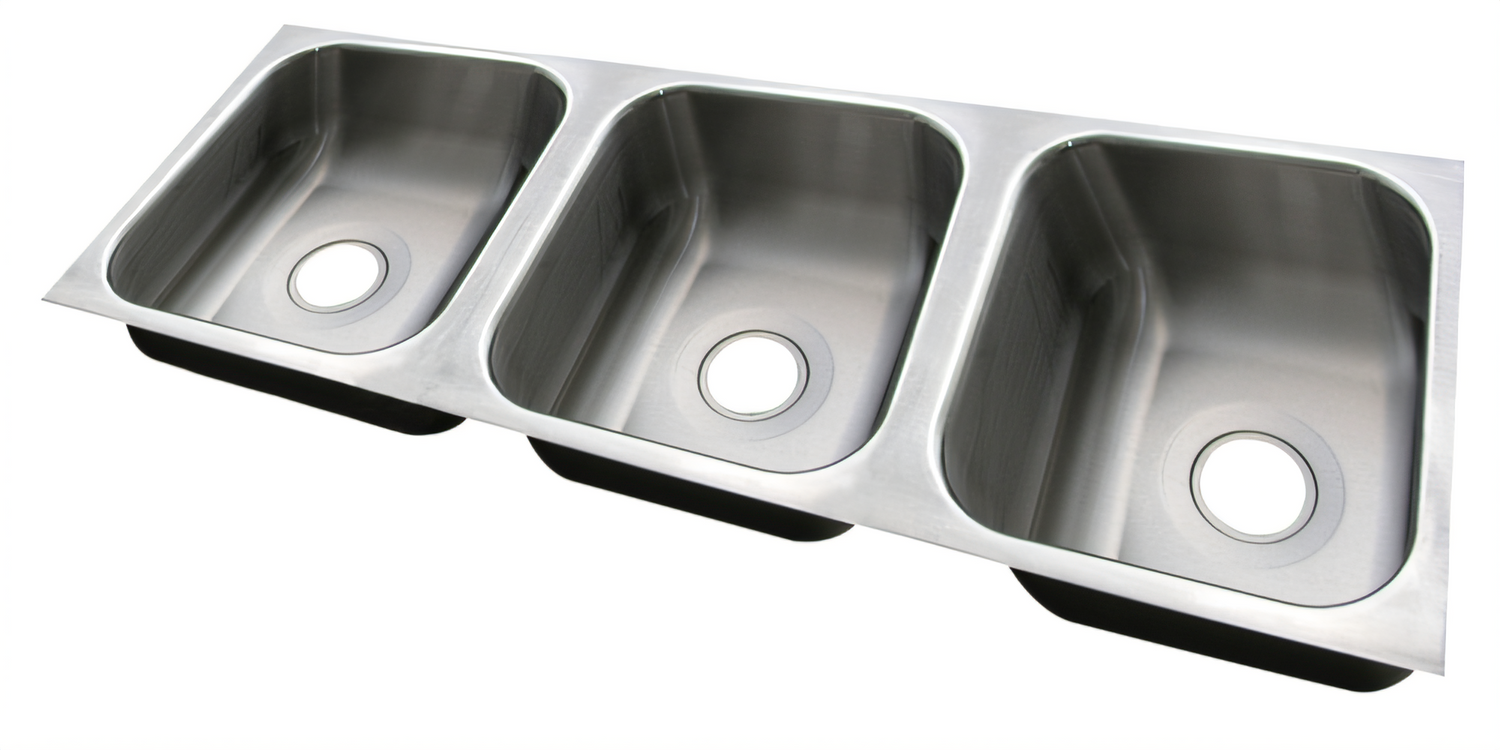

Advance Tabco Smart Series™ 3-Compartment Undermount Sink Bowl

Model 1014-310-BAD  |  18 ga Type 304 Stainless Steel

Create a dedicated wash, rinse and sanitize station without sacrificing counter space. The Smart Series™ 3-compartment undermount bowl from Advance Tabco drops cleanly into custom fabrications and solid-surface countertops, delivering the rugged durability and hygiene required in today’s professional kitchens.

Key Features

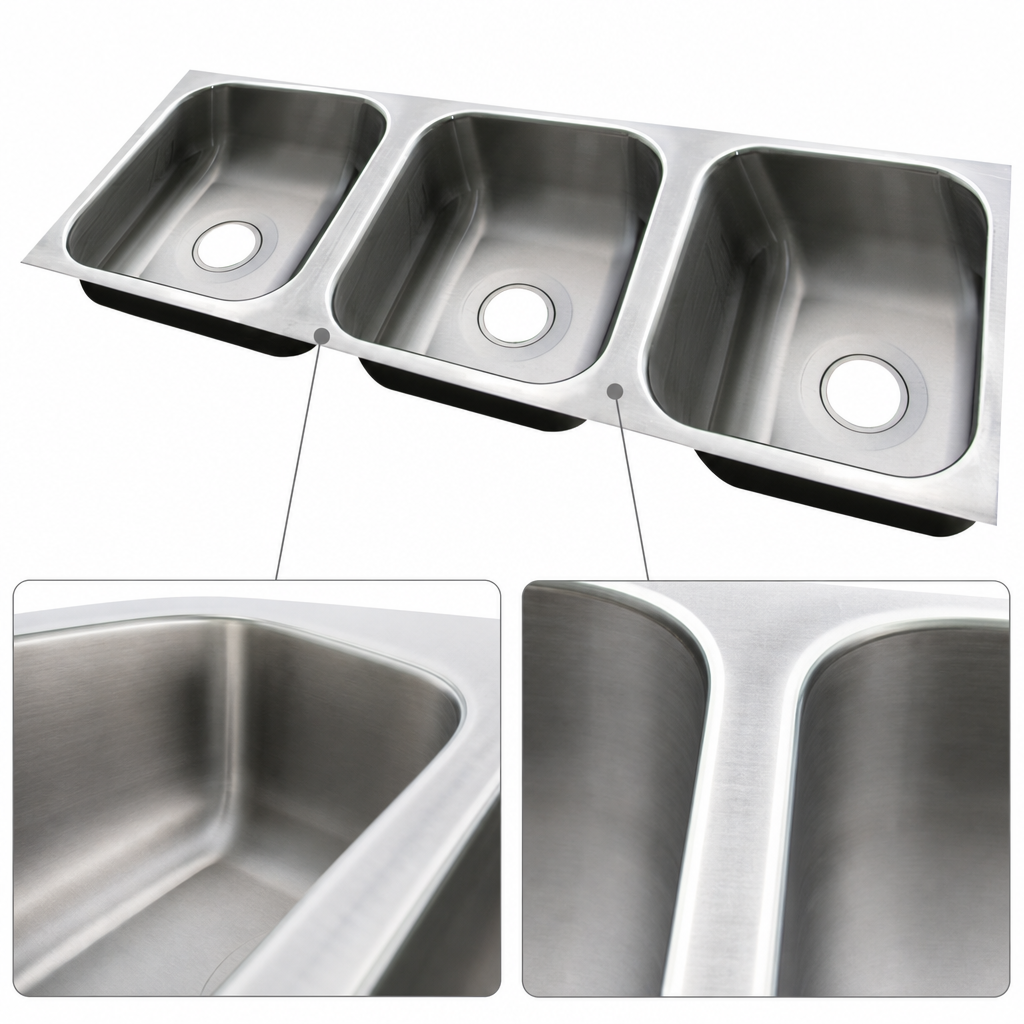

  • Three seamless Deep Drawn bowls – each 10 " W × 14 " F/B × 10 " D
  • 18 gauge Type 304 stainless steel resists corrosion and daily wear
  • Advance Tabco Smart Finish™ for a smooth, easy-to-wipe surface
  • Factory-installed sound-deadening pads dampen noise and vibration
  • 3 1/2 " drain openings (drain assemblies sold separately)
  • 2 " internal corner radius promotes sanitary cleaning
  • Trim size: 37 1/2 " W × 16 1/2 " F/B with 1 1/4 " flange on all sides
  • NSF listed – engineered for commercial foodservice use
Ideal Applications
  • Custom chef counters and prep islands
  • Food trucks, kiosks and compact concessions
  • Stone, quartz or solid-surface countertops needing an NSF sink solution
Technical Specifications
Model 1014-310-BAD
Compartments 3
Individual Bowl Size (W × F/B × D) 10 " × 14 " × 10 "
Overall Trim Size 37 1/2 " × 16 1/2 "
Material & Gauge 18 ga Type 304 stainless steel
Corner Radius 2 "
Drain Opening 3 1/2 "

Optional K-6 basket drain assemblies are available separately.

Installation Note: This sink is designed exclusively for undermount applications on non-stainless tops or for welding into custom stainless fabrications. It is not compatible with standard table punchings or drop-in mounting. Always confirm field dimensions and request a template before cutting countertops.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Smart Series™

Height

10.0in

Width

37.5in

Depth

16.5in

Shipping Weight

20.0lbs

Compartment (front - back)

14"

Gauge

18 ga stainless steel

Compartment Width (side - side)

10"

Compartments

3 compartment

Compartment Depth (rim - drain)

10"

Specifications

Smart Series™ Sink, undermount, 3-compartment, 10" wide x 14” front-to-back x 10" deep, 3-1/2" drain opening, 37-1/2” x 16-1/2" O.D. trim size, 18 gauge 304 stainless steel, (NOT FOR USE WITH STANDARD TABLES) (can be used as undermount on non-stainless tops)
