Admiral Craft Equipment Corp.

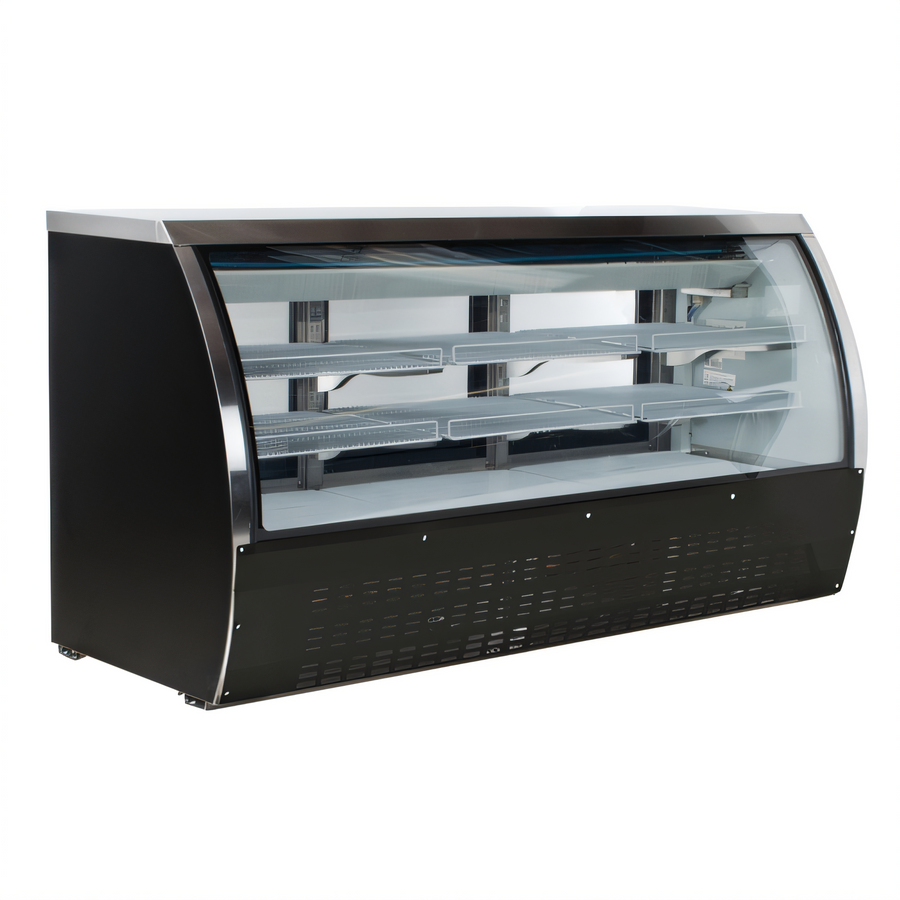

U-STAR 82-Inch Full-Service Refrigerated Deli Case with Curved Front Glass, 3 Rear Doors, 9 Shelves

SKU: USDC-82
$5,999.99
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

U-STAR 82-Inch Full-Service Refrigerated Deli Case with Curved Front Glass, 3 Rear Doors, 9 Shelves

Self-Contained R290 Refrigeration, 30.9 Cu. Ft.

Showcase deli meats and cheeses with excellent visibility, easy rear access, and high-humidity cooling designed to keep products fresh.

  • 82-inch full-service refrigerated deli case with 30.9 cu. ft. capacity
  • Curved front glass and LED lighting improve product presentation
  • Three rear service doors and 9 adjustable epoxy-coated steel shelves support efficient service and restocking
  • High-humidity gravity coil refrigeration helps maintain freshness for meats, cheeses, and salads
  • Bottom-mounted self-contained R290 system includes digital temperature control and automatic defrost
  • Stainless steel top with 304 stainless steel floor and black coated exterior surfaces
  • Rounded corners and a cleanable cabinet design help simplify maintenance

Overall Dimensions:

82.0"W x 32.5"D x 43.0"H

Product Weight:

601.0 lb

Curved Front Glass

Damage-resistant curved glass provides excellent product visibility for merchandising.

High-Humidity Gravity Coil Refrigeration

Designed to help keep deli meats and cheeses fresh for extended periods.

Self-Contained Bottom-Mount System

The rear-mounted condensing unit slides out for easier cleaning and service.

Adjustable Epoxy-Coated Steel Shelves

Nine heavy-duty shelves adjust to fit different products and display needs.

LED Interior Lighting

Bright LED lighting enhances product presentation inside the case.

Stainless Steel and Coated Steel Construction

Built with a stainless steel top, 304 stainless steel floor, and black coated steel exterior surfaces.

Automatic Defrost

Helps reduce maintenance and supports consistent operation.

Foamed-In-Place Insulation

High-density polyurethane insulation helps maintain cabinet temperature stability.

Rear Sliding Service Doors

Three rear doors provide convenient access for loading, restocking, and service.

Type Deli Case
Style Full Service
Installation Type Floor Model
Capacity 30.9 Cu. Ft.
Refrigeration Type Self-Contained
Controls Digital
Temperature Range 33°F to 41°F
Material Stainless Steel and Coated Steel
Interior Finish Painted Aluminum and 304 Stainless Steel
Color Black
Voltage 115 Volts
Amps 7.08 Amps
Watts 658 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Refrigerant Type R-290
Shipping Width 86 Inches
Shipping Depth 36.25 Inches
Shipping Height 48.75 Inches
Shipping Weight 601 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1 year parts and labor; 5 years compressor

Documents

PDF Cutsheet PDF Download PDF U-star catalog PDF Download

Frequently Asked Questions

It has 3 rear service doors and 9 adjustable epoxy-coated steel shelves.
The digital controls maintain a temperature range of 33°F to 41°F.
It uses environmentally friendly R-290 refrigerant.
Yes. It uses a bottom-mounted, self-contained refrigeration system with a slide-out condensing unit.
It is intended for meats, cheeses, and salads, and is not intended for pies, cakes, or other pastries.
