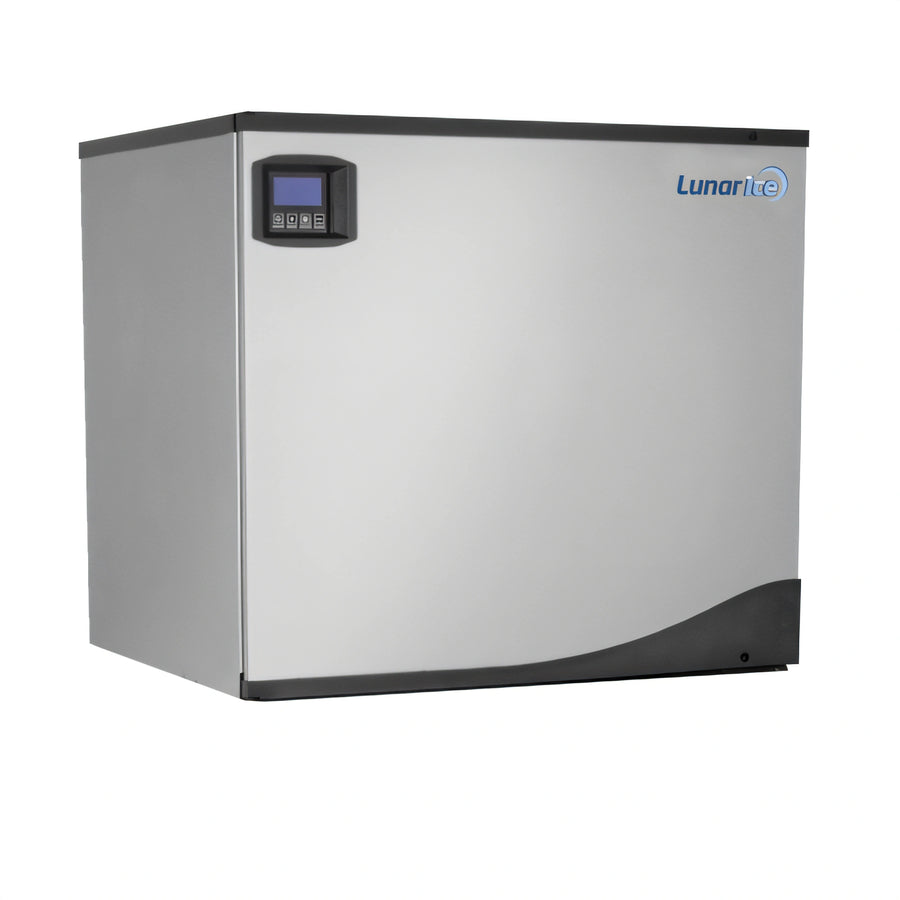

Lunar Ice LUIM-500 Modular Air-Cooled Full Dice Cube Ice Machine

30-Inch Wide, 521 lb Daily Production, Bin Not Included

A compact modular ice machine that delivers reliable, energy-efficient full-dice ice production with easy-service access and digital controls.

  • Produces up to 521 lbs of full-dice ice per day under standard test conditions.
  • Air-cooled modular design works with most ice storage bins and beverage dispensers; bin sold separately.
  • Stainless steel and black trim exterior with a hinged front panel for easier cleaning and service.
  • Programmable digital controls with status display, automatic cleaning cycle, and bin overflow prevention.
  • ENERGY STAR qualified for efficient operation.
  • 115V/60Hz/1-phase operation with a NEMA 5-15P plug and included 6-foot cord set.

Overall Dimensions:

30.0"W x 24.6"D x 21.0"H

Product Weight:

155.0 lb

Full Dice Ice Production

Produces up to 521 lbs of full-dice ice per day under 70°F air and 50°F water conditions.

Air-Cooled Compressor

Air-cooled operation supports high-volume ice production in a modular head design.

Programmable Digital Controls

User-friendly digital controls with a status display simplify operation and monitoring.

Automatic Cleaning Cycle

Built-in cleaning cycle and bin overflow prevention help reduce maintenance and improve reliability.

Hinged Front Panel

Front panel opens for easier access during cleaning and servicing.

Stainless Steel Exterior

Stainless steel cabinet with black trim offers durability and a professional commercial look.

Internal LED Light

Powering the unit illuminates the internal LED light for better visibility.

Stackable Design

Units can be stacked for increased ice production with an optional adapter.

Bin and Dispenser Compatibility

Designed to work with most ice storage bins and beverage dispensers.

Type Ice Machine
Style Modular
Capacity 521 lbs Per Day
Material Stainless Steel
Color Stainless Steel and Black
Controls Programmable Digital
Refrigeration Type Air-Cooled
Refrigerant Type R404A
Voltage 115 Volts
Amps 7/9.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Water Inlet Size 3/8 Inch FPT
Drain Connection Size 1/2 Inch
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 25 Inches
Shipping Height 21 Inches
Shipping Weight 155 Pounds

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor; 5-year compressor and evaporator warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No. The bin is not included; the modular head is compatible with most ice storage bins and beverage dispensers.
It produces full-dice ice cubes.
Up to 521 lbs per day under 70°F air and 50°F water conditions.
It operates on 115V/60Hz/1-phase power and includes a NEMA 5-15P plug with a 6-foot cord set.
Yes. A gravity drain line is required for installation.
Yes. The units are stackable for increased ice production, but an optional adapter is required.
