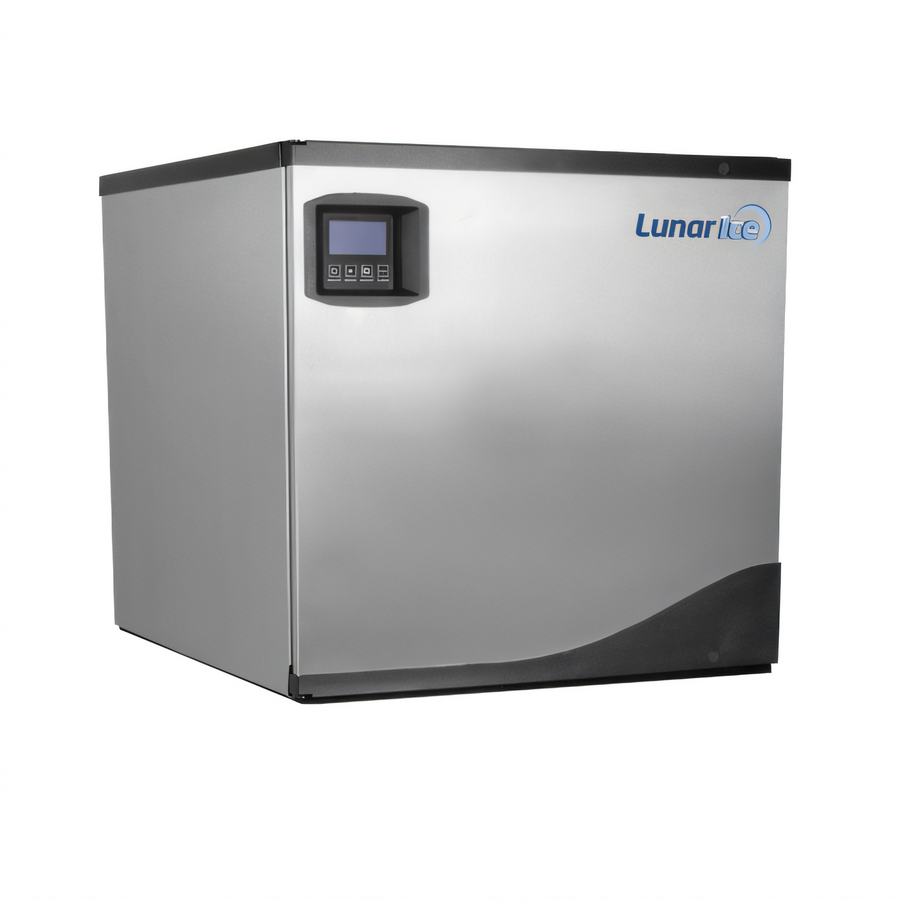

Lunar Ice LUIM-360 Modular Ice Machine
22" W, air‑cooled, stainless steel — 373 lb/day full‑dice productionBuilt for high‑volume operations, the Admiral Craft Lunar Ice LUIM-360 delivers up to 373 lb of full dice cubes per day in a compact, 22" wide modular form. Its stainless steel exterior, vertical evaporator, and easy‑to‑use digital controls provide reliable performance and simplified cleaning and service.
Why you’ll love it
- Full dice cubes, approx. 0.75" (19.1 mm) square — ideal for beverage service
- High output in a narrow footprint: only 22" wide
- Air‑cooled compressor with ENERGY STAR efficiency
- Programmable, user‑friendly digital controls with status display
- Automatic cleaning cycle and bin overflow prevention
- Internal LED light powers on with the unit
- Hinged front panel for quick access and easy service
- Modular design compatible with most ice bins and beverage dispensers; stackable with optional adapter
- Durable stainless steel exterior with black trim
Performance
- Daily ice production (70°F air / 50°F water): 373 lb
- Daily ice production (90°F air / 70°F water): 288 lb
- Energy consumption: 5.9 kWh per 100 lb of ice
- Water usage: 12.7 gallons per 100 lb of ice
Installation & utilities
- Required drain: gravity type
- Water supply: 3/8" FPT; recommended use of a water filter
- Drain connection: 1/2"
- Water pressure: 15–80 PSI (regulator required above 80 PSI)
- Operating ranges — Ambient: 40–110°F; Water: 40–90°F
- Clearance: 2" from wall recommended for airflow
Specifications
| Model | LUIM-360 |
|---|---|
| Ice type | Full dice cubes (approx. 0.75") |
| Cooling | Air‑cooled, vertical evaporator |
| Exterior | Stainless steel with black trim; hinged front panel; internal LED light |
| Dimensions (W x D x H) | 22" x 24.6" x 21" (Depth with service door open: 46.6") |
| Net / Shipping weight | 97 lb / 123.5 lb |
| Electrical | 115V / 60Hz / 1‑ph; 7.5/10.5A (nominal/max); NEMA 5‑15P; 6 ft cord |
| Refrigerant | R404A, 24.5 oz (zero ozone depletion potential) |
| Certifications | NSF, cULus, ENERGY STAR |
| Modular compatibility | Works with most ice bins and beverage dispensers; stacking possible with optional adapter |
| Recommended bin (optional) | LUIB-310, 308 lb storage capacity (sold separately) |
| Included | Factory‑installed 6' NEMA 5‑15P cord set; user documentation |
| Not included | Ice storage bin, water filter, drain pump/regulator (if required) |
Warranty
- 1‑year limited parts & labor (parts only in Canada)
- 5‑year warranty on the compressor and evaporator
International voltage versions available. Specifications are subject to change without notice.
