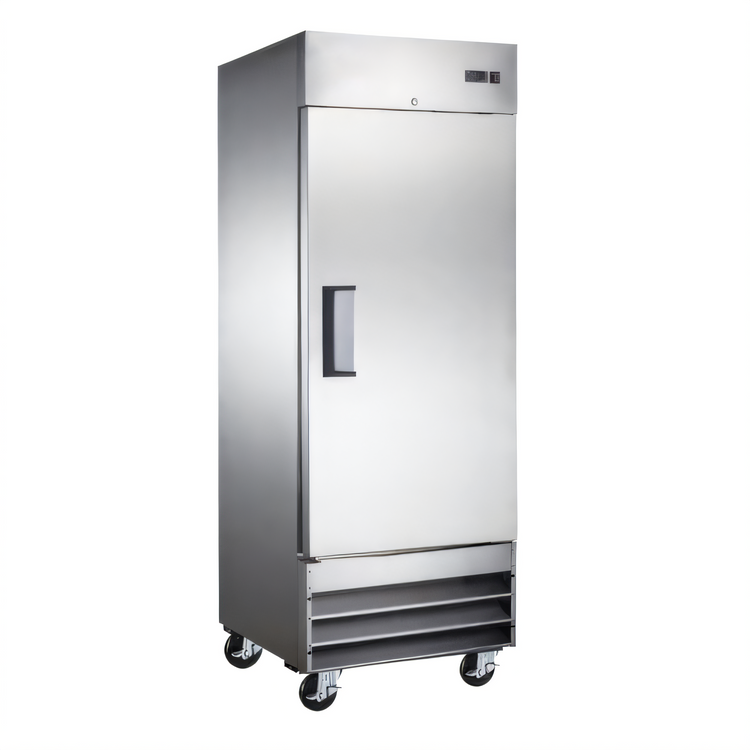

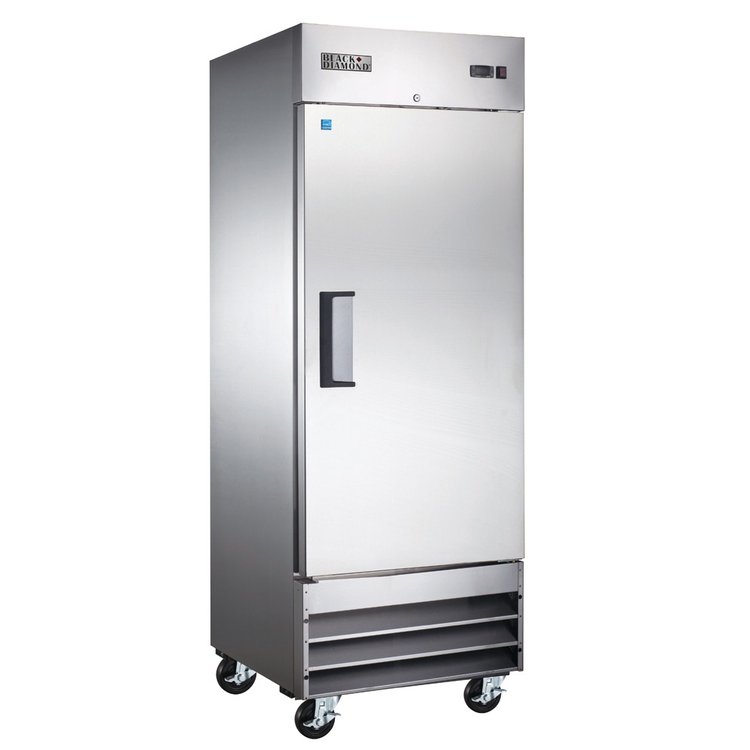

Black Diamond 23 Cu. Ft. 1-Section Reach-In Freezer with Solid Door, Bottom-Mount Self-Contained Refrigeration, 115V

White Painted Aluminum Interior, 430 Stainless Steel Exterior, Auto Defrost

A compact, heavy-duty reach-in freezer built for reliable low-temperature storage with easy-access bottom-mount refrigeration and a solid stay-open door.

  • 23 cu. ft. capacity in a space-saving 1-section reach-in design.
  • Bottom-mount self-contained refrigeration with R290 refrigerant and auto defrost.
  • Front digital temperature controller with LED display and a -8°F to 0°F operating range.
  • Solid door stays open beyond 90° for easier loading, stocking, and cleaning.
  • White painted aluminum interior and 430 stainless steel exterior for durable everyday use.
  • Three adjustable epoxy-coated shelves and four 4-inch casters, including two locking wheels.
  • 115V, 60 Hz, 1-phase operation with 4.2 amps and a NEMA 5-15P plug.

Overall Dimensions:

29.0"W x 32.2"D x 82.5"H

Product Weight:

321.0 lb

Bottom-Mount Self-Contained Refrigeration

Places the refrigeration system below the cabinet for accessible service and efficient cold-air circulation.

Digital Temperature Controller

Front-mounted controller with LED display makes temperature monitoring and adjustment simple.

Auto Defrost

Helps reduce frost buildup and lowers routine maintenance needs.

Solid Door with Stay-Open Feature

Door opens beyond 90° and stays open to make stocking and product access easier.

Adjustable Storage Shelves

Includes three epoxy-coated shelves that can be repositioned to organize inventory.

Durable Cabinet Construction

Features a white painted aluminum interior and 430 stainless steel exterior for long-lasting use.

Mobility Casters

Mounted on four 4-inch casters, including two locking casters, for easier movement and cleaning.

Low-Temperature Refrigeration System

Uses R290 refrigerant and a 1/2 HP compressor to support freezer temperatures from -8°F to 0°F.

Type Freezer
Style Reach-In
Installation Type Floor Model
Section Count 1
Capacity 23 Cu. Ft.
Refrigeration Type Self-Contained
Refrigerant Type R290
Material Stainless Steel
Interior Finish White Painted Aluminum
Finish 430 Stainless Steel
Controls Digital
Temperature Range -8°F to 0°F
Voltage 115 Volts
Amps 4.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Compressor Horsepower 1/2 HP
Shelf Count 3
Door Count 1
Shipping Width 29 Inches
Shipping Depth 33 Inches
Shipping Height 83 Inches
Shipping Weight 321 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified

Frequently Asked Questions

The temperature range is -8°F to 0°F.
Yes, it includes auto defrost to help reduce frost buildup.
It comes with three adjustable epoxy-coated shelves.
It has one solid door with a stay-open feature beyond 90°.
It operates on 115V, 60 Hz, 1-phase power, draws 4.2 amps, and uses a NEMA 5-15P plug.
Yes, it uses bottom-mount self-contained refrigeration.
