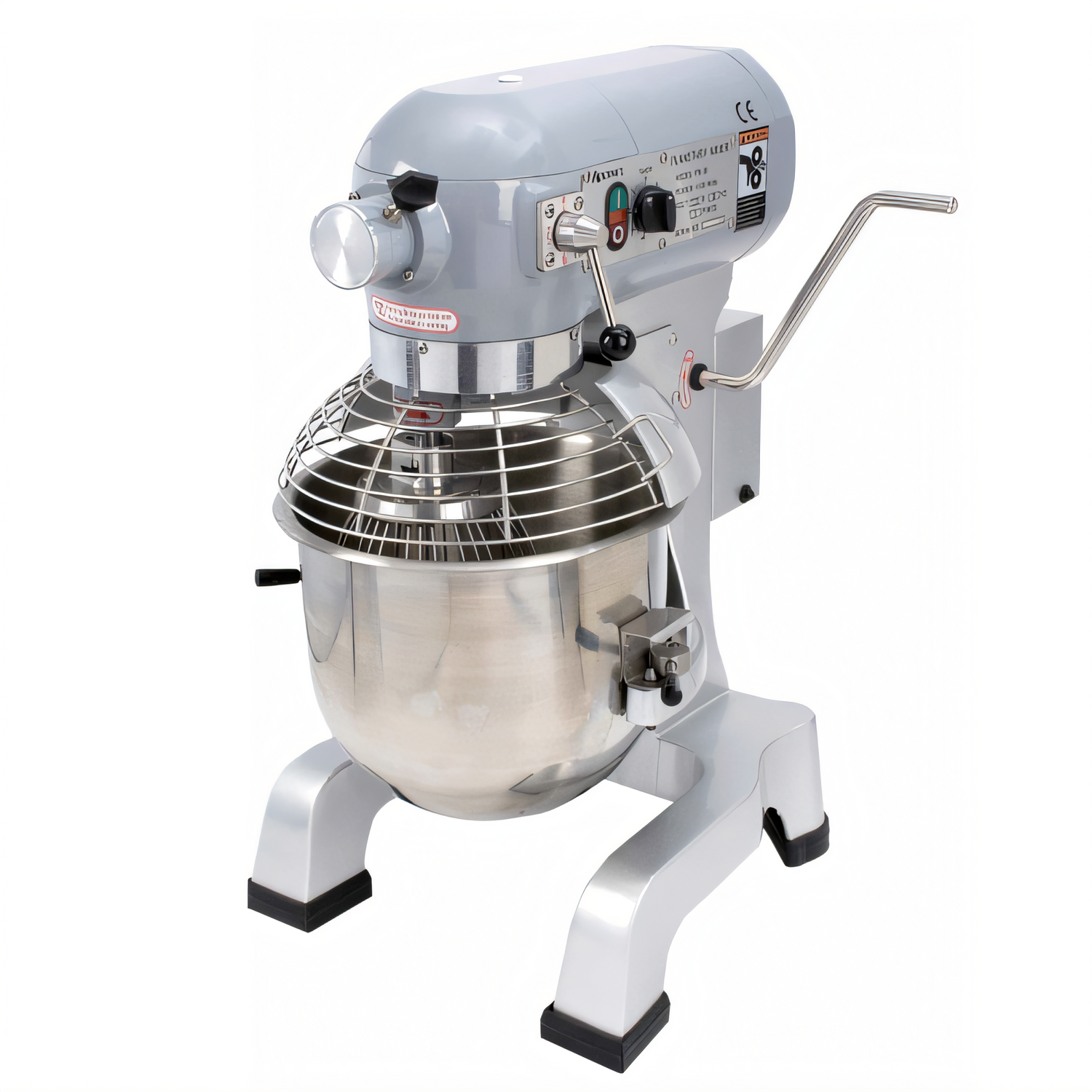

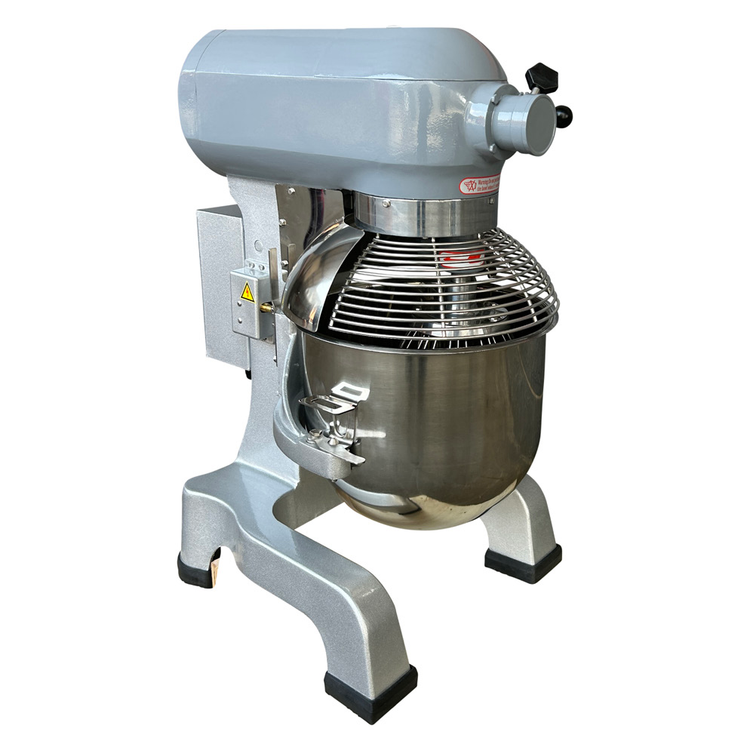

Black Diamond 20 Qt. Countertop Planetary Mixer, 3-Speed, Gear-Driven, #12 Hub

120V, Manual 60-Minute Timer, Includes Bowl and Mixing Attachments

Built for versatile commercial prep, this 20-quart planetary mixer combines a gear-driven three-speed drive with included bowl and agitators for reliable everyday mixing.

  • 20-quart bowl capacity is well suited for medium-volume mixing, whipping, and kneading.
  • Three-speed, gear-driven transmission delivers controlled performance across a range of prep tasks.
  • Manual 60-minute timer helps operators manage batch timing with consistency.
  • Includes a stainless steel mixing bowl with clamps, plus a wire whisk, dough hook, and flat beater.
  • Stainless steel wire bowl guard and rubber feet help support safer, more stable operation.
  • 120V corded operation with a NEMA 5-15P plug makes setup straightforward.

Overall Dimensions:

19.0"W x 22.0"D x 32.0"H

Product Weight:

250.0 lb

3-Speed Gear-Driven Transmission

Provides dependable mixing performance with three operating speeds for different batch types.

20-Quart Capacity

Sized for versatile commercial prep in bakeries, restaurants, and foodservice kitchens.

Manual 60-Minute Timer

Lets the operator set timed mixing cycles for repeatable results.

#12 Attachment Hub

Includes a standard #12 hub for compatible accessories and attachments.

Included Mixing Kit

Supplied with a stainless steel mixing bowl with clamps, a wire whisk, a dough hook, and a flat beater.

Stainless Steel Wire Bowl Guard

Helps protect the operator while keeping the bowl visible during operation.

Rubber Feet

Helps keep the mixer steady on the countertop during use.

120V Corded Power

Uses 120V/60Hz single-phase power and a NEMA 5-15P plug.

Type Planetary Mixer
Style Benchtop
Installation Type Countertop
Capacity 20 Quarts
Speed 3-Speed
Hub Size #12
Drive Type Gear Driven
Controls Manual Timer
Horsepower 1-1/2 HP
Voltage 120 Volts
Watts 1.1 kW
Amps 9.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Weight 236 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Catalog PDF Download

Frequently Asked Questions

It includes a stainless steel mixing bowl with clamps, a wire whisk, a dough hook, and a flat beater, plus a stainless steel wire bowl guard and rubber feet.
This model has 3 speeds.
It operates on 120V/60Hz, single-phase power and uses 1.1 kW, 9.0 amps, with a NEMA 5-15P plug.
The mixer has a 20-quart capacity and a #12 attachment hub.
No. The catalog note says not to use attachments on the #12 hub while mixing.
