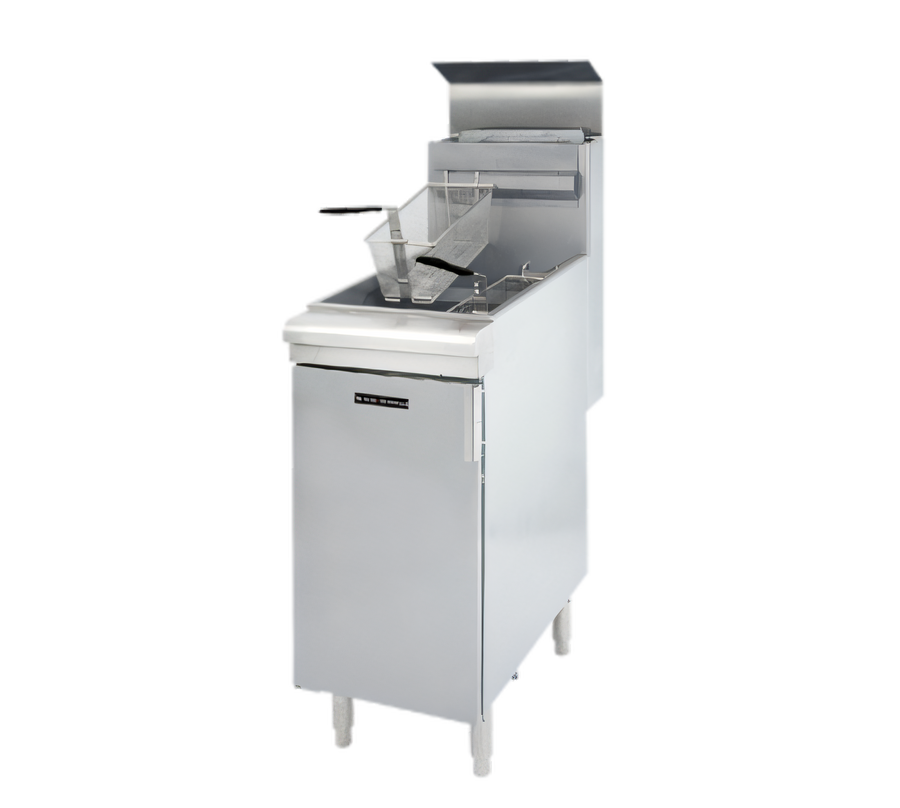

Black Diamond Floor Model Propane Gas Deep Fryer, 45-50 lb Capacity, 120,000 BTU

SKU: BDGF-120/LPG
$1,599.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Fryers Gas Fryers New Arrivals Restaurant Equipment Stock Pot Ranges

Black Diamond Floor Model Propane Gas Deep Fryer, 45-50 lb Capacity, 120,000 BTU

Thermostatic Controls, Stainless Steel Tank, With Two Baskets

This floor-standing propane fryer combines 120,000 BTU of power, thermostatic control, and automatic safety shutoff for consistent, high-volume frying.

  • 45-50 lb oil capacity is ideal for busy commercial frying operations.
  • Thermostatic controls maintain a 200°F to 400°F cooking range for consistent results.
  • Automatic shutoff helps protect the unit if fryer temperature exceeds 450°F.
  • Stainless steel tank and front door support durability and easier cleaning.
  • Includes two nickel-plated wire mesh baskets plus key fryer accessories.
  • Standing pilot design provides ready ignition when heat is needed.

Overall Dimensions:

15.5"W x 30.25"D x 53.5"H

Product Weight:

180.0 lb

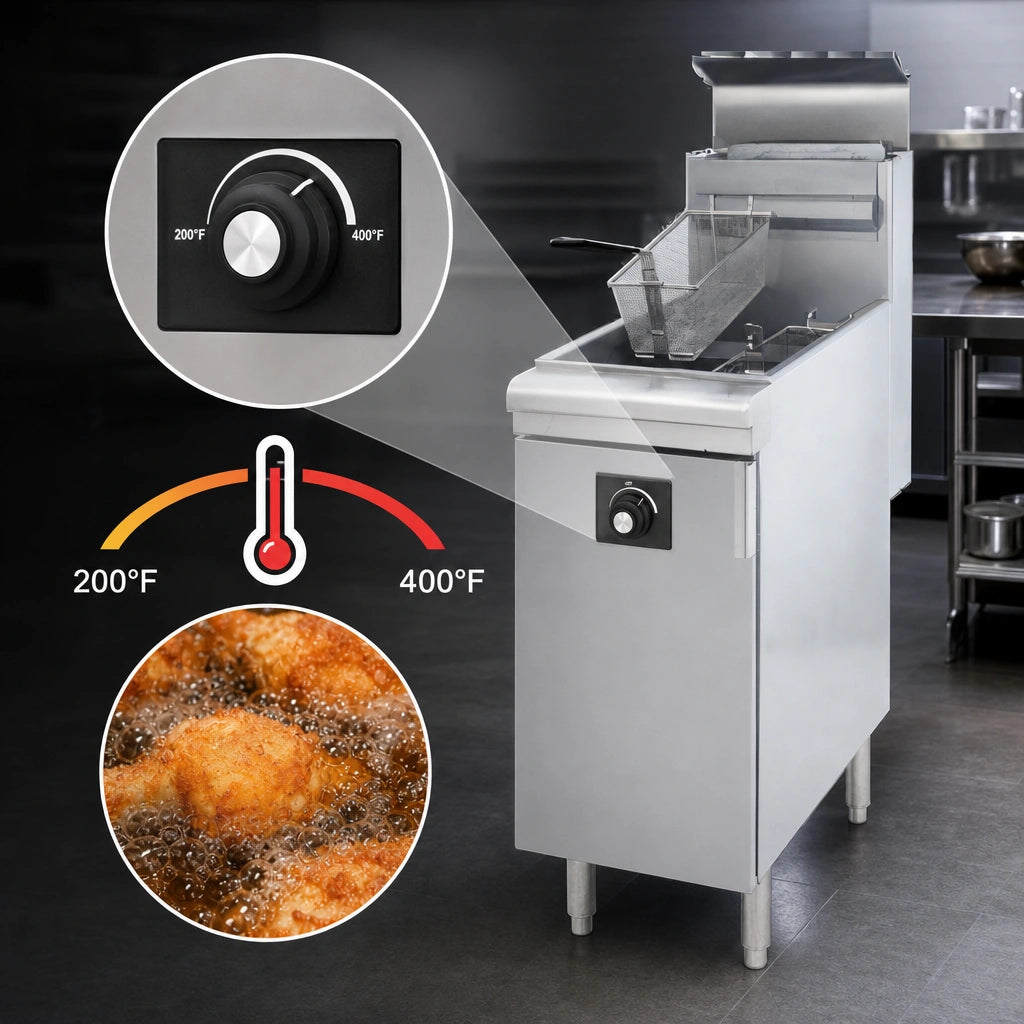

Thermostatic Temperature Control

Maintains cooking temperatures between 200°F and 400°F for consistent frying.

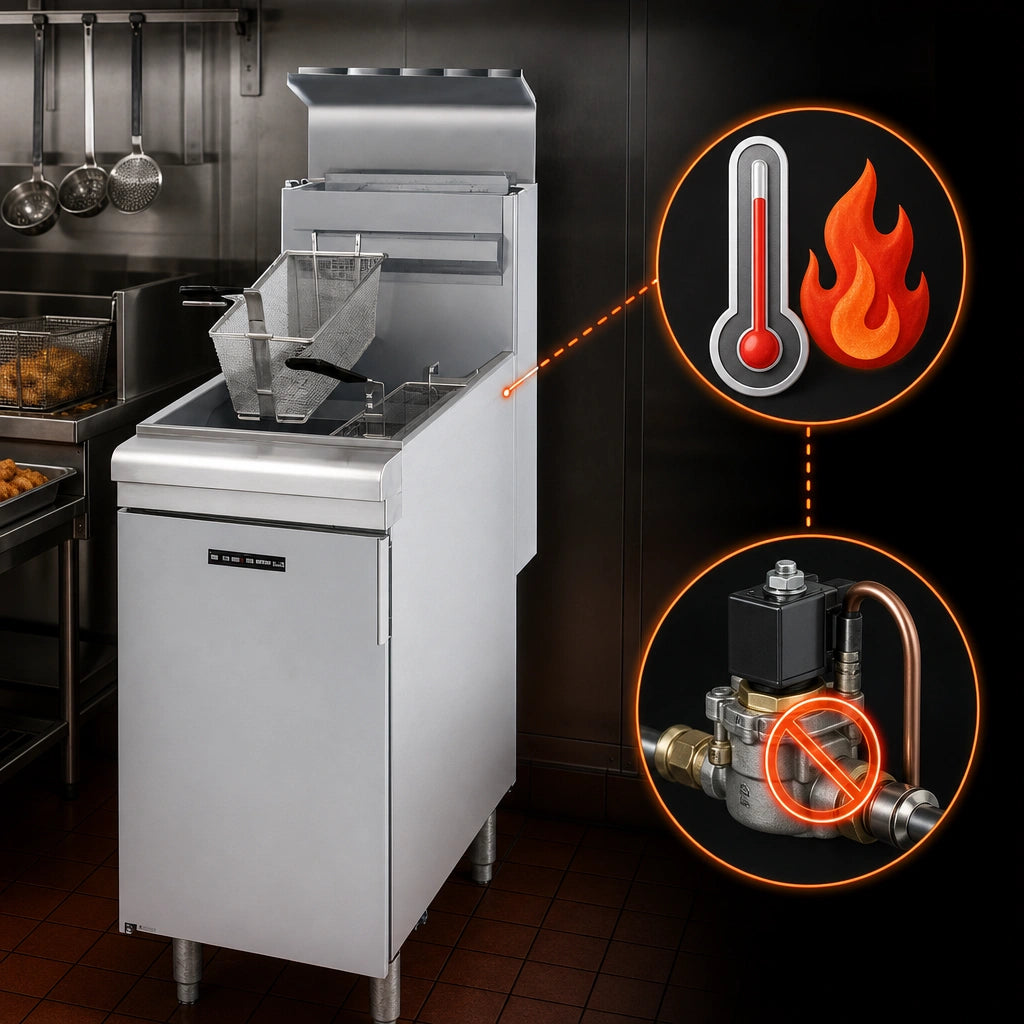

Automatic High-Limit Shutoff

Shuts off all gas flow automatically if fryer temperature exceeds 450°F.

16 Gauge Stainless Steel Tank

Welded stainless steel fry tank with a smooth machine finish for durability and easier cleaning.

Standing Pilot Ignition

Provides a ready flame when heat is required and supports reliable startup.

Integrated Gas Control Valve

Functions as a manual valve, pilot valve, gas filter, pressure regulator, and automatic main valve.

Front Drain Valve

1-1/4 inch front drain supports quick, efficient draining.

Standard Fryer Accessories

Includes two nickel-plated oblong wire mesh baskets, one tube rack, one drain extension, a built-in heat deflector, and 6 inch adjustable legs.

Heavy-Duty Cabinet Construction

Stainless steel front and door with galvanized sides and back for commercial durability.

Type Deep Fryer
Style Floor Standing
Installation Type Floor Model
Controls Thermostatic
Temperature Range 200°F to 400°F
Capacity 45-50 lb.
BTU 120,000 BTU
Gas Type Propane
Gas Connection Size 3/4 Inch Rear NPT
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel Front and Door; Galvanized Sides and Back
Selling Unit Each
Units Per Case 1
Shipping Width 16 Inches
Shipping Depth 31 Inches
Shipping Height 54 Inches
Shipping Weight 180 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor; 5-year limited tank warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Catalog PDF Download

Frequently Asked Questions

It has an approximate oil capacity of 45-50 lb.
The thermostat maintains temperatures from 200°F to 400°F.
It includes an automatic shutoff that stops gas flow if the fryer temperature exceeds 450°F.
Standard accessories include two nickel-plated oblong wire mesh baskets, one tube rack, one drain extension, a built-in heat deflector, and 6 inch adjustable legs.
This model is configured for propane (LPG).
The fryer uses a 3/4 inch rear NPT gas connection.
