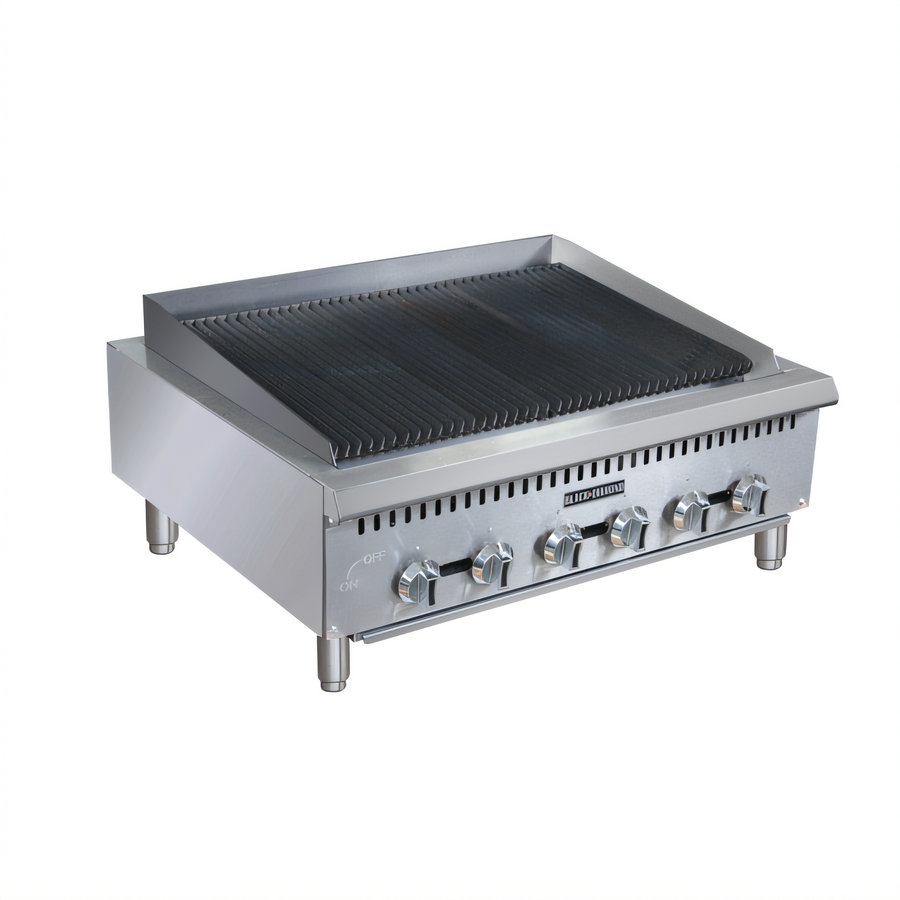

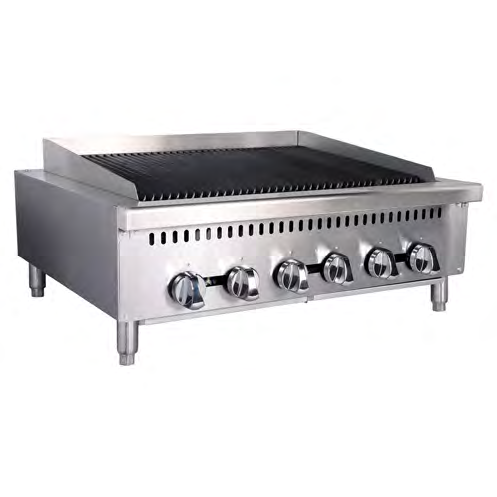

Black Diamond 36-Inch Heavy Duty Radiant Gas Countertop Charbroiler, 6 Burners

Countertop, Manual Controls, Natural Gas/LP Convertible

Built for high-volume grilling, this 36-inch radiant charbroiler delivers 120,000 BTU across six burners with durable cast iron grates and stainless steel construction.

  • 36-inch countertop charbroiler with radiant gas heat for even grilling performance
  • Six manual burner controls deliver 120,000 BTU total output
  • Reversible, height-adjustable cast iron grates help manage heat and sear marks
  • Stainless steel front and sides with fully welded construction for durability
  • Removable stainless steel drip tray simplifies cleanup
  • 4"-5" adjustable legs help level the unit on uneven surfaces
  • Designed for natural gas or LP use with field conversion capability
  • No electricity required for operation

Overall Dimensions:

36.0"W x 30.0"D x 16.25"H

Product Weight:

335.0 lb

Radiant Heat

Radiant heat promotes even cooking across the grill surface.

Six Burners

Six burners provide high-output heat across the 36-inch cooking area.

Manual Burner Controls

Manual controls let the operator adjust heat for each burner.

Separate Gas Valves

Each burner has its own gas valve for independent heat management.

Reversible Cast Iron Grates

Heavy-duty cast iron grates are reversible and height adjustable for versatile grilling.

Stainless Steel Construction

Stainless steel front and sides are built for durability in demanding kitchens.

Removable Drip Tray

A removable stainless steel drip tray helps capture grease and speeds cleanup.

Adjustable Legs

4"-5" adjustable legs help stabilize and level the unit.

Rear Gas Inlet

The 3/4" rear NPT gas connection supports straightforward installation.

Standing Pilot Ignition

Standing pilot ignition supports reliable startup and burner operation.

Field Convertible Gas Setup

Designed for natural gas or LP use, with field conversion capability.

No Electricity Required

Gas operation does not require an electrical connection.

Type Gas Charbroiler
Style Heavy Duty
Installation Type Countertop
Heating Source Radiant
Controls Manual
Ignition Type Standing Pilot
Burners 6
BTU 120,000 BTU
Material Stainless Steel
Gas Connection Size 3/4 Inch Rear NPT
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 30 Inches
Shipping Height 17 Inches
Shipping Weight 335 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year limited parts and labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Catalog PDF Download

Frequently Asked Questions

It uses radiant gas heat for even grilling performance.
This model has 6 burners with a total output of 120,000 BTU.
It includes reversible, height-adjustable cast iron grates.
Yes. It is designed for natural gas or LP gas and is field convertible between them.
It uses a 3/4-inch rear NPT gas inlet.
Yes. It includes a removable stainless steel drip tray for easier cleaning.
