AccuTemp

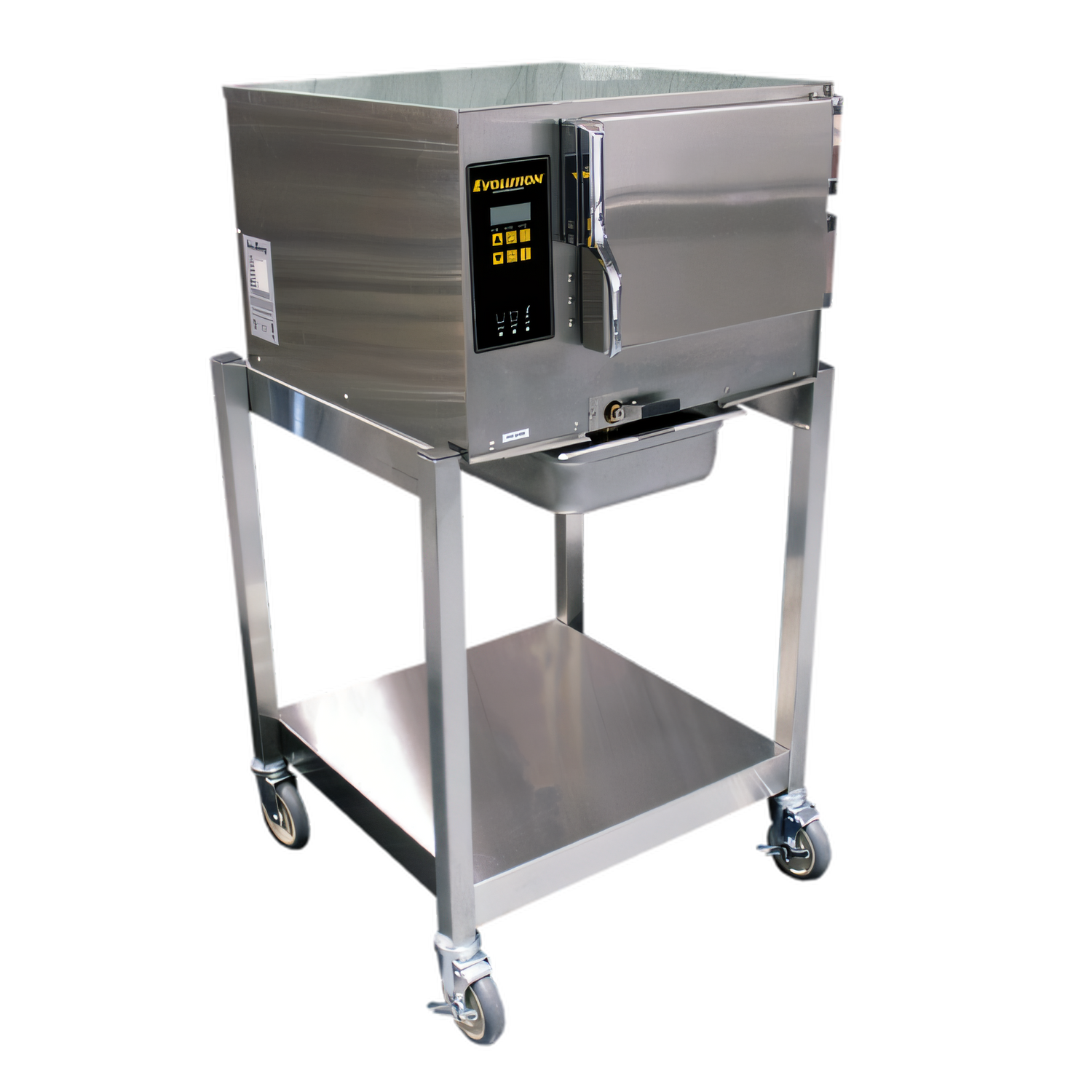

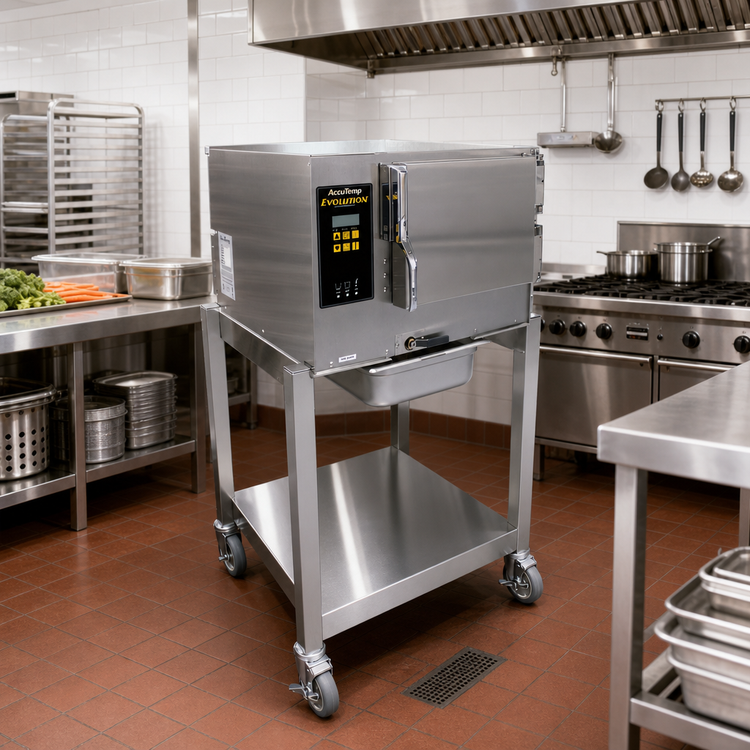

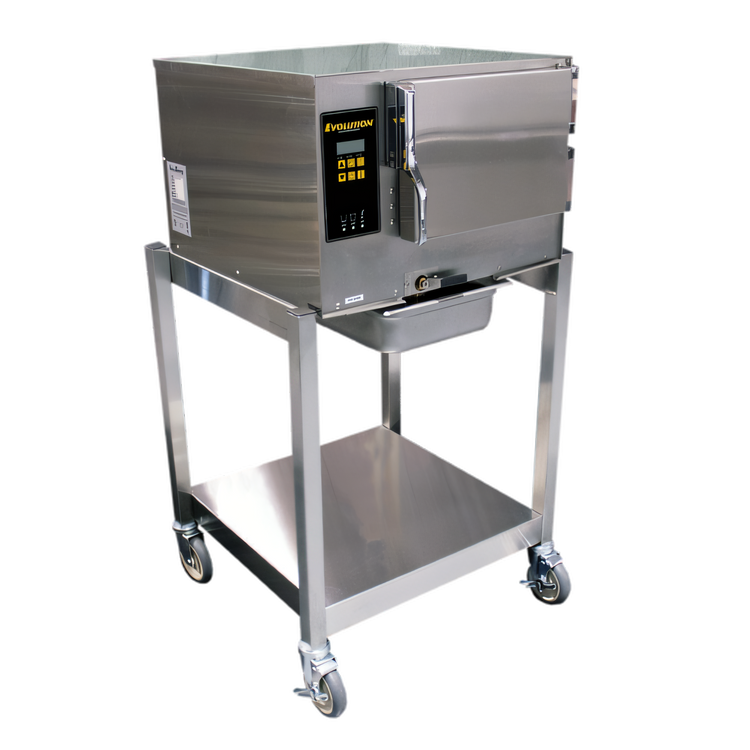

AccuTemp Evolution 3-Pan Connectionless Boilerless Electric Convection Steamer, 14 kW, 480V, Stand-Mounted

SKU: E34803D140 SGL
$10,867.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

AccuTemp Evolution 3-Pan Connectionless Boilerless Electric Convection Steamer, 14 kW, 480V, Stand-Mounted

Digital Controls, No Water or Drain Connection Required

Cook faster and more consistently with a 3-pan steamer that needs no water line, drain line, or filtration system.

  • Connectionless, boiler-free design eliminates the need for water or drain connections.
  • Patented Steam Vector Technology helps deliver fast cook times and consistent results.
  • Holds three full-size 12 x 20 x 2-1/2-inch pans in a single compartment.
  • Digital controls with cook and hold modes, plus a programmable preset timer, simplify operation.
  • Low-maintenance design uses less than 1.5 gallons of water per hour and requires no scheduled de-liming.
  • Stand-mounted electric model includes a 5-foot cord with NEMA L16-20P plug; no hood is required in most states.

Overall Dimensions:

26.63"W x 30.42"D x 49.15"H

Product Weight:

230.0 lb

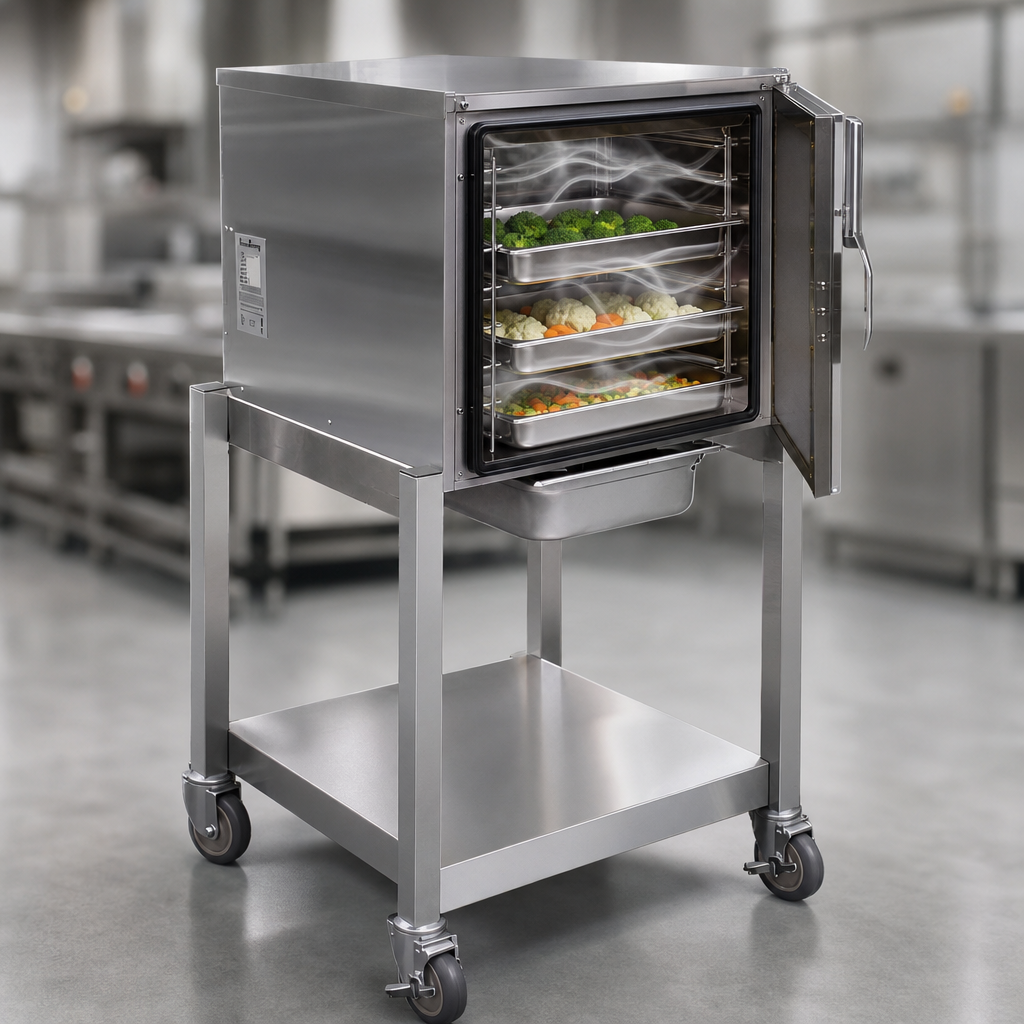

Steam Vector Technology

Patented cooking technology uses no moving parts in the chamber to help speed cook times and improve pan-to-pan uniformity.

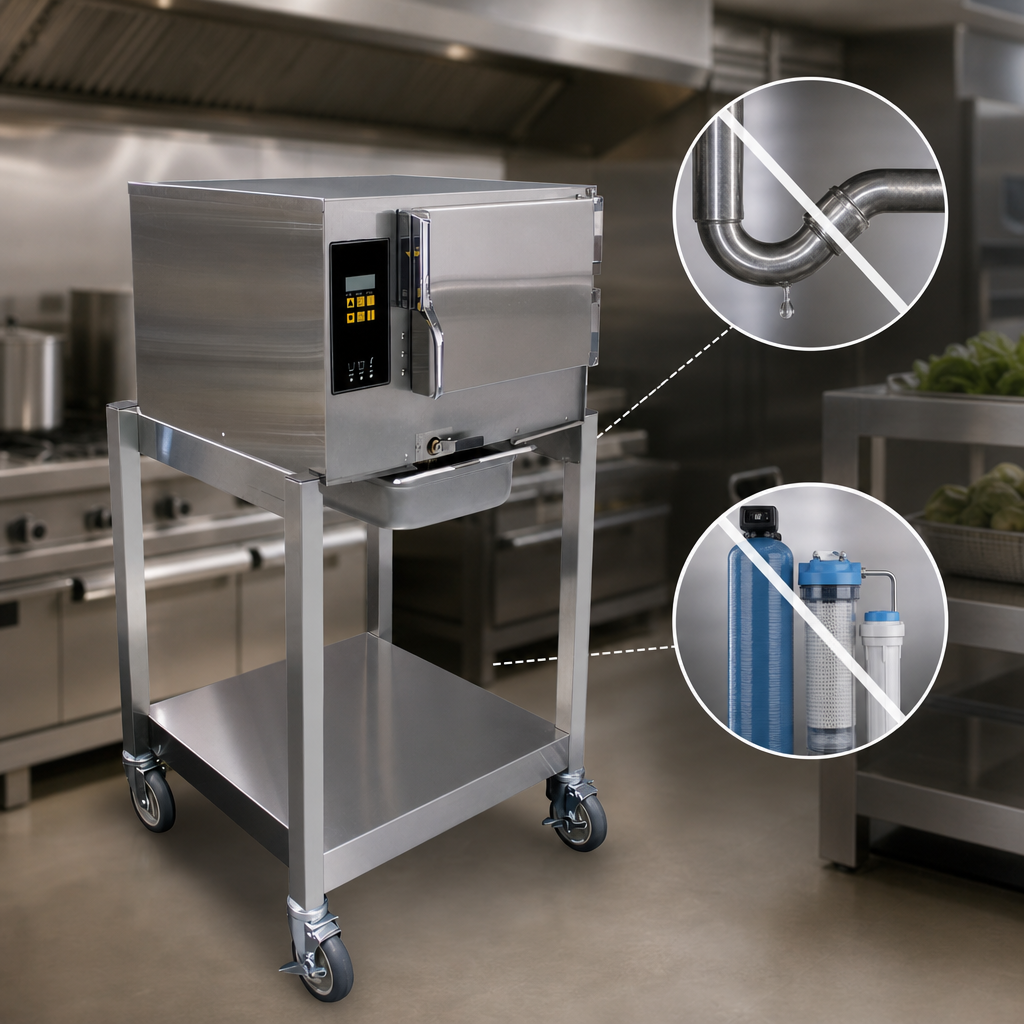

Connectionless Operation

Requires no water or drain line, and no water filtration or treatment is needed.

Digital Controls

Easy-to-use digital controls include a digital temperature display, cook mode, variable hold temperature mode, and an independent programmable preset timer.

Pan Capacity

Designed for three full-size 12 x 20 x 2-1/2-inch pans; the capacity chart also lists two 12 x 20 x 4-inch pans.

Low-Maintenance Design

Uses less than 1.5 gallons of water per hour, includes a 3-gallon water reservoir, and requires no scheduled de-liming.

Heavy-Duty Door

Field-reversible door can be opened during the cooking cycle for convenience and flexibility.

Safety Indicators

Low water, high water, and overtemp indicator lights plus auto shutoff help support safe operation.

Easy-To-Clean Construction

Reinforced 14-gauge 304 stainless steel cavity and dishwasher-safe one-piece wire pan racks simplify cleanup.

Installation Convenience

A 5-foot power cord with plug is included, and a stainless steel support stand is available with casters, bullet feet, or flanged feet.

Type Convection Steamer
Style Connectionless, Boilerless
Installation Type Floor Model (With Stand)
Compartments 1
Pan Capacity 3 Full-Size Pans
Pan Size 12 x 20 x 2-1/2 Inches
Controls Digital
Material Stainless Steel
Interior Finish 304 Stainless Steel
Voltage 480 Volts
Amps 17 Amps
Watts 14 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA L16-20P
Breaker Size 20 Amps
Cord Length 5 Feet
Water Connection Not Required
Drain Connection Not Required
Reservoir Capacity 3 Gallons
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 31 Inches
Shipping Height 50 Inches
Shipping Weight 230 lb.

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Frequently Asked Questions

No. It is a connectionless design that requires no water or drain connections, and no water filtration or treatment is needed.
It holds three full-size 12 x 20 x 2-1/2-inch pans. The capacity chart also lists two 12 x 20 x 4-inch pans.
The unit is listed at 480 Volts, 60 Hz, 3-Phase, 17 Amps, 14 kW, with a NEMA L16-20P plug and a 20-amp breaker size.
No hood is required in most states.
The steamer uses less than 1.5 gallons of water per hour, has a 3-gallon reservoir, does not require water treatment or filtration, and has no scheduled de-liming.
The unit includes a one-year parts and labor warranty plus a Lifetime Service & Support Guarantee.
