Key specifications

Amps
17 Amps
Phase
3-Phase
Dimensions
23.26"W × 30.42"D × 20.97"H
Type
Countertop Steamer
Style
Connectionless
Installation Type
Countertop
Spec sheet
AccuTemp SKU: E34803D140

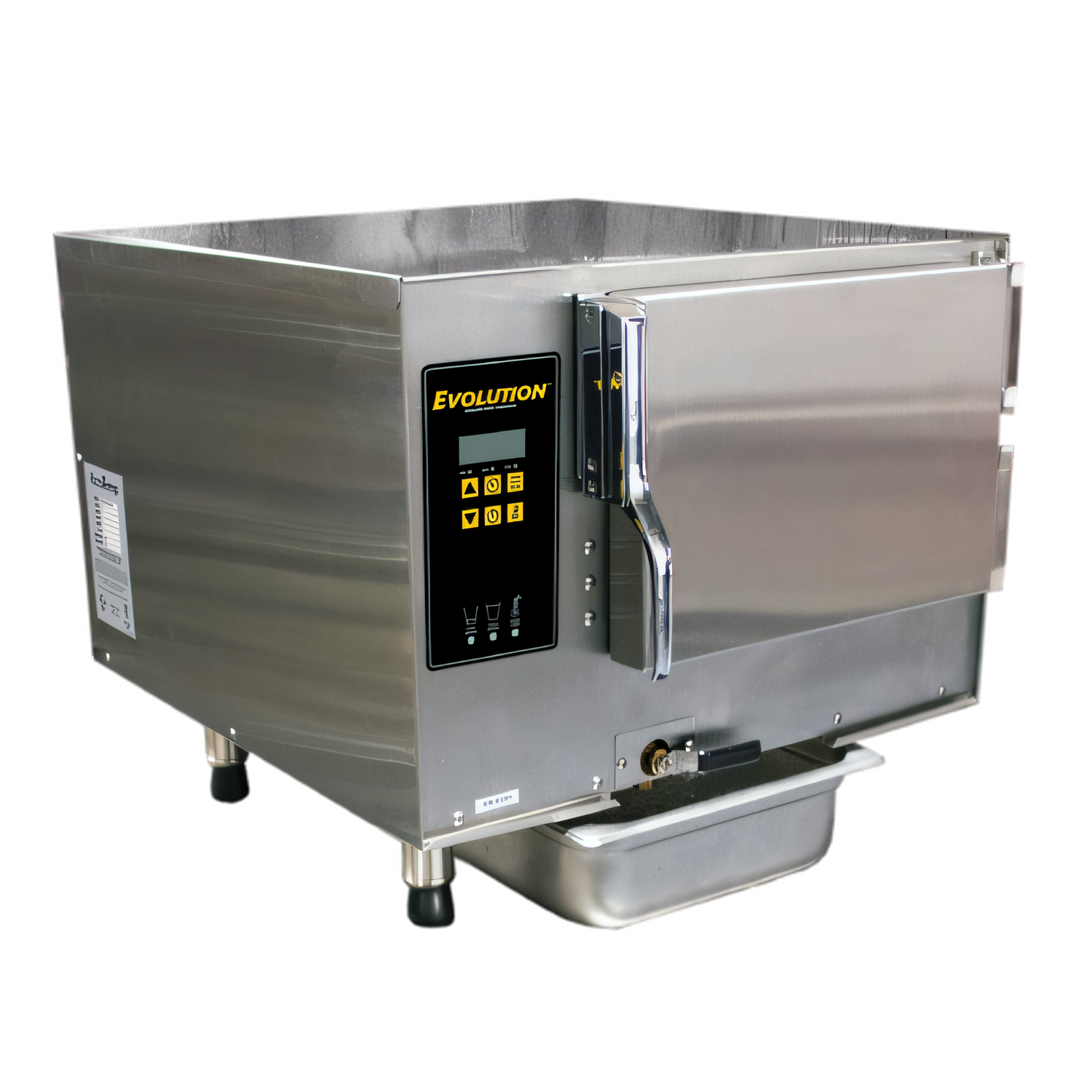

AccuTemp Evolution E34803D140 Connectionless 3-Pan Steamer

$9,438.55
/each
Estimated to ship in 3–6 business days
Electrical
Countertop feetRequired
Included: AccuTemp warranty One-year parts and labor limited warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $873/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Countertop Steamer
Style Connectionless
Installation Type Countertop
Material 304 Stainless Steel
Country of Origin USA
Pan Size 12 x 20 x 2.5 Inches
Pan Capacity 3 Pans
Reservoir Capacity 2.5 Gallons
Boiler Type Boiler-Free
Cooking Method Convection
Operation Electric
Water Connection None Required
Drain Connection None Required
Controls Digital Controls
Steam Technology Steam Vector Technology
Voltage 480 Volts
Amps 17 Amps
Watts 14 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA L16-20P
Cord Length 5 Feet

Description

The AccuTemp Evolution E34803D140 is a connectionless, boiler-free convection steamer designed for countertop commercial use. It holds three 12 x 20 x 2.5-inch pans and requires no water or drain line.

Steam Vector Technology uses no moving parts inside the cooking chamber. The unit features digital controls with a digital temperature display, an independent programmable timer, a 2.5-gallon water reservoir, and a reinforced 304 stainless steel cooking cavity.

  • Uses less than 1 gallon of water per hour.
  • No water filtration or treatment is required.
  • Includes a 5-foot power cord with NEMA L16-20P plug.
  • Heavy-duty, one-piece field-reversible door.
  • ENERGY STAR qualified and made in the USA.

Overall Dimensions:

23.26"W x 30.42"D x 20.97"H

Product Weight:

180.0 lb

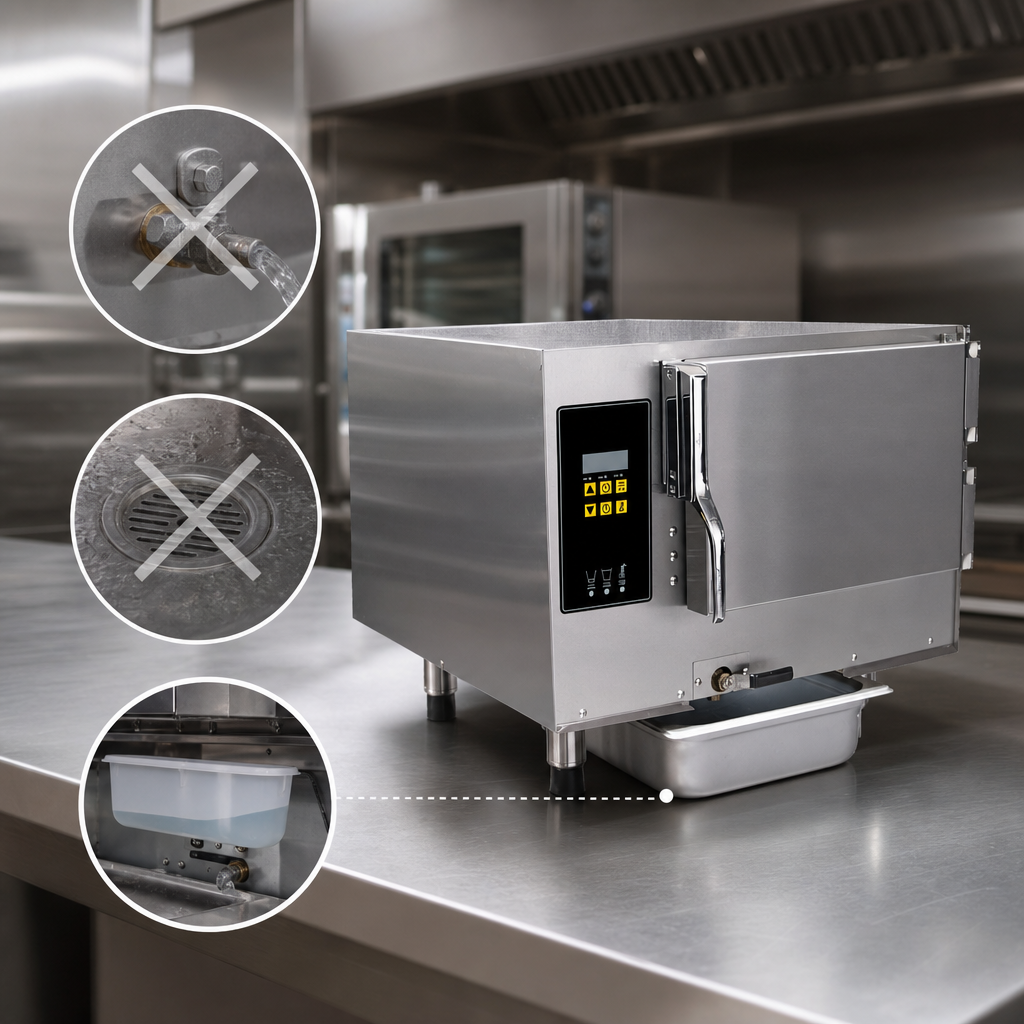

Connectionless Operation

Requires no water or drain line, and no water filtration or treatment is required.

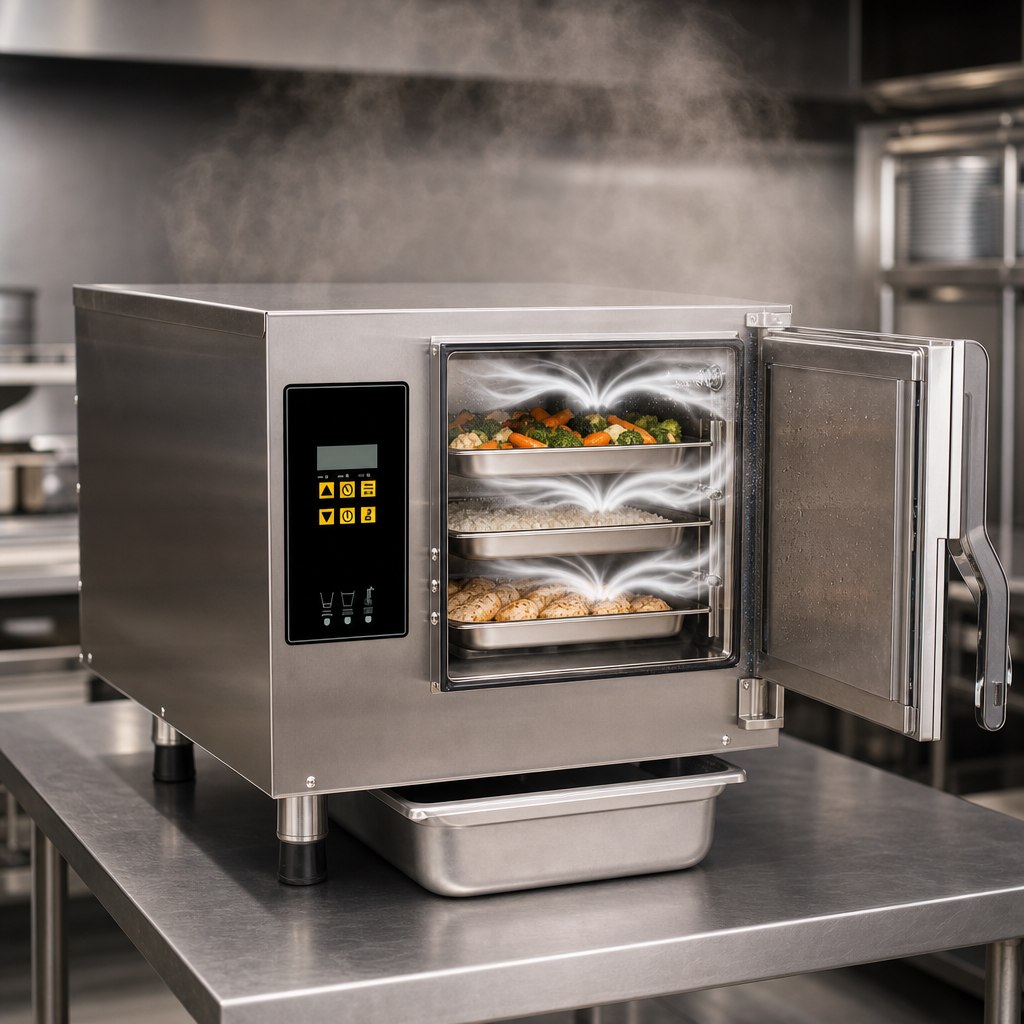

Steam Vector Technology

Patented technology that uses no moving parts inside the cooking chamber.

Digital Controls

Easy-to-use digital controls with a digital temperature display.

Programmable Timer

Independent digital electronic timer with programmable preset.

Variable Temperature Holding

Provides cook mode and variable temperature hold mode.

Pan Capacity

Holds three 12 x 20 x 2.5-inch pans.

Water Reservoir

Includes a 2.5-gallon water reservoir and uses less than 1 gallon of water per hour.

Stainless Steel Cooking Cavity

Cooking cavity is constructed of reinforced 304 stainless steel.

Field-Reversible Door

Heavy-duty, one-piece field-reversible door.

Automatic Altitude Compensation

Includes automatic altitude compensation.

Water Quality Warranty Provision

The cutsheet states that the warranty has no exclusions for water quality.

Frequently Asked Questions

No. The E34803D140 requires no water or drain line, and no water filtration or treatment is required.
It holds three 12 x 20 x 2.5-inch pans.
The unit is rated at 14 kW, 480 Volts, 60 Hz, and 3-Phase, with 17 Amps and a NEMA L16-20P plug.
Yes. It has digital controls with a digital temperature display and an independent programmable timer.
The product is 23.26 inches wide, 30.42 inches deep, and 20.97 inches high, with a weight of 180 lb.
The product has a one-year parts and labor limited warranty. The warranty period is 12 months from installation or 15 months from shipment, whichever occurs first, and registration is required at installation.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
