AccuTemp E34403E120 TPL Evolution Steamers (Countertop & Floor)

SKU: E34403E120 TPL
$33,042.90
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

AccuTemp New Arrivals

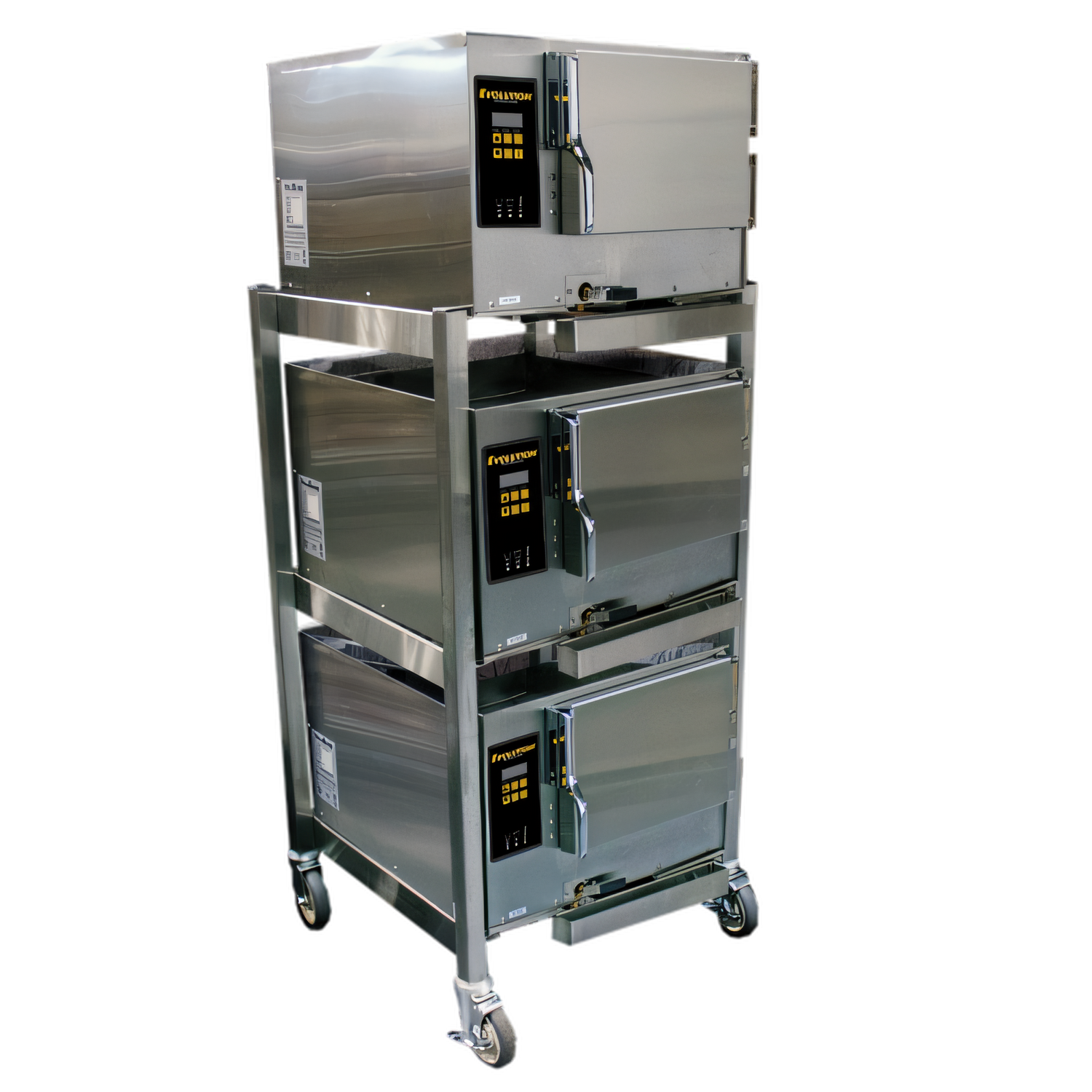

AccuTemp Evolution™ Triple-Stack Boiler-Free Convection Steamer

Steam Vector Technology | 9-Pan Capacity | 480 V 3-Phase | ENERGY STAR®

Take speed, simplicity and reliability to the next level with the Evolution™. Powered by AccuTemp’s patented Steam Vector Technology, this connected, boiler-free steamer delivers even, high-velocity steam with no moving parts and less than 1.5 gallons of water per hour— all while giving you nine full-size pan positions in a space-saving footprint.

Top Reasons to Choose Evolution™

  • Steam Vector Technology for faster cook times and pan-to-pan uniformity—no fans or pumps.
  • Boiler-free design means zero de-liming, zero water filters, zero warranty exclusions for water quality.
  • Three independent cavities (3-pan each) let you cook, hold or idle at different temperatures simultaneously.
  • Intuitive digital controls with cook & variable-hold modes, dedicated 99-minute timers and temperature display.
  • Heavy-duty, field-reversible doors can be opened at any time during the cycle.
  • 14 ga 304 SS cavities & cast-aluminum heating elements never submerged in water.
  • No hood required in most jurisdictions; ENERGY STAR, cULus & UL EPH Classified.
  • Proudly designed, built and supported in the USA.

Pan Capacity

Pan size Per cavity Total (3 cavities)
12 × 20 × 2.5 in (65 mm) 3 9
12 × 20 × 4 in (100 mm) 2 6

Technical Specifications

Model E34803E140 TPL (Triple-Stack, Connected)
Total power 14 kW (4.7 kW per cavity)
Electrical 3 × 480 V / 60 Hz / 3-phase
Amps / cord 17 A (20 A breaker recommended)
Plug 3 × NEMA L16-20P, 5 ft cords supplied
Water connection ¾" male garden-hose (each cavity)
Drain connection ¾" barbed (separate line for each cavity required)
Water consumption < 1.5 gal / hr
Overall size (W × D × H) 26.6″ × 29.4″ × 67″ (with stand)
Certifications cULus, UL EPH, ENERGY STAR, Made in USA
Includes stainless-steel stand—choose casters, bullet feet or flanged feet when ordering.
Installation Note: Unit ships with three separate power cords. Each cavity must be connected to its own 20 A, 480 V, 3-phase branch circuit and plumbed to its own drain line per AccuTemp installation guidelines.

AccuTemp Advantages

  • One-year parts & labor warranty plus lifetime Service & Support Guarantee.
  • Automatic altitude compensation ensures consistent results anywhere.
  • Dishwasher-safe wire racks and front condensate tray for quick clean-up.
  • Front-mounted drain valve for easy water removal.
  • No scheduled maintenance—ever.

Elevate your kitchen’s throughput and consistency today with the AccuTemp Evolution™— the simplest, smartest way to steam.

Overall Dimensions:

26.63"W x 30.42"D x 66.91"H

Product Weight:

590.0 lb
Manufacturer AccuTemp
Brand name Evolution
Certifications ["cULus", "UL EPH Classified", "Made in USA", "ENERGY STAR"]
Height 66.91in
Width 26.63in
Depth 30.42in
Shipping Weight 590.0lbs
Controls digital controls
Interior Finish stainless steel
Compartments 3
Pan Capacity per Compartment (3) 12"x20"x2-1/2" deep
Width (side - side) 27"
Specifications Three Connected Evolution™ Boilerless, Convection Steamers featuring Steam Vector Technology, electric, holds (3) 12" x 20" x 2-1/2" deep pans each compartment, Digital Controls, water & drain connection needs plumbed, warranty NOT voided by water quality, NO water filtration required, 14kw, (3) 480v/60/3-ph, (3) 5' cords & NEMA L16-20P, cULus, Made in USA, UL EPH Classified, ENERGY STAR® (Includes stand in configuration of choice)
