AccuTemp

AccuTemp E32403E110 TPL Evolution Steamers (Countertop & Floor)

SKU: E32403E110 TPL
$33,042.90
/each
Discontinued
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

AccuTemp New Arrivals

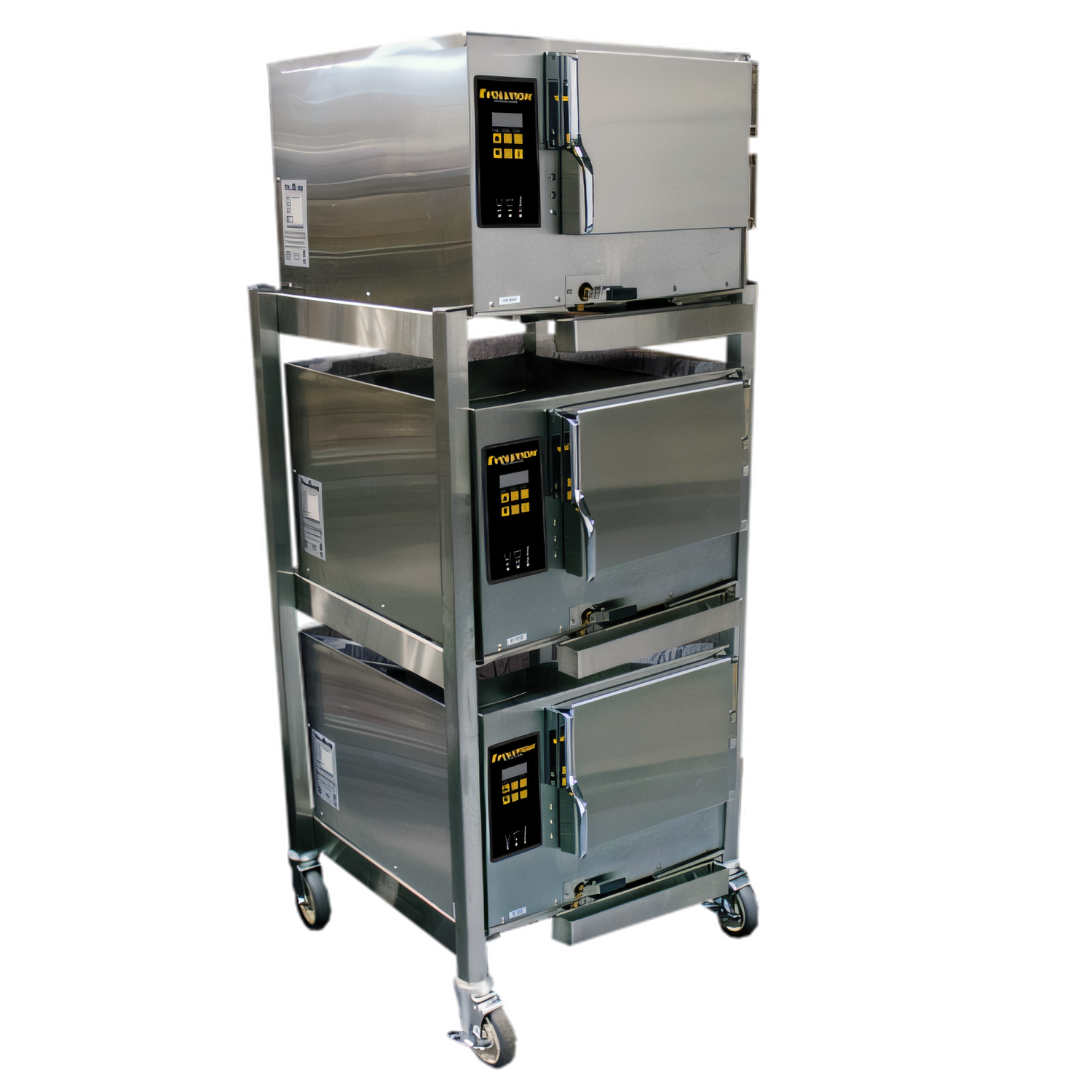

AccuTemp Evolution™ Triple-Stack Boilerless Convection Steamer

3 × 3-Pan Connected Package • Steam Vector Technology® • Includes Stand

Turbo-charge your high-volume kitchen with AccuTemp’s flagship Evolution™ steamer set. Three independently controlled, boiler-free cavities deliver lightning-fast, even results without the maintenance headaches of traditional generators or boiler systems. Simply hook up water, drain and power, roll the included stand into place, and start steaming smarter.

Key Advantages

  • Steam Vector Technology® – No moving parts, faster cook times and unrivaled pan-to-pan uniformity.
  • Zero boiler. Zero water filters. No scheduled de-liming and warranty is never voided by water quality.
  • Ultra-low water use: less than 1.5 gal/hr across all three cavities.
  • Intuitive digital controls with independent timers plus variable hold mode for perfect batch staging.
  • Field-reversible doors that can be opened any time during the cook cycle.
  • Heavy-duty 14-ga 304 stainless-steel cavity & cast-aluminum heating element (never exposed to water).
  • No hood required* in most jurisdictions – ask your local authority.
  • Backed by AccuTemp’s Lifetime Service & Support Guarantee and 1-year parts & labor warranty.

*Always verify local code requirements.

Capacities

  • Per cavity: (3) 12" × 20" × 2.5" pans (#200)  |  or (2) 12" × 20" × 4" pans (#400)
  • Total (triple stack): up to 9 #200 pans or 6 #400 pans

Technical Specifications

Model Evolution E3 TPL Connected (3-Cavity)
Heat Input 11 kW total at 240 V / 60 Hz / 3-ph
(Dual-voltage ready: 8 kW at 208 V)
Full-Load Amps 26.0 A
Electrical Connection (3) 5 ft cords with NEMA L15-30P twist-lock plugs
Water Connection ¾" MGH (garden-hose) – cold or hot, no filtration required
Drain ¾" barbed; each cavity requires a dedicated drain line
Water Consumption <1.5 gal per hour (all cavities combined)
Certifications cULus, UL EPH Classified (NSF/ANSI 4), ENERGY STAR®, Made in USA
Shipping Weight Approx. 544 lb in 3 crates

Included Stand

  • Stainless-steel frame with your choice of casters, bullet feet or flanged feet.
  • Front-mounted drain valve and condensate tray remain fully accessible.
  • Ships assembled and matched to the equipment for a perfect fit.
Installation Requirements: Unit must be hard-plumbed to a potable water line and dedicated drain for each cavity. Use individual 30 A branch circuits (3-phase, 240 V) with NEMA L15-30R receptacles.

Questions? Need a spec sheet or CAD drawing? Contact AccuTemp Service (+1 800-480-0415) or visit  accutemp.net.

Overall Dimensions:

26.63"W x 30.42"D x 66.91"H

Product Weight:

590.0 lb
Manufacturer AccuTemp
Brand name Evolution
Certifications ["cULus", "UL EPH Classified", "Made in USA", "ENERGY STAR"]
Height 66.91in
Width 26.63in
Depth 30.42in
Shipping Weight 590.0lbs
Compartments 3
Interior Finish stainless steel
Controls digital controls
Pan Capacity per Compartment (3) 12"x20"x2-1/2" deep
Width (side - side) 27"
Specifications Three Connected Evolution™ Boilerless, Convection Steamers featuring Steam Vector Technology, electric, holds (3) 12" x 20" x 2-1/2" deep pans each compartment, Digital Controls, water & drain connection needs plumbed, warranty NOT voided by water quality, NO water filtration required, 11kW, (3) 240v/60/3-ph (dual voltage unit, 8kW 208/60/3), 26.0 amps, (3) 5' cords & NEMA L15-30P, cULus, Made in USA, UL EPH Classified, ENERGY STAR® (Includes stand in configuration of choice)

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Terms & conditions PDF Download PDF Warranty sheet PDF Download
