Key specifications

Phase
3-Phase
Dimensions
23.26"W × 30.42"D × 20.97"H
Type
Convection Steamer
Style
Boilerless
Installation Type
Countertop
Material
304 Stainless Steel
Spec sheet
AccuTemp SKU: E32403E110

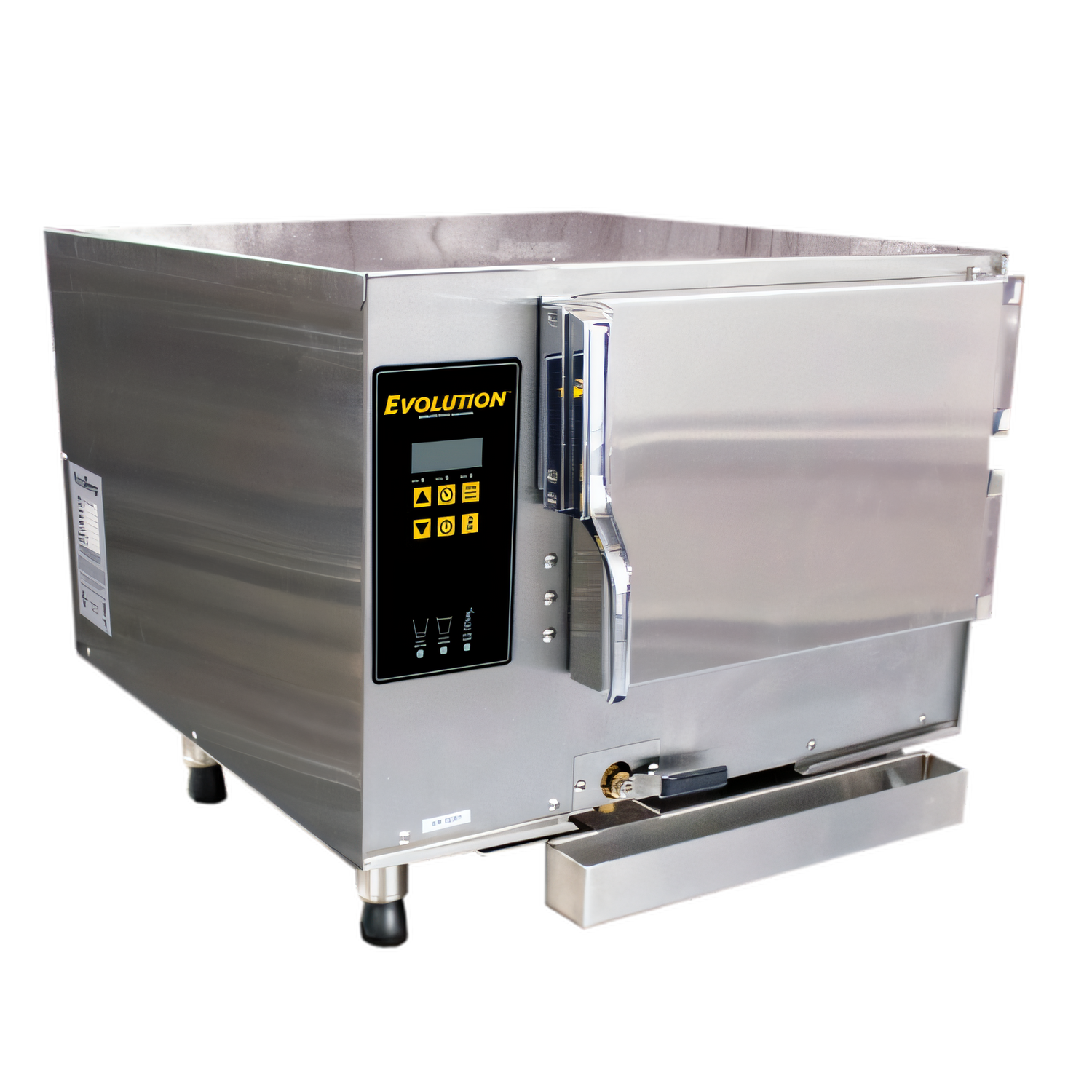

AccuTemp Evolution E32403E110 3-Pan Countertop Steamer

$10,199.20
/each
Estimated to ship in 3–6 business days
Electrical
Countertop feet

Need something else? Contact us.

Included: AccuTemp warranty One year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $943/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Convection Steamer
Style Boilerless
Installation Type Countertop
Material 304 Stainless Steel
Country of Origin USA
Power Source Electric
Pan Size 12 x 20 x 2.5 in
Pan Capacity 3 pans
Controls Digital Controls
Voltage 208/240 Volts
Watts 11 kW at 240 Volts; 8 kW at 208 Volts
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA L15-30P
Cord Length 5 ft
Steam Technology Steam Vector Technology
Water Reservoir Capacity 2.5 gal
Water Consumption <1 gal/h
Water Filtration Not Required
Water Connection 3/4 in. MGH
Drain Connection 3/4 in. Barbed
Door Type One-Piece Field Reversible

Description

The AccuTemp Evolution E32403E110 is a countertop electric boilerless convection steamer with Steam Vector Technology, digital controls, and capacity for three 12 x 20 x 2.5 in pans.

The steamer uses plumbed water and drain connections, includes automatic fill, and has a 2.5 gal water reservoir. It uses less than 1 gal of water per hour, requires no water filtration or treatment, and has no scheduled deliming requirement.

  • Electrical: Dual-voltage 3-phase operation at 11 kW and 240 Volts or 8 kW and 208 Volts, 60 Hz, with a NEMA L15-30P plug.
  • Controls: Digital temperature display, independent digital timer, and programmable preset.
  • Construction: Reinforced 304 stainless steel cooking cavity with a heavy-duty, one-piece field-reversible door.
  • Certifications: ENERGY STAR, UL EPH Classified, and cULus; made in the USA.

Overall Dimensions:

23.26"W x 30.42"D x 20.97"H

Product Weight:

180.0 lb

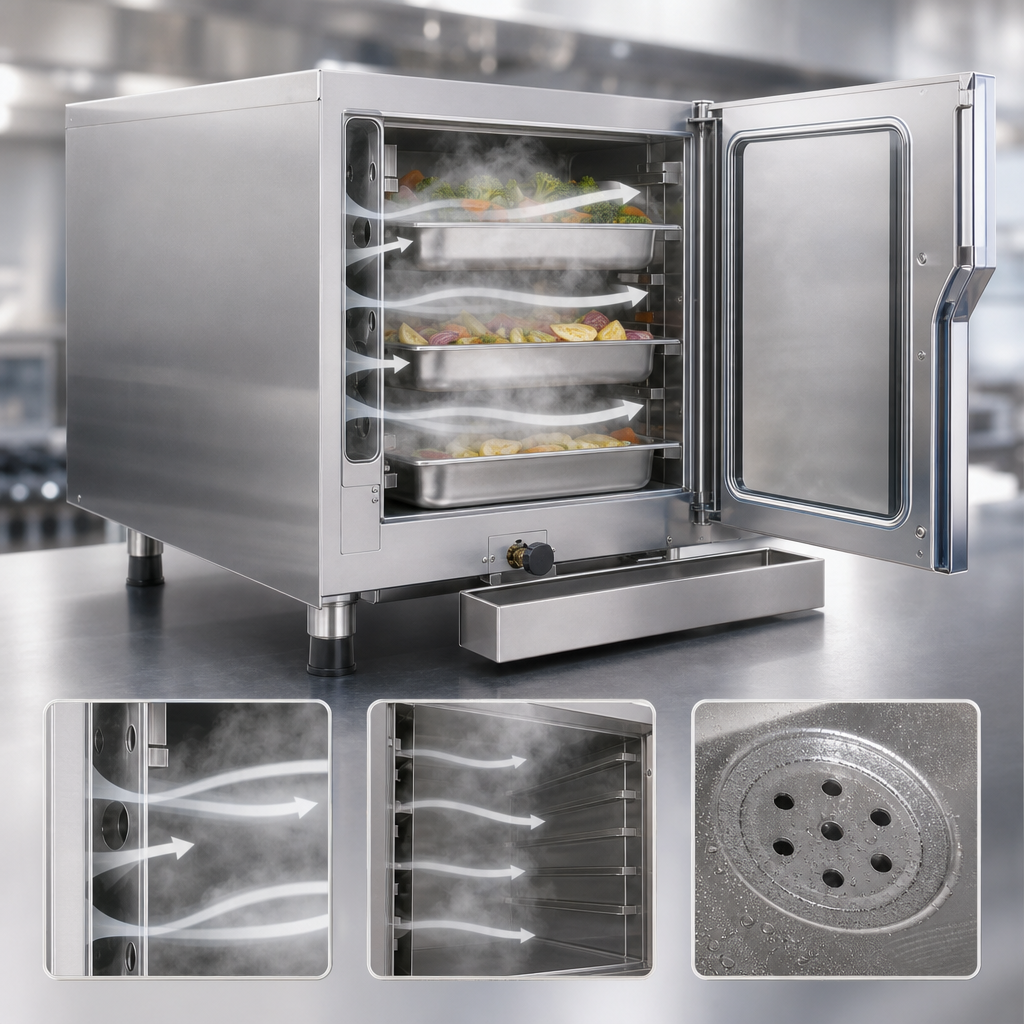

Steam Vector Technology

Patented Steam Vector Technology uses no moving parts inside the cooking chamber.

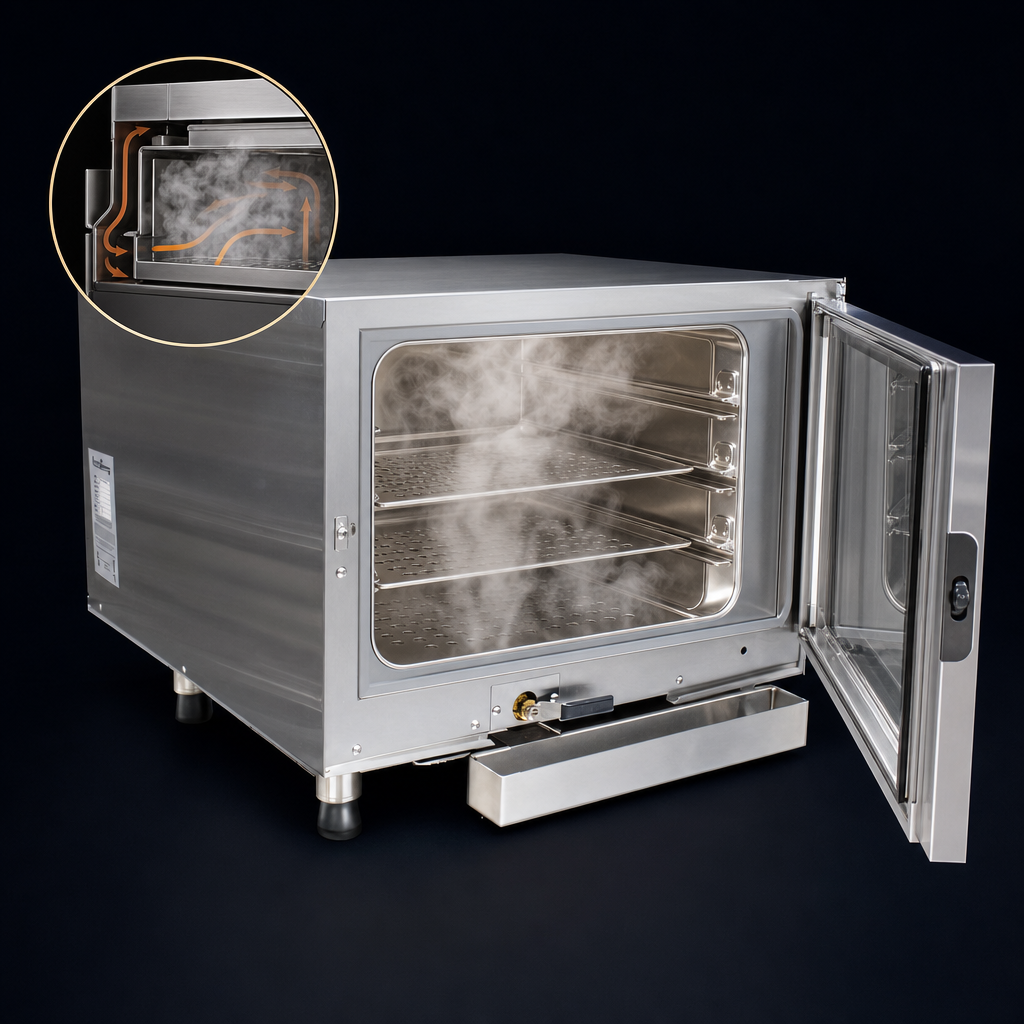

Boilerless Convection Steaming

Steam is produced inside the cooking cavity without a boiler, and the cast aluminum heating element is not exposed to water.

Three-Pan Capacity

Holds three 12 x 20 x 2.5 in pans.

Digital Controls

Includes a digital temperature display, independent digital timer, and programmable preset.

Automatic Fill

Automatic fill helps supply the water reservoir during operation.

Plumbed Connections

Requires connections to a water supply and drain.

Water Treatment

No water filtration or treatment is required, and no scheduled deliming is specified.

Field-Reversible Door

The heavy-duty, one-piece door is field reversible.

Operating Indicators

Low-water, high-water, and over-temperature indicator lights are included, along with an automatic shutoff feature.

Service Support

Includes a one-year parts and labor warranty and a Lifetime Service & Support Guarantee.

Frequently Asked Questions

It holds three 12 x 20 x 2.5 in pans.
Yes. It requires a plumbed water supply and drain connection.
It operates at 240 Volts, 11 kW, 60 Hz, 3-phase, or at 208 Volts, 8 kW, 60 Hz, 3-phase, and uses a NEMA L15-30P plug.
No. The steamer requires no water filtration or treatment, and no scheduled deliming is specified.
It has digital controls with a digital temperature display, independent digital timer, and programmable preset.
The steamer has a one-year parts and labor warranty. Coverage is 12 months from installation or 15 months from shipment, whichever occurs first; registration is required at installation.
It is made in the USA.
