AccuTemp E32401E080 TPL Evolution Steamers (Countertop & Floor)
Description

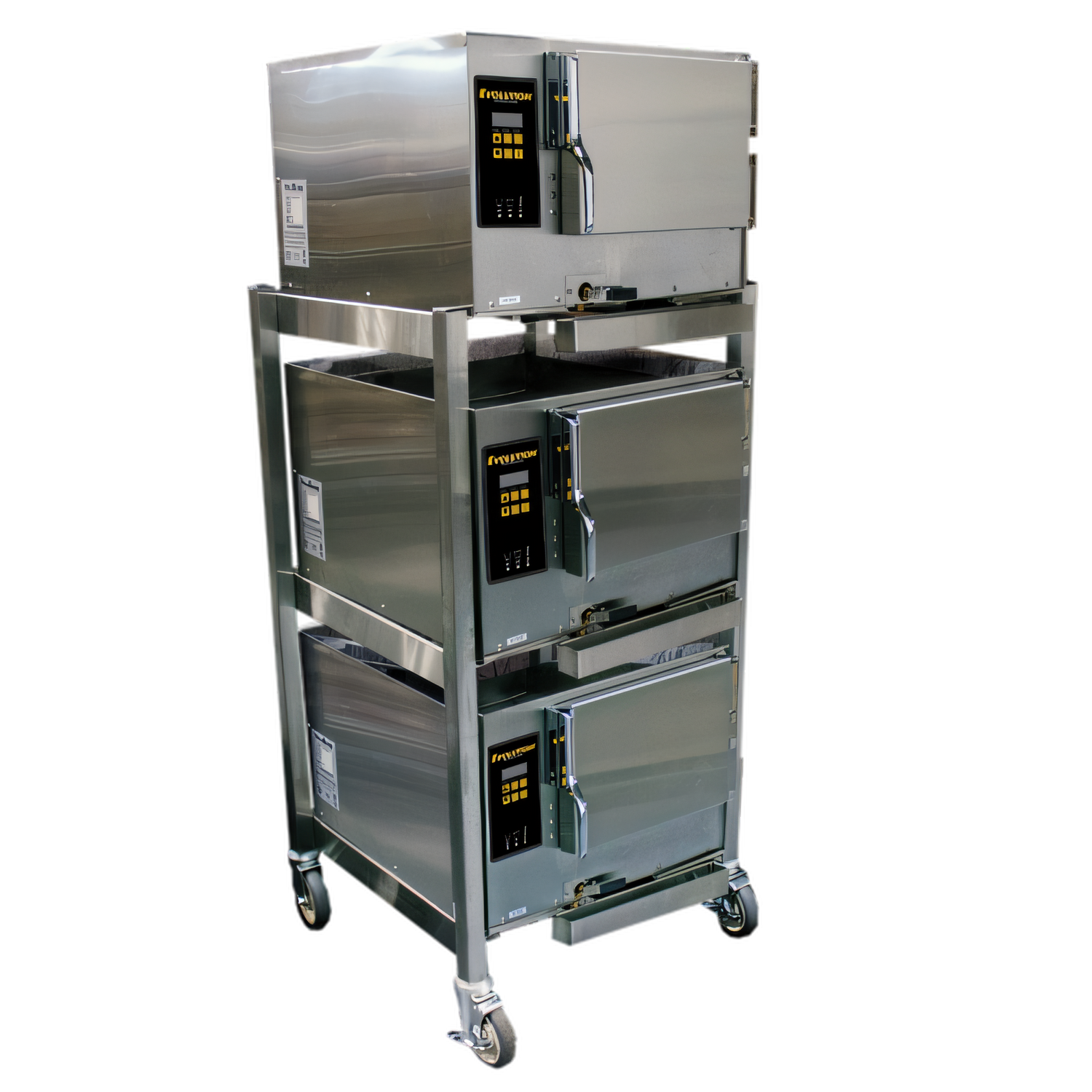

AccuTemp Evolution™ Triple-Stack Boilerless Convection Steamer
Steam Vector Technology • 9-Pan • 8 kW Electric • Model E32401E080-TPLThe Evolution™ Triple-Stack delivers all the speed of boilered steam without the headaches. Three independent, 3-pan cavities harness AccuTemp’s patented Steam Vector Technology to cook faster, use less than 1.5 gal of water per hour per cavity, and eliminate costly boiler maintenance. With digital precision, one-touch controls and a warranty that’s never voided by water quality, this Energy Star® powerhouse is the simplest way to add high-volume steaming—no filtration, no deliming, and (in most states) no ventilation hood required.
Top Reasons Operators Choose Evolution™
- Patented Steam Vector Technology – no moving parts, no exposed elements, superior pan-to-pan uniformity.
- 9 full-size hotel pans (12 × 20 × 2½″) in only 26 ⅝″ of width—perfect for tight lines.
- Boiler-free design slashes water & energy usage while eliminating mandatory de-liming schedules.
- Digital controls with independent timer, cook & variable-hold modes and bright temperature display.
- Field-reversible, heavy-duty doors that can be opened any time during the cook cycle.
- No water filtration required; warranty is never voided for water issues.
- Simple installation – ¾″ garden-hose water in, ¾″ barbed drain, and a 5′ cord with NEMA 6-50P plug per cavity.
- Made in the USA, cULus listed, UL EPH Classified & ENERGY STAR® certified.
- Lifetime Service & Support Guarantee and one-year parts & labor warranty.
Technical Specifications
| Configuration | Triple-stacked, boilerless convection steamer on included stand (casters, bullet or flanged feet) |
|---|---|
| Total Pan Capacity | 9 × 12 × 20 × 2½″ hotel pans (3 per cavity) |
| Heat Input | 8 kW per cavity (24 kW total) |
| Electrical | 240 V / 60 Hz / 1-ph, 32 A per cavity • (3) 5′ cords with NEMA 6-50P plugs |
| Water Usage | < 1.5 gal /hr per cavity |
| Connections | (3) ¾″ MGH water inlets • (3) ¾″ barbed drains – plumb separately |
| Controls | Digital temperature display, independent electronic timer with 5 presets, cook & variable-hold modes, automatic altitude compensation |
| Certifications | cULus, UL EPH (NSF/ANSI 4), EPA 202/NFPA 96 4.1.1.2 evaluated, ENERGY STAR®, Made in USA |
| Warranty | 1-Year Parts & Labor + Lifetime Service & Support – no water quality exclusions |
What’s in the Box
- (3) Evolution™ 3-pan boilerless steam cavities, pre-wired with 5′ power cords & plugs
- Stainless-steel stand in your choice of casters, bullet or flanged feet
- Dish-washer-safe wire pan racks & front condensate trays
- Owner’s Manual & quick-start guide
Need drawings, utility info or service support? Download resources anytime at AccuTemp.net or call 800-210-5907.
