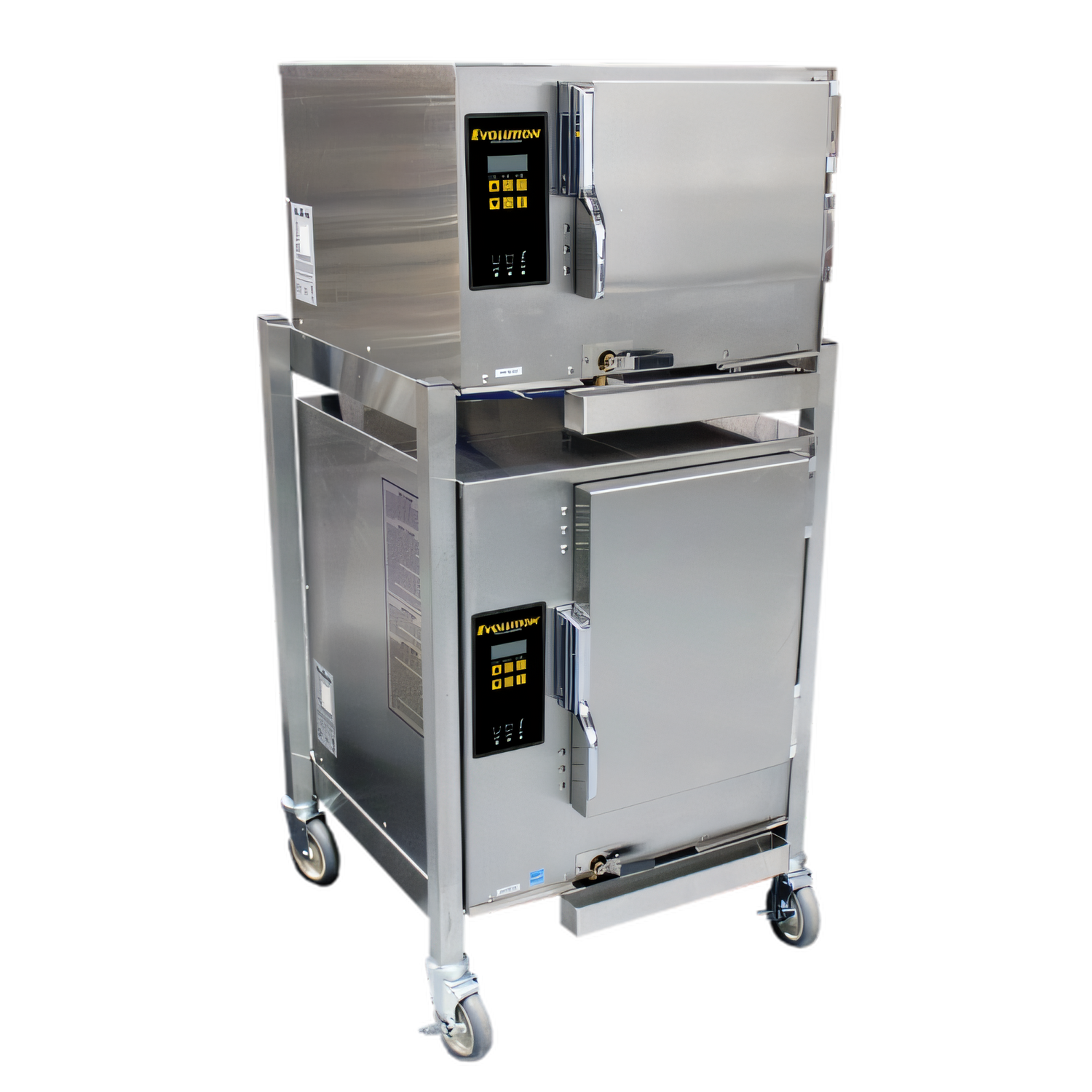

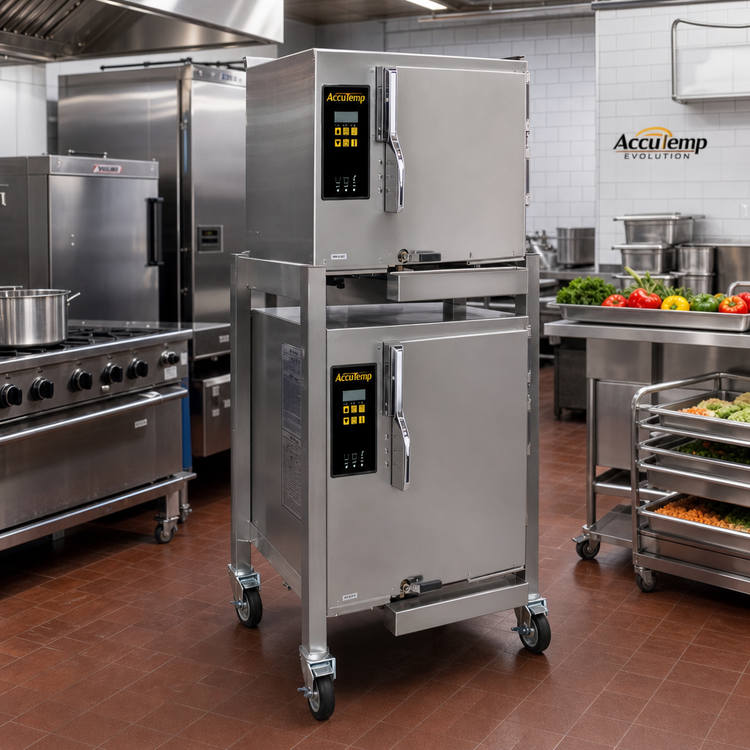

AccuTemp Evolution™ Connected Double Steamer – 3-Pan & 6-Pan, Boiler-Free, 480 V
Steam Vector Technology • 14 kW per cavity • ENERGY STAR®Bring lightning-fast, boiler-free steaming to every corner of your kitchen with AccuTemp’s Evolution™ double stack: a 3-pan countertop cavity perched on a 6-pan base steamer and delivered on the stainless support stand of your choice. Patented Steam Vector Technology (SVT) moves steam—not parts—so you can cook, hold and serve with fewer service calls, lower utility bills and no water-quality headaches.
Why You’ll Love It
- Boiler-free design with SVT for 30 % faster cook times and pan-to-pan uniformity.
- Uses < 1.5 gal of water per hour per cavity—save thousands of gallons yearly.
- No filters, treatments or de-liming required; warranty is never voided by water quality.
- Easy digital interface with Cook & Variable-Hold modes plus independent programmable timers.
- Heavy-duty, field-reversible doors that can be opened anytime during the cycle.
- Dish-washer-safe pan racks, condensate tray, and (6-pan) steam collector/distributor panels.
- Front-mounted drain valve and built-in altitude compensation for worry-free operation.
- Hoodless installation in most areas – EPA 202 / NFPA 96 4.1.1.2 compliant.
- Backed by AccuTemp’s 1-Year Parts & Labor Warranty and Lifetime Service & Support Guarantee.
Performance & Efficiency

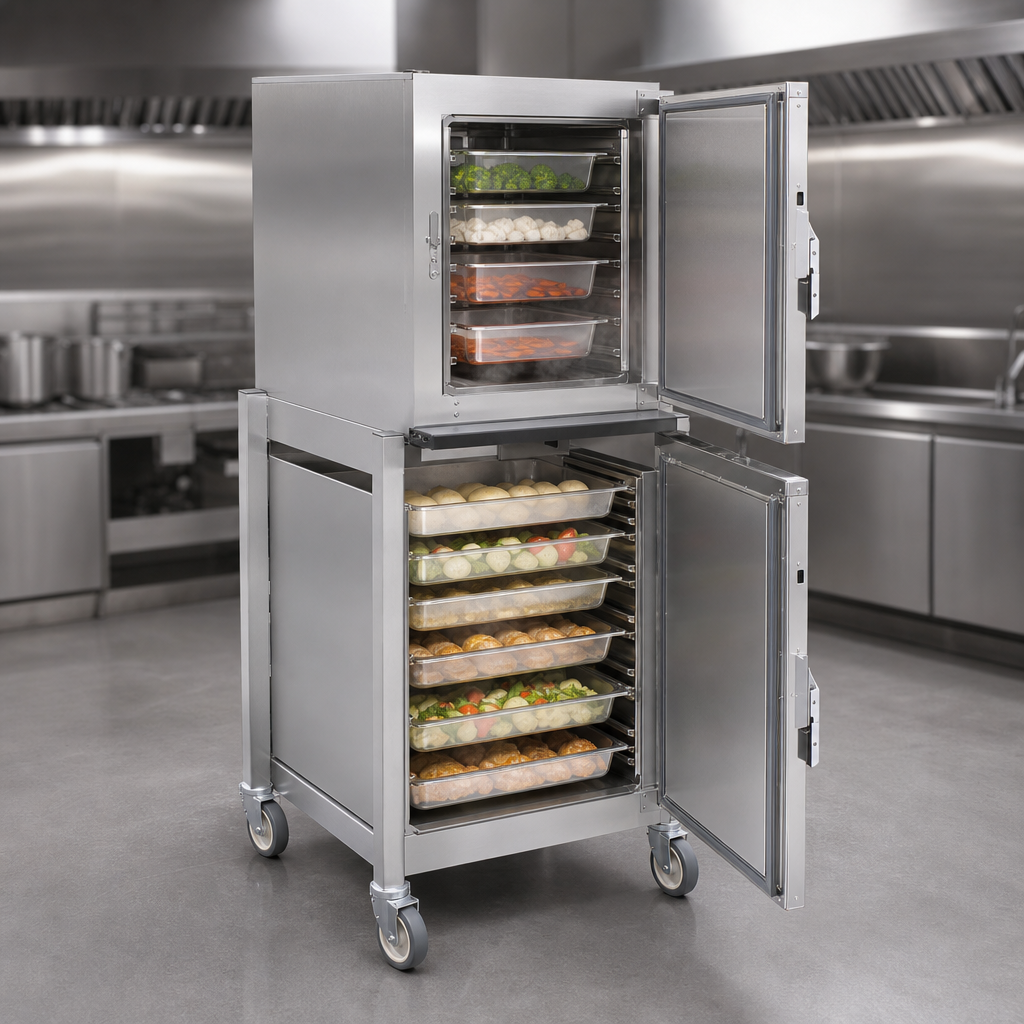

- Double cavity versatility: steam small batches up top while bulk cooking below.
- Cook & hold in the same cabinet—perfect for school, healthcare & QSR menus.
- Aluminum heating element is outside the water path; nothing to scale up or burn out.
- ENERGY STAR® qualified for reduced operating cost and possible local rebates.
At-a-Glance Specs
Model | E3/E6 DBL Connected Evolution™ (3-Pan + 6-Pan) |
---|---|
Pan Capacity | Up to 9 full-size 2.5" pans or 6 full-size 4" pans total |
Compartments | 2 (upper 3-pan, lower 6-pan) |
Power | (2) 14 kW, 480 V, 60 Hz, 3-Ph |
Amperage | 17 A per cavity |
Plug / Cord | (2) 5 ft cords with NEMA L16-20P |
Water Connection | ¾" MGH (one per cavity) |
Drain Connection | ¾" barbed (separate drain for each cavity required) |
Construction | 14 ga 304-SS cavity, stainless exterior & stand (casters, flanged or bullet feet) |
Certifications | cULus, UL EPH Classified, ENERGY STAR®, EPA 202-evaluated, Made in USA |
Warranty | 1-Year Parts & Labor + Lifetime Service & Support |
Installation requires two dedicated 20 A, 480 V/3-Ph branch circuits, separate drain lines, and a plumbed cold-water supply. Always consult local codes regarding ventilation and utilities.
