AccuTemp E3/E64403E120 DBL Evolution Steamers (Countertop & Floor)
Description

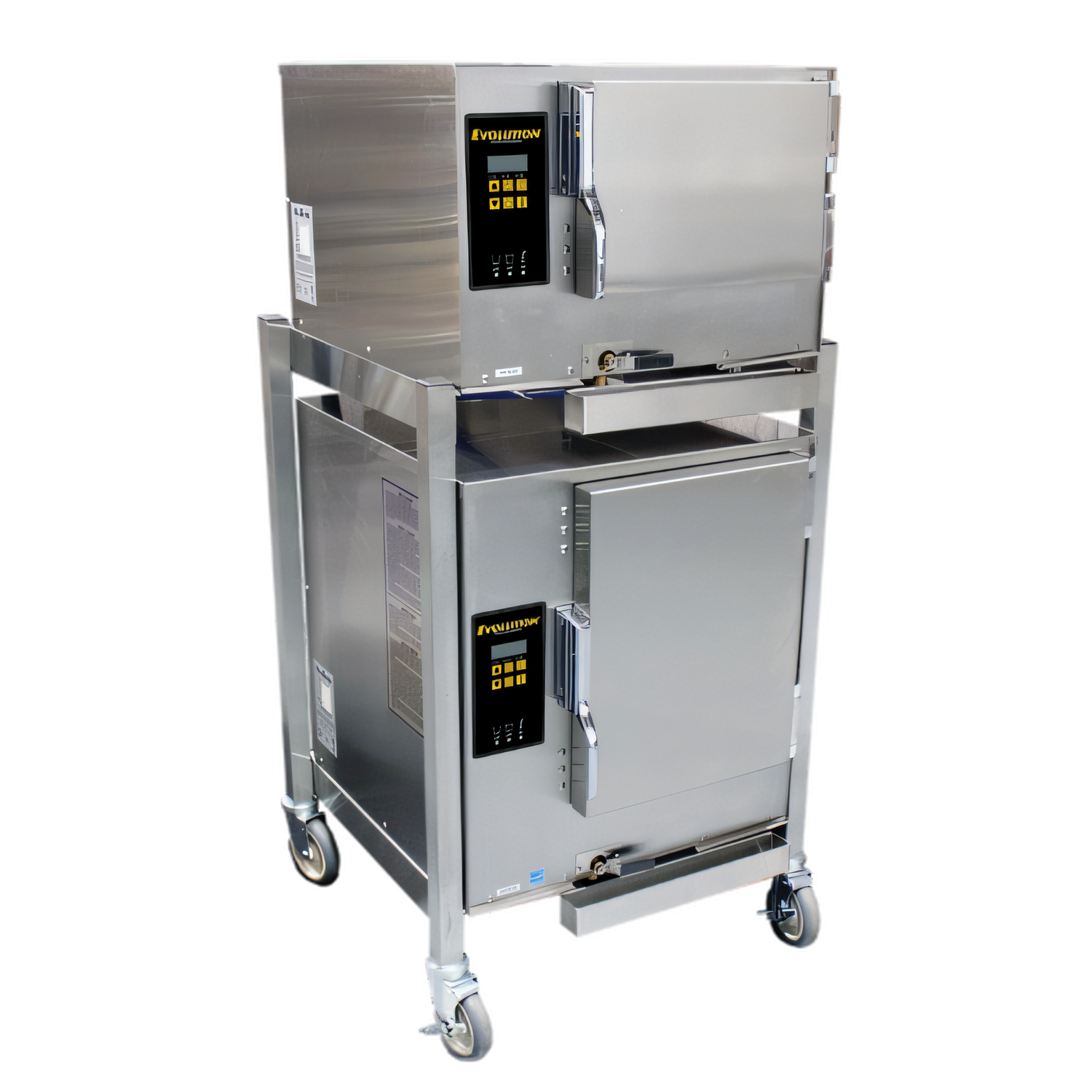

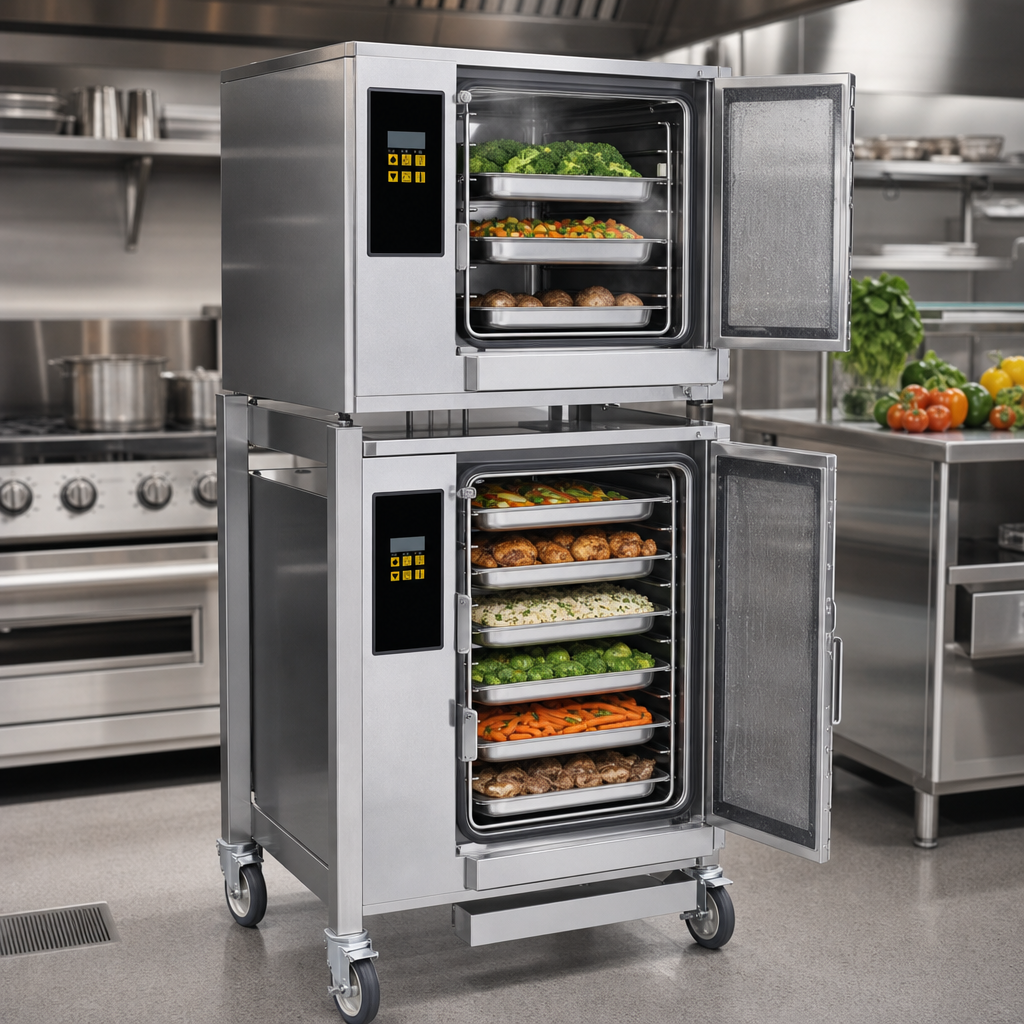

Evolution™ Double-Stack Connected Steamer – 3-Pan + 6-Pan
AccuTemp • 12 kW • 440 V / 60 Hz / 3-Ph • ENERGY STAR®Put the speed and consistency of AccuTemp’s patented Steam Vector Technology™ (SVT) to work in even the busiest kitchen. This boiler-free Evolution™ stack pairs one 3-pan and one 6-pan cavity—giving you independent control, faster cook times and industry-leading water and energy savings, all on a single compact footprint.
Why You’ll Love It

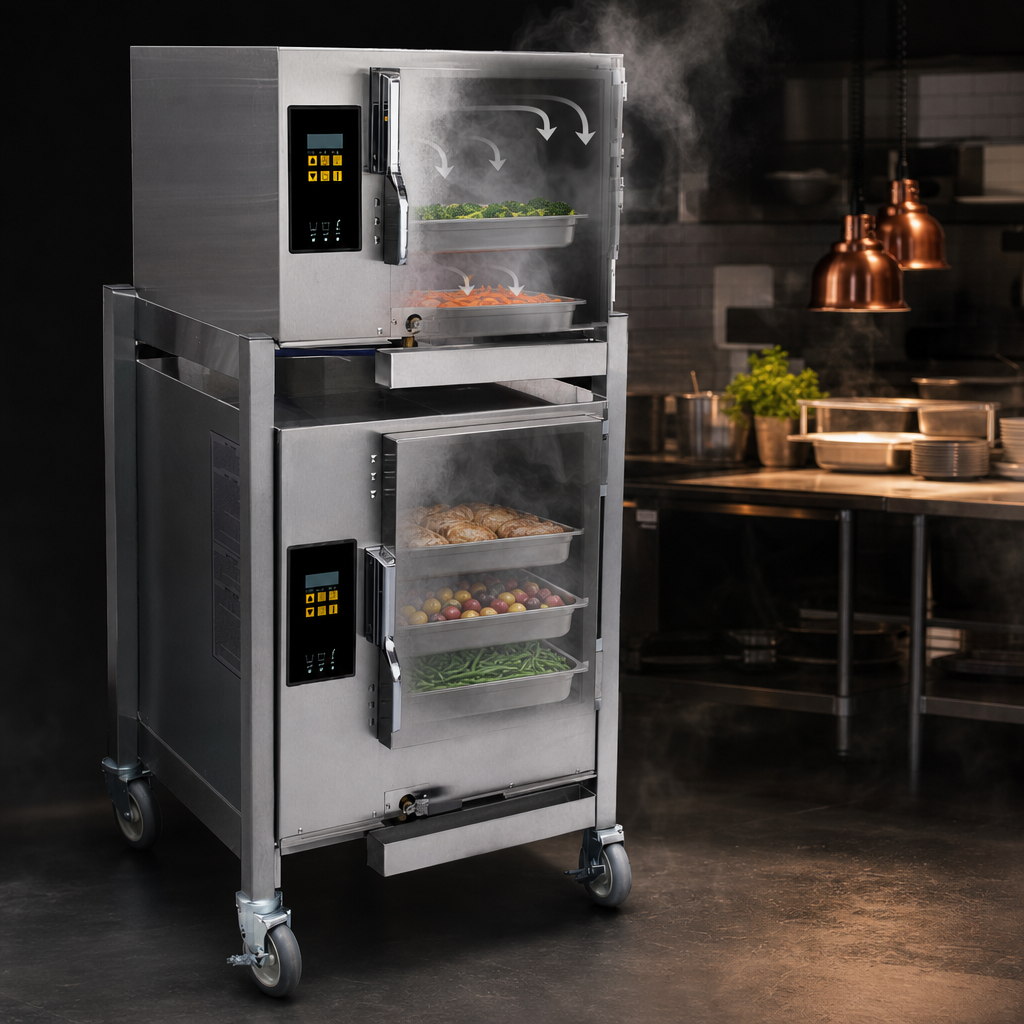

- Steam Vector Technology™ for lightning-fast, uniform cooking with zero moving parts.
- Boiler-free design—no de-liming, no water filtration, and warranty is never voided by water quality.
- Uses less than 1.5 gal of water per hour; saves thousands of gallons every year.
- Simple digital cook & variable-hold controls plus independent programmable timers.
- Heavy-duty, field-reversible doors can be opened at any time during the cook cycle.
- Automatic altitude compensation and low / high water & over-temperature safeguards.
- Dish-washer-safe wire racks, SVT collector & distributor panels (6-pan cavity) and condensate tray.
- No hood required in most jurisdictions (EPA 202 / NFPA 96 4.1.1.2 compliant—verify local codes).
- Built, tested and supported in the USA—with a 1-year parts & labor warranty and Lifetime Service & Support Guarantee.
Technical Specifications
| Cavities / Capacity | 1 × 3-pan & 1 × 6-pan (total 9 x #200 pans 12 × 20 × 2.5") Accepts 6 x #400 pans (4" deep) |
|---|---|
| Heat Input | 12 kW total |
| Electrical | (2) 5' power cords with NEMA L16-20P 440 V / 60 Hz / 3-phase, 16 A per cord Dedicated 20 A branch circuits required |
| Water & Drain | (2) ¾" MGH water connections (2) ¾" barbed drains – do not manifold |
| Water Usage | < 1.5 gal /hr |
| Exterior Dimensions | 23.63" W × 41.26" D × 55.36" H (with supplied stand) |
| Construction | 14 ga 304-stainless cavity, cast-aluminum heater isolated from water |
| Certifications | cULus, UL EPH Classified (NSF/ANSI 4), ENERGY STAR®, EPA 202 |
| Shipping | 416 lb (2 crates) – Freight class 92.5 |
Included in the Box
- Evolution™ 3-pan cavity (upper)
- Evolution™ 6-pan cavity (lower)
- Stainless-steel stand – choose casters, bullet or flanged feet
- (2) 5' power cords with plugs installed
- Dishwasher-safe pan racks & condensate tray
- Owner’s manual & quick-start door label
Upgrade to the Evolution™ today and experience faster ticket times, lower utility bills and the peace of mind that comes from AccuTemp’s unmatched lifetime support.
