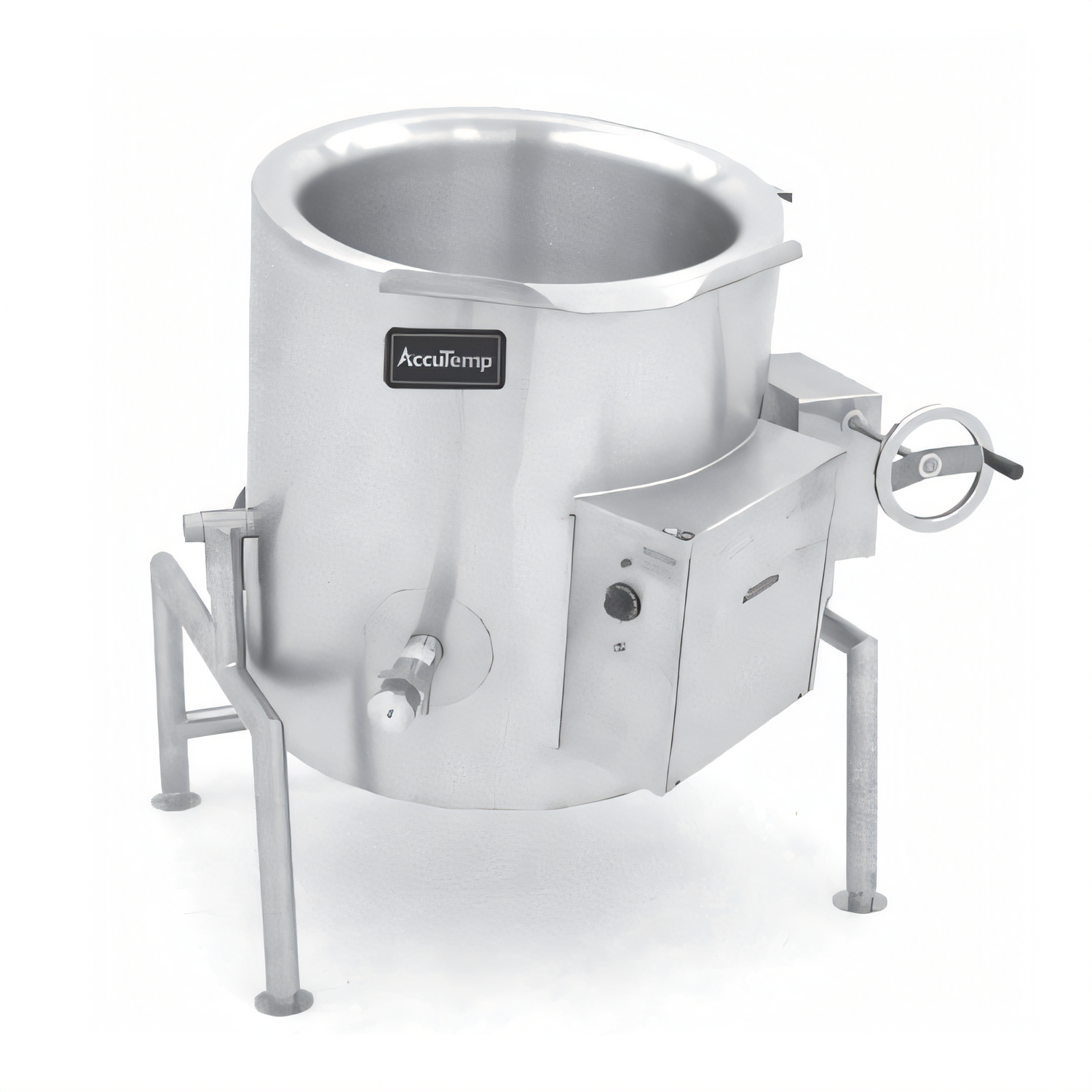

AccuTemp Edge Series™ Electric Tilting Kettle – 40 Gallon
Model ALTWE-40 | Self-Contained • 2/3 Jacket • 316 SS Liner • 30 PSIBuilt for demanding production kitchens, the Edge Series™ 40-gallon tilting kettle delivers consistent, steam-jacketed cooking power in a fully insulated, U-frame package that bolts securely to the floor and pours with absolute control.
Key Advantages
- Seamless, deep-drawn 316 stainless steel liner with integrally formed radius lip for quick clean-up.
- 2/3-jacket design surrounded by full-body insulation—cooler exterior, lower energy costs.
- Field-replaceable incoloy heating elements; no downtime waiting for factory service.
- Thermostat control from 150 °F – 260 °F (65 °C – 127 °C) plus automatic low-water shutoff & indicator.
- Self-locking worm-gear tilt and reinforced gearbox for smooth, precise pouring.
- Integrated safety package: 30 PSI pressure relief valve, air eliminator, pressure gauge & tilt cut-off switch.
- 304 SS jacket, outer casing and 2" tubular U-frame with adjustable flanged feet.
- UL & NSF listed; proudly made in the USA.
Perfect For
- Soups, sauces & gravies
- Pasta, rice & grains
- Vegetable blanching or braising
- Chili, oatmeal and other batch items
- Commissary & central kitchen production
Specifications
Capacity | 40 gal / 151 L |
---|---|
Construction | 316 SS liner, 304 SS jacket & outer shell |
Jacket Rating | 2/3 steam jacket, 30 PSI (207 kPa) |
Heating | Electric, 24 kW incoloy elements |
Thermostat Range | 150 °F – 260 °F (65 °C – 127 °C) |
Electrical Load (per leg) | 208 V 3Ø — 66.6 A | 240 V 3Ø — 57.7 A | 480 V 3Ø — 28.9 A |
Overall Dimensions | Approx. 46.6" W × 43.5" D × 47.5" H |
Pour Path Clearance | 41.4" |
Certifications | UL, NSF |
Origin | Made in USA |
What’s Included
- Pressure gauge & relief valve
- Air eliminator & jacket water fill valve
- Automatic low-water cutoff with indicator light
- Installation & operation manual
Popular Options & Accessories
- 2" or 3" draw-off valve (compression or ball type)
- Actuator-assisted lift-off lid or hinged lids
- Faucet packages, spray-hose assemblies & risers
- Electric timer with buzzer
- Basket inserts, measuring strip & pour-lip pan holder
- Two-speed mixer/agitator package
Warranty
One-year parts & labor coverage backed by AccuTemp’s nationwide network of authorized service agencies.
Need a different size? Edge Series kettles are also available in 20, 30 and 60-gallon capacities.
