AccuTemp ALTWE-20 Edge Series™ Steam Kettles
Description

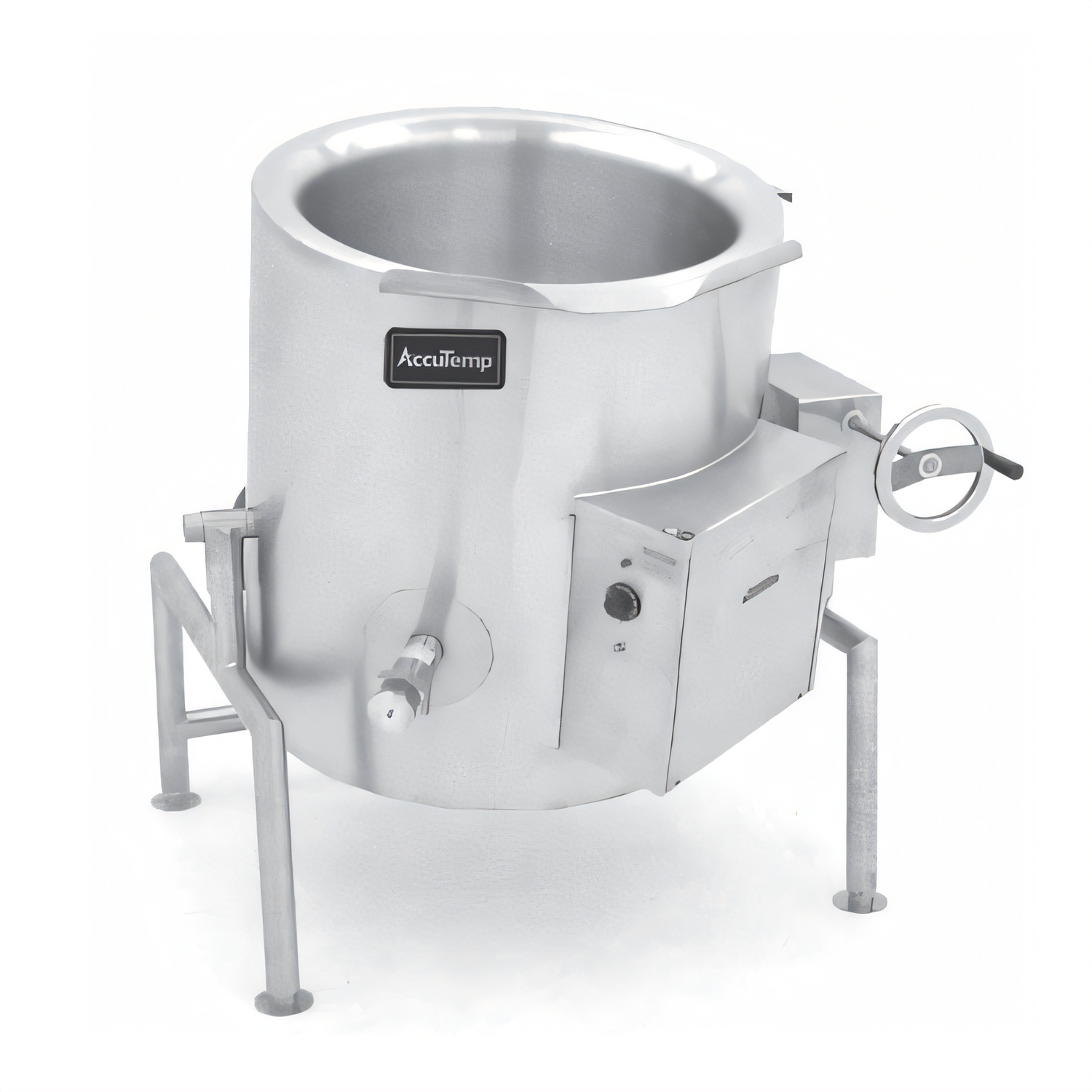

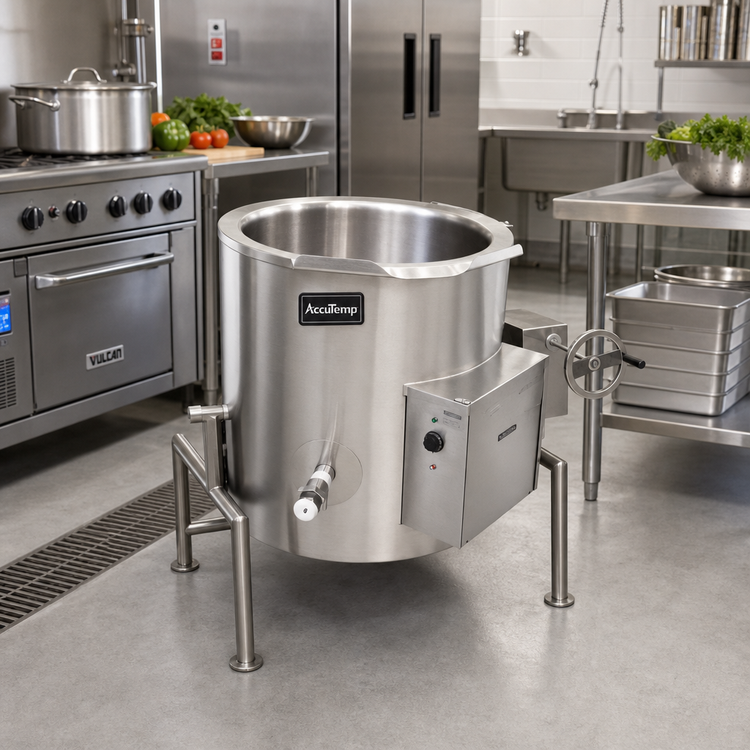

AccuTemp Edge Series™ 20-Gallon Electric Tilting Kettle
Model ALTWE-20 • 2/3-Jacketed • Floor MountedEngineered for demanding commercial kitchens, the Edge Series™ ALTWE-20 delivers fast, even, and energy-efficient kettle cooking in a space-saving, self-contained design. Its deep-drawn 316 stainless steel liner, robust U-frame base, and full-body insulation keep operators safe while maximizing durability and productivity.
Top Features
- 20 gal (75.7 L) capacity for soups, sauces, stews, pasta, and more.

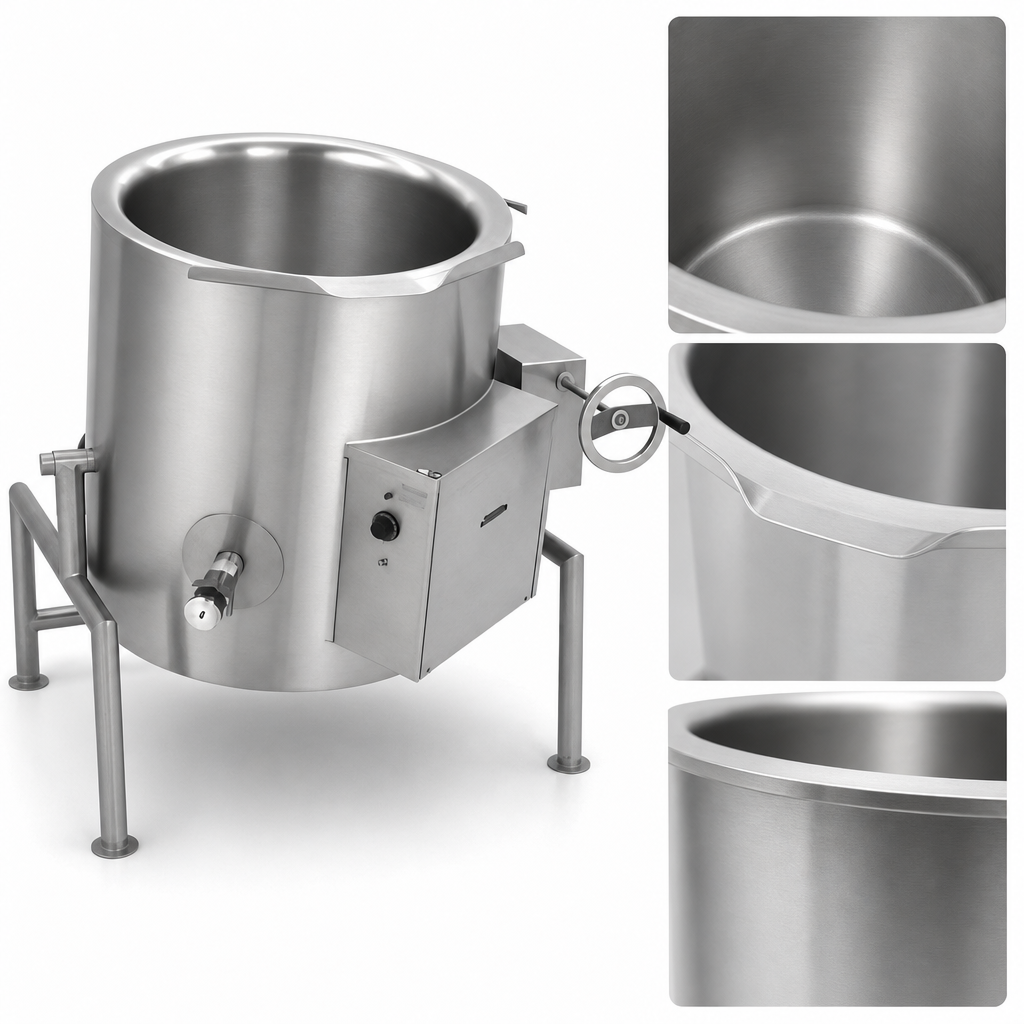

- Seamless 316 stainless kettle liner with integrally formed pouring lip—no welded seams to trap food soil.
- Field-replaceable 12 kW heating elements for minimal downtime and lower service costs.
- 2/3 jacket rated 30 PSI for rapid, uniform heat transfer.
- Thermostat-controlled 150 °F–260 °F (65 °C–127 °C) cooking range.
- Comprehensive kettle protection system: low-water cutoff, air eliminator, pressure relief valve, and tilt cut-off switch.
- Self-locking worm-gear tilt mechanism offers smooth, precise pouring.
- Full-body insulation keeps exterior surfaces cool and reduces energy loss.
- UL-listed, NSF-certified, and proudly made in the USA.
Specification Table
| Capacity | 20 gal / 75.7 L |
|---|---|
| Jacket Type & Rating | 2/3 jacket, 30 PSI |
| Liner / Jacket / Casing | 316 SS liner, 304 SS jacket & outer casing |
| Heating Power | 12 kW, electric |
| Temperature Control | Thermostat, 150 °F–260 °F (65 °C–127 °C) |
| Electrical (amps/leg) |
208 V 1ø 57.7 A / 3ø 33.3 A 240 V 1ø 50.0 A / 3ø 28.9 A 380 V 1ø 31.6 A / 3ø 18.2 A 415 V 1ø 28.9 A / 3ø 16.7 A 440 V 1ø 27.3 A / 3ø 15.7 A 480 V 1ø 25.0 A / 3ø 14.4 A |
| Approx. Dimensions* | 43.1" W × 42.0" D × 41.6" H (1096 × 1067 × 1057 mm) |
| Net Weight | Contact factory |
| Certifications | UL, NSF |
| Standard Warranty | 1-year parts & labor (U.S. & Canada) |
*Dimensions shown without optional draw-off valve.
Operational Advantages
- Deep-drawn bowl reduces food waste and simplifies cleaning.
- Seam-welded control console protects electronics from steam, water, and impact.
- U-frame base with adjustable flanged feet bolts securely to the floor for long-term stability.
- Low-water indicator light provides clear, at-a-glance feedback for staff.
Popular Accessories (Factory-Installed)
- 2" or 3" compression or ball-type draw-off valve
- Actuator-assisted lift-off or hinged cover
- Single or dual rinse faucets with 12" or 18" swing nozzles
- 60" flexible spray hose (vinyl or stainless)
- Electric timer with buzzer
- Basket inserts, pour-lip pan holder, measuring strip, and more
Looking for a mixer/agitator or automatic water fill? Contact AccuTemp for custom options.
