AccuTemp ALTLGB-80 Edge Series™ Steam Kettles
Description

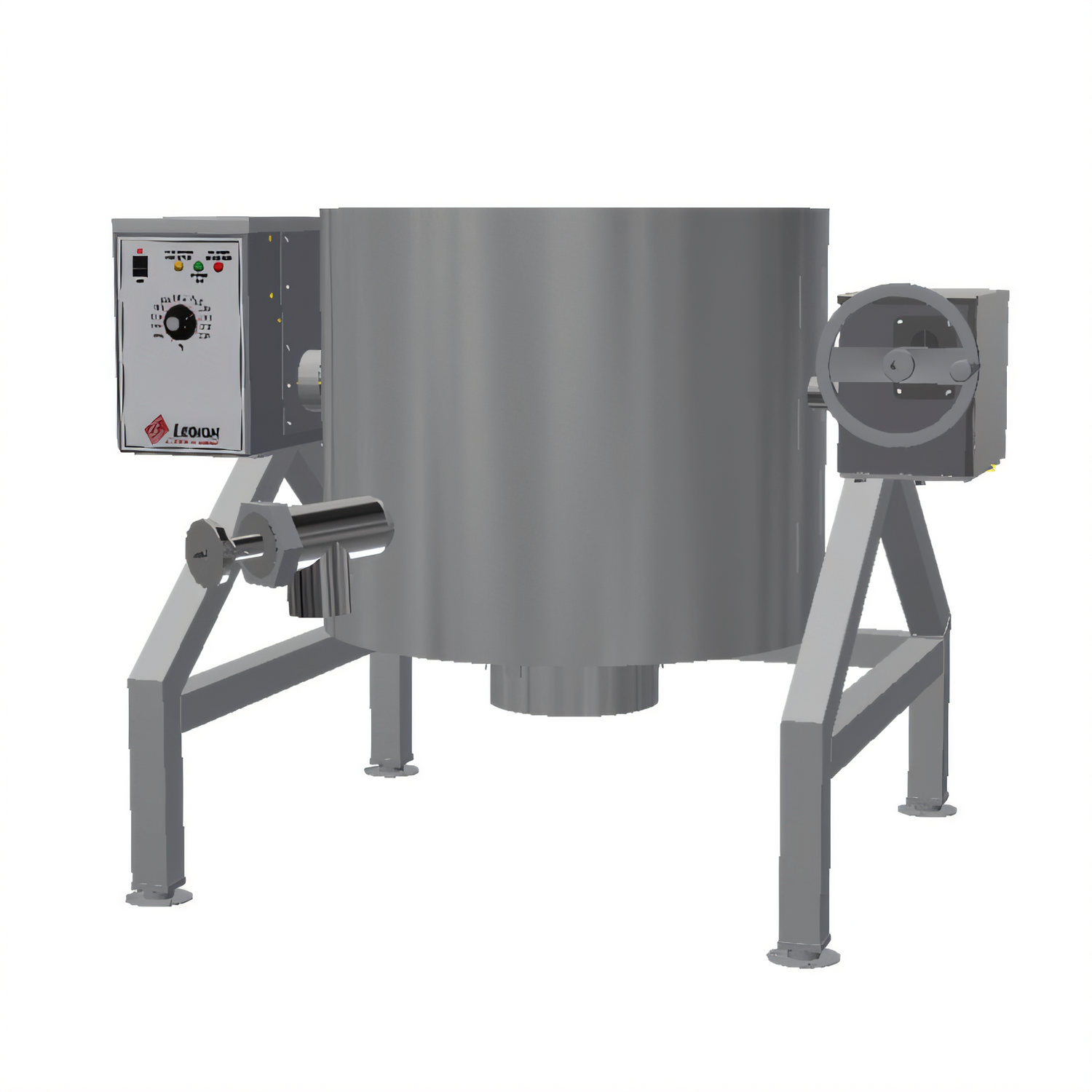

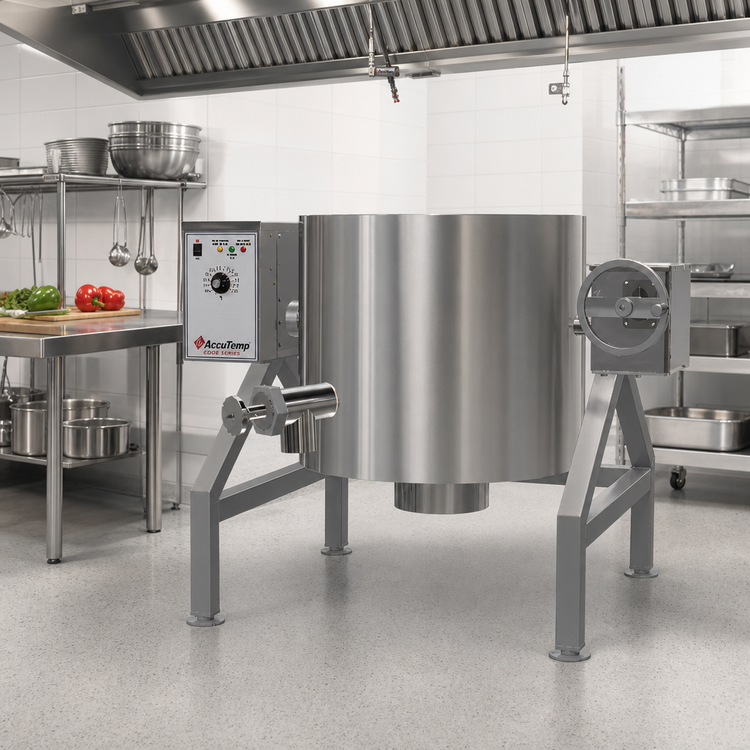

AccuTemp Edge Series™ 80-Gallon Tilting Kettle – Gas
Model ALTLGB-80 | Self-Contained • 2/3-Jacketed • Floor-MountedMeet the high-volume workhorse trusted by commissaries, catering operations and institutional kitchens. The AccuTemp Edge Series™ 80-gallon tilting kettle pairs deep-drawn stainless construction with high-efficiency gas heating, giving your team faster production, safer handling and legendary AccuTemp reliability—all in a compact, floor-mounted footprint.
Key performance advantages

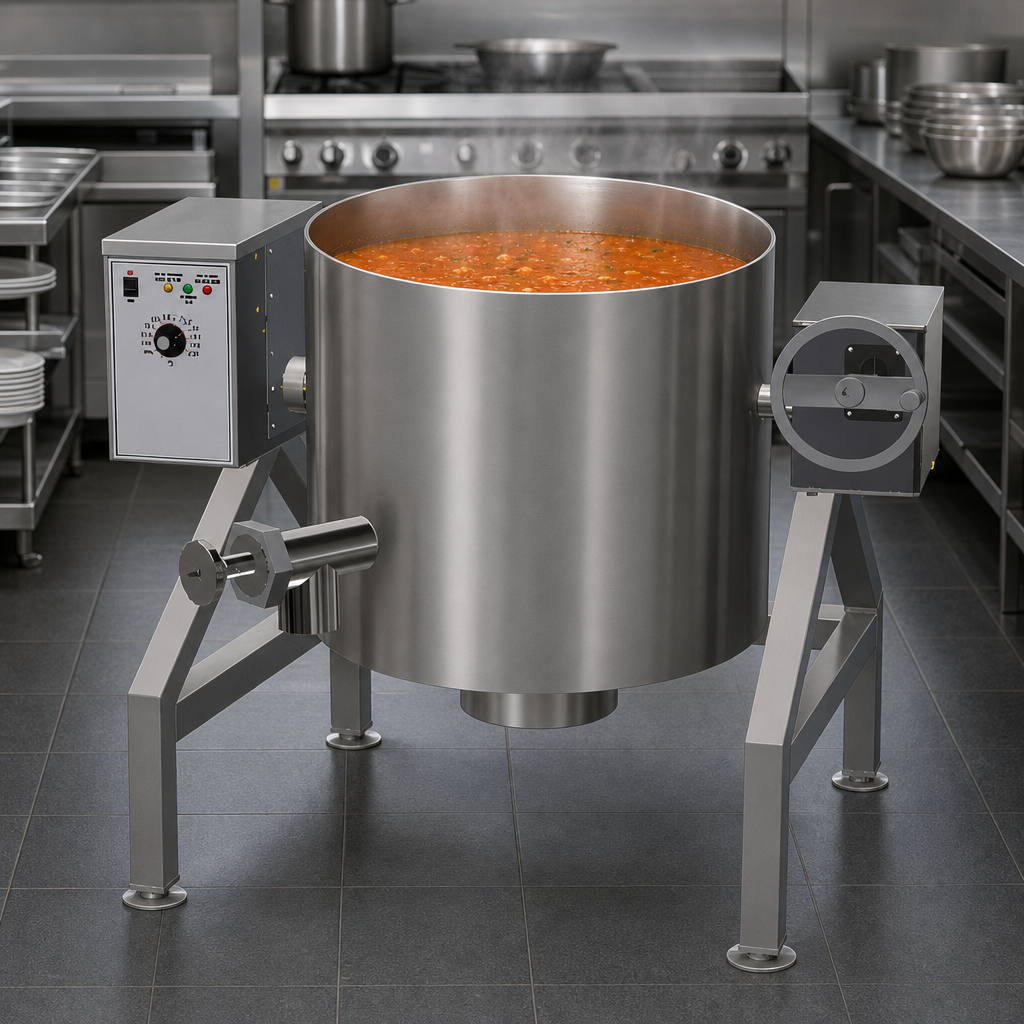

- Massive 80 gal (303 L) batch capacity for soups, sauces, stocks and braises.
- Gas-fired burner delivers 131,400 BTU/hr for rapid heat-up and recovery.

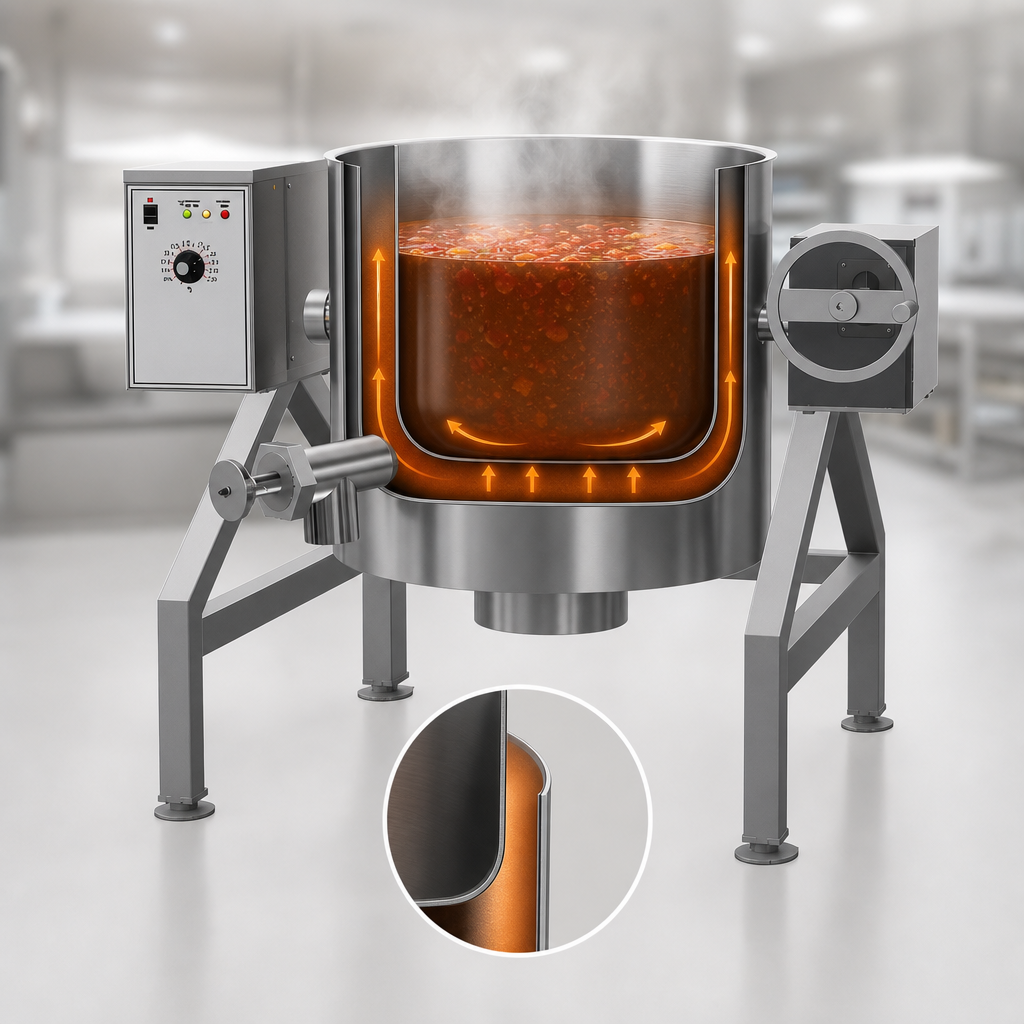

- 2/3 steam jacket (30 PSI) envelops product zone for even, scorch-free cooking.
- 304 SS seamless deep-drawn liner with integrally formed radius lip—no internal weld seams to trap food.
- “Insulated for Safety™” 3"–14" body insulation lowers exterior temps and energy use.
- Electronic ignition (120 V, 1 A) with safety pilot and automatic low-water cutoff.
- Precise thermostat control from 150 °F – 260 °F (65 °C – 126 °C).
- Self-locking, permanently lubricated worm-gear tilt with cut-off switch for smooth, controlled pouring.
- Heavy-duty 2" tubular support frame and adjustable flanged feet for rock-solid installation.
- UL Gas-Fired & NSF certified, proudly made in the USA.
Built-in safety & maintenance features
- Kettle Protection System: pressure relief valve, air eliminator valve & pressure gauge.
- Jacket-water fill valve plus sight glass for quick visual checks.
- 304 SS seam-welded control console resists water and cleaning chemicals.
Technical specifications
| Capacity | 80 gal / 303 L |
|---|---|
| Energy source | Natural or LP gas, 131,400 BTU/hr |
| Gas connection | 3/4" NPT; 5–7" W.C. (Nat) / 12–14" W.C. (LP) |
| Jacket rating | 2/3 coverage, 30 PSI operating |
| Temperature range | 150 °F – 260 °F (65 °C – 126 °C) |
| Kettle liner | 304 stainless steel, seamless deep-drawn |
| Outer casing & jacket | 304 stainless steel, seam-welded |
| Ignition | Electronic, 120 V / 1 A |
| Controls | Thermostat, low-water indicator, tilt cut-off switch |
| Overall dimensions* | W 60.8" | D 45.3" | H 38.6" |
| Certifications | UL Gas-Fired, NSF |
| Origin | Fort Wayne, Indiana USA |
*Dimensions shown with 2" draw-off valve. Contact us for 3" valve dimensions.
Popular accessories (sold separately)
- 2" or 3" compression or ball-type draw-off valves
- Lift-off or actuator-assisted covers
- Single & tri-basket inserts, nylon bag kits and disc strainers
- Hot-cold faucet packages with 60" spray hose
- Electric timer with buzzer, automatic water meter, measuring strip & more
Warranty
Includes AccuTemp’s limited 1-year parts & labor warranty and nationwide access to factory-authorized service agencies.
