AccuTemp ALTLGB-40F Edge Series™ Steam Kettles
Description

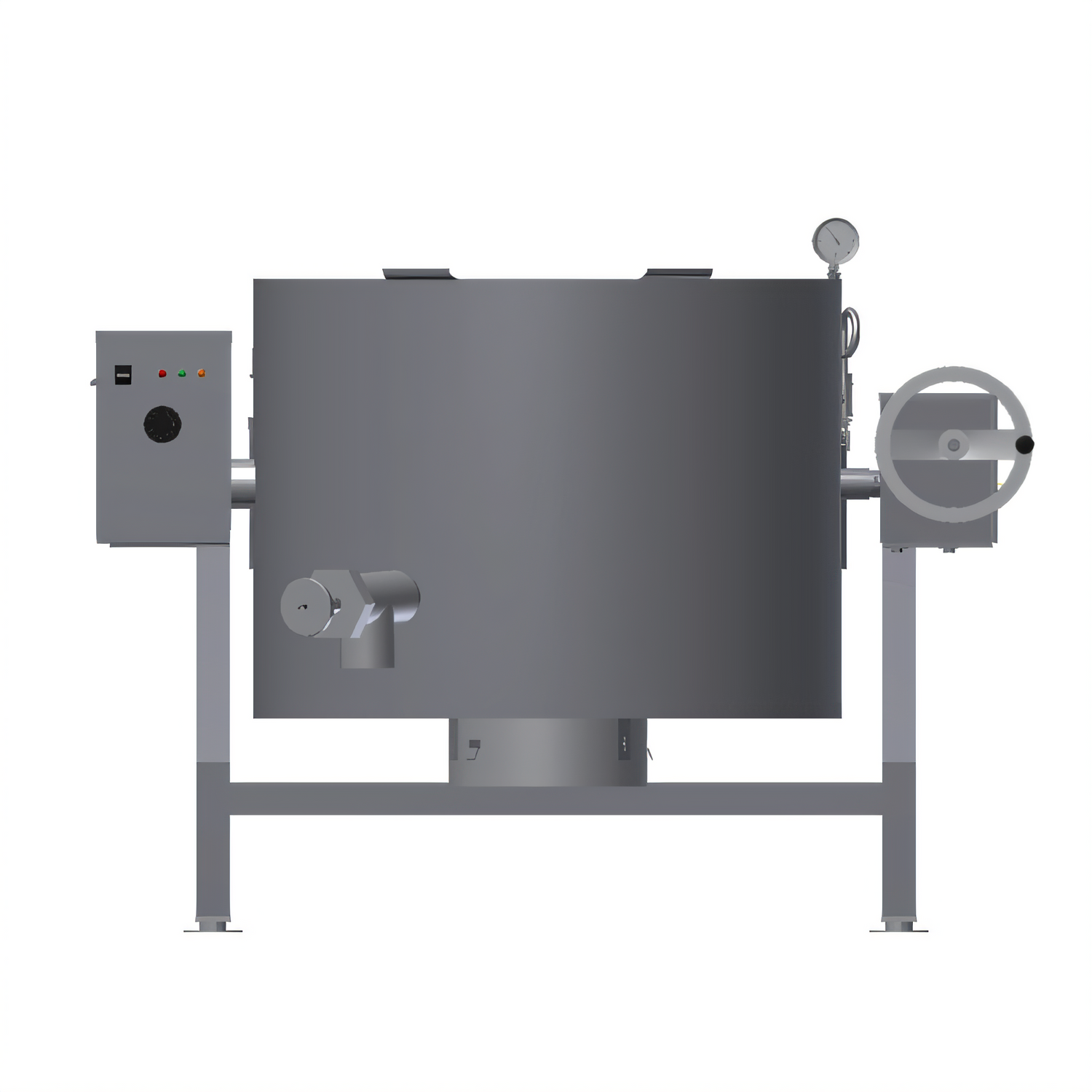

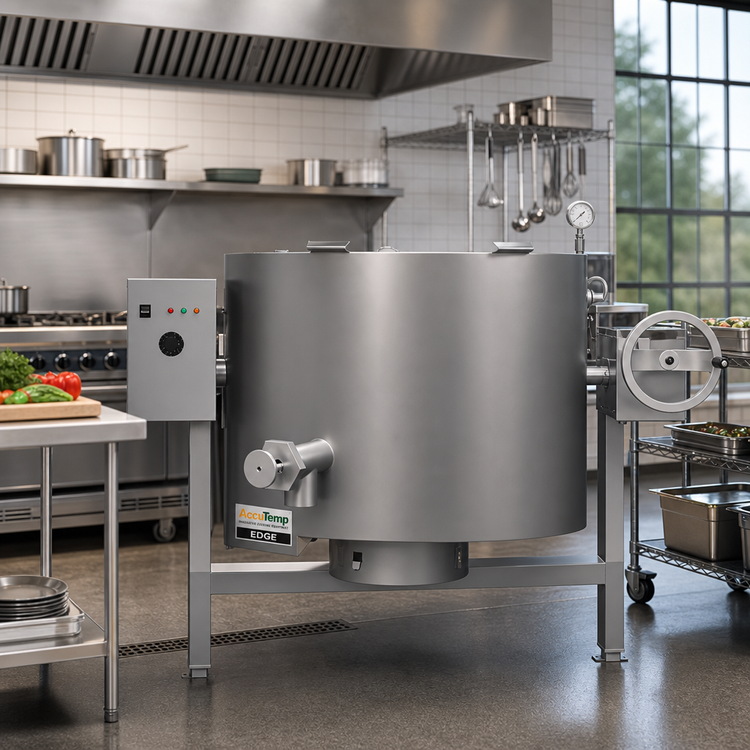

Edge Series™ 40 Gallon Gas Tilting Kettle
Model ALTLGB-40F • AccuTempBuilt for high-volume, batch-cooking environments that refuse to compromise on consistency, the Edge Series™ 40 Gallon Tilting Kettle delivers rock-solid performance, intuitive controls, and industry-leading safety. Its fully jacketed, self-contained steam system and deep-drawn 316 stainless liner give you rapid, even heating while the ergonomic low-rim design simplifies pouring and cleaning.
Key Performance Features

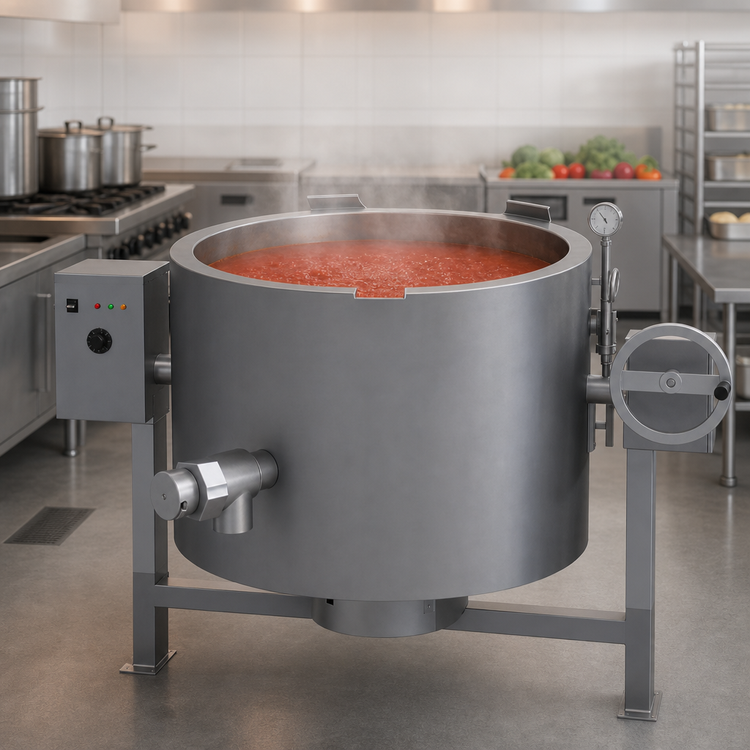

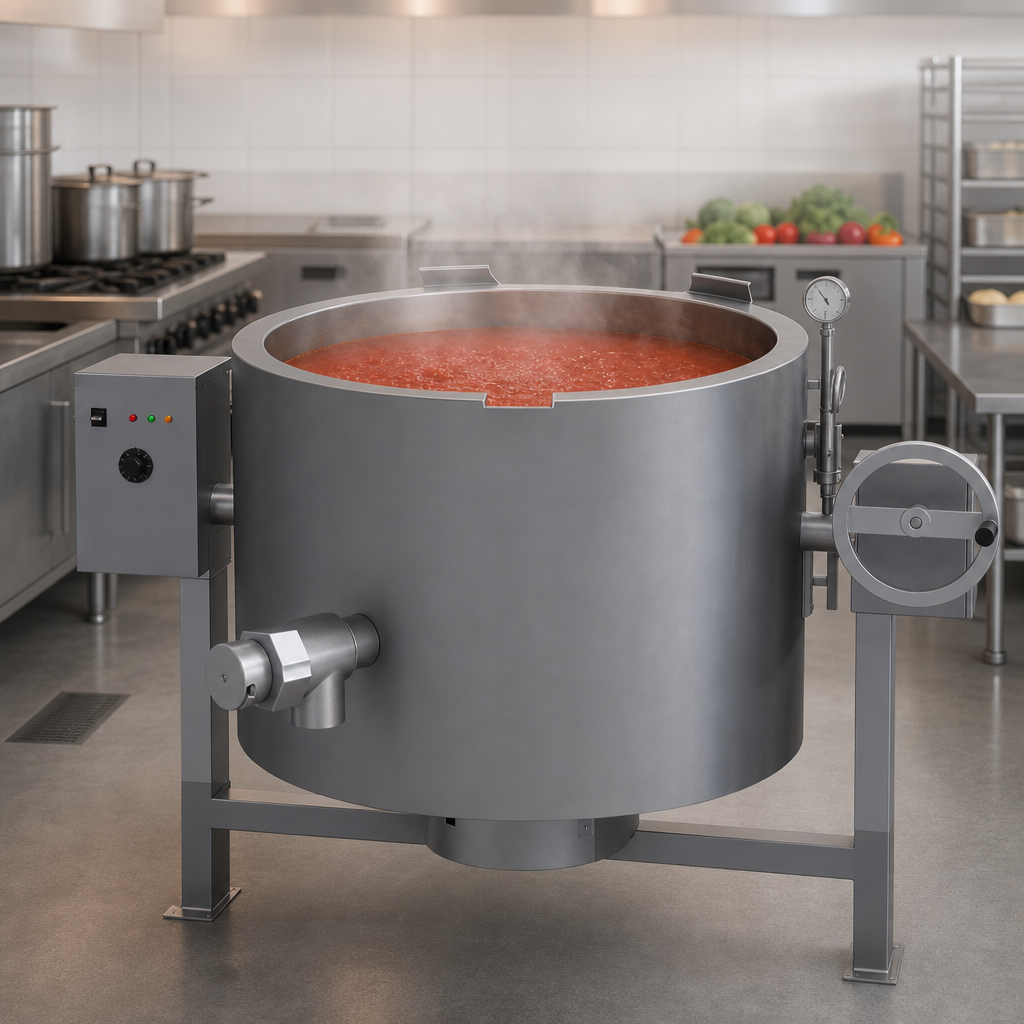

- 40 gal (151 L) capacity lets you prepare up to 640 one-cup servings at once.
- Gas-fired, fully jacketed vessel rated at 30 PSI for fast, uniform heat transfer.
- 316 stainless-steel liner resists corrosion from acidic foods and cleaning chemicals.
- AccuTemp Kettle Protection System: pressure relief valve, air eliminator & low-water cut-off with indicator light.
- Thermostatic temperature control, 150 °F – 260 °F (65 °C – 126 °C).
- Electronic ignition (120 V, 1 A) with safety pilot and flame failure shut-off.
- Full 3″-14″ body insulation keeps exterior surfaces cool and energy use low.

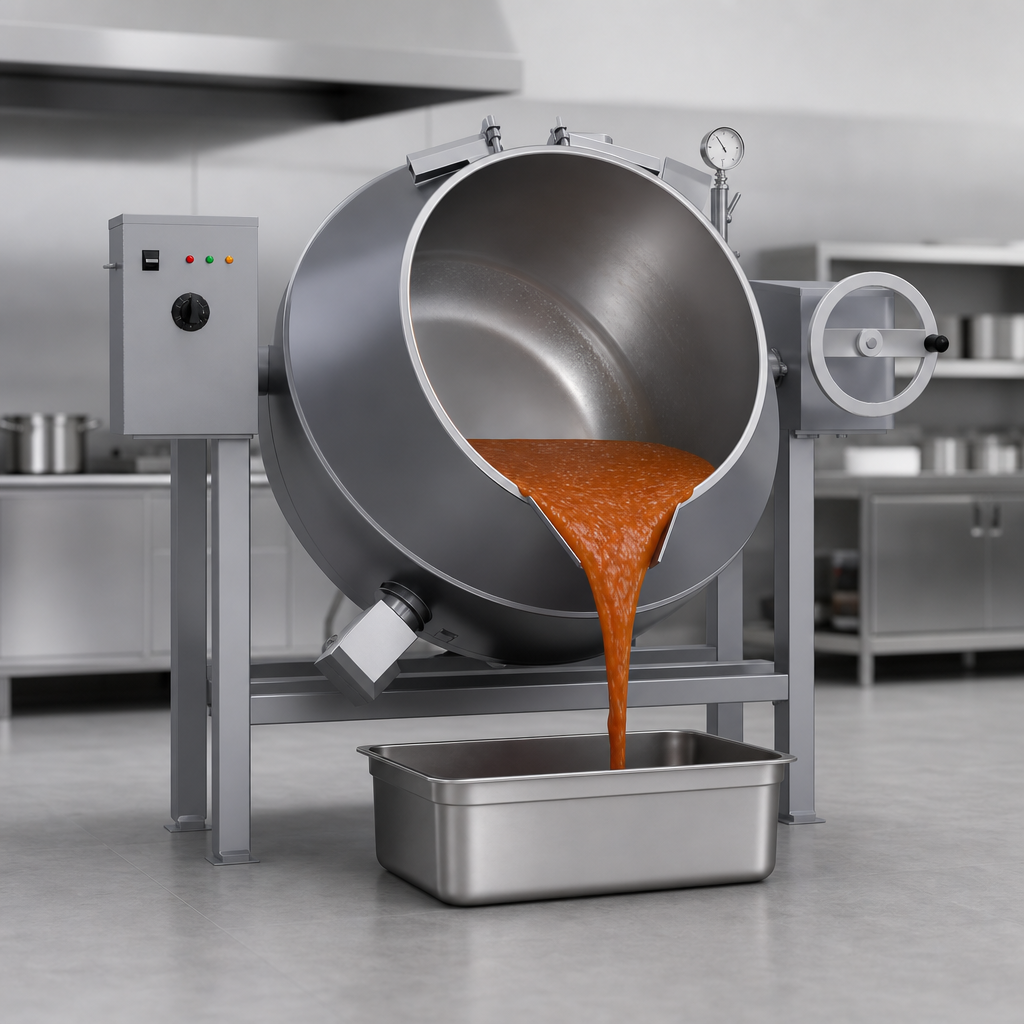

- Self-locking, permanently lubricated worm-gear tilt with cut-off switch for safe, controlled pouring.
- Rugged 2″ tubular 304-stainless support frame with adjustable flanged feet.
- UL & NSF listed; proudly Made in the USA.
Gas & Electrical Data
| Fuel Type | Natural Gas – 106,800 BTU/hr Propane Gas – 108,500 BTU/hr |
|---|---|
| Gas Connection | 3/4" IPS rear connection (quick-disconnect hose optional) |
| Supply Pressure (nominal) | Natural 5–7" W.C. • Propane 12–14" W.C. |
| Factory Outlet Pressure | Natural 3.5" W.C. • Propane 9.0" W.C. |
| Electrical | 120 V, 50/60 Hz, 1 ph, 1 A (for ignition & controls) |
Dimensional Reference (inches)
| A (Dia.) | 25.5 |
|---|---|
| B (Depth) | 18.6 |
| F (Overall Width) | 56.6 |
| L (Overall Length) | 41.4 |
| T (Overall Height) | 27.7 |
Complete dimensional drawing available on request.
Popular Accessories (sold separately)
- 2" or 3" draw-off valve kits (compression or ball type)
- Lift-off or actuator-assisted one-piece lid
- Single- or dual-basket inserts & tri-basket assemblies
- Flexible 60" gas quick-disconnect hose
- Faucet, spray rinse & automatic water-metering packages
- Electric timer with buzzer
Warranty
1-year parts & labor warranty (U.S. & Canada). Extended coverage & start-up programs available.
