AccuTemp ALTLGB-40 Edge Series™ Steam Kettles
Description

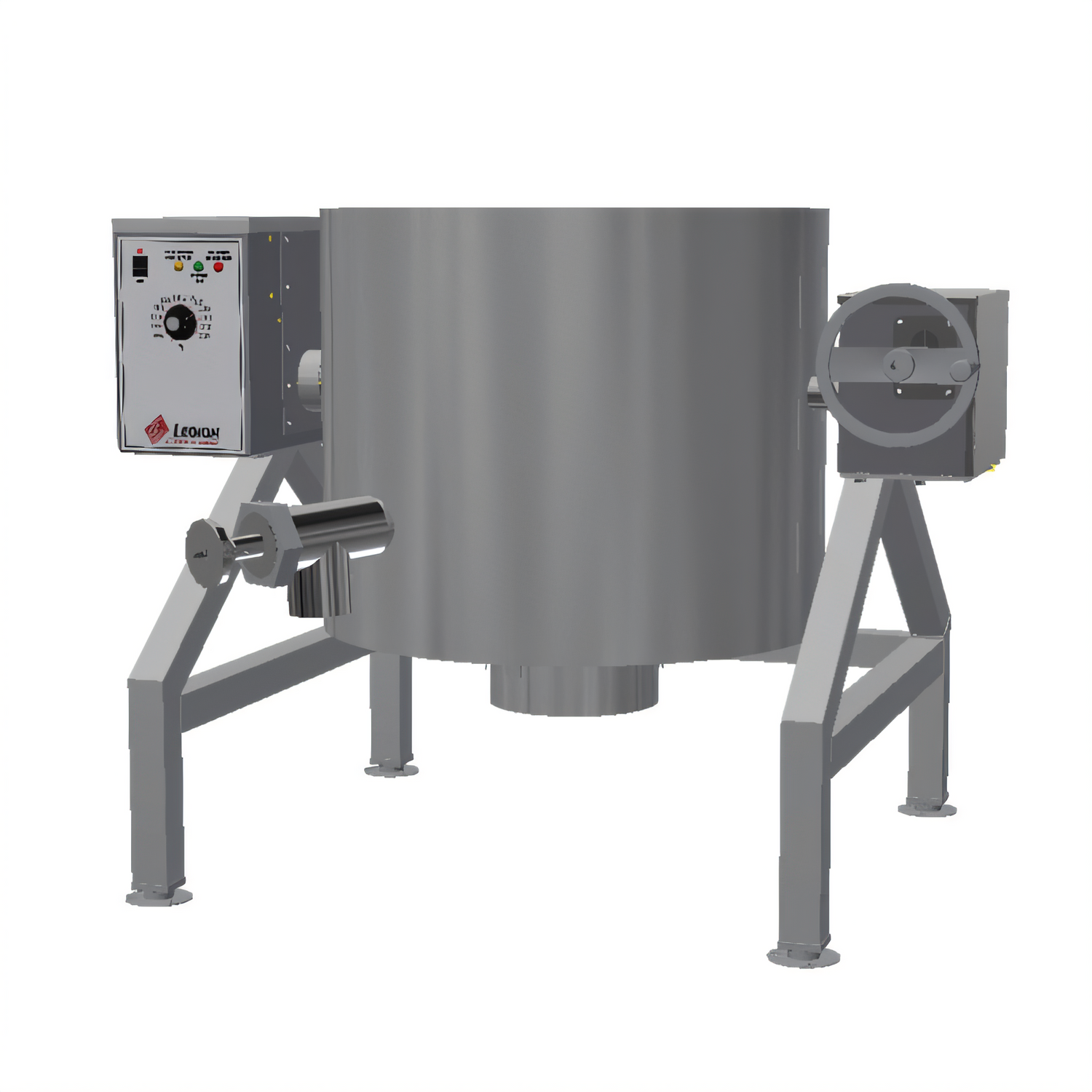

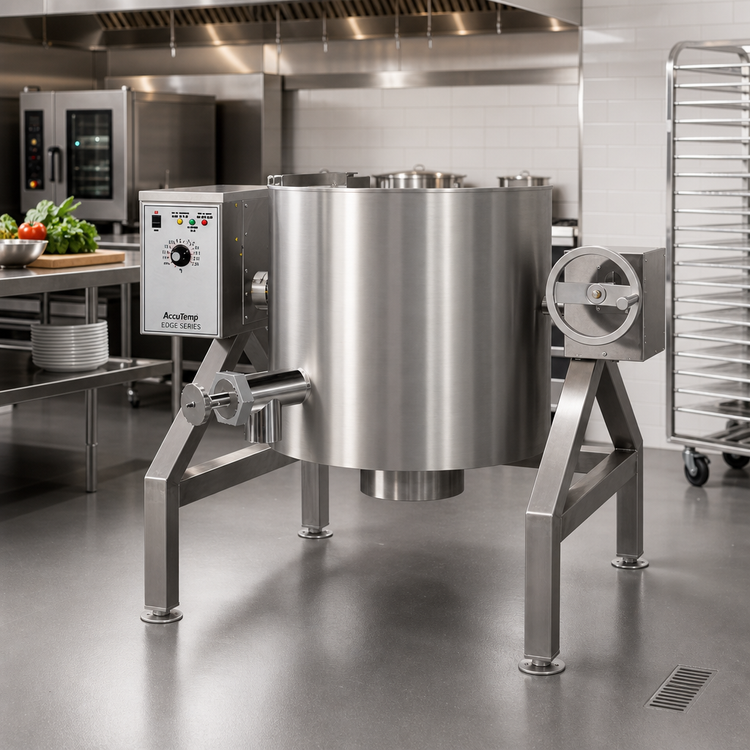

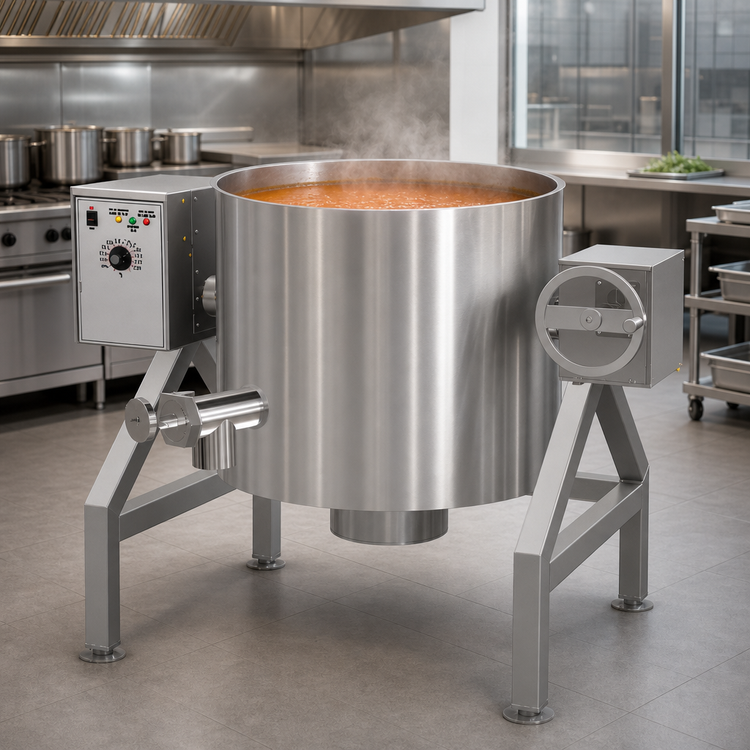

AccuTemp Edge Series™ 40-Gallon Gas Tilting Kettle
Model ALTLGB-40 | 2/3-Jacketed | 316 SS Liner | 83,100 BTUBuilt for chefs who refuse to compromise, the Edge Series™ 40-gallon self-contained kettle delivers boiler-free steaming, rock-solid construction and effortless tilting in a footprint that’s right at home in schools, healthcare, commissaries and high-volume restaurants. 3" of Insulated for Safety™ protection keeps the exterior cool while the deep-drawn 316 stainless liner and 30 PSI steam jacket bring soups, sauces and stocks up to temperature fast—and hold them there with pinpoint accuracy.
Key Advantages

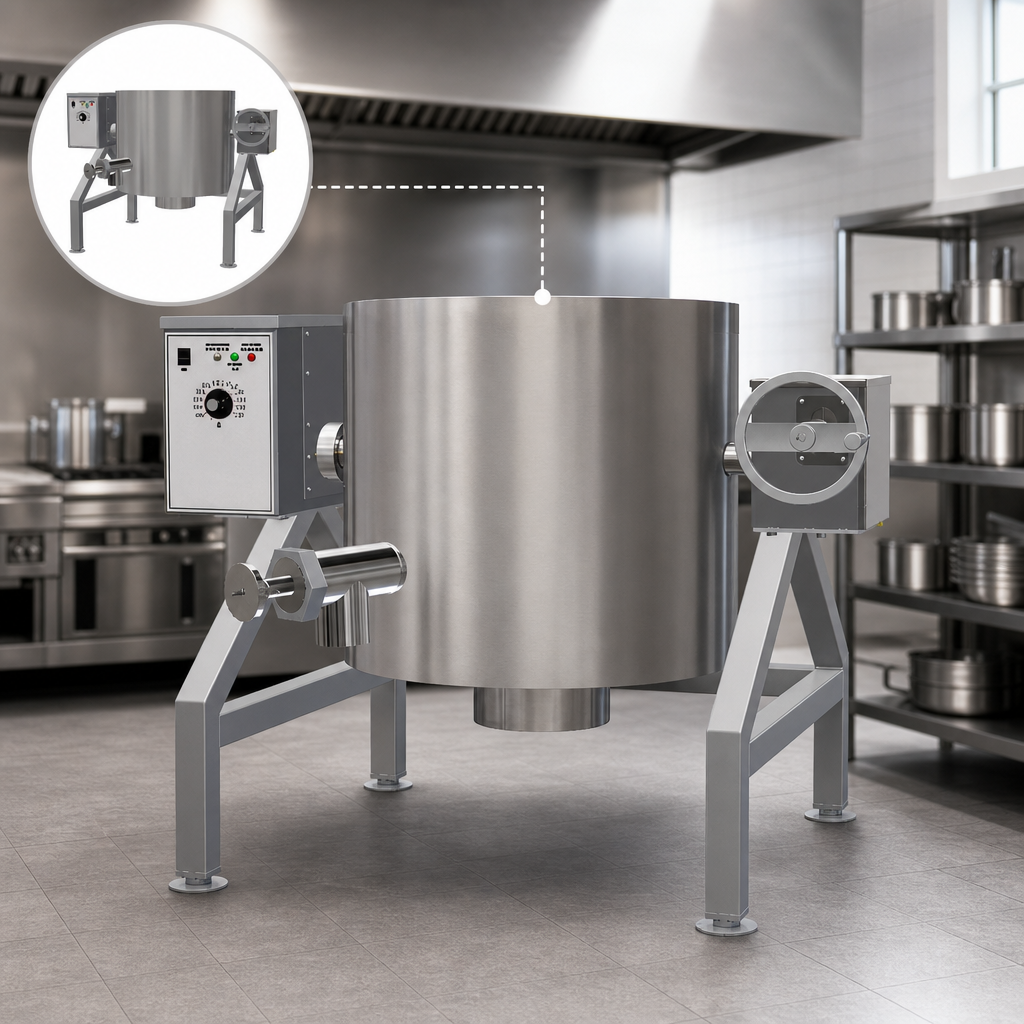

- Self-contained 2/3 steam jacket—no external boiler or steam hookups required.
- Electronic ignition (120 V plug) eliminates a standing pilot and lights instantly.
- Deep-drawn, seamless 316 SS liner up to 40 gal resists acids, pitting and scorching.
- Insulated outer jacket reduces energy use and keeps the kettle rim cool to the touch.
- Self-locking worm-gear tilt with cut-off switch guarantees smooth, controlled pouring.
- Full Kettle Protection System: low-water cutoff, pressure relief valve, air eliminator & gauge.
- 2" tubular all-stainless support frame with adjustable flanged feet—made to last and stay level.
- Made in the USA, UL Gas-Fired & NSF listed for worldwide code compliance.
Performance & Utility

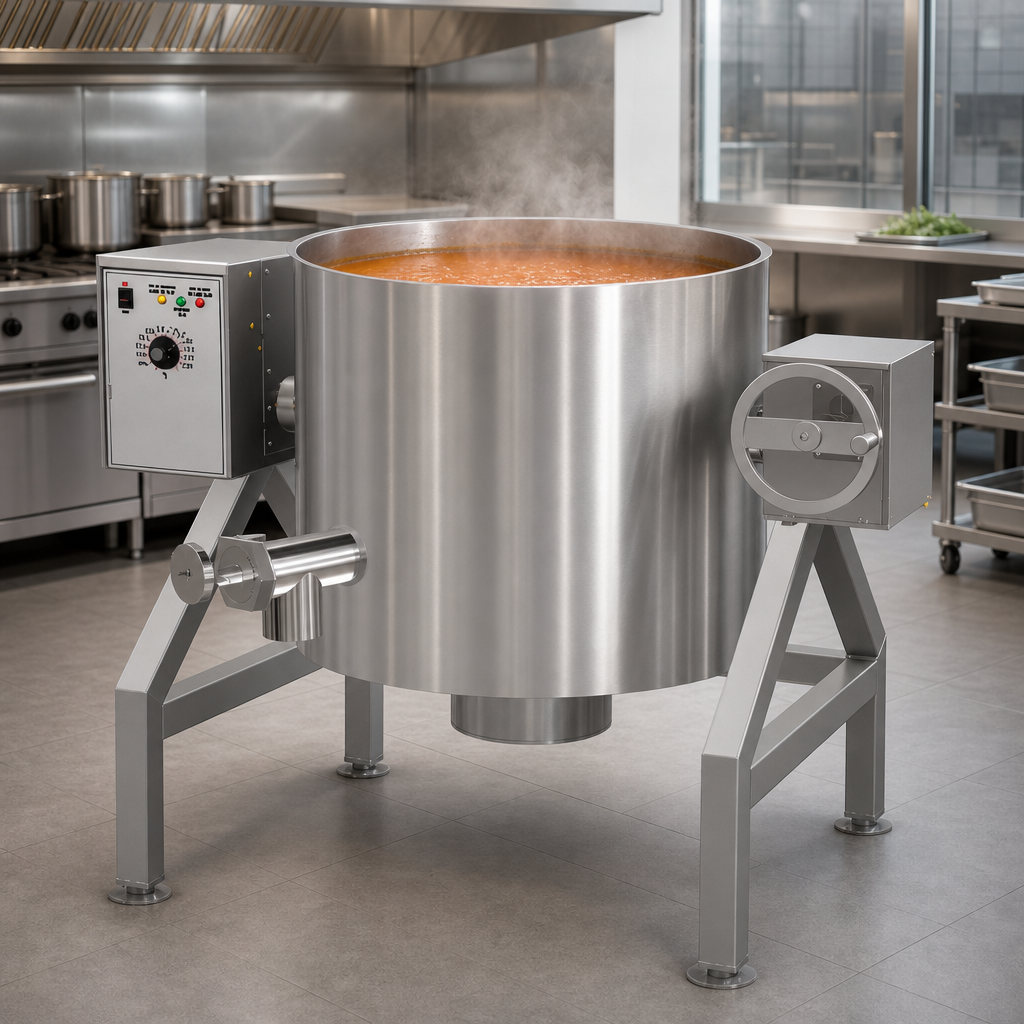

| Capacity | 40 gal / 151 L |
|---|---|
| Heat Source | Natural or Propane Gas, electronic ignition |
| Input | 79,900 BTU/hr (Natural) | 83,100 BTU/hr (Propane) |
| Steam Jacket Rating | 30 PSI (207 kPa) maximum operating pressure |
| Temperature Range | 150 °F – 260 °F (65 °C – 126 °C) |
| Liner Material | 316 stainless steel, deep-drawn & seamless |
| Jacket / Exterior | 304 stainless steel, seam-welded & fully insulated |
| Tilt Mechanism | Single-reduction, permanently lubricated worm gear with self-lock |
| Frame | 2" tubular stainless steel, adjustable flanged feet |
| Electrical | 120 V, 50/60 Hz, 1 Phase, 1 A (for ignition & controls) – 6′ cord & plug included |
| Certifications | UL (Gas-Fired), NSF, American-Made |
| Warranty | 1-year parts & labor (U.S. & Canada) |
Standard Features
- Pressure relief valve, pressure gauge & air eliminator built into control console
- Water jacket fill valve with sight glass—quick visual level check
- Automatic low-water cutoff with indicator light protects the heating system
- Safety pilot control for worry-free daily operation
- Seam-welded stainless control console & reinforced gear box
- Factory-set outlet pressure: 3.5" W.C. (natural) or 9.0" W.C. (propane)
Popular Accessories (sold separately)
- 2" or 3" compression or ball-type draw-off valve
- Lift-off or actuator-assisted cover
- Flexible spray hose or single/dual faucet with 12" or 18" swing nozzle
- Electric timer with buzzer, measuring strip, basket & bag inserts, and more
Looking for different capacities or an electric model? Explore the full Edge Series™ line for 20, 30, 60 & 80-gallon options.
