AccuTemp ALTLGB-30 Edge Series™ Steam Kettles
Description

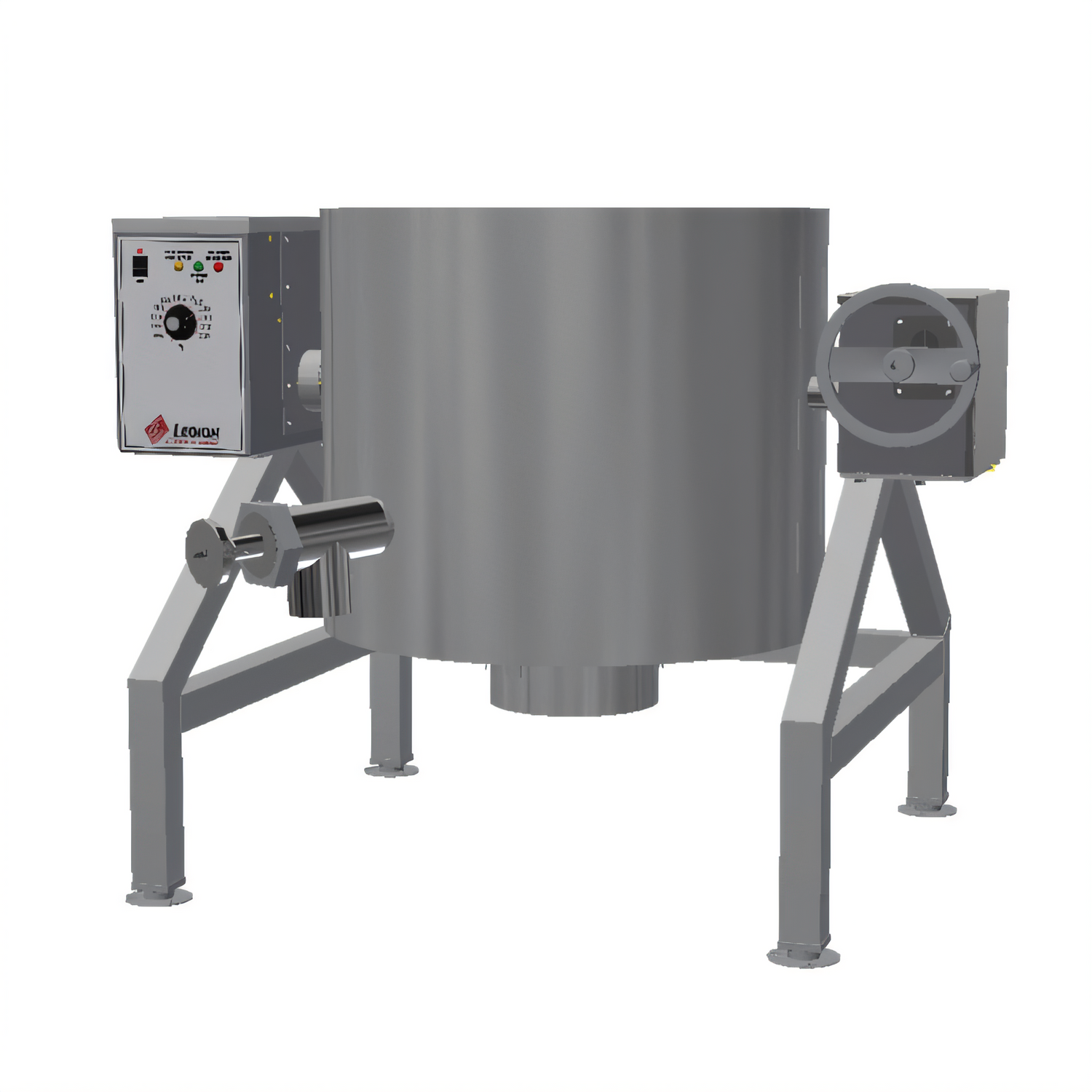

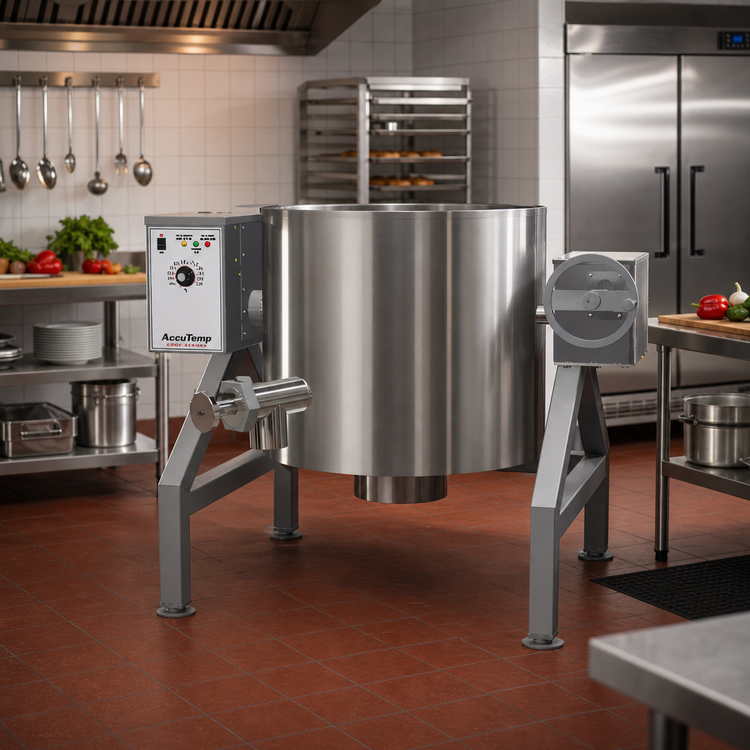

AccuTemp Edge Series™ 30-Gallon Gas Tilting Kettle
Model ALTLGB-30 • Self-Contained • 2/3 Jacket • 316 SS LinerEngineered for high-volume, high-efficiency kitchens, the Edge Series™ 30-gallon tilting kettle pairs powerful 67,800 BTU gas performance with AccuTemp’s signature Deep-Drawn, Insulated for Safety™ construction. From batch soups to delicate sauces, enjoy fast, even heat, rock-solid dependability, and effortless tilting—all in one Made-in-USA workhorse.
Why You’ll Love It

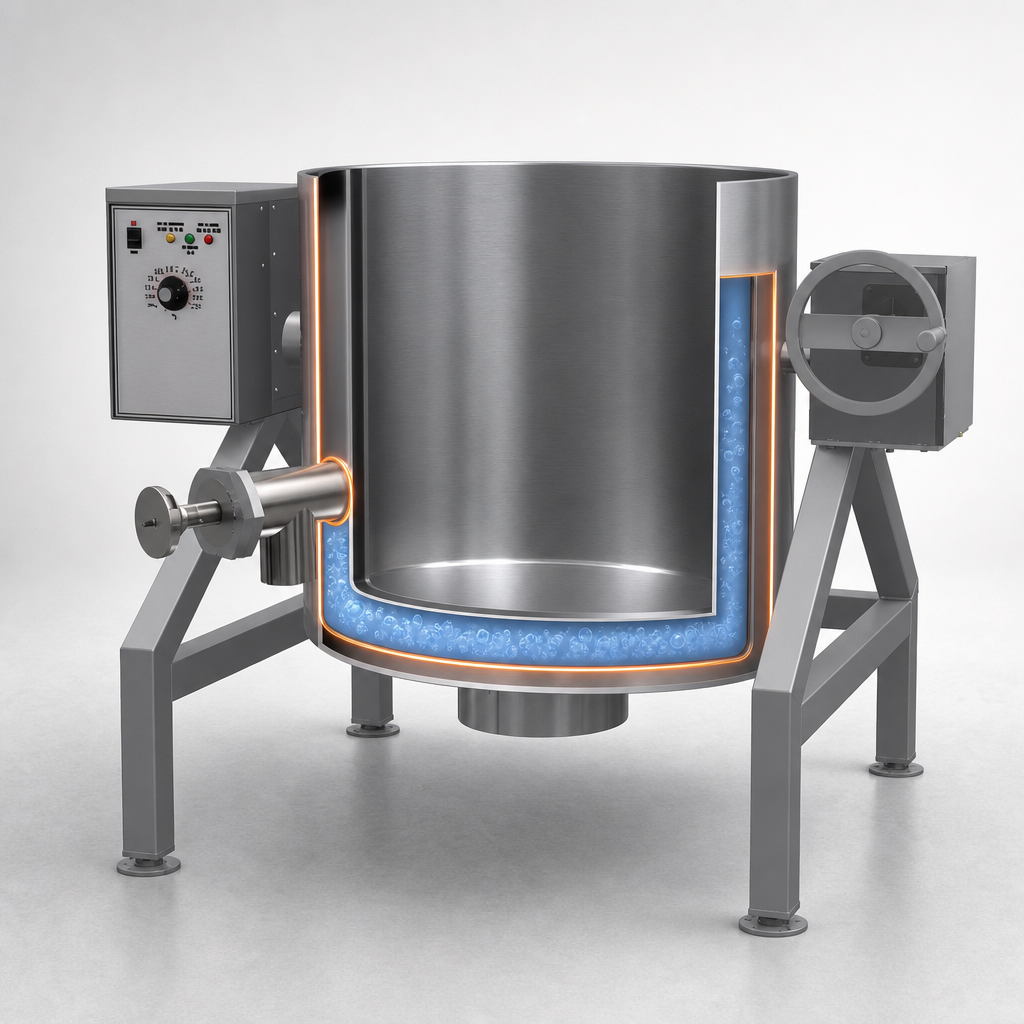

- 30-gallon (114 L) capacity with 2/3 steam jacket for rapid, uniform cooking.

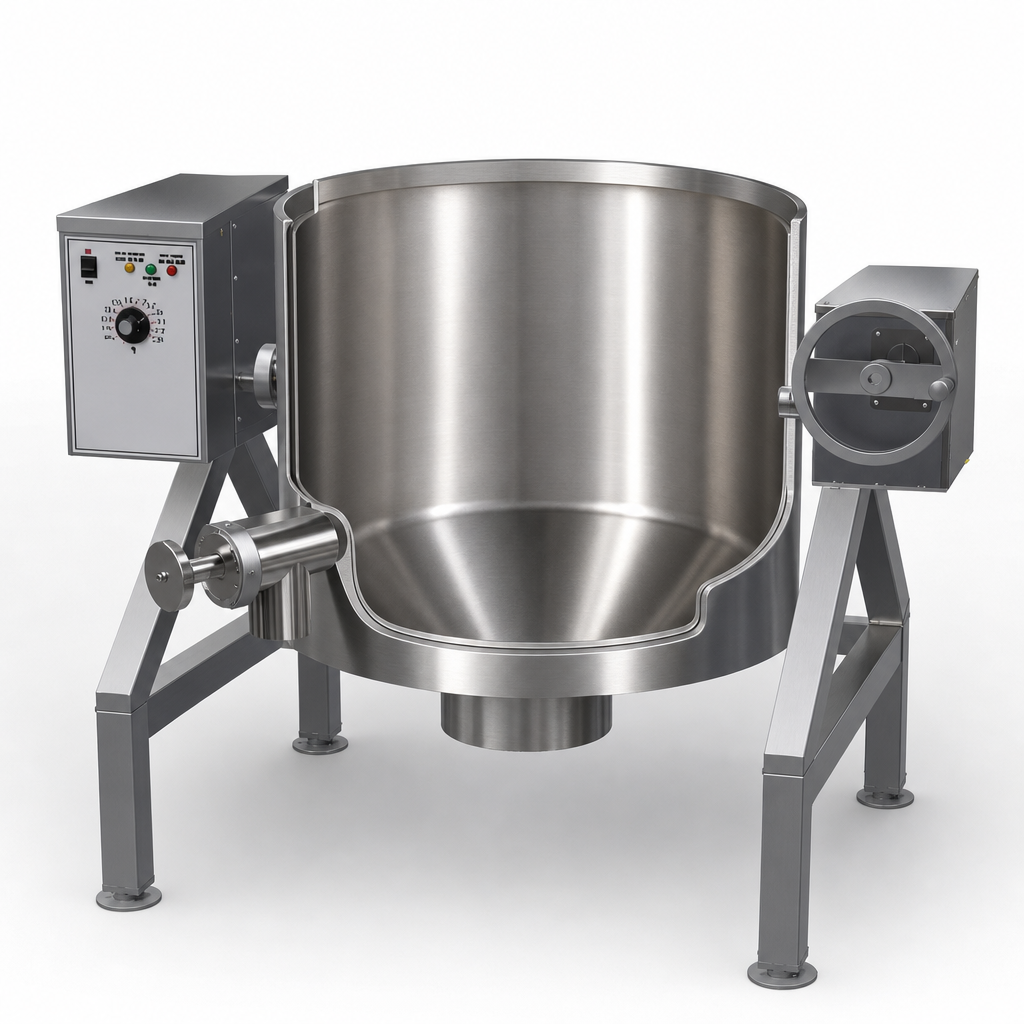

- Seamless 316 stainless steel liner resists acidic foods and simplifies cleaning.
- Full 3"–14" body insulation protects operators and boosts energy efficiency.
- Electronic ignition (120 V plug-in) means no standing pilot and instant start-up.
- Self-locking, permanently lubricated worm-gear tilt with cut-off switch for safe, controlled pouring.
- Kettle Protection System: pressure relief valve, air eliminator, gauge, low-water cutoff & indicator.
- Precision thermostat adjusts from 150 °F – 260 °F (65 °C – 126 °C).
- Heavy-duty 2" tubular stainless support frame with adjustable flanged feet—no separate stand required.
Built for the Long Haul
- 304 SS kettle jacket & outer casing—seam welded for maximum strength.
- Reinforced 3" radius lip prevents dents and drips.
- UL Gas-Fired Listed & NSF Certified for open-kitchen peace of mind.
- Made in Fort Wayne, Indiana, and covered by a 1-year parts & labor warranty.
Popular Accessories (Sold Separately)
- Lift-off cover or actuator-assisted lid
- 2" or 3" compression or ball-type draw-off valve
- Flexible spray/faucet assemblies & automatic water meter
- Single or tri-basket inserts, disc strainers & nylon bag kits
- Care Kit, electric timer with buzzer, gas quick-disconnect hose & more
Technical Specifications
| Capacity | 30 gal / 114 L |
|---|---|
| Energy Source | Gas – Natural 66,700 BTU /hr or Propane 67,800 BTU /hr |
| Steam Jacket Rating | 30 PSI (2/3 jacketed) |
| Thermostat Range | 150 °F – 260 °F (65 °C – 126 °C) |
| Ignition / Electrical | Electronic ignition, 120 V, 1 Ø, 60 Hz, 1 A – supplied with 6′ cord & plug |
| Gas Connection | 1/2" IPS; Natural 5–7" W.C. • Propane 12–14" W.C. |
| Construction | 316 SS liner, 304 SS jacket, casing, control console & frame |
| Overall Dimensions* | W 51.2" × D 24.6" × H 69.2" *See spec sheet for detailed dimensional drawing. |
| Certifications | UL Gas-Fired Listed, NSF, Made in USA |
Warranty
Backed by AccuTemp’s limited 1-year parts & labor warranty. Register your kettle at installation for full coverage.
