AccuTemp ALTLGB-20F Edge Series™ Steam Kettles
Description

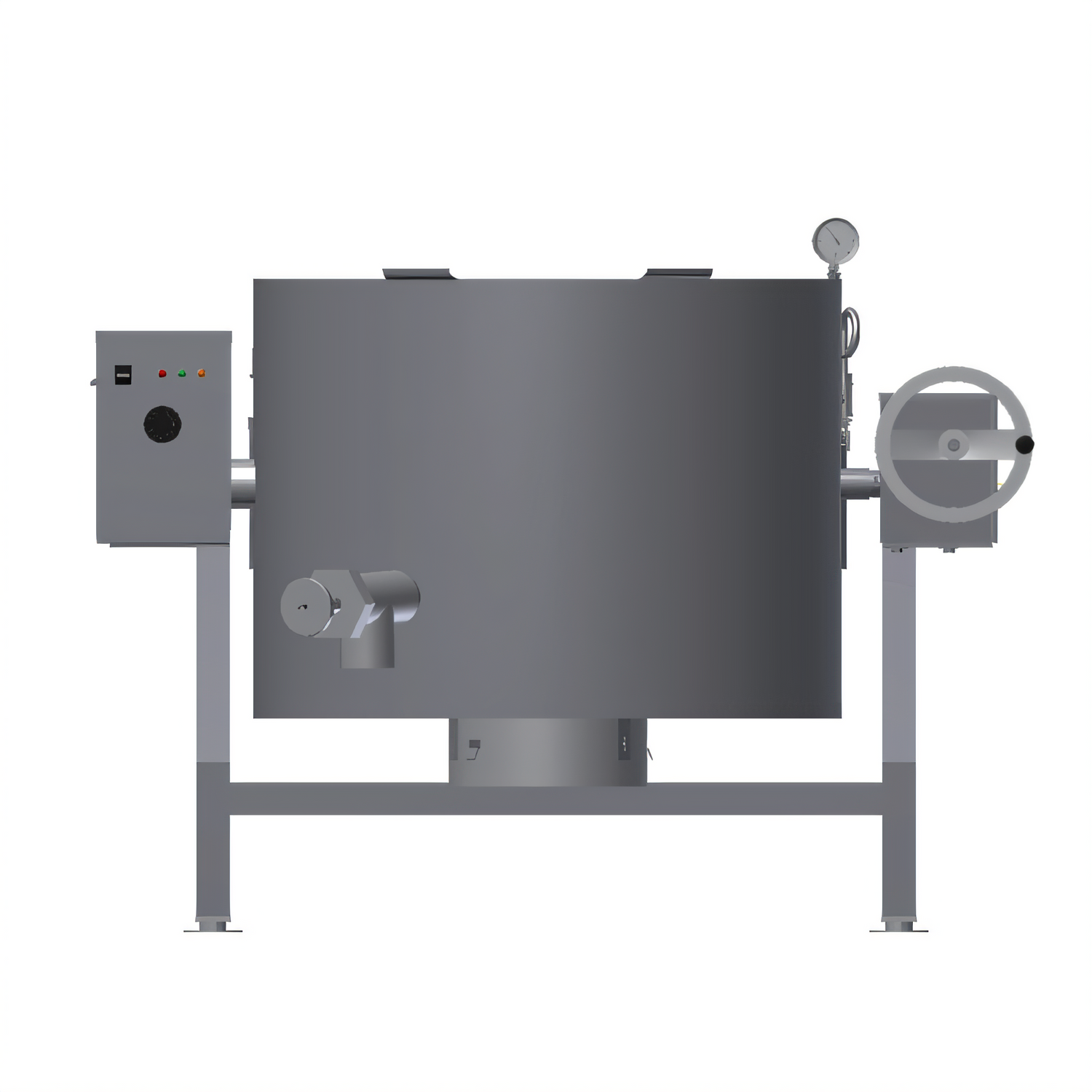

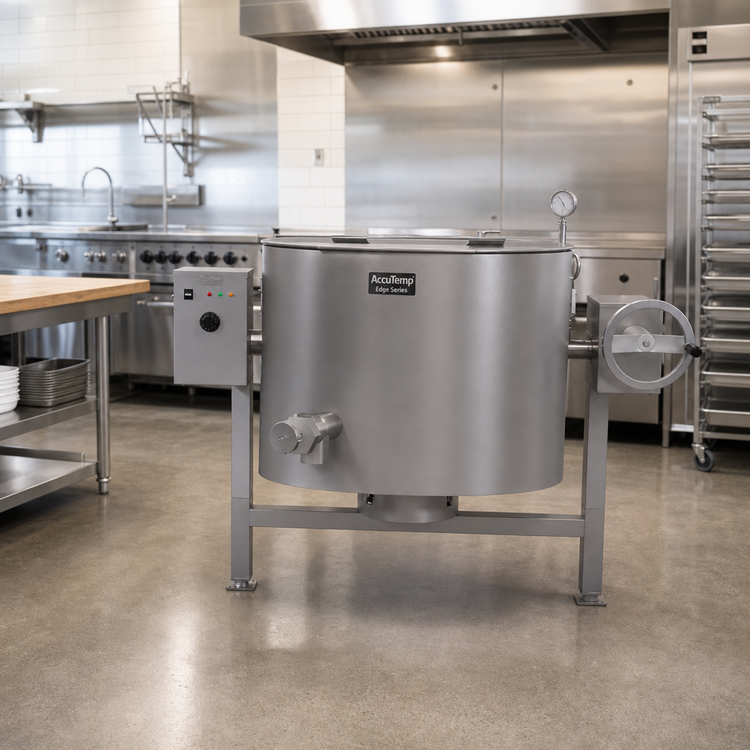

AccuTemp Edge Series™ 20-Gallon Gas Tilting Kettle
Model ALTLGB-20F • Made in USA • UL & NSF ListedBuilt for high-volume, high-precision production kitchens, the AccuTemp Edge Series™ 20-gallon kettle delivers rapid, uniform cooking with unbeatable operator safety and ergonomics. A full jacket, 316 stainless steel liner, and deep-drawn “ergo-low” rim make it the perfect workhorse for chilis, sauces, soups, and more—while its gas-fired, self-contained design eliminates the need for an external boiler.
Why You’ll Love It

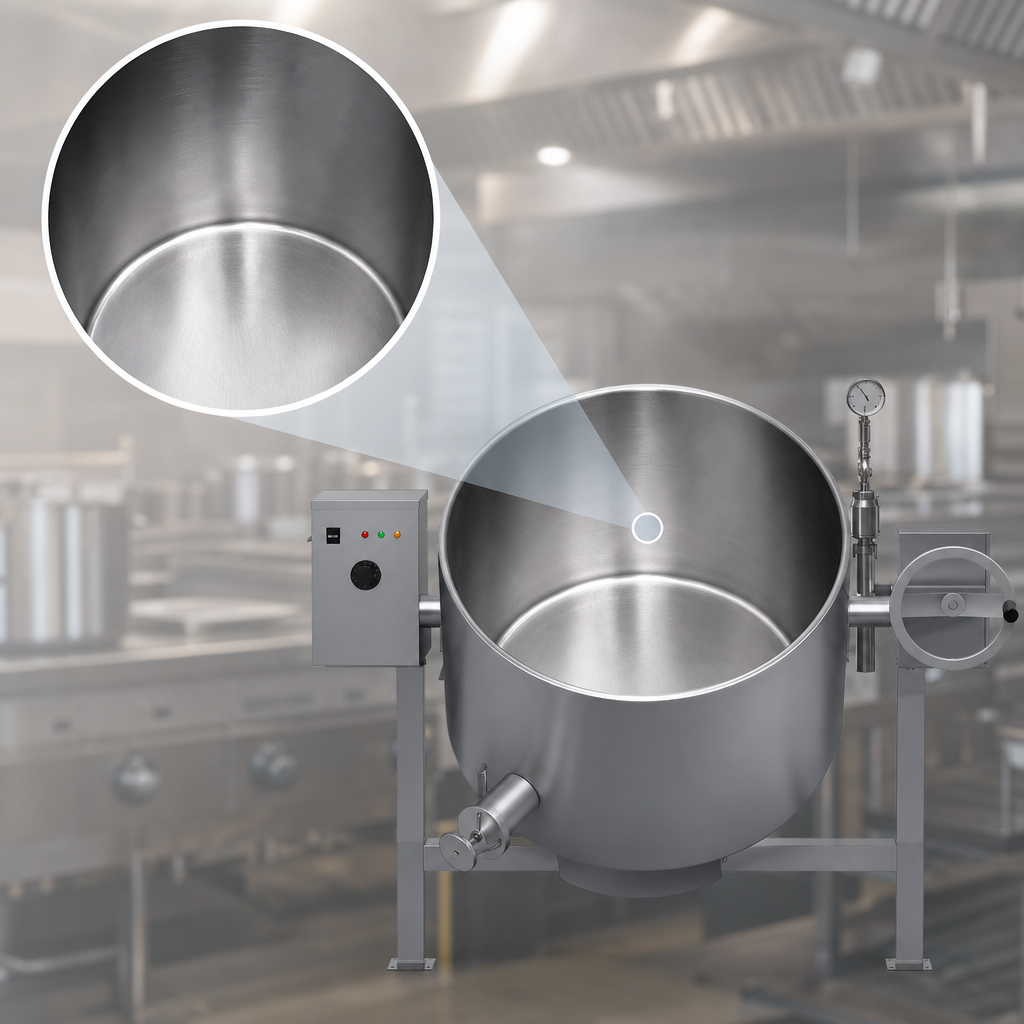

- 20-gallon capacity with seamless 316 stainless steel kettle liner—corrosion-resistant even with acidic foods.
- Full-body insulation (3"-14") keeps the exterior cool to the touch and saves energy.
- Electronic ignition (120 V standard) for fast, reliable start-ups—no standing pilot to waste gas.
- Ergo-low rim height and self-locking, worm-gear tilt mechanism mean safer, easier pouring.
- Kettle Protection System with automatic low-water cut-off and indicator light prevents dry-firing.
- Wide 150 °F – 260 °F thermostat range for everything from gentle simmering to rapid boiling.
- Rugged 2" tubular stainless steel frame with adjustable flanged feet for rigid floor mounting.
- Deep-drawn, one-piece construction minimizes welds, maximizes sanitation, and cleans in seconds.
Performance & Utility
| Capacity | 20 gallons (76 L) |
|---|---|
| Gas Input | 67,800 BTU/hr (Propane) • 66,700 BTU/hr (Natural) |
| Gas Connection | 1/2" IPS male, rear |
| Supply Pressure | Natural: 5-7" W.C. • Propane: 12-14" W.C. |
| Outlet Pressure (factory) | Natural: 3.5" W.C. • Propane: 9.0" W.C. |
| Operating Pressure | 30 PSI jacket rating |
| Electrical | 120 V, 1-Phase, 50/60 Hz, 1 A (208 / 240 V option available) |
| Temperature Range | 150 °F – 260 °F (65 °C – 126 °C) |
| Construction | 316 SS liner • 304 SS jacket, console & outer casing • fully welded |
| Certifications | UL, NSF, American Made |
| Warranty | 1-Year parts & labor (U.S. & Canada) |
Safety & Sanitation Highlights
- Pressure relief valve, air eliminator & sight glass supplied standard.
- Cool-touch, reinforced radius lip reduces burn risk during loading or stirring.
- Insulated control console is seam-welded to prevent moisture intrusion and food soil build-up.
Popular Accessories (sold separately)
- 2" or 3" draw-off valve (compression or ball type)
- Lift-off or actuator-assisted cover
- Dual swing-nozzle filling faucet with 60" spray hose
- Care kit, measuring strip, strainers, and basket inserts
- Mixer/agitator (two-speed) for continuous stirring
Registration required at installation for full warranty coverage. See AccuTemp Owner’s Manual for details.
