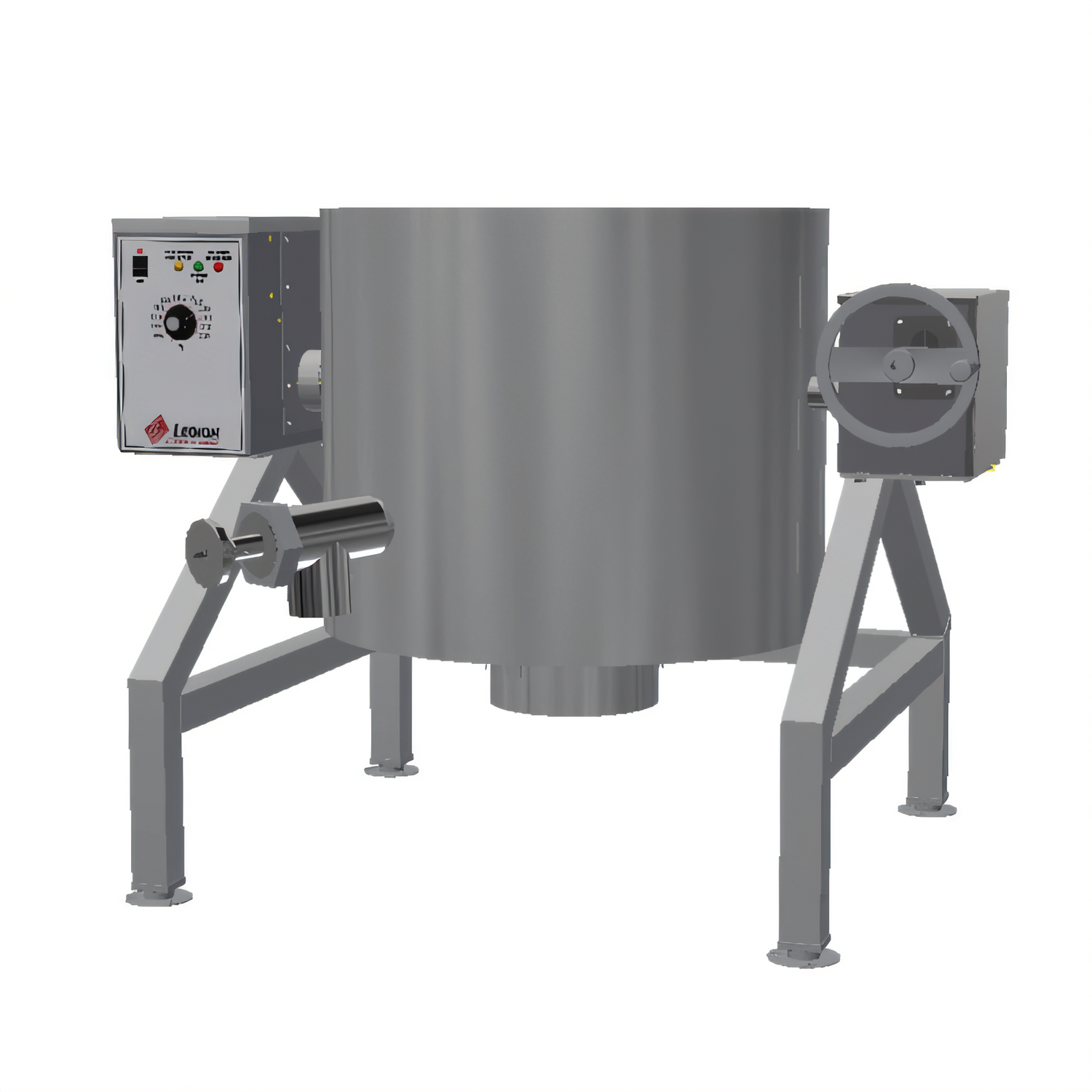

AccuTemp Edge Series™ 20-Gallon Gas Tilting Kettle

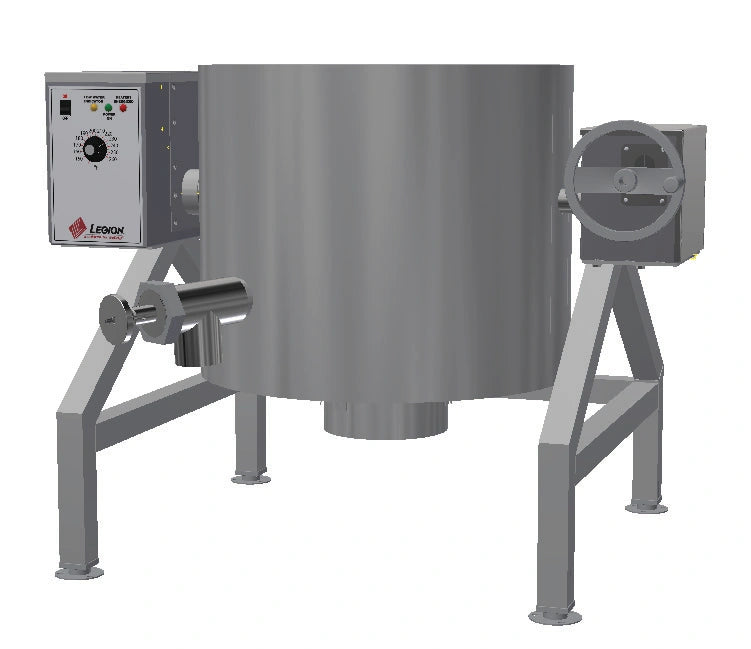

Model ALTLGB-20 | 63,200 BTU Natural Gas | 2/3 JacketedGet high-volume production without sacrificing floor space or safety. The Edge Series™ 20-Gallon Gas Tilting Kettle pairs a seamless 316 SS liner with full-body insulation and a powerful 63,200 BTU burner to deliver fast, even heating for soups, sauces, stocks and more. Built in the USA and certified to UL and NSF standards, it’s the dependable workhorse your kitchen needs.
Key Features
- 20 gal (75.7 L) capacity in a compact, floor-mounted footprint

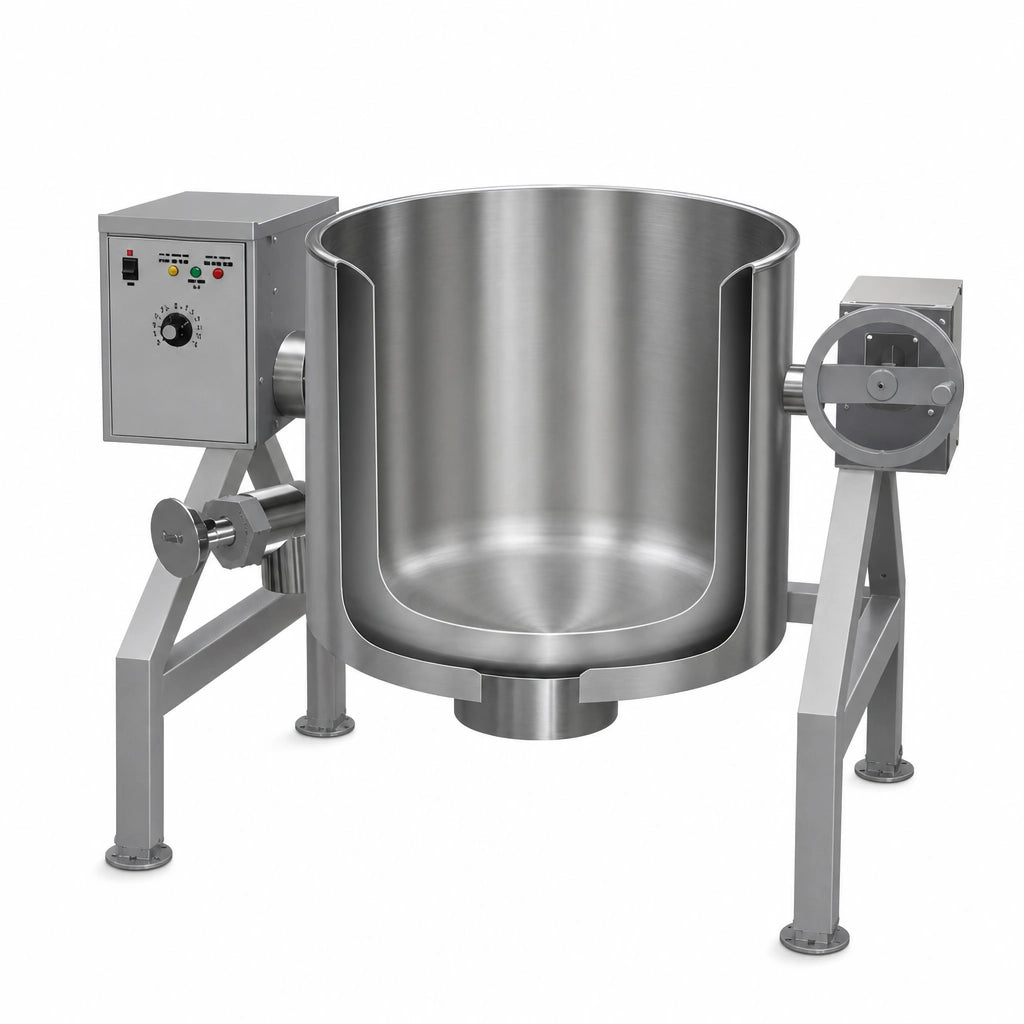

- Seamless deep-drawn 316 SS kettle liner resists pitting and corrosion

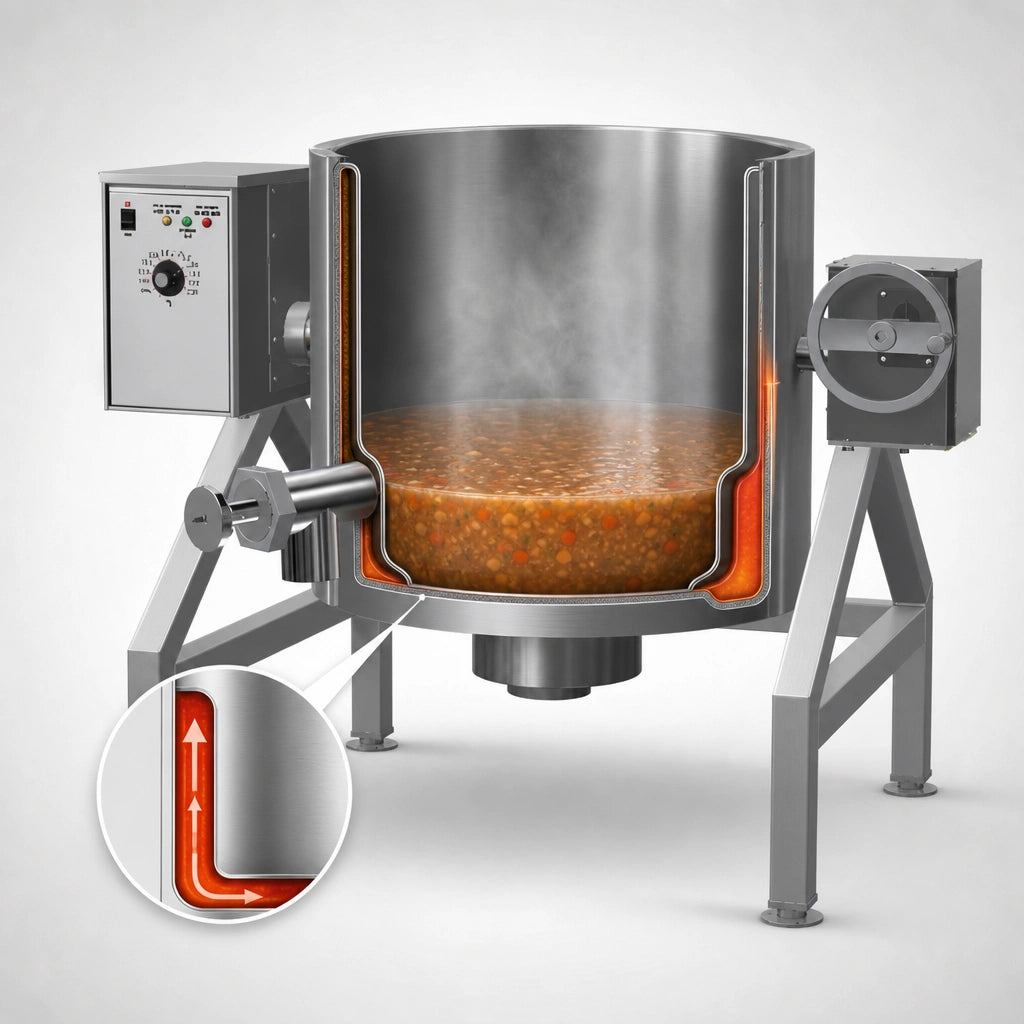

- 2/3 jacket design rated to 30 PSI for rapid, uniform heat transfer
- Electronic spark ignition – 120 V cord and plug included (1 A)
- Thermostat control from 150 °F to 260 °F (65 °C – 126 °C)
- AccuTemp Kettle Protection System with automatic low-water cut-off & indicator light
- Self-locking, permanently lubricated worm-gear tilt with safety cut-off switch
- 2" tubular stainless support frame with adjustable flanged feet
- Full 3"–14" body insulation – Insulated for Safety™
- UL Gas-Fired listed and NSF certified – Made in the USA
Built-in Safety & Convenience
- Pressure relief valve, air eliminator valve and gauge on the front control console
- Jacket fill valve with sight glass for quick visual checks
- Seam-welded 304 SS outer jacket and control console wipe clean in seconds
- Deep-drawn radius lip for drip-free pouring and easier cleaning
Specifications
| Capacity | 20 gal (75.7 L) |
|---|---|
| Fuel / Input | Natural gas 63,200 BTU hr Propane 59,600 BTU hr |
| Gas Connection | 1/2" IPS – 5-7" W.C. NG / 12-14" W.C. LP |
| Jacket Rating | 30 PSI, 2/3 jacket |
| Temperature Range | 150 °F – 260 °F (65 °C – 126 °C) |
| Ignition | Electronic spark, 120 V / 1 phase / 1 A |
| Liner Material | 316 stainless steel, seamless deep-drawn |
| Outer Jacket & Console | 304 stainless steel, seam-welded |
| Tilt Mechanism | Self-locking worm gear, permanently lubricated |
| Overall Dimensions* | 50.2" W × 39.5" D × 64.3" H |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 1-year parts & labor (U.S. & Canada) |
Popular Accessories (sold separately)
- 2" or 3" ball or compression draw-off valves
- Lift-off or actuator-assisted covers
- 60" flexible gas quick-disconnect hose
- Perforated or solid disc strainers
- Single or tri-basket inserts, nylon bag kits and measuring strip
*Dimensions are based on a 2" draw-off valve configuration. Need more capacity? Edge Series kettles are also available in 30, 40, 60 and 80 gallon models.
$36,317.60
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
AccuTemp Edge Series 20-gal gas tilting steam kettle — 316SS liner, 2/3 jacket, 63,200 BTU, electronic ignition, NSF/UL certified for commercial kitchens.
Manufacturer
AccuTemp
Brand name
Edge Series™
Certifications
NSF, UL
Height
32.7in
Width
50.2in
Depth
35.4in
Kettle Liner
316 stainless steel
Kettle Jacket
partial jacket
Capacity
18 - 26 gallon
Width
49 - 62 inches
Specifications
AccuTemp Edge Series™ Tilting Kettle, Gas, 20 gallon capacity, 2/3 jacket, 316 stainless steel liner, electronic ignition, self-contained, insulated, deep-drawn stainless steel construction, 2" tubular support frame, 30 PSI, 63,200 BTU, UL, NSF
