AccuTemp  |  Edge Series™  |  SKU: ALTEH-5

AccuTemp ALTEH-5 Edge Series™ Steam Kettles

$10,659.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

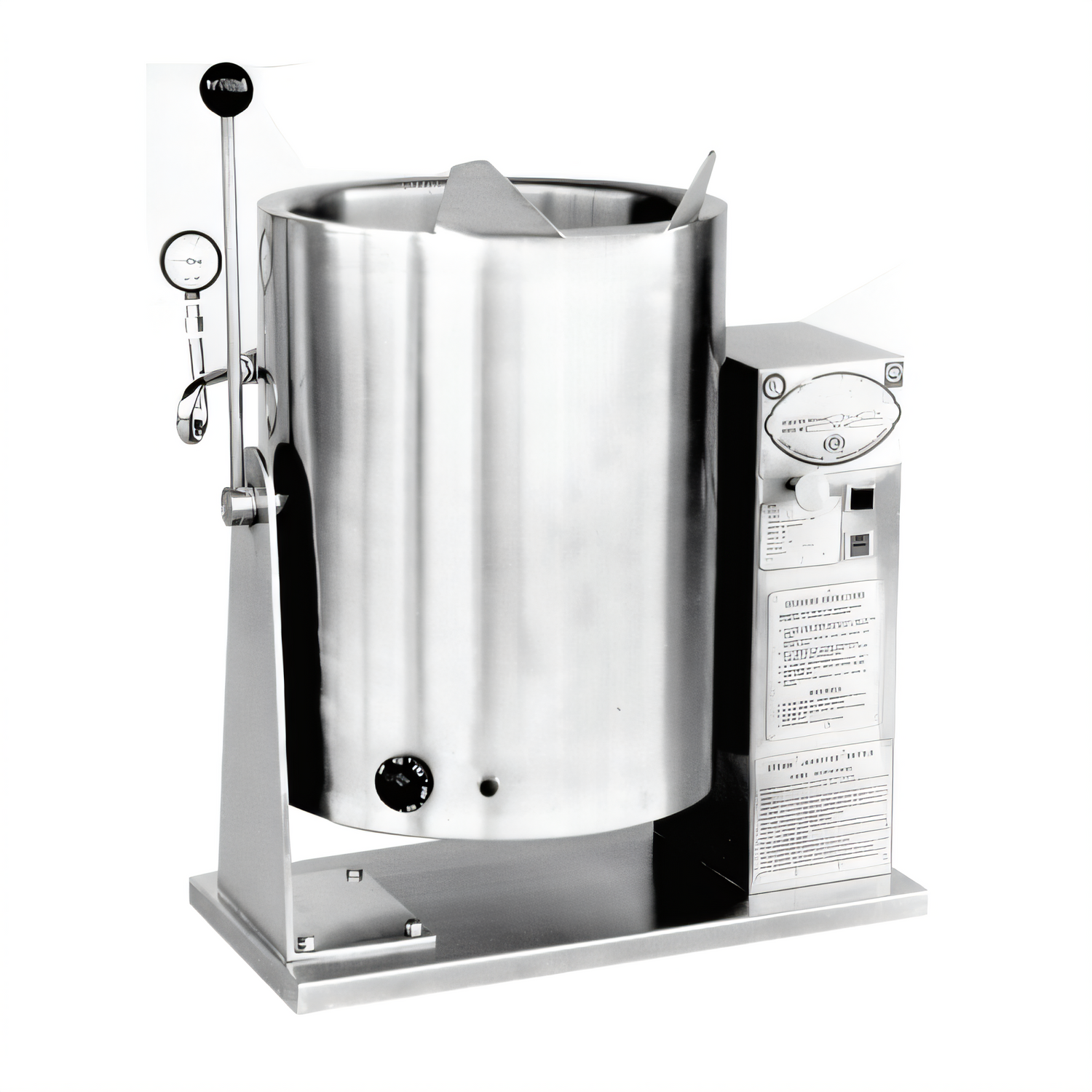

AccuTemp Edge Series™ 5-Gallon Electric Tilting Countertop Kettle

Model ALTEH-5 | 2/3-Jacketed | Made in USA

Designed for high-volume flavor in a compact footprint, the Edge Series™ 5-gallon kettle delivers fast, even heating and effortless pouring for soups, sauces, gravies, custards and more. Its seamless 316 stainless steel cooking chamber cleans up in seconds, while full-body insulation keeps heat in the food—-not in your kitchen.

Key performance & safety features

  • Self-contained 2/3 steam jacket rated to 50 PSI for rapid, uniform heat transfer
  • Seamless, deep-drawn 316 SS liner with integrally-formed radius lip for drip-free pouring
  • Field-replaceable 6 kW heating elements—swap in minutes, not hours
  • Thermostat control from 150 – 285 °F (65 – 140 °C) with low-water cut-off & indicator light
  • Pressure relief valve, pressure gauge & jacket fill valve built-in for worry-free operation
  • Full-body Insulated-for-Safety™ design reduces energy use and protects staff
  • Smooth balanced tilt with included tilt-locking device for one-handed portioning
  • 304 SS welded jacket, outer casing & reinforced base for long-term durability
  • UL & NSF certified for open-kitchen installation

What’s in the box

  • Edge Series™ 5-gal countertop kettle (Model ALTEH-5)
  • Tilt-locking device (factory installed)
  • Owner’s manual & quick-start guide

Popular add-ons (sold separately)

  • Single or dual fill faucets with 12" or 18" swing nozzles
  • 60" flexible spray hose assembly
  • Lift-off cover or anti-splash screen
  • Stand or table for one or two kettles
  • Single basket or nylon bag inserts for stock production

Specifications

Capacity 5 gal  / 19 L
Construction Seamless 316 SS liner, 304 SS jacket & casing, fully insulated
Jacket Coverage 2/3-jacketed, self-contained
Operating Temp 150 – 285 °F (65 – 140 °C) adjustable
Working Pressure 50 PSI
Heating Elements 6 kW, field-replaceable
Electrical Options 208 V, 240 V, 380 V, 415 V, 440 V, 480 V  |  1- or 3-phase
Amperage (208 V) 21.7 A (1 ɸ)  /  12.5 A (3 ɸ)
Overall Dimensions 23.5″ W × 26.5″ D × 32.2″ H
Certifications UL, NSF
Warranty 1-year parts & labor (US/Canada)

Full amp draw by voltage

Voltage 1-Phase 3-Phase (per leg)
208 V 21.7 A 12.5 A
240 V 25.0 A 14.4 A
380 V 15.8 A 9.1 A
415 V 14.5 A 8.3 A
440 V 11.5 A 6.6 A
480 V 12.5 A 7.2 A

Registration required at installation to activate warranty. See AccuTemp Owner’s Manual for full terms.

Features & Specs

Manufacturer

AccuTemp

Brand_name

Edge Series™

Certifications

NSF, UL

Height

32.2in

Width

26.5in

Capacity

5 gal = 20 qt

Kettle Jacket

partial jacket

Kettle Liner

316 stainless steel

Specifications

AccuTemp Edge Series™ Tilting Kettle, Electric, table top, 5 gallon capacity, 2/3 jacket, 316 stainless steel liner, field replaceable heating elements, self-contained, insulated, deep-drawn stainless steel construction, includes: tilt locking device, 50 PSI, UL, NSF
