AccuTemp ALTEH-10 Edge Series™ Steam Kettles
Description

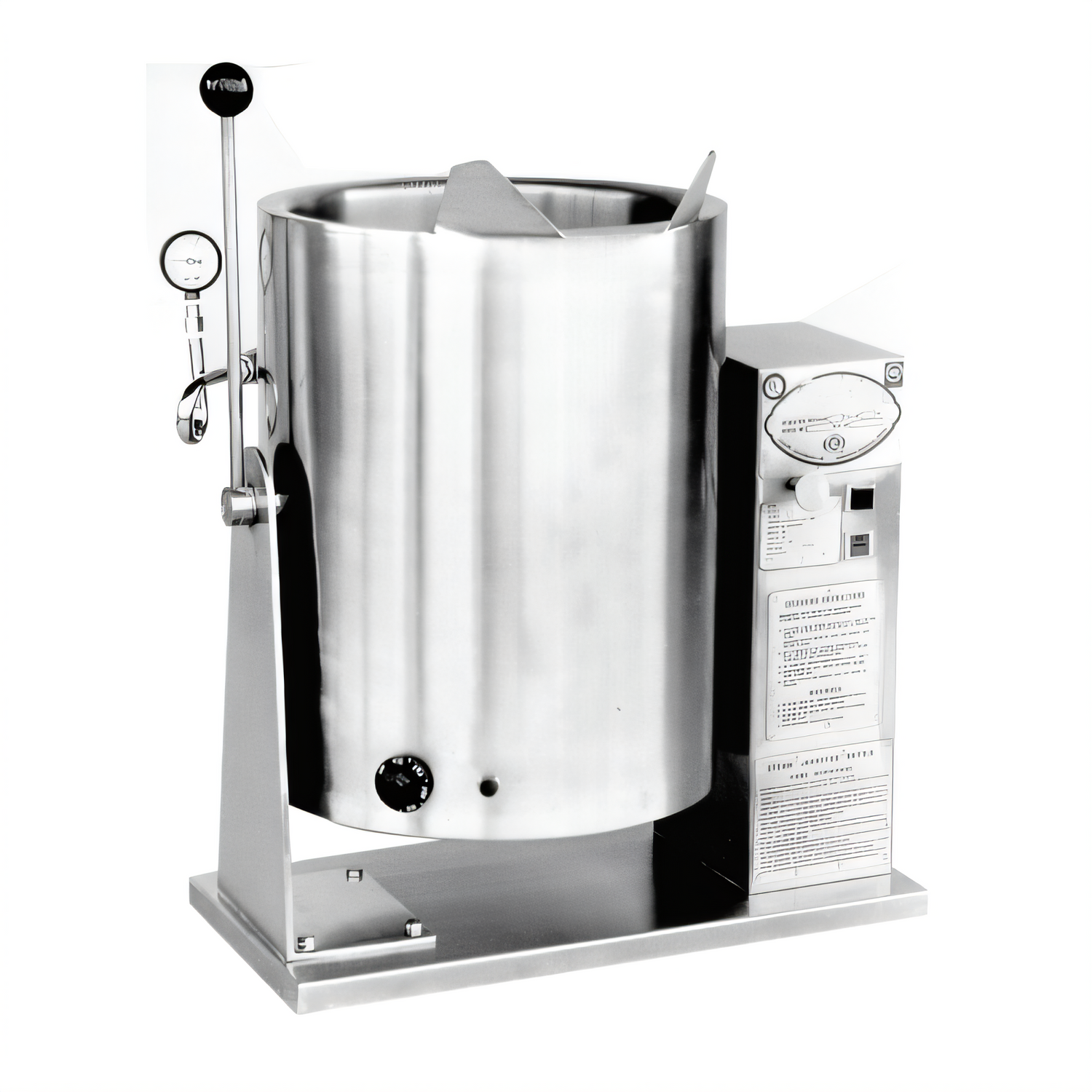

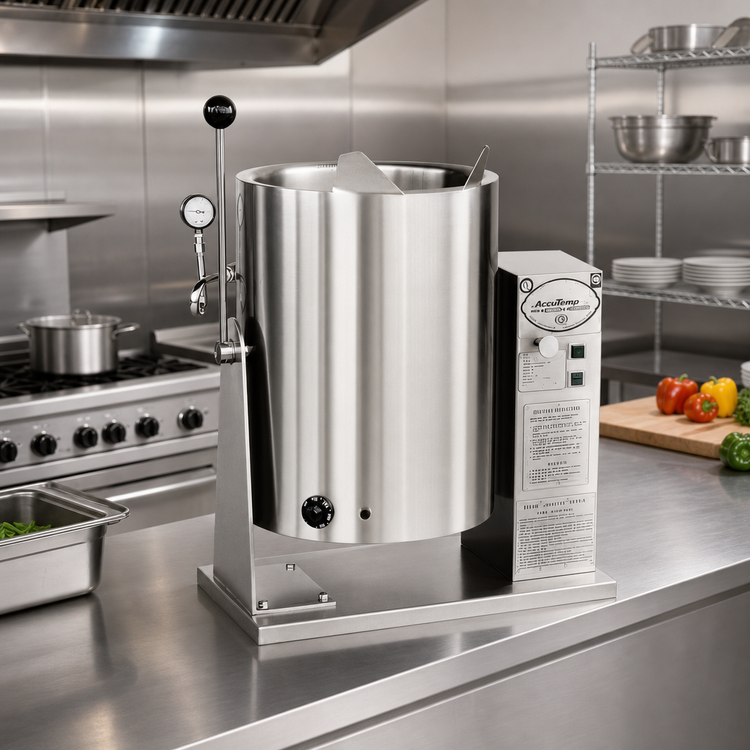

AccuTemp Edge Series™ 10-Gallon Table-Top Tilting Kettle
Model ALTEH-10 | Electric • 2/3 Jacket • 50 PSI • Made in USABuilt for high-volume batch cooking in tight spaces, the Edge Series™ 10-gallon kettle delivers the performance of a full-size floor unit in a compact, counter-top design. Its seamless 316 stainless liner, heavy insulation and field-replaceable heating elements combine for unbeatable durability, energy efficiency and low cost of ownership.
Key Benefits
- Seamless deep-drawn 316 stainless steel kettle liner with integrally formed radius lip for drip-free pouring.

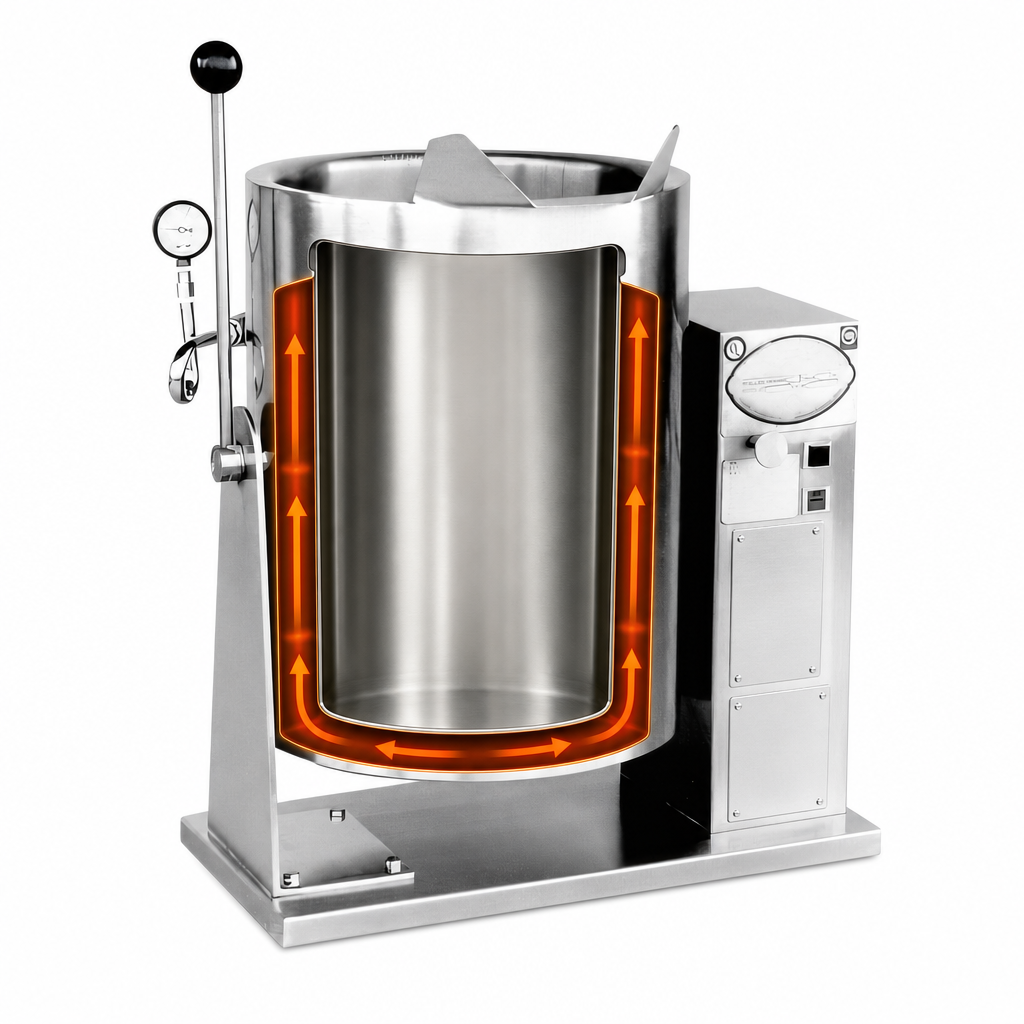

- 2/3 steam jacket (304 SS) rated at 50 PSI for faster, even heating and reduced scorch potential.
- Full-body insulation—cool-to-touch exterior for operator safety and reduced energy loss.
- Thermostatic temperature control from 150 °F – 285 °F (65 °C – 140 °C) plus pressure gauge and relief valve.
- Automatic low-water cut-off with indicator light protects elements and extends service life.
- Smooth, balanced tilting with included tilt-locking device for safe kettle dumping.
- Field-replaceable heating elements minimize downtime and service expense.
- All stainless‐steel exterior, seam-welded control console and reinforced base for a lifetime of commercial use.
- UL & NSF listed; one-year parts & labor warranty.
Specifications

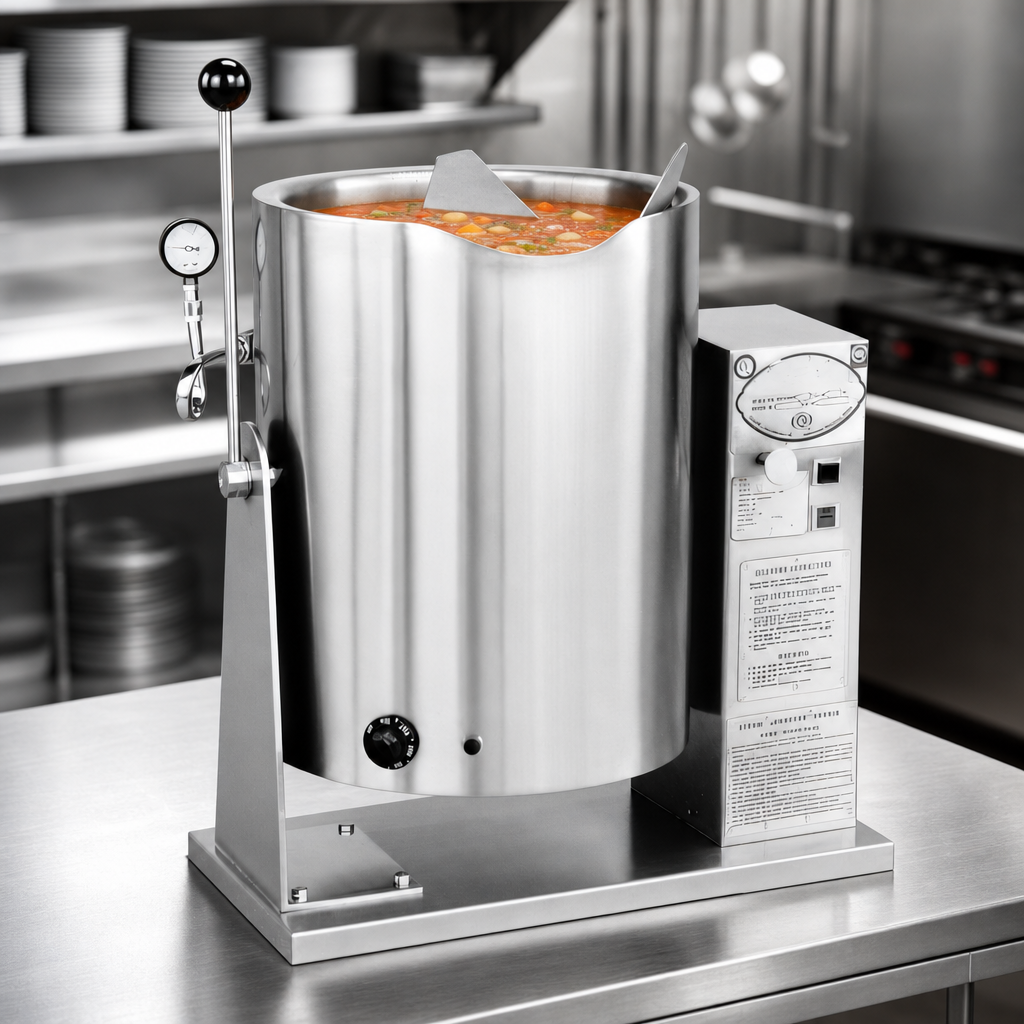

| Capacity | 10 gal | 38 L |
|---|---|
| Construction | 316 SS liner, 304 SS jacket & outer casing |
| Jacket Rating | 50 PSI (3.45 bar) working pressure |
| Temperature Range | 150 °F – 285 °F (65 °C – 140 °C) |
| Heating | Electric, self-contained; field-replaceable elements |
| Controls & Safety | Thermostat, pressure relief valve, pressure gauge, low-water cut-off |
| Electrical Load | 12 kW • 208 V: 43.3 A (1 ø) / 25.0 A (3 ø) • 240 V: 50.0 A (1 ø) / 28.9 A (3 ø) • 380 V, 415 V, 440 V, 480 V ratings available |
| Exterior Dimensions | A 16.0" • B 14.0" • C 27.2" • D 11.0" • F 27.0" • G 4.8" • J 32.2" • L 23.5" • W 12.6" |
| Certifications | UL, NSF, American-Made |
| Warranty | 1-Year Parts & Labor (U.S./Canada) |
Popular Accessories (Sold Separately)
- Single or dual fill faucets with 12" or 18" swing nozzles
- 60" flexible spray rinse hose (vinyl or stainless)
- Lift-off stainless cover
- Table stand for one or two kettles
- Single basket or nylon bag inserts for stock & soup production
- Anti-splash screen and correctional package
Need a smaller footprint? A 5-gallon Edge Series™ model is also available. Contact us for lead time, optional voltages or bundled accessory pricing.
