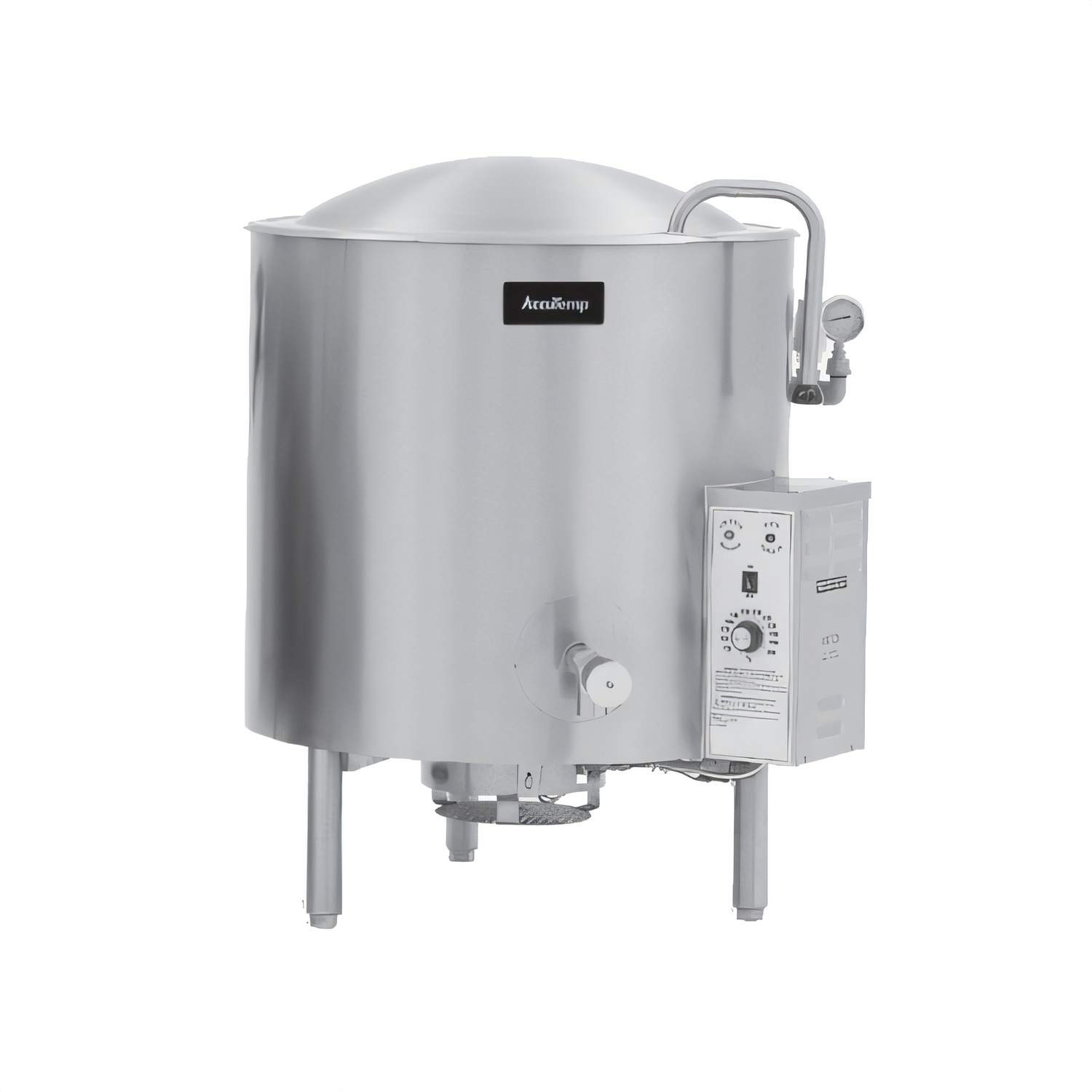

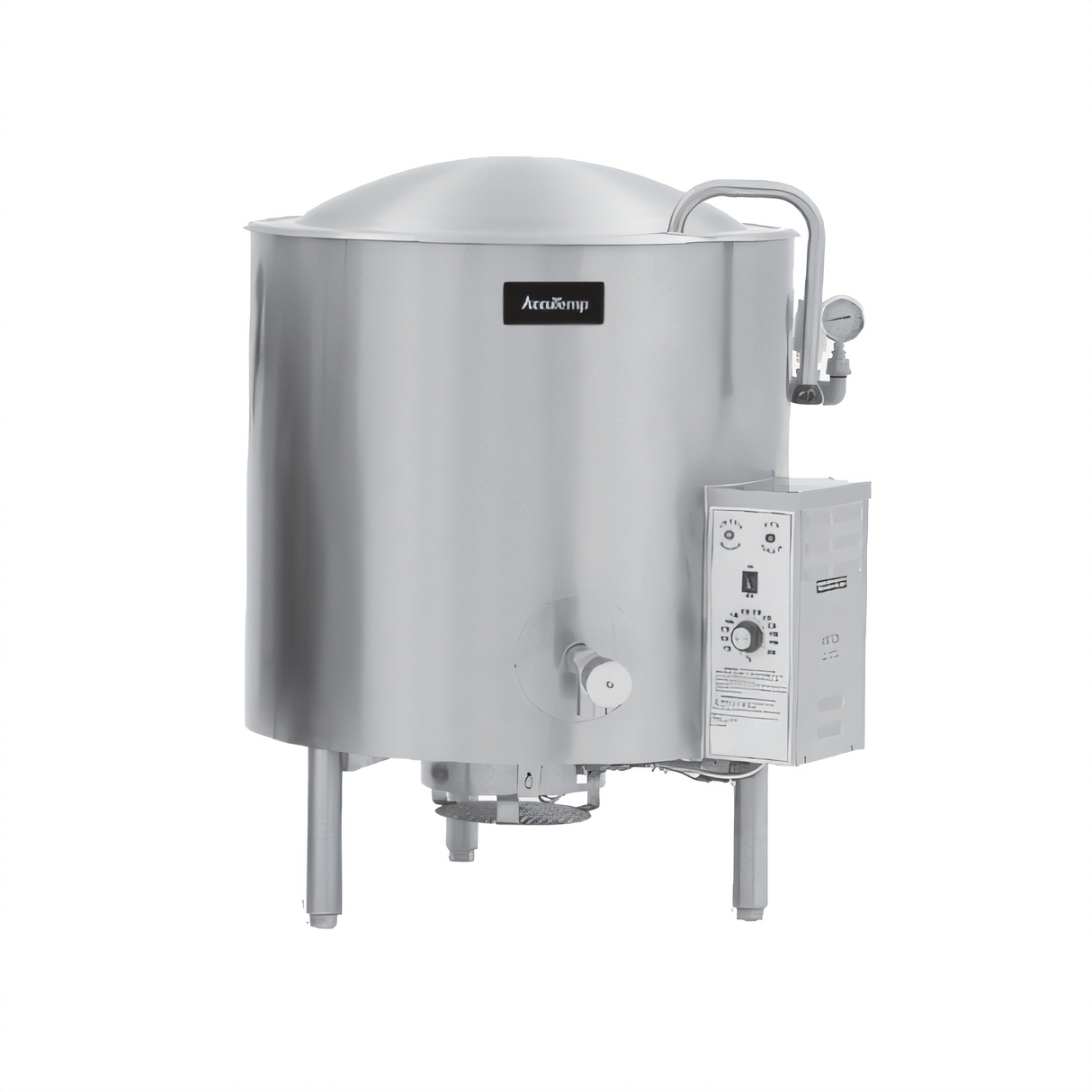

AccuTemp ALLGB-60 Edge Series™ Steam Kettles
AccuTemp ALLGB-60 Edge Series™ Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

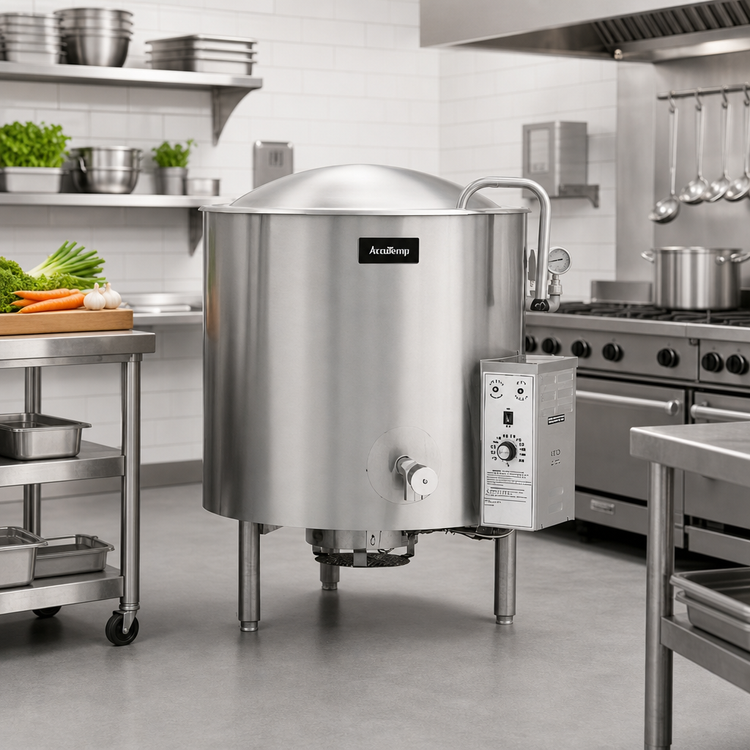

AccuTemp Edge Series™ 60 Gal. Gas Stationary Kettle
Model ALLGB-60F • Self-Contained 2/3 Jacket • Made in USABuilt for high-volume, high-precision cooking, the Edge Series™ stationary kettle turns out consistent soups, sauces, stocks and more while keeping your crew safe and your energy costs in check.
Why You’ll Love It

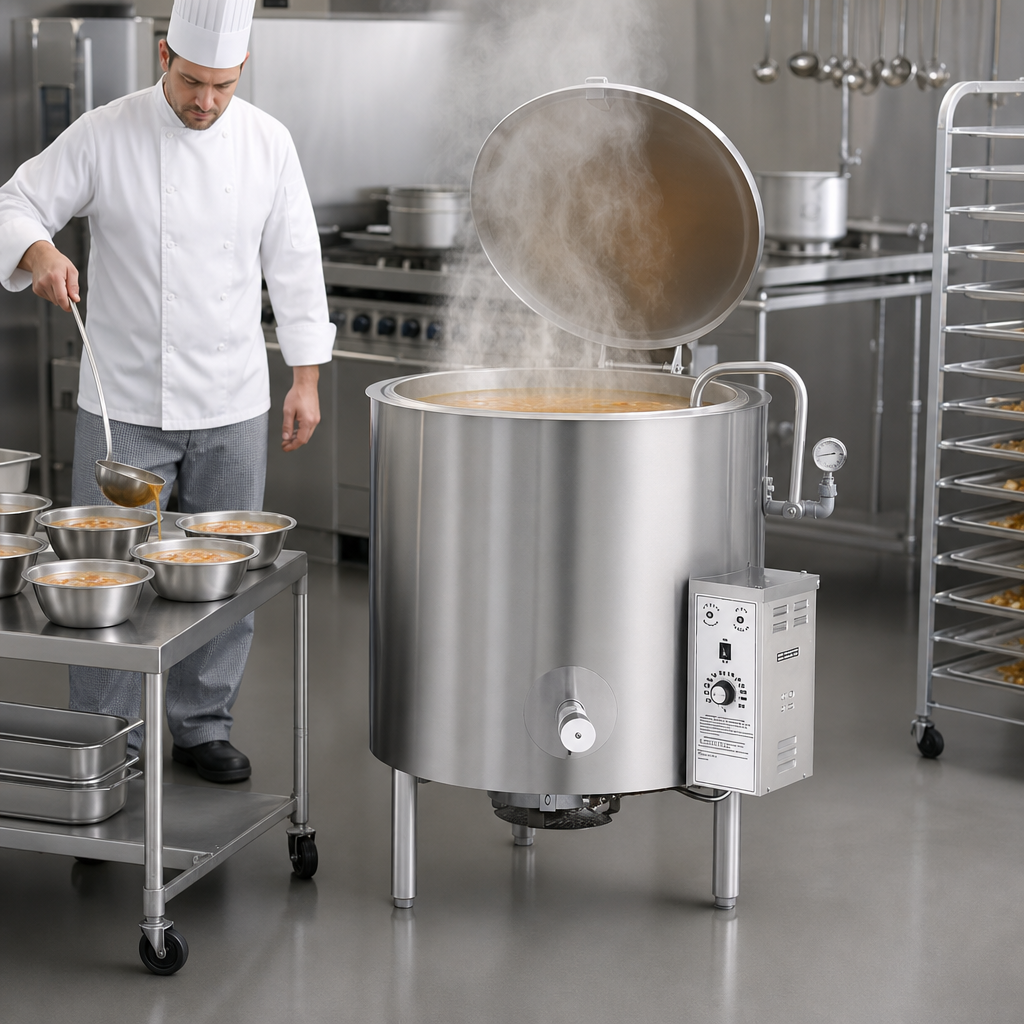

- Full 60-gallon (227 L) working capacity—ideal for batch production and commissary kitchens.
- Self-contained steam system; no external boiler hookup required.

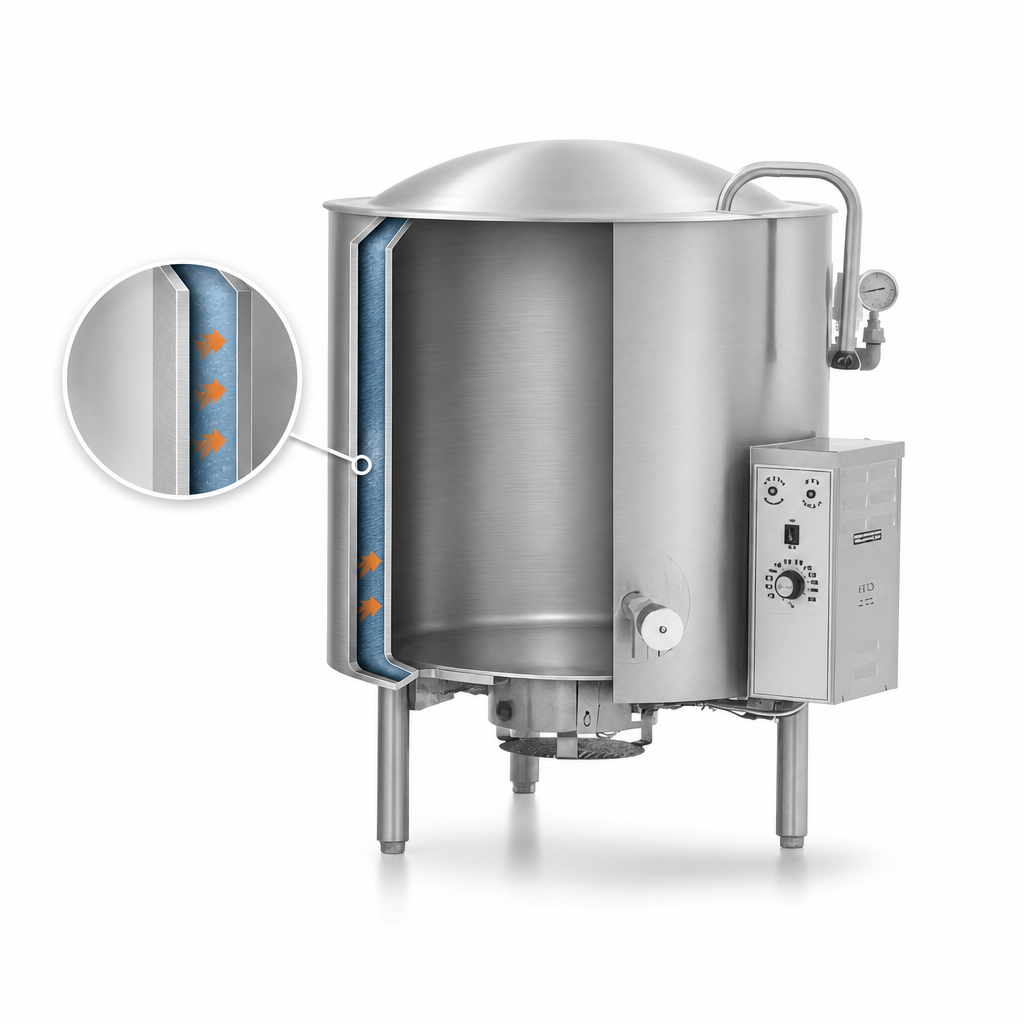

- 2/3 jacket surrounds the product zone for fast, even heating up to 30 PSI.
- Powerful 108,500 BTU gas burner with reliable 120 V electronic ignition.
- Insulated for Safety™ construction keeps exterior surfaces cool and reduces energy loss.
- One-piece, spring-assist domed cover—lift with one hand, park at any angle.
- 2″ compression draw-off valve with removable perforated strainer for quick, clog-free draining.
- Comprehensive protection system:
- Thermostat range 150–260 °F (65–126 °C)
- Automatic low-water cut-off with indicator light
- Pressure gauge & 30 PSI safety relief valve
- Air eliminator & manual jacket fill valve
- Leg-mounted frame with adjustable bullet feet for easy leveling on uneven floors.
- UL Gas-Fired & NSF listed for safety and sanitation.
- Backed by AccuTemp’s 1-year parts & labor warranty.
Performance Specs
Capacity | 60 gal / 227 L |
---|---|
Steam Jacket | 2/3 coverage, 30 PSI max |
BTU Input | 108,500 BTU/hr (Natural or Propane) |
Gas Connection | 3/4″ IPS—Natural 5–7″ W.C. / Propane 12–14″ W.C. |
Electrical | 120 V, 50/60 Hz, 1 Ph, 1 A (ignition only) |
Liner & Jacket | Seamless deep-drawn 304 stainless steel, fully insulated |
Cover | One-piece, actuator-assisted, 304 stainless |
Drain Valve | 2″ compression with perforated disc strainer |
Certifications | UL Gas-Fired, NSF |
Warranty | 1-year parts & labor |
Optional Accessories
- 60″ gas quick-disconnect hose
- Single or dual fill faucet with 12″/18″ swing nozzle & mounting bracket
- Flexible rinse spray hose assembly
- Automatic water-fill meter
- Solid or fine-perforated disc strainers
- Tri-basket or nylon bag inserts
- 3″ draw-off valve upgrade
- Two-speed mixer/agitator kit
Looking for another capacity or configuration? The Edge Series™ is available from 15 – 100 gallons with a wide range of customization—just ask!
