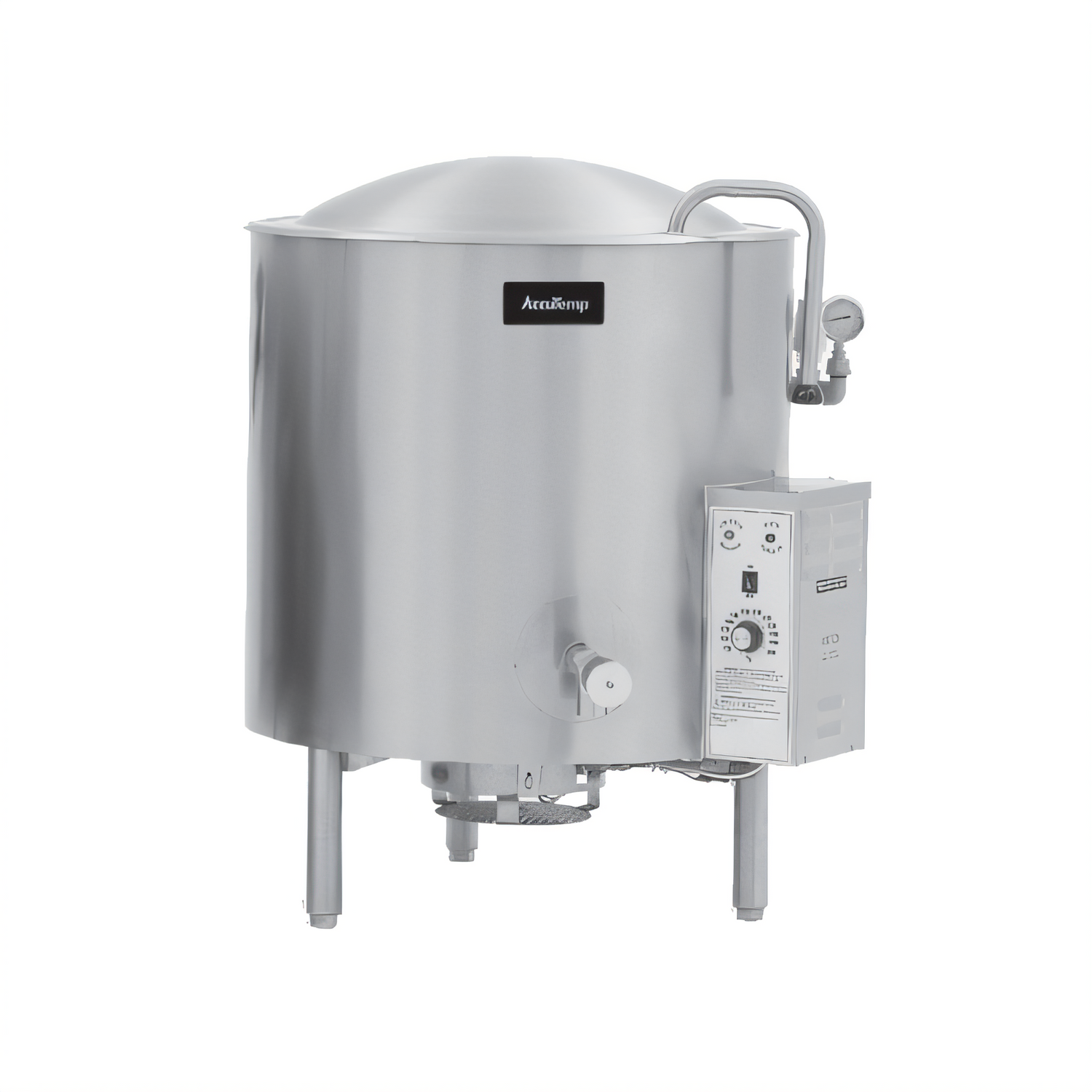

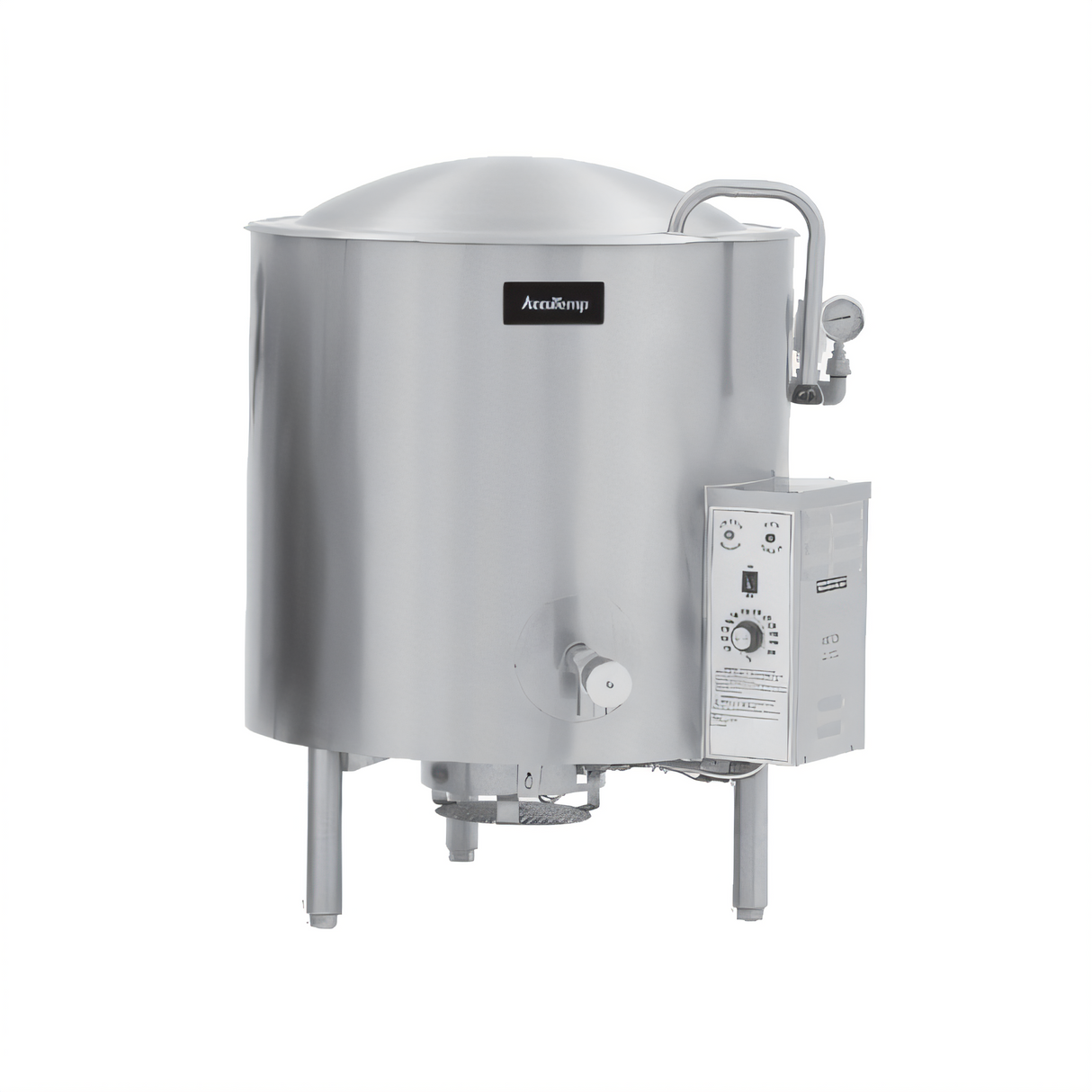

AccuTemp ALLGB-40 Edge Series™ Steam Kettles
Description
Edge Series™ 40-Gallon Stationary Kettle
Model ALLGB-40F | Gas-Fired • 2/3 Jacket • Self-ContainedBuilt for high-volume, high-profit kitchens, the AccuTemp Edge Series™ 40-gallon kettle delivers fast, even heating without the expense of an external boiler. Seamless 316 stainless construction, full-body insulation and an operator-friendly low-rim design make it the safest, most dependable way to prepare soups, sauces, pastas and more.
Top Features

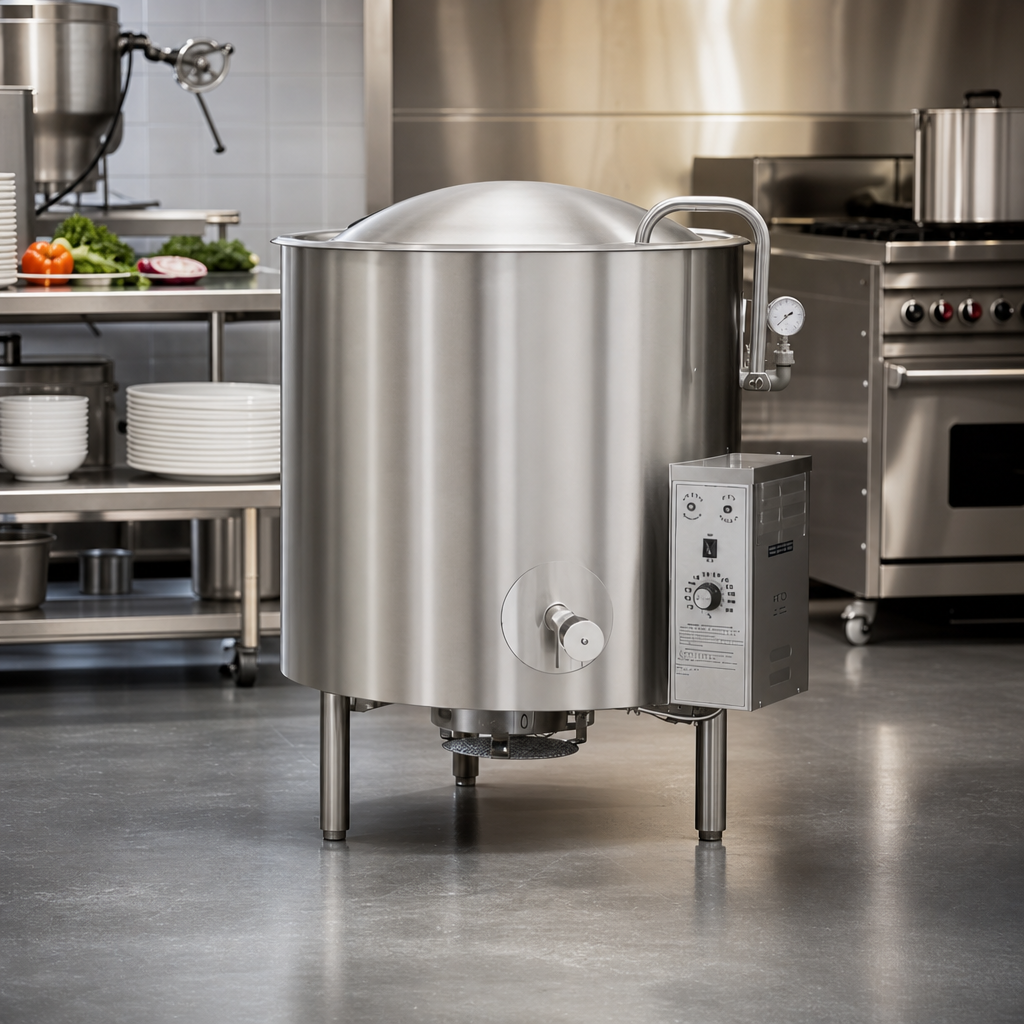

- 40 gal (151 L / 160 qt) working capacity—ideal for 300+ eight-oz servings.

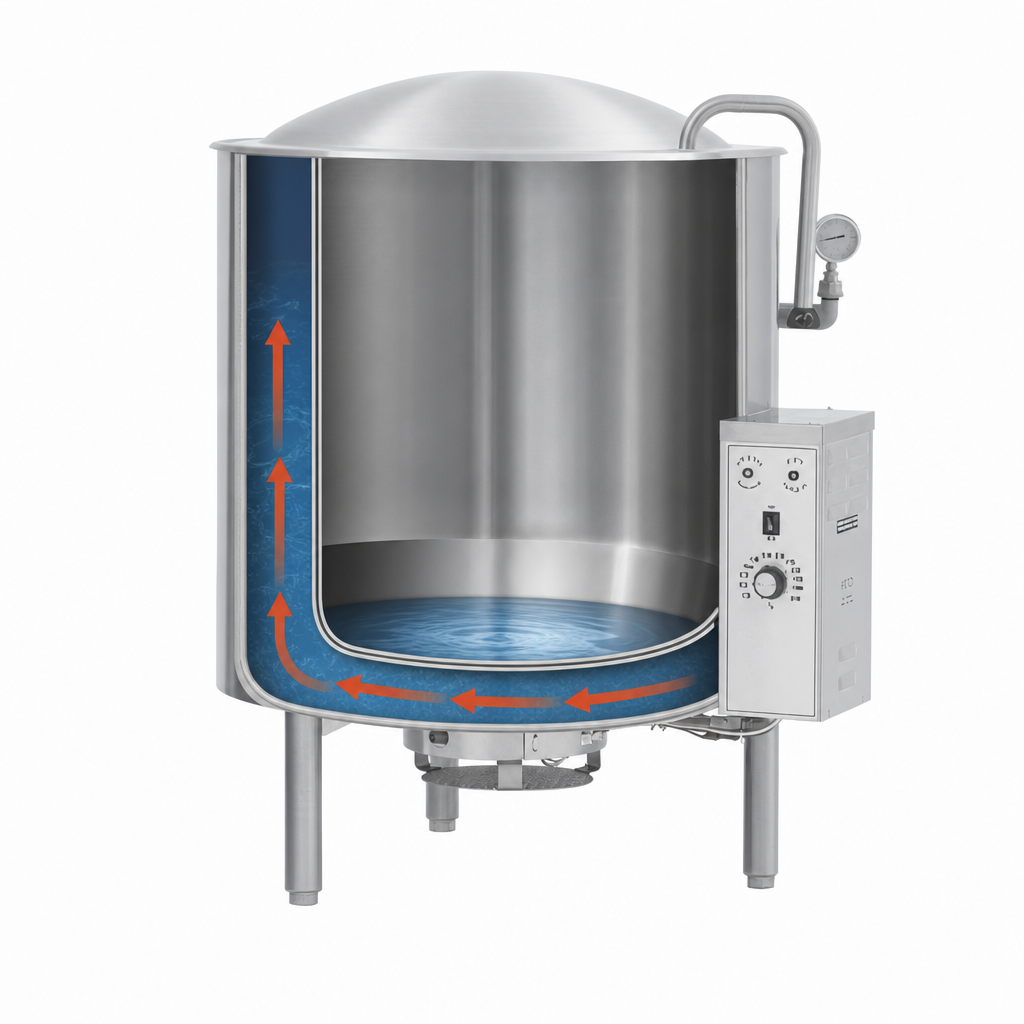

- Self-contained 2/3 jacket generates its own steam; no remote boiler required.
- Seamless deep-drawn 316 stainless steel liner resists acidic foods and harsh cleaners.
- Insulated for Safety™ shell keeps exterior cool and cuts energy loss.
- 83,100 BTU/h gas burner with electronic ignition (120 V, 1 A) for quick, pilot-less starts.
- Thermostat-controlled temperature range: 150-260 °F (65-126 °C).
- One-piece, actuator-assisted domed cover opens effortlessly and stays put.
- 2" compression draw-off valve with removable ¼" perforated strainer for smooth, clog-free portioning.
- Comprehensive protection system: low-water cutoff, pressure relief valve, pressure gauge, air eliminator & indicator light.
- Stainless leg base with adjustable bullet feet for a sanitary, no-tilt, low-rim working height.
- UL Gas-Fired & NSF listed; proudly built in the USA.
Why Choose Edge Series?
- Boost productivity—batch-cook large volumes with no scorching or hot spots.
- Reduce labor—empty product through the valve, not by tilting or lifting.
- Save utilities—high-efficiency burner and thick insulation lower operating costs.
- Improve safety—cool-touch exterior and low rim reduce burn and strain risks.
- Built to last—heavy-gauge all-stainless construction stands up to daily abuse.
Technical Specifications
| Capacity | 40 gal / 151 L / 160 qt |
|---|---|
| Jacket | Self-contained, 2/3 coverage, 30 PSI rated |
| Heat Source | Natural or Propane Gas, 83,100 BTU/h |
| Ignition | Electronic, 120 V, 1 ph, 50/60 Hz, 1 A |
| Temperature Range | 150-260 °F (65-126 °C) |
| Liner Material | 316 Stainless Steel (seamless, deep-drawn) |
| Exterior | 304 Stainless Steel, fully insulated |
| Cover | One-piece stainless, spring/actuator assisted |
| Draw-Off Valve | 2" compression type, ¼" perforated strainer included |
| Gas Connection | ¾" IPS; 5-7" W.C. natural / 12-14" W.C. propane |
| Certifications | UL (Gas-Fired), NSF |
| Warranty | 1-year parts & labor (U.S. & Canada) |
Popular Accessories (optional)
- Single or dual swing-nozzle fill faucets (12" or 18")
- 60" flexible spray hose assembly (vinyl or stainless)
- Automatic water-filling meter
- Lift-off or two-piece hinged cover
- 3" draw-off valve
- Draw-off drain hose & measuring strip
