AccuTemp ALLGB-30F Edge Series™ Steam Kettles
Description

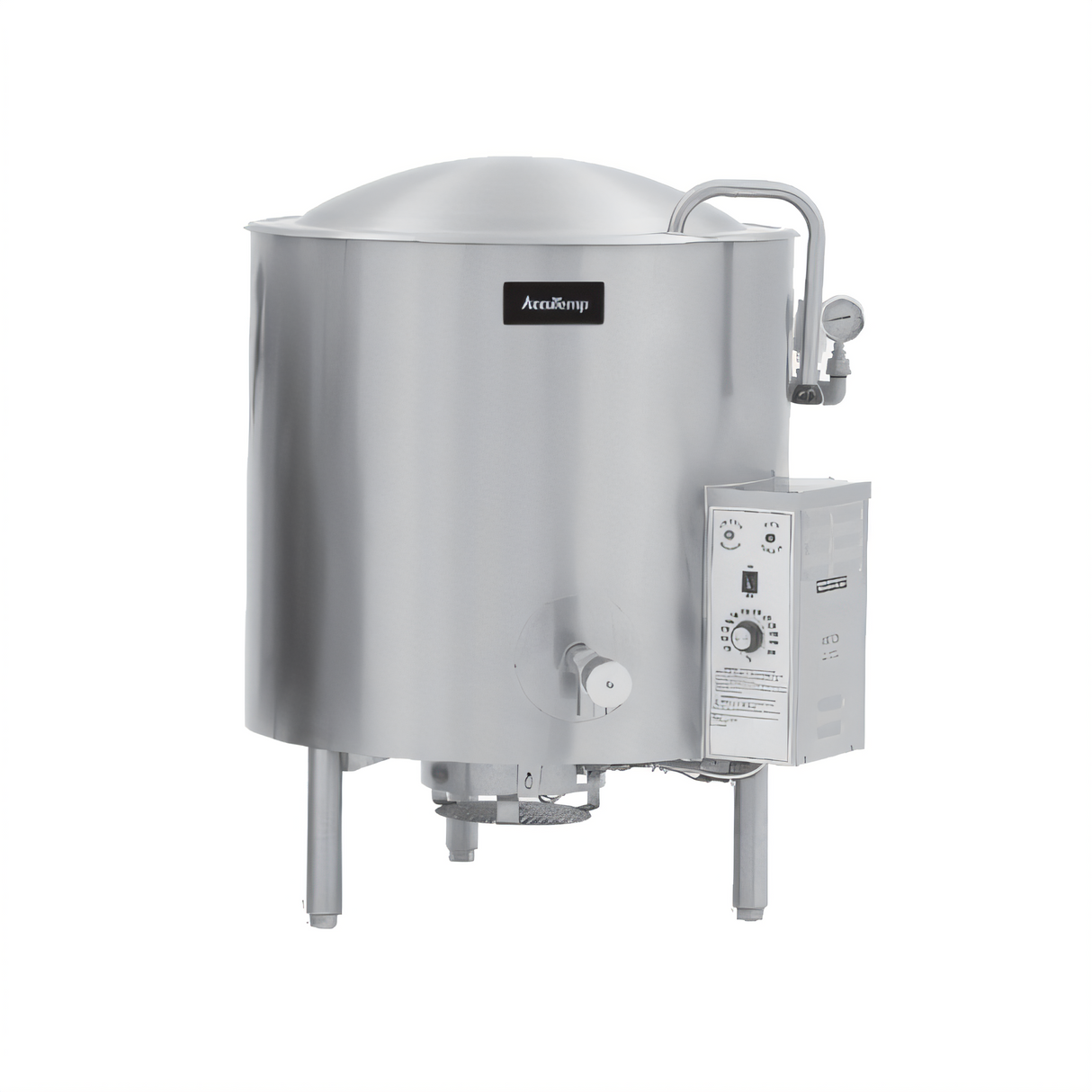

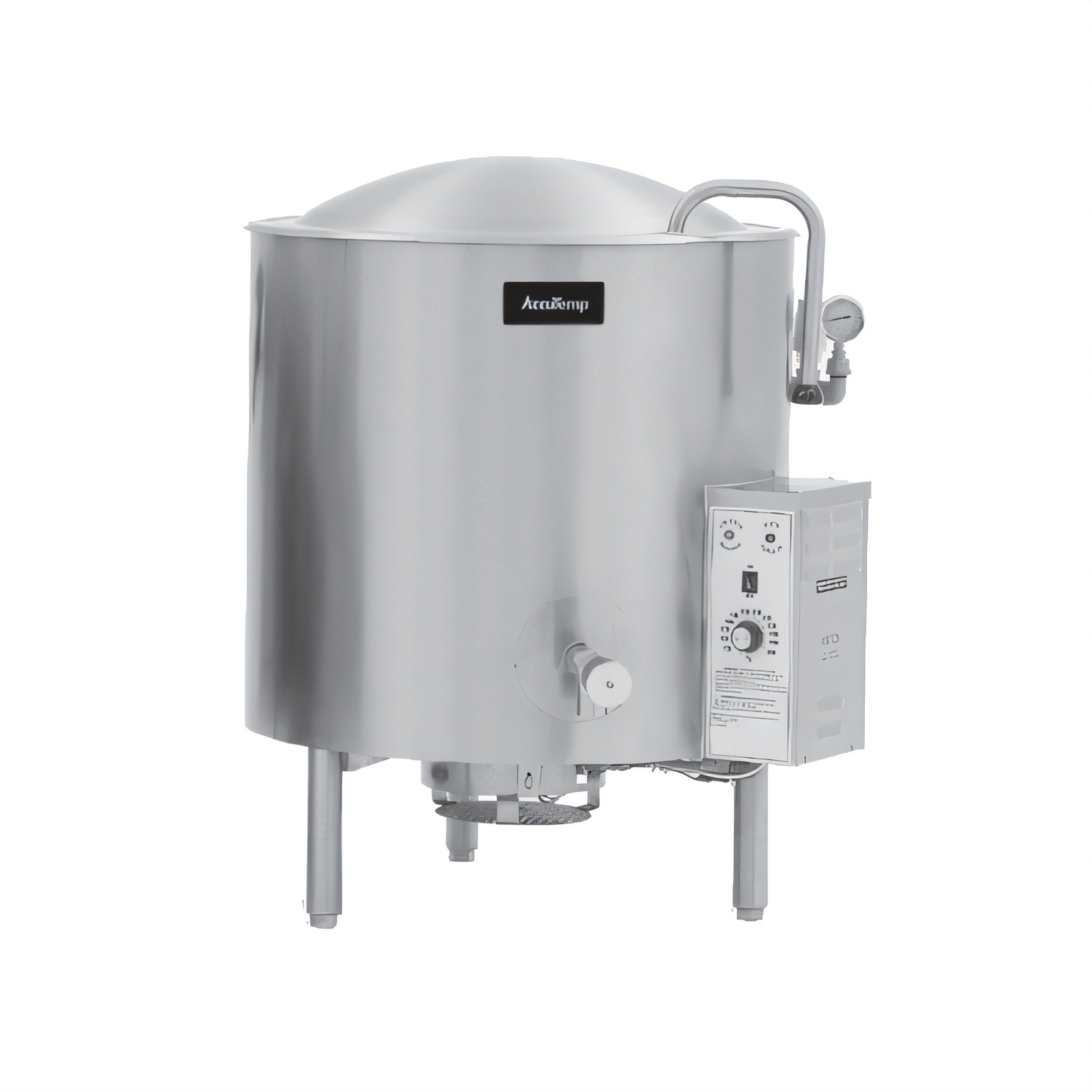

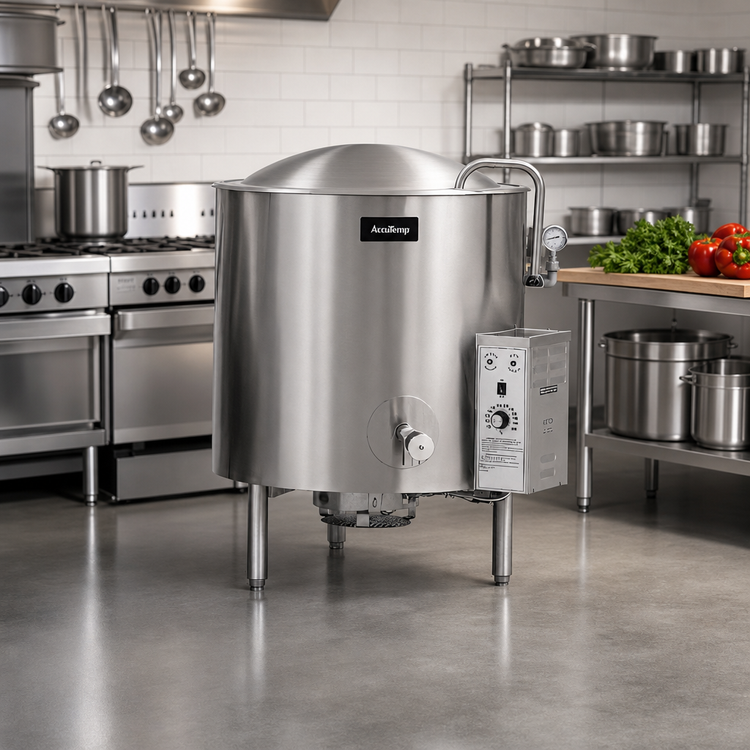

Edge Series™ 30-Gallon Stationary Gas Kettle
Model ALLGB-30F | 67,800 BTU | Full Jacket | 316 SS LinerBuilt for bustling commissaries, schools and high-volume restaurants, the AccuTemp Edge Series™ 30-gallon kettle delivers fast, even steam-jacket cooking without the maintenance, space or expense of an external boiler. Just connect gas and a 120 V outlet, press ignite and start turning out flawlessly simmered soups, chilies, sauces and more—shift after shift.
Why You’ll Love It
- Full-jacket, self-contained steam system provides 360° heat for consistently smooth results—no hot spots, no scorching.
- Seamless 316 stainless-steel liner shrugs off acid foods like tomato or citrus, extending service life.
- Electronic ignition with safety pilot lights instantly and eliminates standing pilots to save energy.
- Actuator-assisted one-piece domed cover opens effortlessly and stays put at any angle for safer, hands-free operation.
- 2" compression draw-off valve with perforated disc strainer speeds portioning and cleanup.
- Heavy-gauge deep-drawn construction plus full-body fiberglass insulation keep surfaces cooler and the kitchen more comfortable.
- Adjustable stainless legs for rock-solid stability on uneven floors.
- UL Gas-Fired & NSF Listed; proudly made in the U.S.A.
At-a-Glance Specs

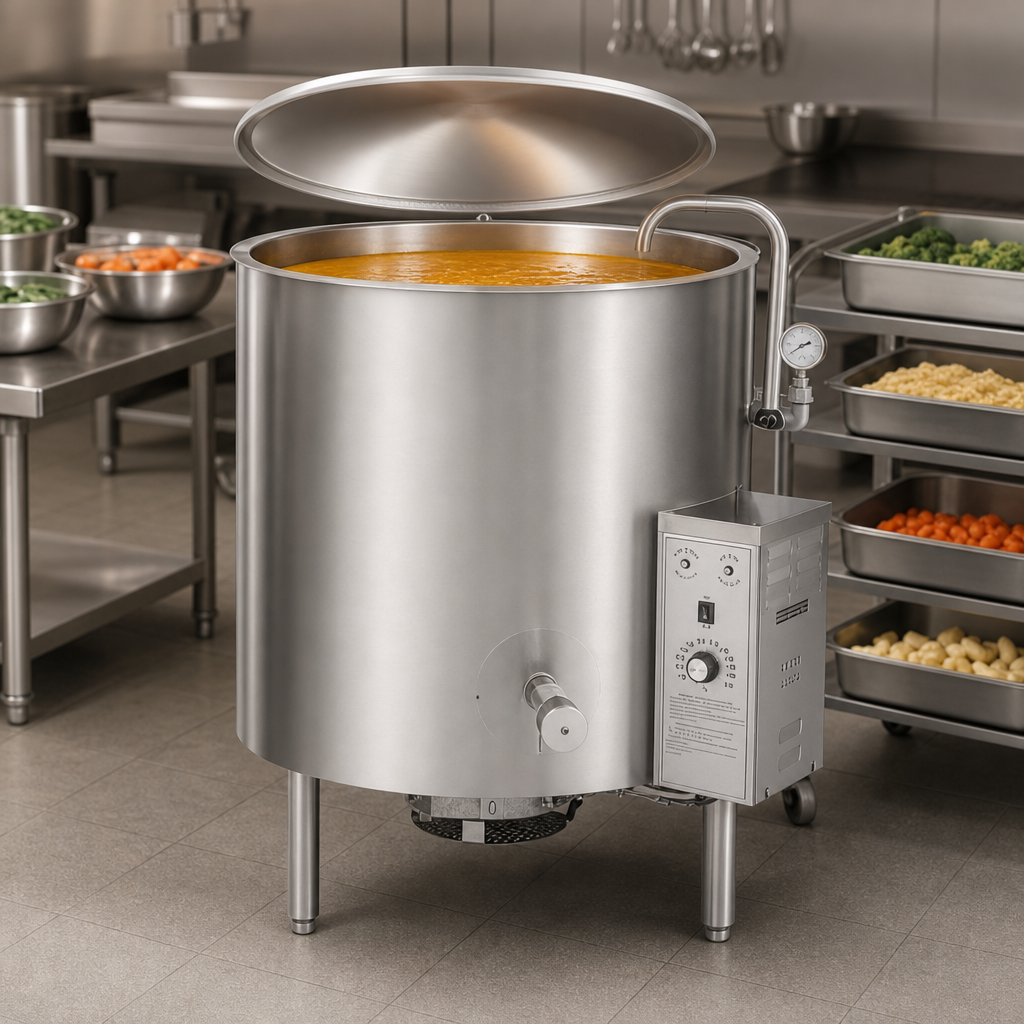

| Capacity | 30 gal (113 L) |
|---|---|
| Steam Jacket | Full jacket, self-contained, 30 PSI operating pressure |
| Heat Source | Natural or propane gas, electronic ignition |
| Input | 67,800 BTU/hr |
| Liner | Seamless 316 stainless steel |
| Cover | One-piece, actuator-assisted domed stainless cover |
| Draw-Off Valve | 2" compression type with 1/4" perforated disc strainer |
| Gas Connection | 3/4" NPT (rear) |
| Electrical | 120 V, 1 Ph, 50/60 Hz, 1 A (for ignition & controls) |
| Operating Temp Range | 150 °F – 260 °F (65 °C – 126 °C) |
| Exterior | 304 stainless jacket, casing & control console |
| Certifications | UL Gas-Fired, NSF |
| Limited Warranty | 1 year parts & labor (U.S./Canada) |
| Dimensions (WxDxRim H) | 37.1" × 25.8" × 35.1" | 70.6" high with lid fully open |
What’s In the Box
- Edge Series™ 30-gal stationary kettle, fully assembled
- 2" compression draw-off valve with perforated strainer
- Actuator-assisted stainless cover
- Factory-installed adjustable legs
- Owner’s manual & warranty registration card
Popular Factory Options
- Automatic water fill meter
- Flexible spray-rinse hose (vinyl or stainless)
- Single or dual fill faucet with 12"/18" swing nozzle
- Electric timer with buzzer
- 3" draw-off valve
- Correctional package & flanged feet
Contact your AccuTemp representative to add options at the time of order.
