AccuTemp ALLGB-30 Edge Series™ Steam Kettles
Description

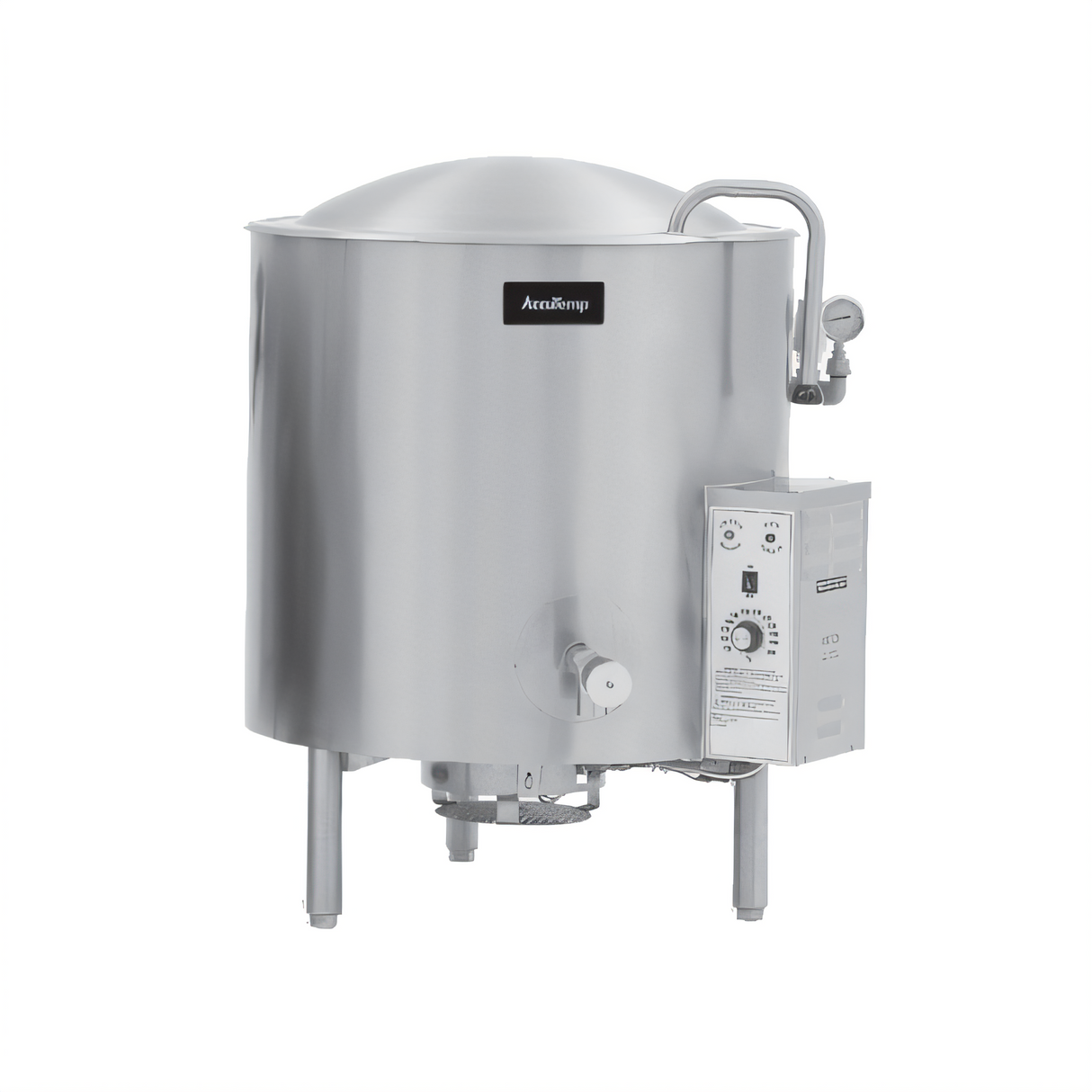

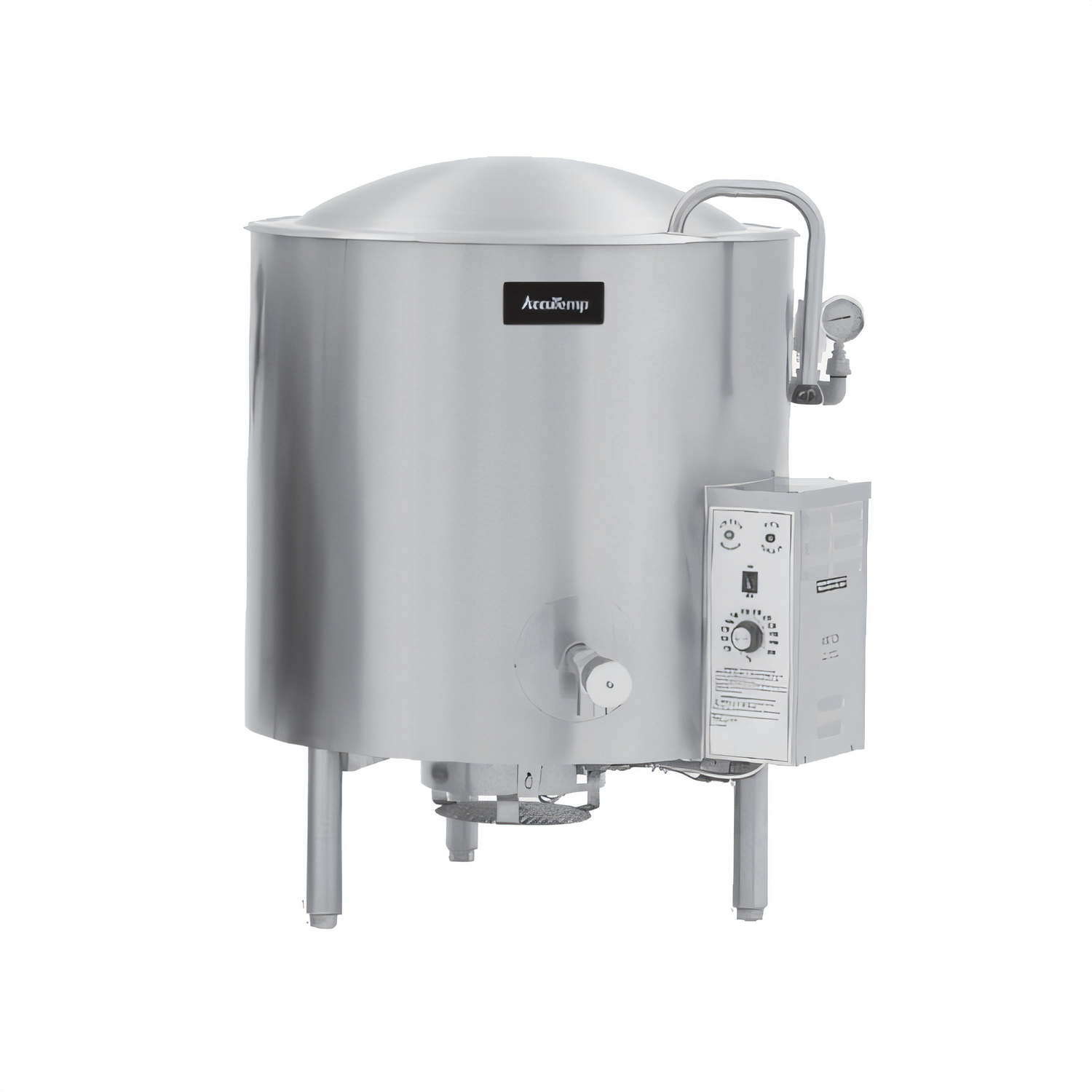

AccuTemp Edge Series™ 30-Gallon Stationary Gas Kettle
Model ALLGB-30F | 2/3 Jacket | 30 PSI | 67,800 BTUBuilt for kitchens that never slow down, the Edge Series™ ALLGB-30F delivers the speed, consistency, and safety large-batch production demands—without the footprint or complexity of a boiler system. Its self-contained, gas-fired design combines deep-drawn stainless construction with full body insulation to hold temperatures longer, cut energy costs, and keep crews protected.
Key Features & Benefits
- 30 gal (113 L) working capacity—ideal for high-volume soups, sauces, stews & reductions.

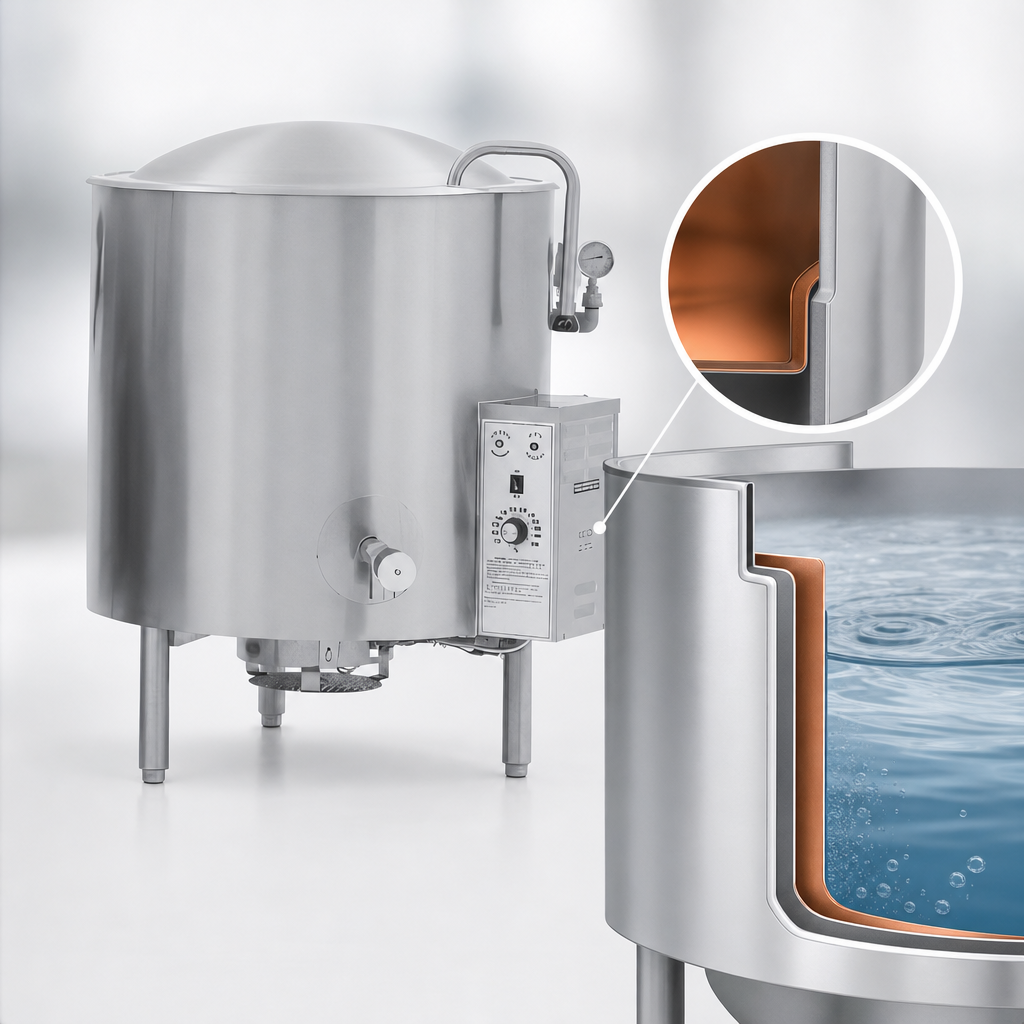

- 2/3-jacketed kettle delivers even, edge-to-edge heat with no hot spots.
- Seamless 316 stainless steel liner resists acidic products better than 304 SS.
- Gas-powered burner produces 67,800 BTU for rapid heat-up and recovery.
- Electronic ignition (120 V, 1 A) for instant, pilot-less starts.
- One-piece hinged stainless cover keeps condensation inside the kettle and off your floor.
- 2" compression draw-off valve with removable ¼" perforated strainer—fast, clog-free draining.
- Thermostat-controlled range 150 °F–260 °F (65 °C–126 °C) for precise simmer-to-boil control.
- Built-in safety suite: pressure-relief valve, air eliminator, low-water cut-off & indicator light.
- Fully insulated jacket and outer casing remain cooler to the touch and reduce energy loss.
- Rugged, leg-mounted base with adjustable bullet feet for quick leveling on uneven floors.
- UL Gas-Fired & NSF listed; Made in the USA.
Perfect For
- Central & commissary kitchens
- Correctional and military facilities
- Hotel, resort & casino banquets
- School & university dining programs
- Batch production for canning or vacuum-seal operations
Technical Specifications
| Capacity | 30 gal (113 L) |
|---|---|
| Series / Model | Edge Series™ ALLGB-30F |
| Heat Source | Gas, self-contained burner – 67,800 BTU |
| Jacket | 2/3, low-rim design |
| Operating Pressure | 30 PSI |
| Liner Material | 316 stainless steel, seamless & deep-drawn |
| Outer Casing | 304 stainless steel with full body insulation |
| Temperature Control | Thermostat 150 °F – 260 °F (65 °C – 126 °C) |
| Ignition / Electrical | Electronic; 120 V, 1 ph, 1 A (field-wired cord & plug not supplied) |
| Draw-Off Valve | 2" compression with ¼" perforated disc strainer |
| Cover | One-piece hinged stainless steel lid |
| Gas Connection | ¾" NPT |
| Certifications | UL Gas-Fired, NSF |
| Warranty | 1-year parts & labor (U.S. & Canada) |
What’s Included
- Edge Series™ 30-gal stationary kettle
- Hinged stainless cover
- 2" draw-off valve with perforated strainer
- Adjustable stainless legs with bullet feet
- Owner’s & installation manual
- One-year parts & labor warranty
Need faucets, spray hoses, or a 3" draw-off? AccuTemp offers a full line of factory accessories—ask your sales rep for details.
