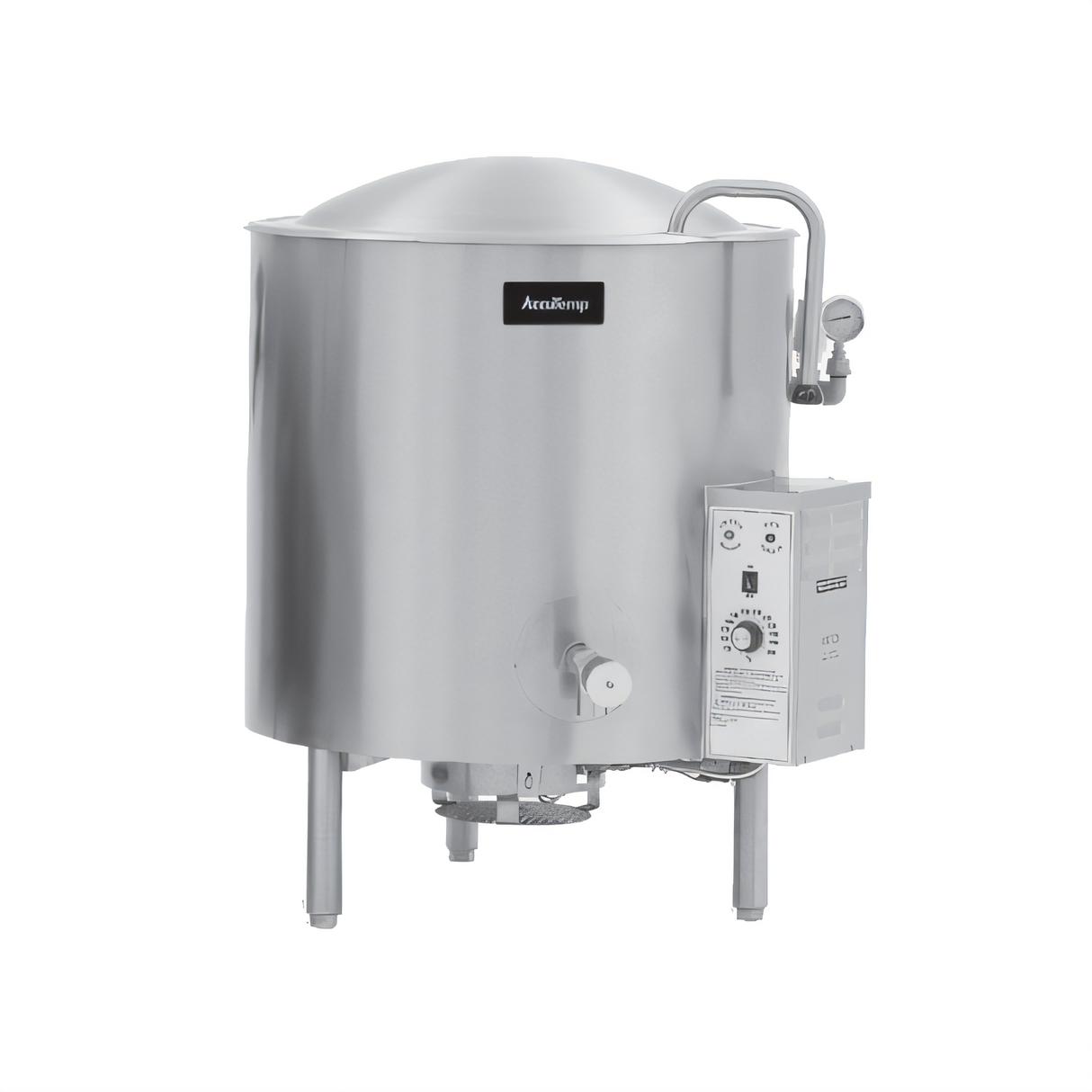

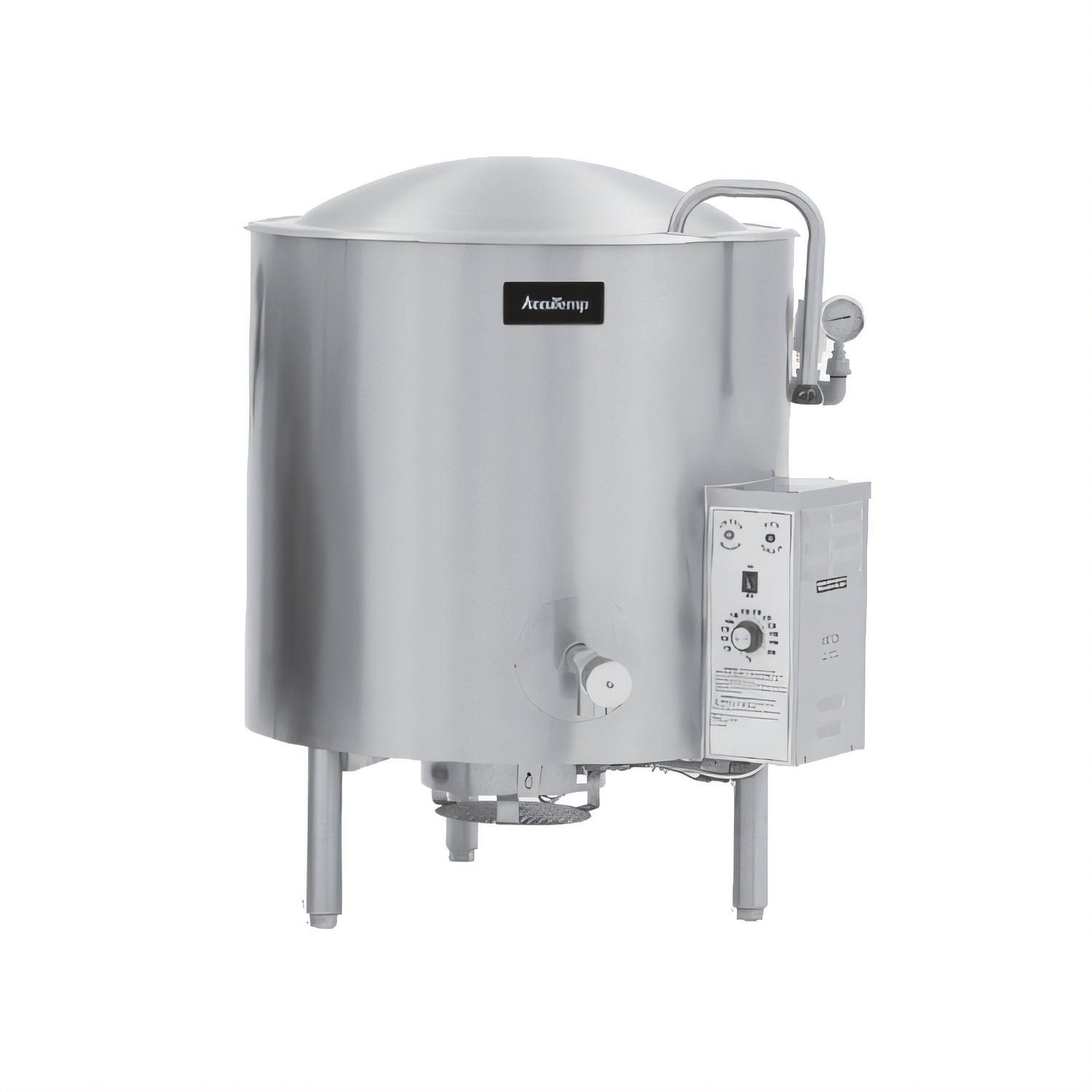

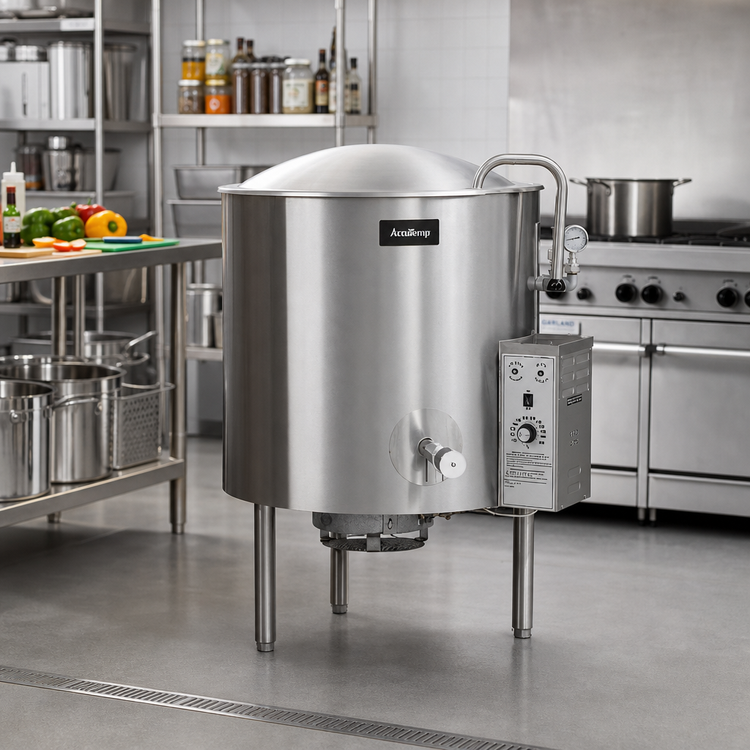

AccuTemp Edge Series™ 20-Gallon Gas Stationary Kettle
Model ALLGB-20F | UL & NSF Listed | Made in USABuilt for high-volume, high-precision production, the Edge Series™ 20-gallon kettle delivers the even heat of steam cooking without the cost and complexity of an external boiler. A fully jacketed, self-contained design, deep-drawn 316 stainless liner and robust 30 PSI rating make it the safe, energy-smart way to batch soups, sauces, pastas and more.
Key Benefits

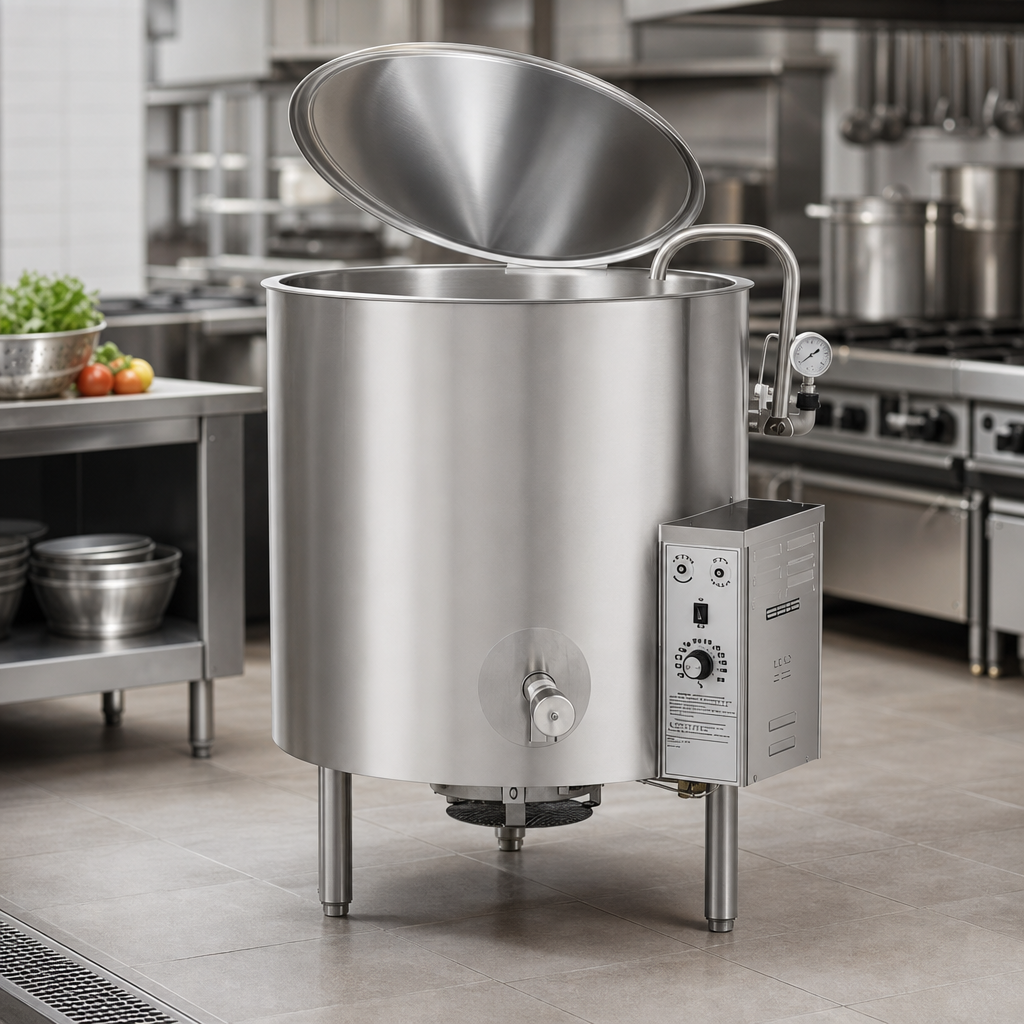

- 20 gal (75.7 L) working capacity—ideal for restaurants, commissaries and schools.

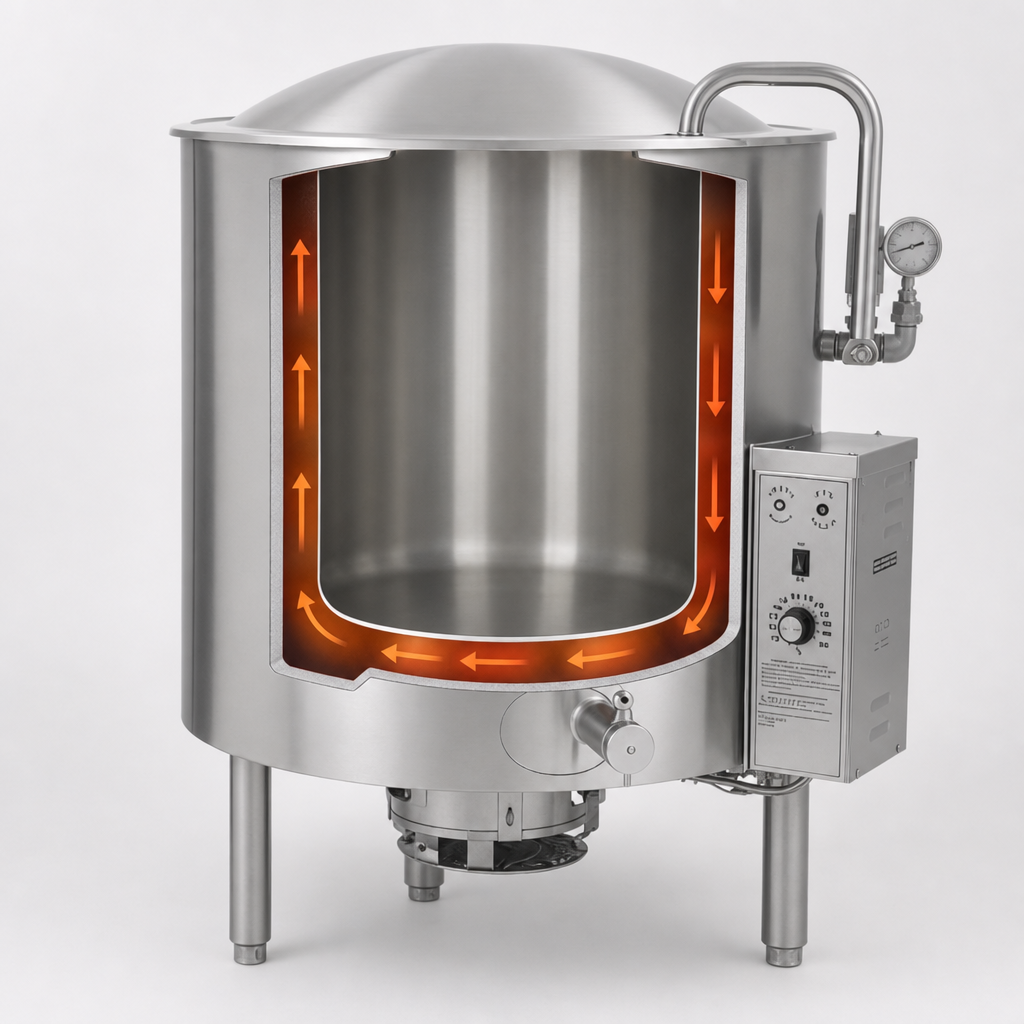

- Fully jacketed, 30 PSI steam cavity provides fast, uniform heat with no hot spots.
- Seamless 316 stainless steel liner resists acidic ingredients and simplifies cleaning.
- 2″ compression draw-off valve with integrated perforated strainer for quick, clog-free portioning.
- One-piece hinged stainless steel cover helps retain heat and cuts evaporation loss.
- Electronic ignition (120 V, 1 A) and thermostat control from 150 °F – 260 °F (65 °C – 126 °C) for set-and-forget accuracy.
- Full-body fiberglass insulation keeps kitchen temperatures lower and energy bills lean.
- Leg-mounted, low-rim design with adjustable bullet feet for safe, ergonomic access.
- Gas fired, self-contained—no external boiler or water hook-up required.
- UL Gas-Fired and NSF sanitation certified for worry-free code compliance.
Technical Specifications
| Capacity | 20 gal / 75.7 L (product) |
|---|---|
| Heat Source | Natural or Propane Gas, electronic ignition |
| Total Input | 66,700 BTU/h (Natural) | 67,800 BTU/h (LP) |
| Jacket Pressure | 30 PSI maximum, ASME rated |
| Temperature Range | 150 °F – 260 °F (65 °C – 126 °C) |
| Gas Connection | ½″ NPT, 5–7″ W.C. Natural | 12–14″ W.C. LP |
| Electrical | 120 V, 50/60 Hz, 1 Ø, 1 A (for controls & ignition) |
| Construction | 316 SS liner, 304 SS jacket & exterior, deep-drawn & seam-welded |
| Overall Dimensions* | 35.4″ W × 31.6″ D × 64.6″ H *from manufacturer dimensional drawing |
| Certifications | UL Gas-Fired, NSF, ANSI Z83.11b, Made in USA |
| Standard Warranty | 1-Year parts & labor, on-site service in U.S. & Canada |
Popular Accessories (Sold Separately)
- Single or dual fill faucet kits with 12″/18″ swing nozzles
- 60″ spray-hose rinse assembly
- Electric timer with buzzer alert
- 3″ draw-off valve upgrade
- Tri-basket or nylon bag inserts for pasta & stock production
- Automatic water-meter fill system
Looking for a different capacity or a tilting model? Explore the full AccuTemp Edge Series™ range or chat with our team for a custom quote.
