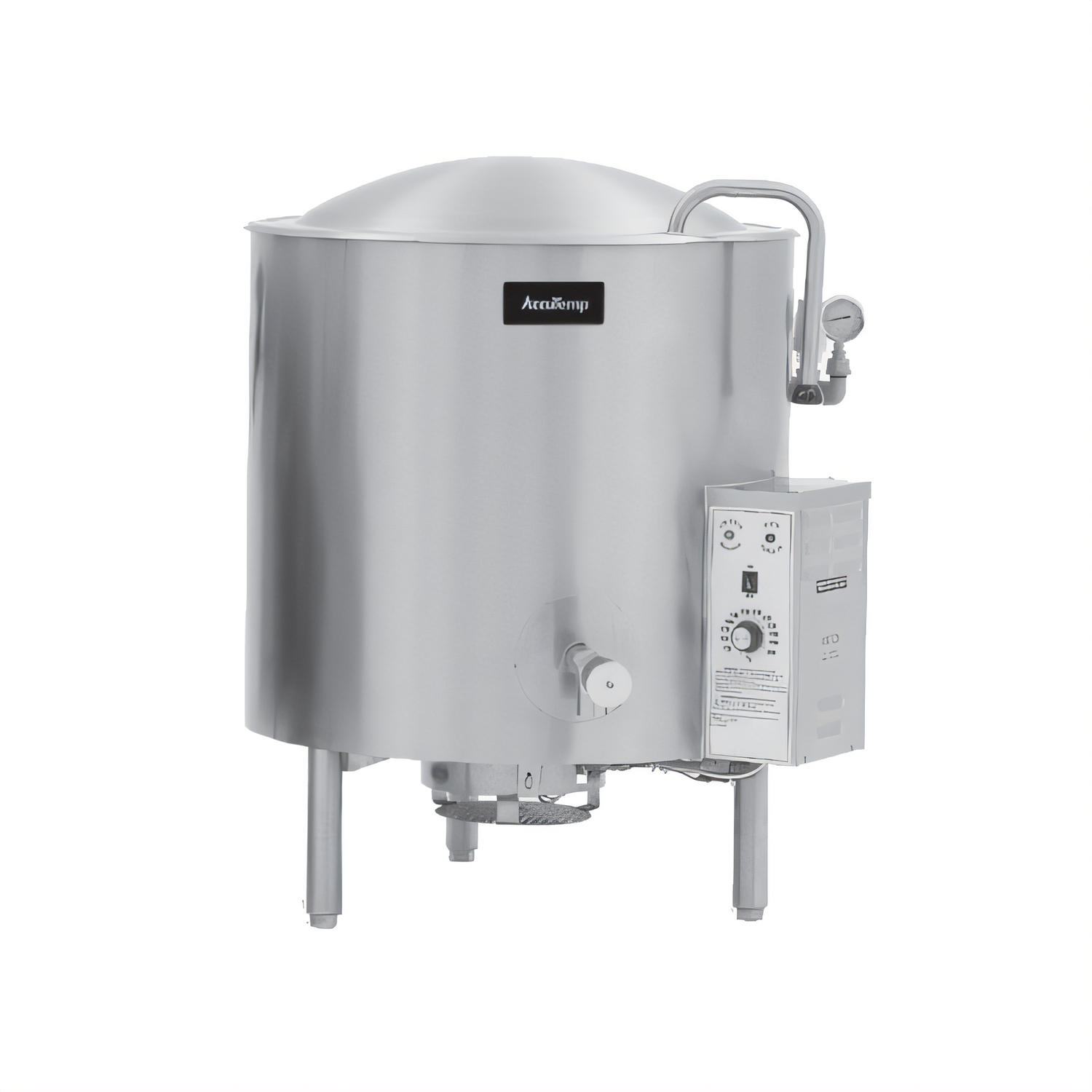

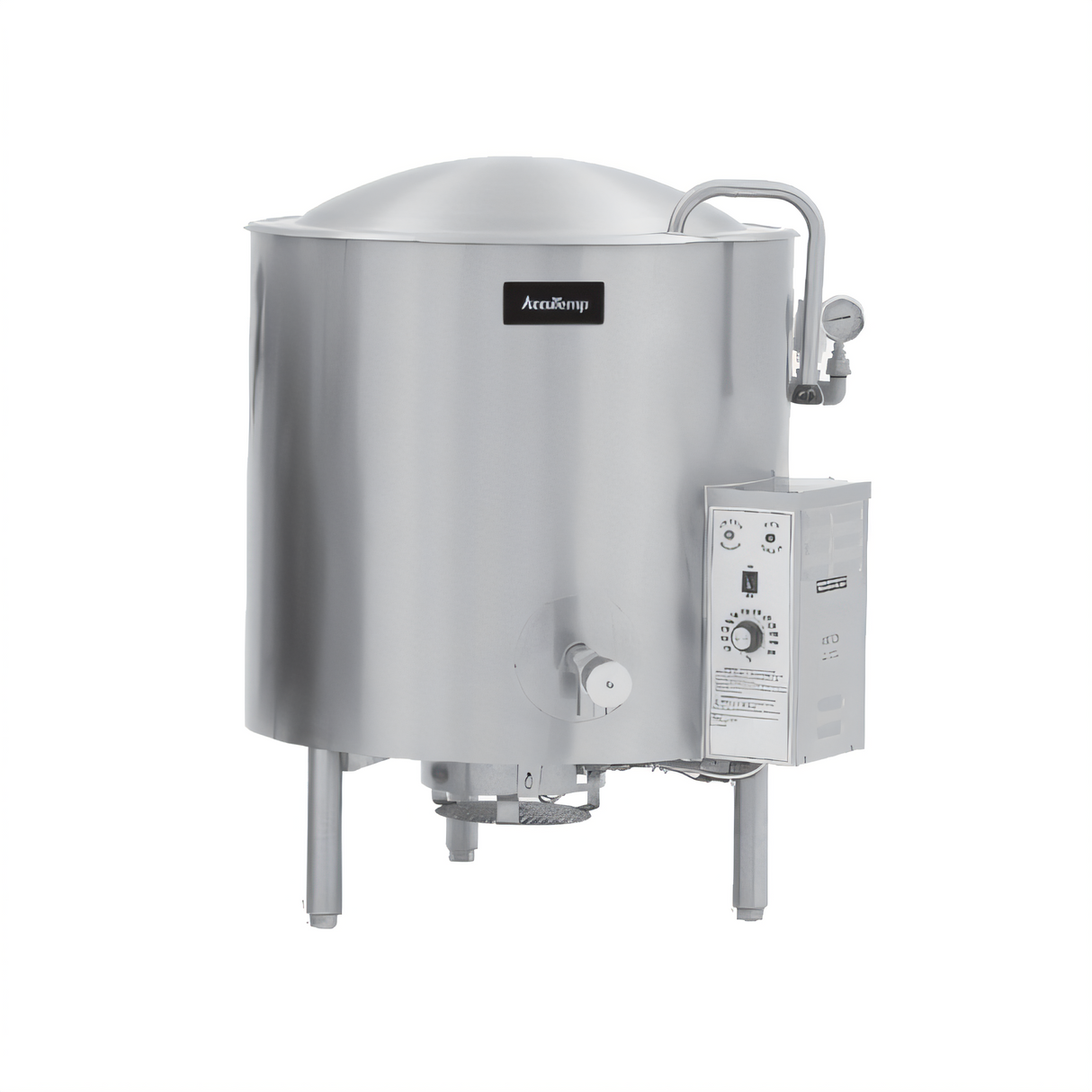

AccuTemp Edge Series™ 100 Gallon Stationary Gas Kettle
Model ALLGB-100F | 2/3-Jacketed • Low-Rim • Insulated for Safety™Built for the busiest production kitchens, the Edge Series™ 100 gallon floor kettle delivers high-volume, hands-free cooking with legendary AccuTemp reliability. A fully self-contained, gas-fired heating system, deep-drawn 304 stainless kettle liner, and 2/3 steam jacket give you rapid heat-up times, uniform temperatures, and the durability you expect from equipment made in the USA.
Why You’ll Love It
- Massive 100 gal (380 L) working capacity – perfect for stocks, soups, sauces & bulk cook-chill production
- 154,800 BTU gas burner with electronic ignition for fast recovery and simple start-up
- 2/3 jacketed design (30 PSI rating) surrounds product for even, scorch-free heating
- Seamless deep-drawn 304 SS kettle liner with integrally formed radius lip – no interior welds to clean or fail
- Full-body insulation keeps outer surfaces cooler and saves energy
- One-piece, domed stainless lid with actuator-assist – easy lift even when you’re wearing gloves
- 2" compression draw-off valve with removable perforated disc strainer (¼" holes) for clog-free portioning
- Leg-mounted, low-rim configuration for safe access to the kettle mouth
- Built-in kettle protection system: thermostat (150 – 260 °F), air eliminator, pressure relief, low-water cutoff & indicator light
- UL Gas-Fired & NSF listed; conforms to all applicable sanitation & safety standards
- Made in New Haven, Indiana – backed by AccuTemp’s one-year parts & labor warranty
Technical Specifications
| Capacity | 100 gal / 380 L |
|---|---|
| Heat Source | Gas (Natural or LP) |
| Input | 154,800 BTU/hr |
| Operating Pressure | 30 PSI steam jacket |
| Jacket | 2/3 coverage, water-filled, self-contained |
| Liner Material | 304 Stainless Steel |
| Ignition | Electronic (120 V, 1 ph, 1 amp) |
| Draw-Off Valve | 2" compression, stainless, with strainer |
| Cover | One-piece domed stainless, actuator-assisted |
| Mounting | Four stainless legs with adjustable bullet feet |
| Certifications | UL (Gas-Fired), NSF |
| Country of Origin | USA |
Factory Options & Accessories
- Single or dual fill faucet (12" / 18" swing nozzle) with bracket
- 60" flexible spray hose assembly (vinyl or stainless)
- 3" draw-off valve upgrade
- Automatic water-fill meter
- Two-speed mixer/agitator (call for pricing)
- Care Kit, measuring strip, nylon bag & basket inserts, and more
Need a specific configuration? Reach out via the “Ask a Question” button or speak with your AccuTemp representative.
Warranty
Edge Series™ kettles include AccuTemp’s one-year parts & labor warranty (U.S. & Canada). Extended coverage is available – ask for details.
Specifications are subject to change without notice. For detailed installation drawings, utility requirements, or additional accessories, please consult the factory or visit accutemp.net.
