AccuTemp ALLEC-60 Edge Series™ Steam Kettles
Description

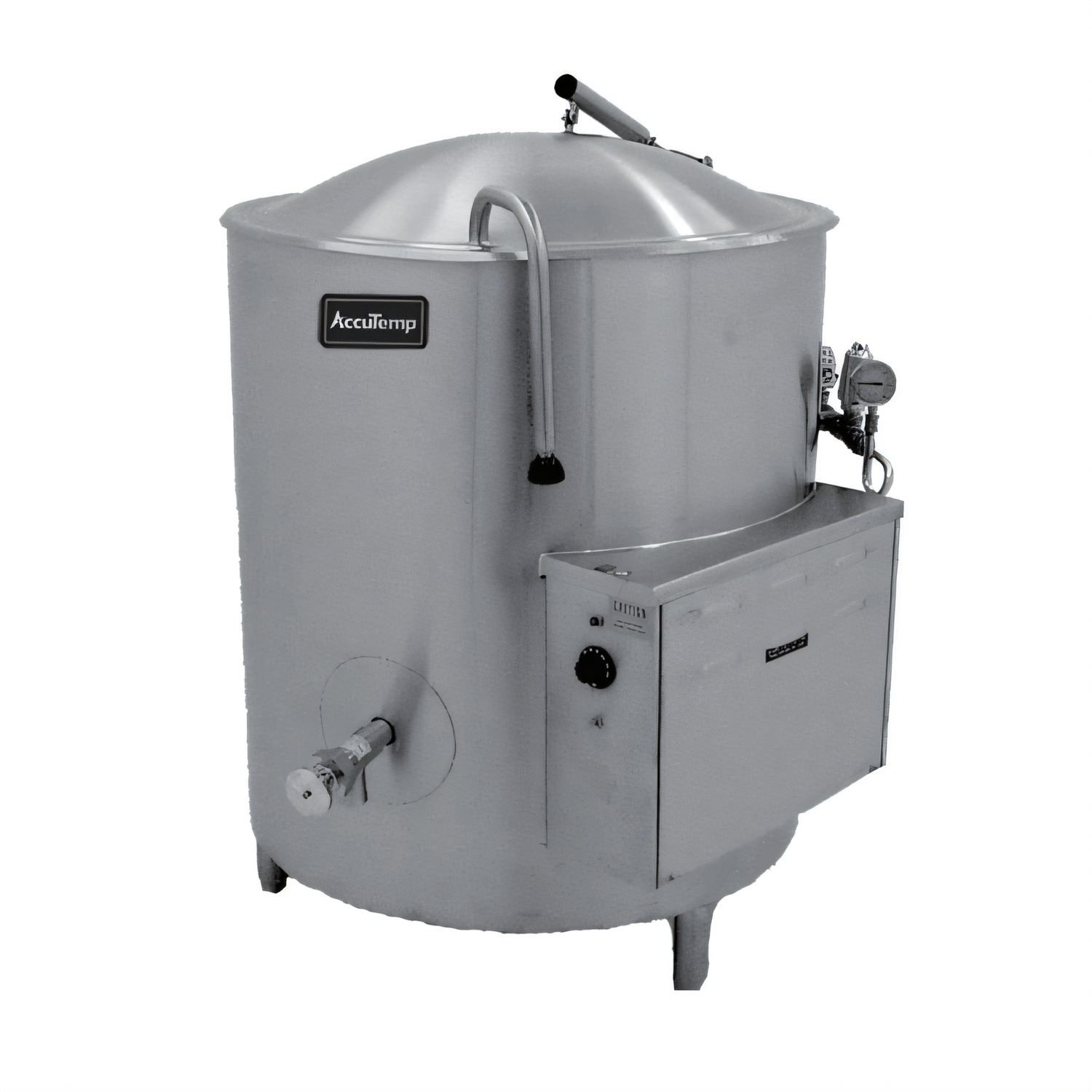

AccuTemp Edge Series™ 60-Gallon Stationary Kettle
Electric • 2/3 Jacketed • Floor-MountedEngineered for high-volume production and bullet-proof reliability, the Edge Series™ 60-gallon kettle gives commissaries, schools, healthcare and chain restaurants the speed, consistency and safety they need to keep service running smoothly—all in a compact, self-contained package that installs almost anywhere you have power.
Key Features
- 60-gallon (227 L) batch capacity—ideal for soups, sauces, stocks and cooked grains.
- Energy-efficient 24 kW electric heating; field-replaceable elements minimize downtime.
- Seamless, deep-drawn 304 stainless steel liner with sanitary radius lip for quick, thorough cleaning.
- 2/3-jacket design with 30 PSI rating delivers fast, even heating while preventing scorching.
- Full-body insulation keeps exterior cool to the touch and slashes energy loss.
- One-piece, actuator-assisted domed cover reduces operator effort and speeds condensate return.
- 2 in. compression draw-off valve with ¼ in. perforated disc strainer for clog-free portion control.
- Kettle-protection suite: thermostat (150 °F–285 °F), low-water cut-off, pressure gauge & relief valve.
- All-stainless, leg-mounted base with adjustable bullet feet for a stable, level installation.
- UL Listed & NSF Certified—manufactured in the USA.
Why It Belongs in Your Kitchen
- Labor savings: Easy-lift lid and large sanitary draw-off make transfers effortless.
- Lower utilities: Precision thermostat and insulation cut energy costs day after day.
- Service friendly: Front-mounted console and plug-in elements speed troubleshooting.
- Safer operation: Cool exterior, low-water shut-off and pressure safeguards protect staff & equipment.
Specifications
| Model | Edge Series™ ALLEC-60 |
|---|---|
| Capacity | 60 gal / 227 L |
| Power | Electric, 24 kW (see electrical chart) |
| Jacket | 2/3 coverage, 30 PSI operating pressure |
| Liner Material | 304 stainless steel, seamless deep-drawn |
| Exterior | 304 stainless steel with full-body insulation |
| Cover | One-piece domed, actuator-assisted, 304 SS |
| Draw-Off Valve | 2 in. compression, 304 SS, ¼ in. perforated strainer |
| Temperature Range | 150 °F – 285 °F (65 °C – 140 °C) |
| Controls & Safety | Thermostat, pressure gauge & relief, air eliminator, low-water cut-off |
| Certifications | UL, NSF |
| Country of Origin | USA |
Electrical Data (ALLEC-60)
| Voltage | Phase | Amps / Leg |
|---|---|---|
| 208 V | 1 Ø | 115.4 A |
| 208 V | 3 Ø | 66.6 A |
| 240 V | 1 Ø | 100.0 A |
| 240 V | 3 Ø | 57.7 A |
| 380 V | 3 Ø | 36.5 A |
| 415 V | 3 Ø | 33.4 A |
| 440 V | 3 Ø | 31.5 A |
| 480 V | 3 Ø | 28.9 A |
Footprint
| Width (F) | 41.4 in / 105 cm |
|---|---|
| Depth (J₂) | 66.1 in / 168 cm (front to back, incl. console) |
| Height, Lid Closed (J₁) | 83.0 in / 211 cm |
| Floor Clearance (G) | 4.0 in / 10 cm |
Need a different capacity, faucet, spray hose or built-in agitator? Edge Series kettles are available from 20 – 125 gallons with a full range of accessories—contact us for a custom quote.
