AccuTemp ALLEC-40 Edge Series™ Steam Kettles
Description

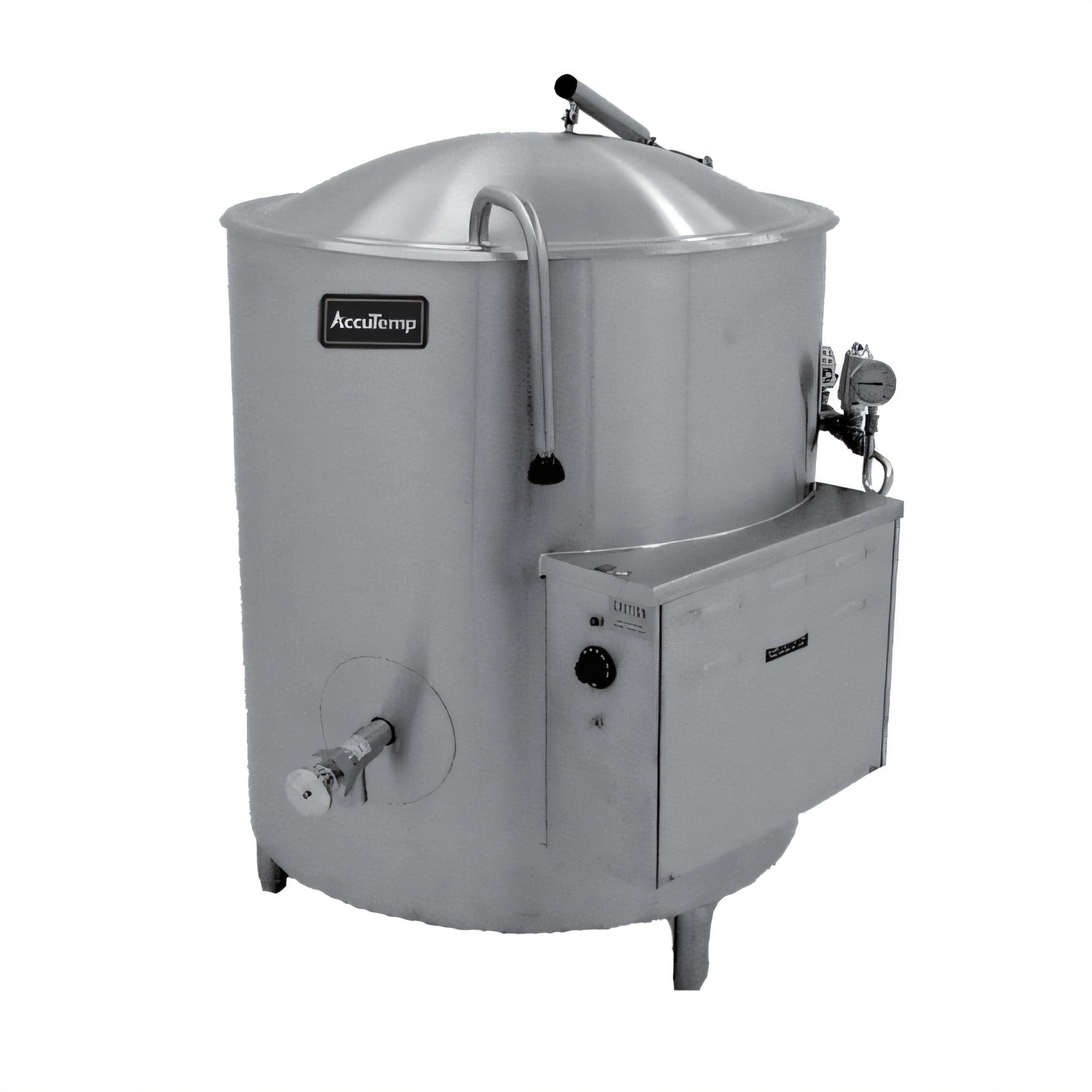

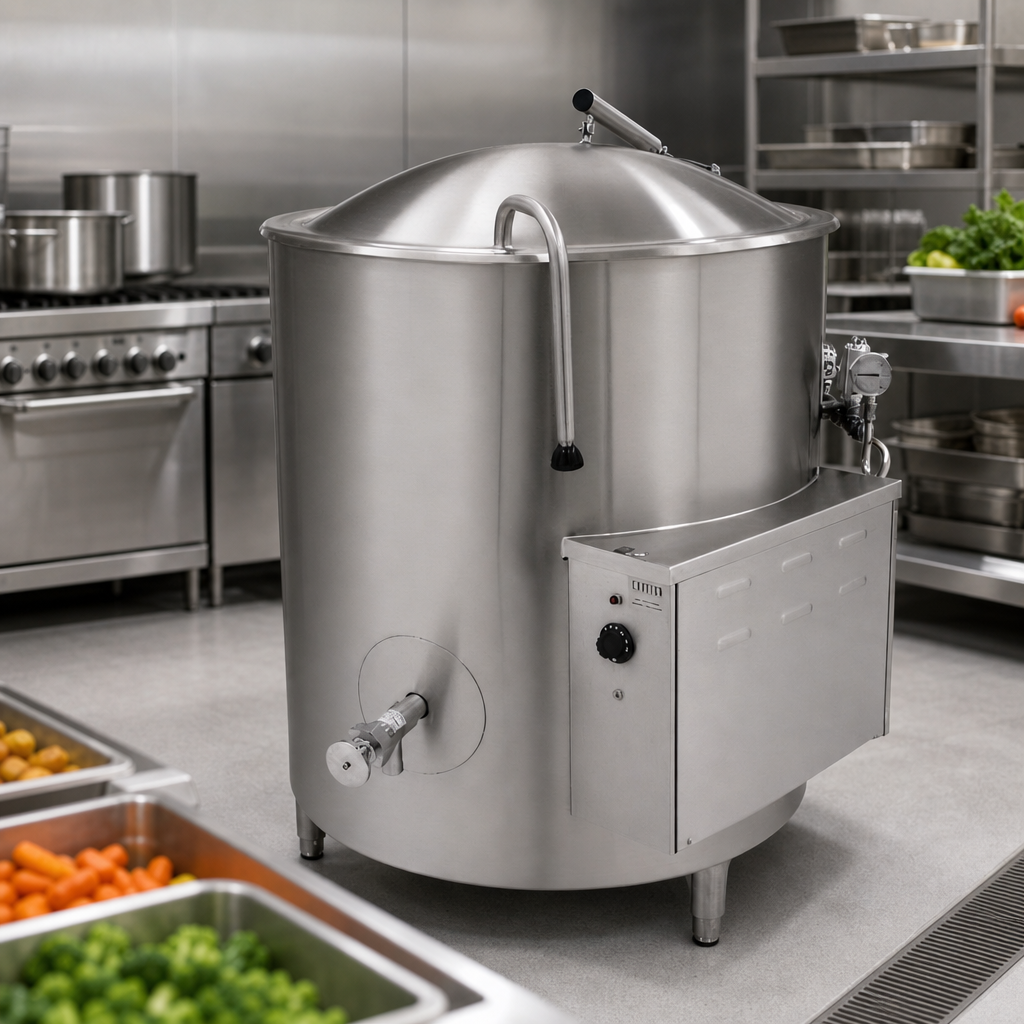

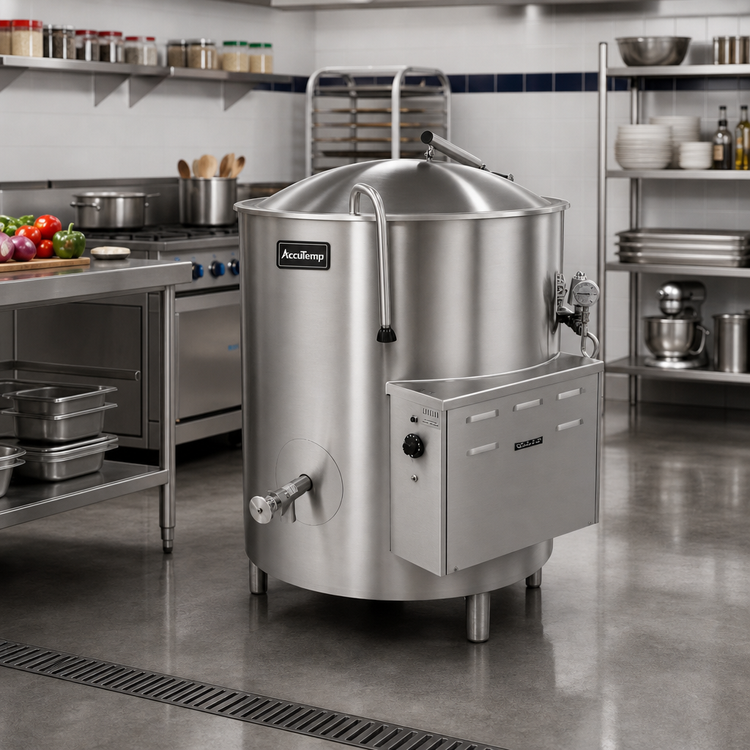

AccuTemp Edge Series™ 40-Gallon Electric Stationary Kettle
Model ALLEC-40 | 2/3-Jacketed • Self-Contained • Floor-MountedEngineered for demanding commercial kitchens, the Edge Series™ 40-gallon kettle delivers fast, even heating, rock-solid durability and operator-first safety features—all in a compact, fully insulated footprint that saves energy and keeps your workspace cooler.
Why Choose the Edge Series™ 40-Gallon Kettle?
- Seamless 316SS liner (deep-drawn) resists pitting & corrosion, perfect for high-acid foods.

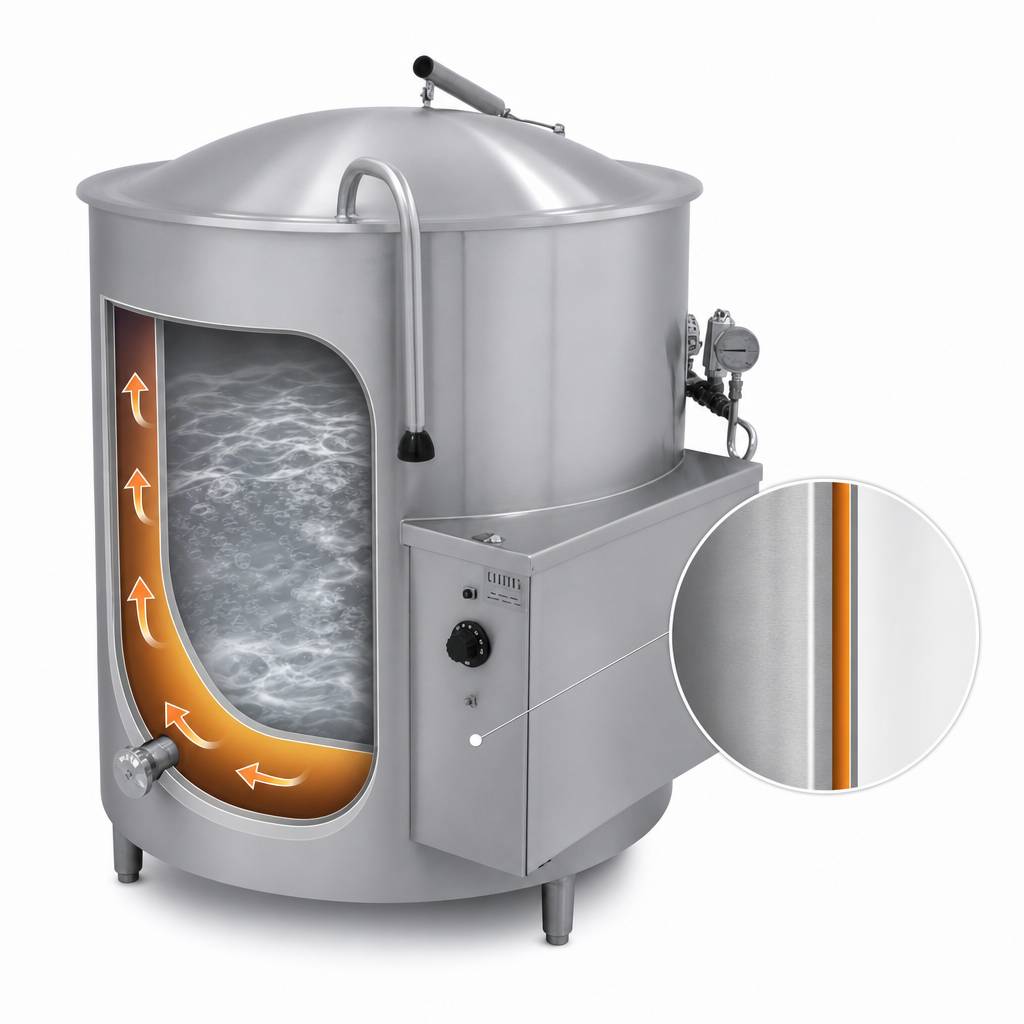

- 2/3 steam jacket surrounds the sidewalls and bottom for rapid, uniform cooking.
- Field-replaceable heating elements mean quicker, lower-cost service.
- Actuator-assisted, one-piece domed cover opens effortlessly and directs condensate back into the kettle—no messy drips.
- Full-body insulation keeps exterior surfaces cooler and cuts energy loss.
- 2" compression draw-off valve with 1/4" perforated disc strainer for fast, clog-free product transfer.
- Kettle Protection System: thermostat (150 °F – 285 °F), pressure relief valve, air eliminator, pressure gauge, jacket fill and low-water cut-off.
- Heavy-gauge 304SS jacket, outer shell & control console are seam-welded for lasting strength.
- Leg-mounted, non-tilting design with adjustable bullet feet for easy leveling.
- Certified & American-made: UL Listed, NSF Certified, built in Fort Wayne, Indiana.
Technical Specifications
| Capacity | 40 gal | 151 L |
|---|---|
| Construction | 316 SS deep-drawn liner, 304 SS jacket & exterior |
| Operating Pressure | 30 PSI (2.1 bar) |
| Temperature Range | 150 °F – 285 °F (65 °C – 141 °C) |
| Heat Input | 15 kW electric—208, 240, 380, 415, 440 or 480 V (1φ/3φ) |
| Draw-off Valve | 2" compression, SS, with removable 1/4" perforated strainer |
| Cover | One-piece, domed, actuator-assisted (hinged) |
| Overall Dimensions* | Width 37.4" (F) | Depth 39.9" (C) | Height to rim 59.6" (J2) | Overall height 75.0" (J1) |
| Certifications | UL, NSF |
*Refer to spec sheet for full dimensional drawings and clearances.
Included
- Perforated disc strainer (1/4" holes)
- Actuator-assisted stainless-steel cover
- Adjustable bullet feet
- Operator manual & start-up guide
Popular Factory Options (sold separately)
- Single or dual rinse faucet with 12"/18" swing nozzles
- 60" flexible spray hose assembly (vinyl or stainless)
- Automatic water-fill meter
- Electric timer with audible buzzer
- Tri-basket or single basket cooking inserts
- 3" draw-off valve upgrade
Warranty
Backed by AccuTemp’s 1-year parts & labor warranty and world-class technical support. Register your kettle at installation for full coverage.
