AccuTemp ALLEC-30 Edge Series™ Steam Kettles
Description

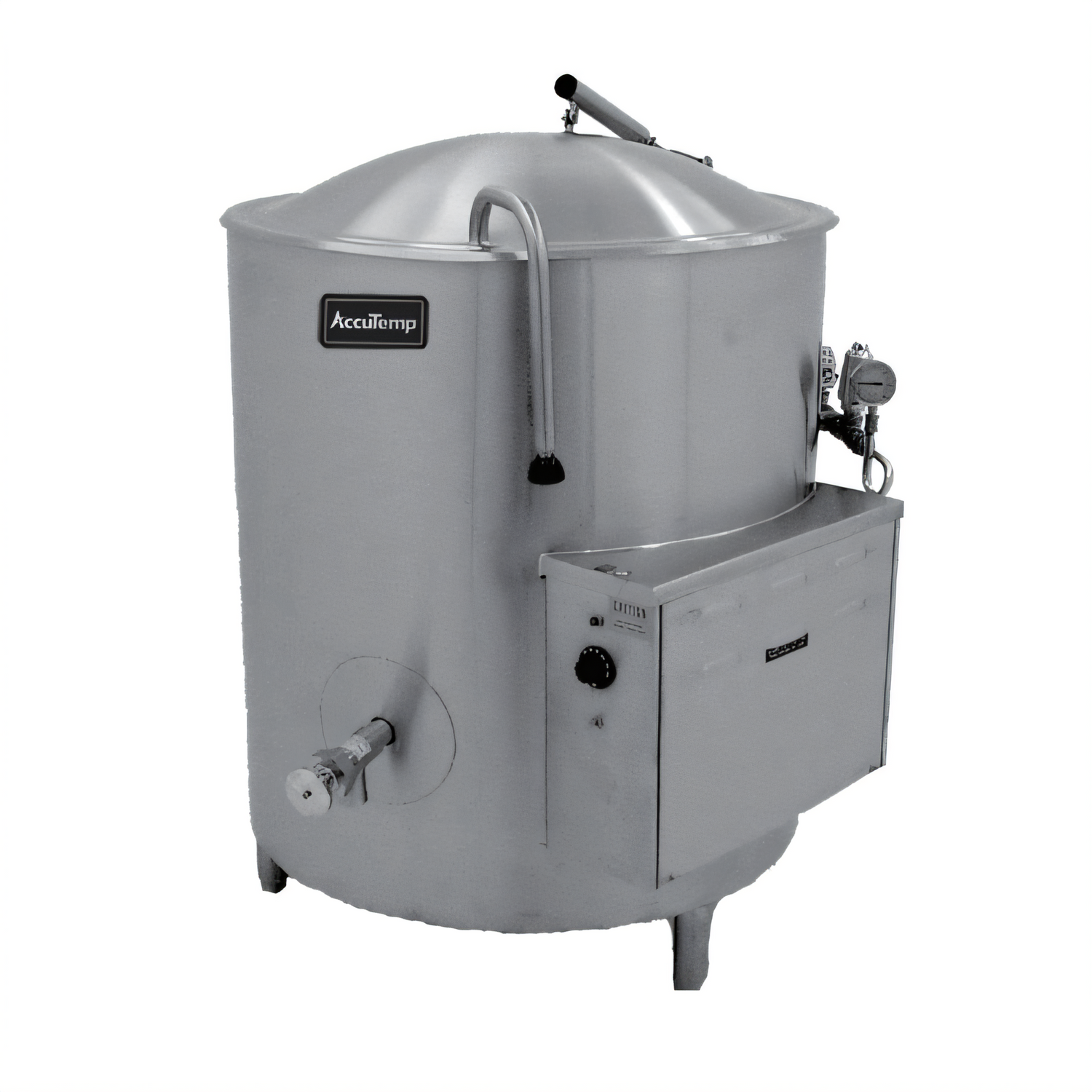

AccuTemp Edge Series™ 30-Gallon Electric Stationary Kettle
Self-Contained • 2/3-Jacketed • Insulated for Safety™Built for high-volume, high-precision production, the Edge Series™ 30-gallon kettle delivers AccuTemp’s legendary performance in a compact, floor-mounted package. Deep-drawn stainless construction, heavy insulation and field-replaceable heating elements give chefs the durability, consistency and uptime they demand—shift after shift.
Top Reasons You’ll Love It
- 30 gal (113 L) working capacity—ideal for sauces, soups, stews & stocks.
- Seamless 316 stainless-steel liner (superior acid & salt resistance).
- Self-contained 2/3 steam jacket rated 30 PSI for fast, even heating.
- Full-body insulation keeps exterior cool and saves energy.
- One-piece, spring-assisted hinged cover—easy to open with one hand.
- 2″ compression draw-off valve with 1/4″ perforated disc strainer for quick, clog-free draining.
- Digital thermostat 150 °F – 285 °F (65 °C – 140 °C) with low-water cut-off & indicator.
- Field-replaceable heating elements minimize downtime and service cost.
- Adjustable stainless legs with bullet feet for easy leveling on uneven floors.
- UL & NSF certified; proudly made in the USA.
Technical Specifications
| Capacity | 30 gal (113 L) |
|---|---|
| Liner / Interior | 316 stainless steel, seamless deep-drawn |
| Jacket | 2/3 jacket, 304 stainless, 30 PSI rating |
| Heating | Electric, 12 kW; field-replaceable elements |
| Temperature Range | 150 °F – 285 °F (65 °C – 140 °C) |
| Controls & Safety | Thermostat control, pressure relief valve, air eliminator, low-water cut-off |
| Cover | One-piece, spring-assisted hinged stainless cover |
| Draw-Off Valve | 2″ compression, 304 stainless, with 1/4″ perforated strainer |
| Mounting | Four stainless legs with adjustable bullet feet |
| Certifications | UL, NSF |
| Warranty | 1-year parts & labor (U.S. & Canada) |
Electrical Requirements (30 gal / 12 kW)
| Voltage | 1-Phase | 3-Phase (per leg) |
|---|---|---|
| 208 V | 57.7 A | 33.3 A |
| 240 V | 50.0 A | 28.9 A |
| 380 V | 31.6 A | 18.2 A |
| 415 V | 28.9 A | 16.7 A |
| 440 V | 27.3 A | 15.7 A |
| 480 V | 25.0 A | 14.4 A |
Factory wiring matches selected voltage; field conversions are not recommended.
Popular Accessories (sold separately)
- Single or dual deck-mount faucet with 12″ or 18″ swing nozzle
- 60″ flexible spray hose assembly (vinyl or stainless)
- Electric timer with audible buzzer
- Lift-off or two-piece hinged covers
- Basket inserts & nylon bag kits for bulk cooking
- 3″ draw-off valve upgrade
Upgrade your production kitchen with the power, precision and peace of mind only an AccuTemp Edge Series™ kettle can provide.
