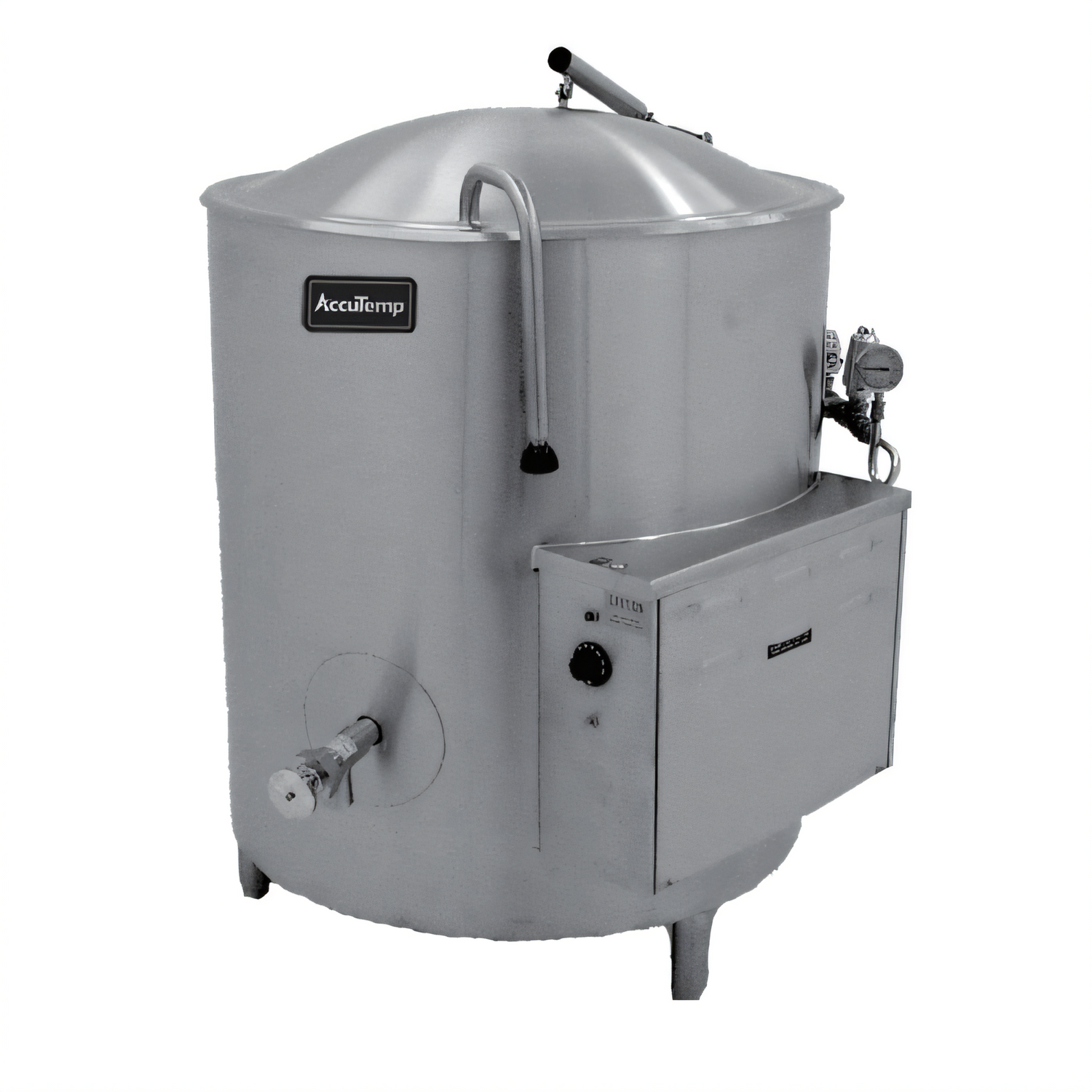

AccuTemp Edge Series™ 40-Gallon Electric Stationary Kettle
Model ALHEC-40 | 2/3-Jacketed | 316 Stainless Liner | Leg-MountedTurn out perfectly cooked soups, sauces, stews and more—fast, safely, and with un-matched consistency. The Edge Series™ 40-gallon kettle delivers AccuTemp’s Insulated for Safety™ performance in a space-saving stationary design that’s built to thrive in the busiest commercial kitchens.
Why You’ll Love It
- Seamless, deep-drawn 316 stainless steel kettle liner (superior corrosion resistance).
- 2⁄3 steam jacket rated to 30 PSI for rapid, even heating without hot spots.
- Fully insulated body keeps heat in the kettle—cooler and safer on the outside.
- Field-replaceable electric heating elements reduce downtime and service costs.
- 1-piece, actuator-assisted domed cover—easy to open, self-closing for condensate return.
- 2" compression tangent draw-off valve with ¼" perforated disc strainer for smooth portioning.
- Integrated kettle-protection system: thermostat (150 °F – 285 °F), low-water cut-off, pressure relief valve, air eliminator & gauge.
- Rugged, seam-welded 304 SS outer jacket plus adjustable bullet feet for a rock-solid stance.
- cCSAus & NSF certified; proudly made in the USA.
Perfect For
- Soups, chowders & stocks
- Chili, curries & stews
- Custards & puddings
- Oatmeal & hot cereals
- Blanching vegetables or pasta
Specifications
| Capacity | 40 gal (151 L) |
|---|---|
| Construction | Deep-drawn 316 SS liner, 304 SS jacket & outer casing |
| Jacket Rating | 30 PSI, 2⁄3 coverage |
| Heating | Electric, 24 kW, field-replaceable elements |
| Temperature Range | 150 °F – 285 °F (66 °C – 141 °C) thermostatic control |
| Cover | One-piece, spring/actuator assisted, stainless steel |
| Draw-Off | 2" compression valve with ¼" perforated strainer disc |
| Mounting | Four stainless legs with adjustable bullet feet |
| Certifications | cCSAus, NSF |
Electrical Requirements
| Voltage Options | 208 V, 240 V, 380 V, 415 V, 440 V, 480 V (1 ɸ or 3 ɸ) |
|---|---|
| kW | 24 kW |
| Amps (1 ɸ) | 208 V 115.4 A | 240 V 100 A | 380 V 63.2 A | 415 V 57.8 A | 440 V 54.5 A | 480 V 50 A |
| Amps (3 ɸ) | 208 V 66.6 A | 240 V 57.7 A | 380 V 36.5 A | 415 V 33.4 A | 440 V 31.5 A | 480 V 28.9 A |
What’s in the Box
- Edge Series™ ALHEC-40 kettle with actuator-assisted cover
- Perforated ¼" disc strainer
- Owner’s manual & installation kit
- One-year parts & labor warranty
Need more flexibility? Optional faucets, spray hoses, timers, basket inserts,
water-metering and correctional packages are available to tailor the kettle to your exact workflow.
Specifications are subject to change without notice. Always consult the installation manual and local codes before ordering or installing.
$22,743.60
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
AccuTemp ALHEC-40 Edge Series 40‑gal electric steam kettle — 316SS liner, insulated, actuator cover, field-replaceable elements, NSF & cCSAus certified.
Manufacturer
AccuTemp
Brand name
Edge Series™
Certifications
NSF, cCSAus
Height
59.6in
Width
37.4in
Kettle Jacket
partial jacket
Kettle Liner
316 stainless steel
Capacity
30 - 45 gallon
Specifications
AccuTemp Edge Series™ Stationary Kettle, Electric, 40 gallon capacity, 2/3 jacket, 316 stainless steel liner, electronic ignition, 1 piece actuator-assisted cover, field replaceable heating elements, insulated, deep-drawn stainless steel construction, 2” compression draw-off valve, leg mounted, 30 PSI, cCSAus, NSF
