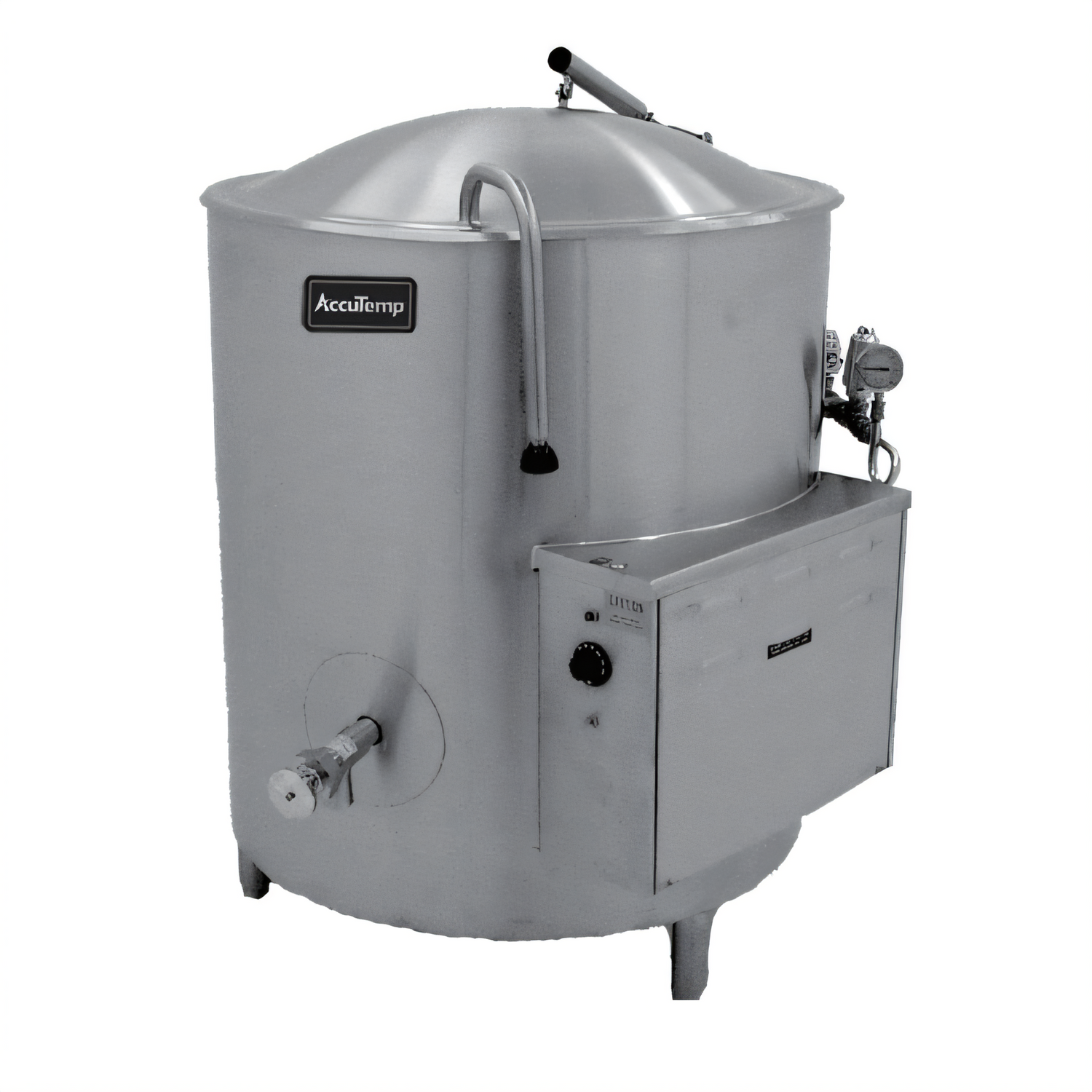

Edge Series™ 20-Gallon Electric Stationary Kettle
Model ALHEC-20 • 2/3 Jacketed • Made in the USAEngineered for demanding high-volume kitchens, the AccuTemp Edge Series™ 20-gallon kettle delivers rapid, even heating, rock-solid temperature control and the industry’s easiest maintenance—all in a compact, floor-mounted footprint. From scratch soups and sauces to pasta, custards and chilies, you’ll turn out consistent batches faster, safer and more efficiently.
Why You’ll Love It
- Seamless 316 stainless liner (deep-drawn) resists acid & salt corrosion for a lifetime of easy cleaning.
- Insulated for Safety™ jacket keeps exterior surfaces cool and slashes energy loss.
- High-performance 2/3 jacket (30 PSI) surrounds product for uniform heat—no scorch, no hot spots.
- 12 kW field-replaceable heating elements get you to set temp fast and are swapped in minutes.
- Kettle Protection System with thermostat (150-285 °F), low-water cutoff, pressure relief valve, air eliminator and indicator light.
- One-piece stainless hinged lid reduces condensation drip and stays put at any angle.
- 2″ compression draw-off valve with removable ¼″ perforated strainer for clog-free portioning.
- Leg-mounted design with adjustable bullet feet for rock-solid stability on uneven floors.
- cCSAus & NSF listed for worry-free code compliance and food-safe operation.
Technical Specifications
| Cooking Capacity | 20 gal / 75.7 L (usable) |
|---|---|
| Heat Source | Electric, 12 kW; field-replaceable elements |
| Voltage Options | 208 V or 240 V (1 ø or 3 ø) standard; 380 V, 415 V, 440 V, 480 V optional |
| Amps @ 208 V | 57.7 A (1 ø) / 33.3 A (3 ø) |
| Operating Pressure | 30 PSI steam jacket |
| Temperature Range | 150 – 285 °F (65 – 140 °C) |
| Interior Liner | Seamless 316 stainless steel, deep-drawn |
| Exterior / Jacket | 304 stainless steel, fully welded & insulated |
| Controls | Manual thermostat, power & low-water indicator lights, pressure gauge |
| Overall Dimensions* | W 34″ • D 32.4″ • H 49.5″ (closed lid) / 64.3″ (open lid) |
| Certifications | cCSAus, NSF |
| Warranty | One-year parts & labor (U.S. & Canada) |
*Dimensions taken from manufacturer drawings and include legs.
Popular Accessories (sold separately)
- Single or dual fill faucets with 12″ / 18″ swing nozzles
- 60″ flexible spray hose assembly
- Electric cook timer with buzzer
- Tri-basket or single-basket inserts
- Solid or fine perforated disc strainers
- Nylon bag insert with spreader ring for delicate products
Installation Notice: This heavy-duty kettle must be hard-wired by a qualified electrician and
connected to a potable water supply for jacket fill. Improper installation or failure to maintain
jacket water level will void the warranty.
$19,739.50
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
AccuTemp Edge Series 20 gal electric steam kettle: durable 316SS liner, insulated deep-drawn body, electronic ignition, hinged cover, NSF/cCSAus certified.
Manufacturer
AccuTemp
Brand name
Edge Series™
Certifications
NSF, cCSAus
Height
49.5in
Width
34.0in
Kettle Jacket
partial jacket
Capacity
18 - 26 gallon
Kettle Liner
316 stainless steel
Specifications
AccuTemp Edge Series™ Stationary Kettle, Electric, 20 gallon capacity, 2/3 jacket, 316 stainless steel liner, electronic ignition, 1 piece hinged cover, field replaceable heating elements, insulated, deep-drawn stainless steel construction, 2” compression draw-off valve, leg mounted, 30 PSI, cCSAus, NSF
