Wells (Middleby) WVO-G136 Electric Ranges
Description

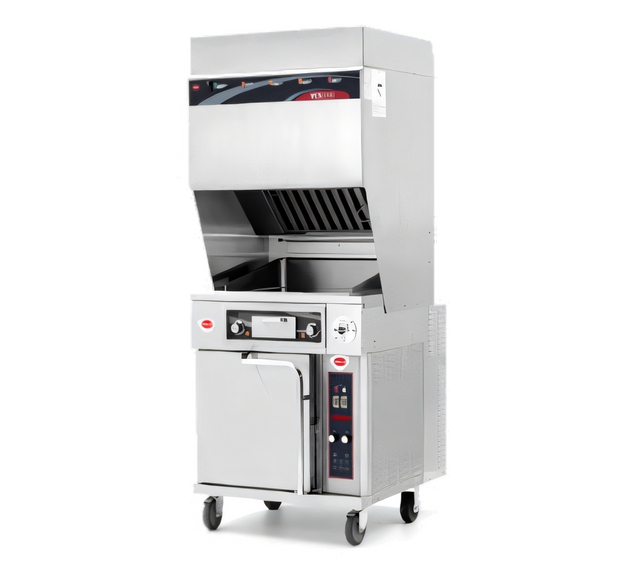

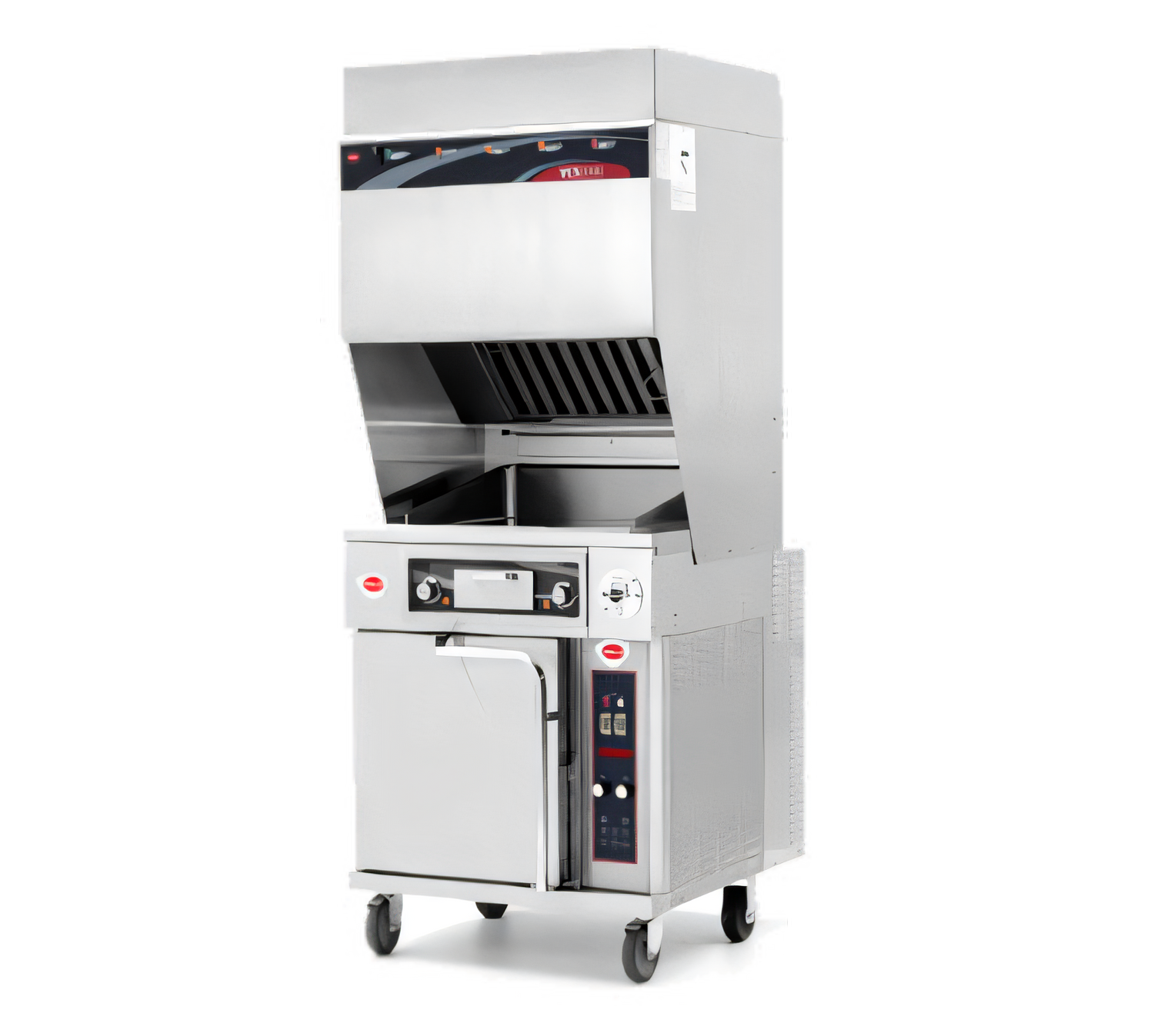

Wells VCS2000 Ventless Cooking Station – Model WVOG136
42-inch Self-Contained Hood with Convection Oven & 22" GriddlePut a full commercial kitchen wherever you need one—no roof-penetrating ductwork, no costly build-outs. The Wells WVOG136 combines a 4-stage recirculating hood, built-in ANSUL® R-102 fire protection, a programmable convection oven, and a heavy-duty griddle in a single, mobile unit that is quiet, compliant, and ready to work the moment it rolls through a 36" doorway.
Why Operators Choose the WVOG136
- Ventless Type-1 UL710B-certified hood—cook almost anywhere without external ducting.
- Built-in 4-stage filtration (grease baffle, fire-rated pre-filter, HEPA, & carbon-charcoal) drops emissions below NFPA 96 limits.
- Factory-installed ANSUL® R-102 fire suppression with manual pull station (charge/tag locally).
- Smart interlock & airflow sensors shut the unit down if filters are missing, clogged, or a fire is detected.
- Whisper-quiet 68 dBA operation keeps front-of-house conversations comfortable.
- Durable all-stainless-steel construction with interior work light for unbeatable visibility.
- Mobile design—two front adjustable 6"–8" legs and two rear 6" rigid casters.
Integrated Cooking Equipment
- Griddle (18" × 22") – thick steel plate with two independent solid-state temperature controls; removable splash guard. Optional chrome or grooved plates available.
- Convection Oven Base – stainless interior & exterior, two-speed fan, five HD racks, full insulation, ergonomic door handle, and five easy-to-program menu keys.
Technical Specifications
| Overall dimensions | 42 3/8" W × 34 5/8" D × 80 9/16" H (1076 × 879 × 2046 mm) |
|---|---|
| Griddle size | 18" × 22" (457 × 559 mm) |
| Exhaust / airflow | Vertical discharge, 800 CFM; minimum 400 CFM fresh air recommended |
| Sound level | 68 dBA (average) |
| Power options |
208 V 1 Ø or 3 Ø – 12.2 kW 240 V 1 Ø or 3 Ø – 15.0 kW |
| Current draw (single phase) | 59 A @ 208 V | 63 A @ 240 V |
| Current / line (3 Ø) |
208 V: L1 37 A | L2 28 A | L3 37 A 240 V: L1 38 A | L2 33 A | L3 38 A |
| Plug | NEMA 15-60P (6-ft cord on 3 Ø models) |
| Shipping weight | 793 lb (360 kg) |
| Certifications | cULus, NSF, ANSI UL710B |
4-Stage Filter System
- Stainless steel grease baffle w/ cup
- Fire-rated fiberglass pre-filter (Replacement #22618)
- HEPA filter
- Activated carbon-charcoal pack (Replacement #22619)
Illuminated indicators alert staff when service or replacement is due.
Warranty & Service
- Standard 1-year parts & labor on hood and cooking equipment.
- Upgrade to 2-year coverage with optional Extended Warranty (part UVWARR) or FREE when purchased with approved Middleby electric equipment on the same PO.
Replacement filters sold separately: Pre-filter #22618 (qty 1) | HEPA/Charcoal Filter Pack #22619 (qty 1).
