Wells (Middleby)  |  SKU: HDTG-6030G

Wells (Middleby) HDTG-6030G Gas Griddles

$8,583.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Wells HDTG6030G Heavy-Duty Gas Countertop Griddle

60" wide | 5-Zone Thermostatic Control | 150,000 BTU

Turn out breakfast, lunch and dinner rushes without missing a beat. The Wells HDTG6030G couples five precise thermostats with a massive 3/4" steel plate to deliver evenly distributed heat, rapid recovery and day-in, day-out reliability for the busiest kitchens.

Key benefits

  • Extra-heavy 3/4" thick griddle plate pre-heats fast, holds heat and resists warping.

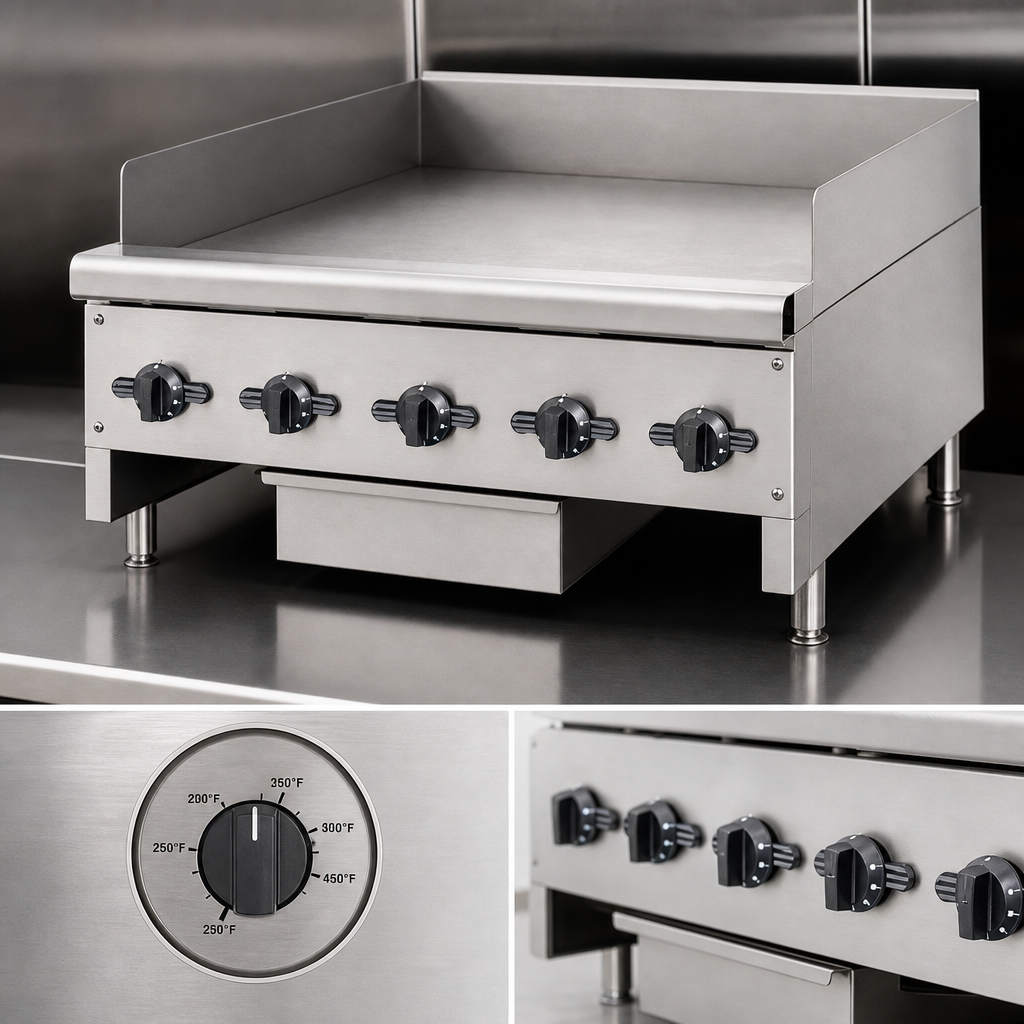

  • Five independent thermostats let you cook multiple menu items from 200 °F to 450 °F simultaneously.
  • 150,000 BTU natural gas power; field-convertible to LP with included kit.
  • Stainless steel front, sides and 3-sided splashguard stand up to constant commercial use.
  • Full-width front trough plus large removable drip pan simplify end-of-shift clean-up.
  • 4" adjustable steel legs keep the unit level and provide the required 4" bottom clearance.
  • NSF & cCSAus certified—ready for any professional kitchen.

Specifications

Model HDTG6030G
Cooking surface 59-3/4" W × 23-3/4" D (≈1,418 sq in)
Plate thickness 3/4" (19 mm) steel
Controls 5 independent thermostatic zones
Temperature range 200 °F – 450 °F (93 °C – 232 °C)
Total input 150,000 BTU/hr
Gas connection 3/4" NPT, Natural Gas (LP conversion kit included)
Overall dimensions 60-1/8" W × 31-11/16" D × 17" H (with 4" legs)
Weight Shipping – 640 lb | Installed – 530 lb
Certifications NSF, cCSAus
Warranty 1-year parts & labor

Minimum clearance from non-combustible surfaces: Back 0" | Sides 0" | Front 0" | Bottom 4".

LP operation: A factory-supplied conversion kit ships with every unit for quick change-over to propane.

Ready to boost your line’s throughput? Add the Wells HDTG6030G to your cart or contact us today for volume pricing and financing options.

Features & Specs

Manufacturer

Wells (Middleby)

Certifications

NSF, cCSAus

Height

17.0in

Width

60.13in

Depth

33.25in

Shipping Weight

640.0lbs

Cooking Surface Width (side - side)

55" - 60"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

thermostat / solid state controls

Exterior Finish

all stainless steel exterior

Plate Thickness

3/4"

Specifications

(MIDDLEBY ESSENTIALS ITEM) Griddle, countertop, natural gas, 59-3/4" W x 23-3/4" cooking surface, 3/4" griddle plate, (5) thermostat controls, splashguard, stainless steel construction, 4" steel legs, 150,000 BTU, NSF, cCSAus
