Wells (Middleby) HDHP-3630G Hot Plates
Description
Wells HDHP3630G 6-Burner Countertop Gas Hotplate
(Middleby Essentials • Quick-Ship – Leaves warehouse in 5 business days)Turn up the heat on any cookline with Wells’ heaviest-duty hotplate. Six powerful 26,500 BTU burners deliver a sizzling 159,000 BTU total output, while rugged cast-iron components and stainless housing stand up to the rush—day after day.
Key Features
- 6 cast-iron open burners, each with infinite-adjust control valves & adjustable air shutters
- Natural gas factory-set; LP conversion kit included for field flexibility

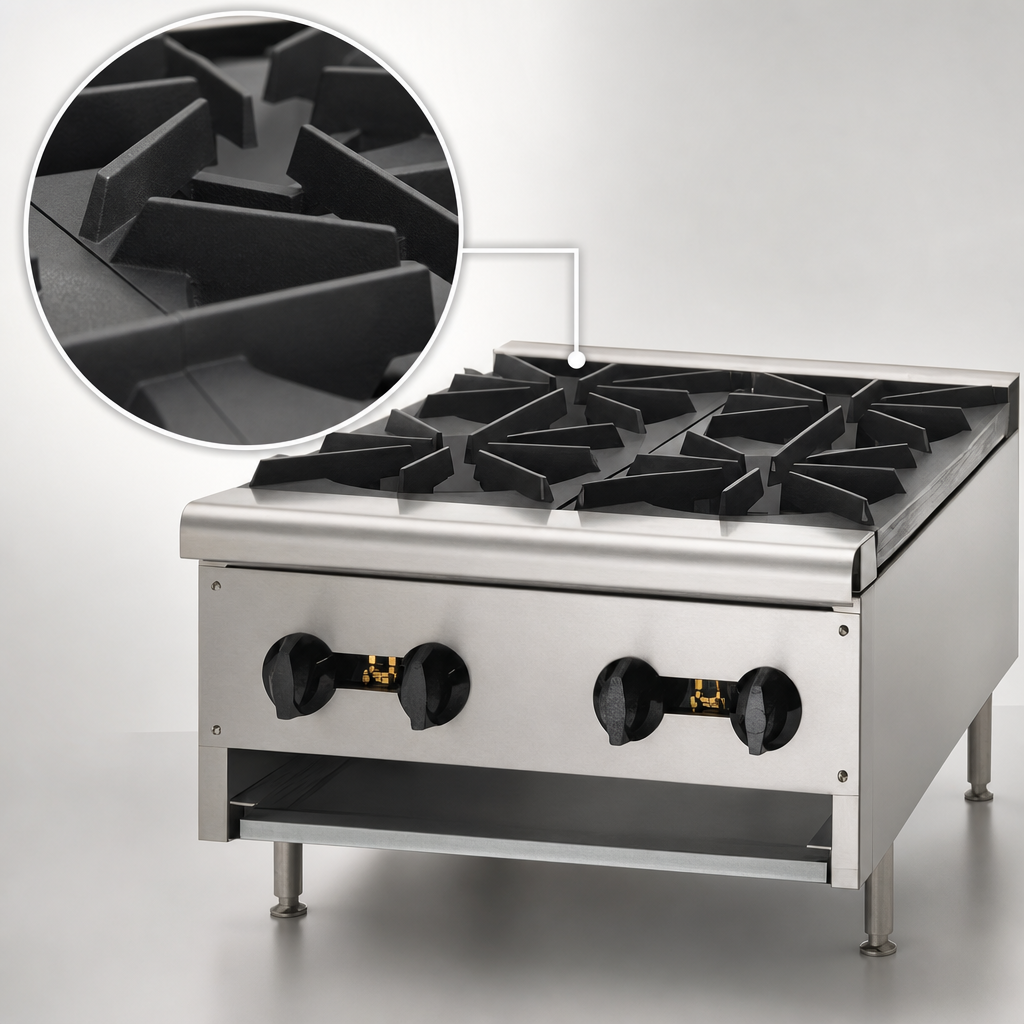

- One-piece cast-iron top grates for fast heat transfer & superior pot stability
- Full-width removable drip tray for quick cleanup
- Stainless steel front & sides with easily removable front panel for service access
- Heavy-duty 4" adjustable steel legs—perfect countertop working height
- Ships fully assembled & tested from NSF- & cULus-certified factory
- Matches Wells HD gas griddles & charbroilers for a seamless cook suite
At-a-Glance Specs
| Model | HDHP3630G |
|---|---|
| Total BTU | 159,000 BTU/hr (Natural gas, 5" W.C.) |
| Burners | 6 × 26,500 BTU open burners |
| Controls | Individual manual gas valves (On/Off & infinite adjustment) |
| Cooking Surface | One-piece cast-iron grate set |
| Exterior | Stainless steel front & side panels |
| Dimensions (W × D × H) | 35-1/2" × 30-1/4" × 14-11/16" (incl. 4" legs) |
| Gas Connection | 3/4" NPT, rear |
| Clearances | 0" back & sides, 4" bottom, 0" front (non-combustible surfaces) |
| Ship / Installed Weight | 304 lb / 199 lb |
| Certifications | NSF, cULus |
| Warranty | 2-year parts, 1-year labor (see warranty statement) |
Ideal For
- Short-order & exhibition cooking stations
- Hotels, caterers, and banquet lines needing surge capacity
- Food trucks or ghost kitchens upgrading to heavy-duty performance
Specifications are based on information provided by Wells. Design & specs are subject to change without notice. Always consult the installation manual and local codes prior to hookup.
