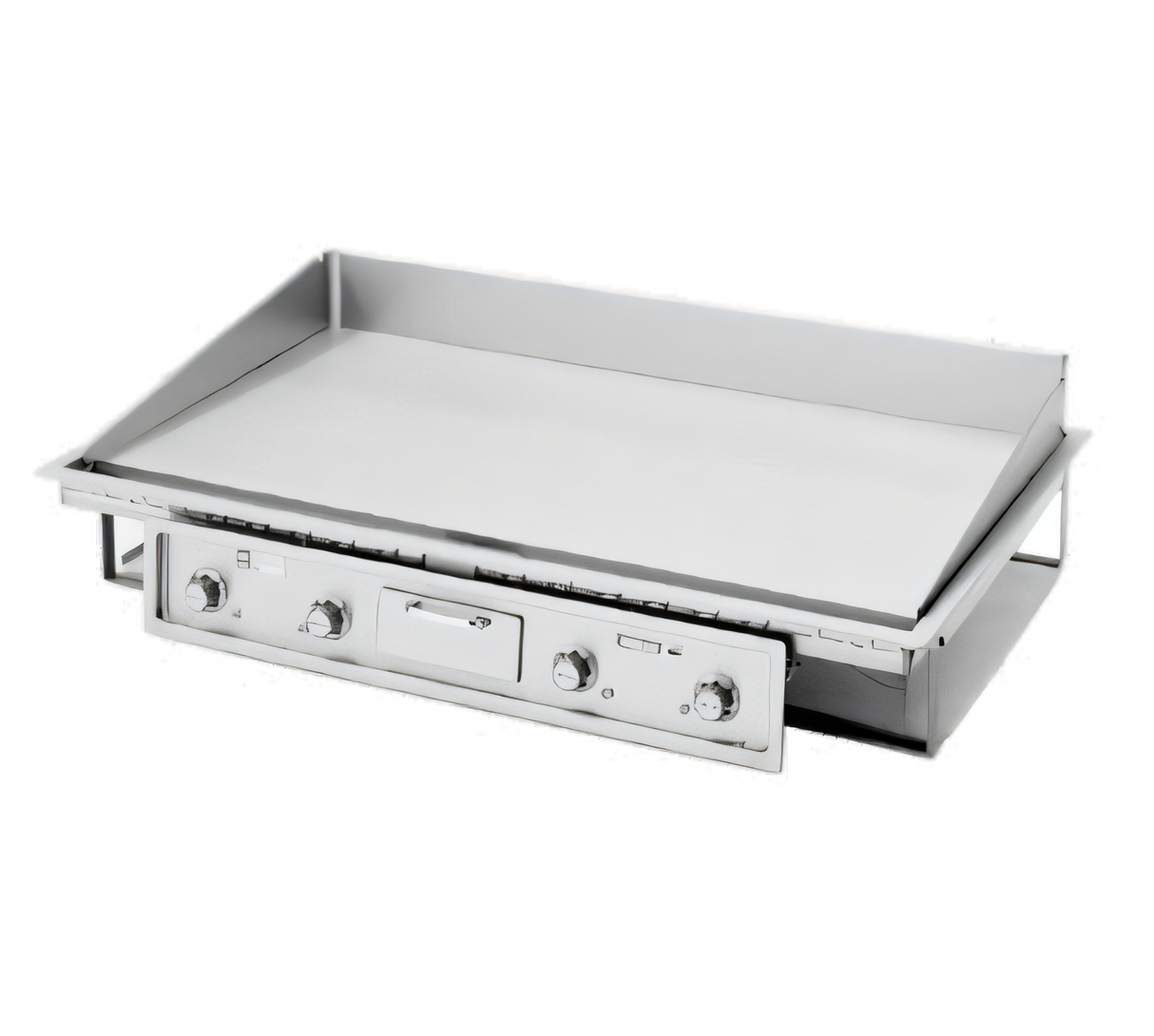

Wells G246 Built-In Electric Griddle
46" x 24" smooth polished steel cooking surfaceEngineered for the busiest commercial kitchens, the Wells G246 drop-in griddle delivers 1,140 in² of evenly heated surface, rapid recovery, and simple installation. Four independent thermostats give you precise zoned control from 200-450 °F (93-232 °C), while the heavy-duty ½" thick plate provides fast preheat (400 °F in just 9 minutes).
Key features & benefits
- Massive 46.9" W × 24.3" D plate (1,140 in²) handles high-volume orders.

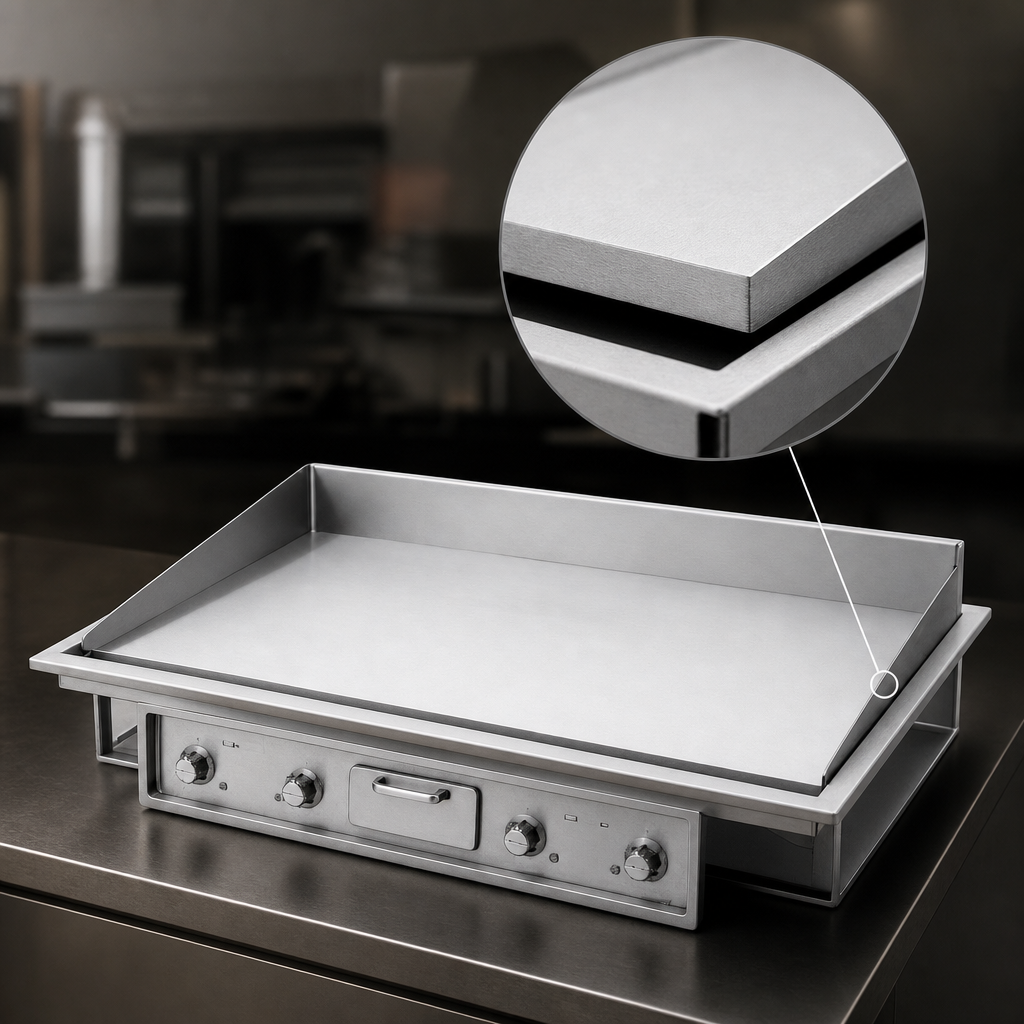

- Smooth, polished ½" steel plate for superior heat transfer and easy seasoning.

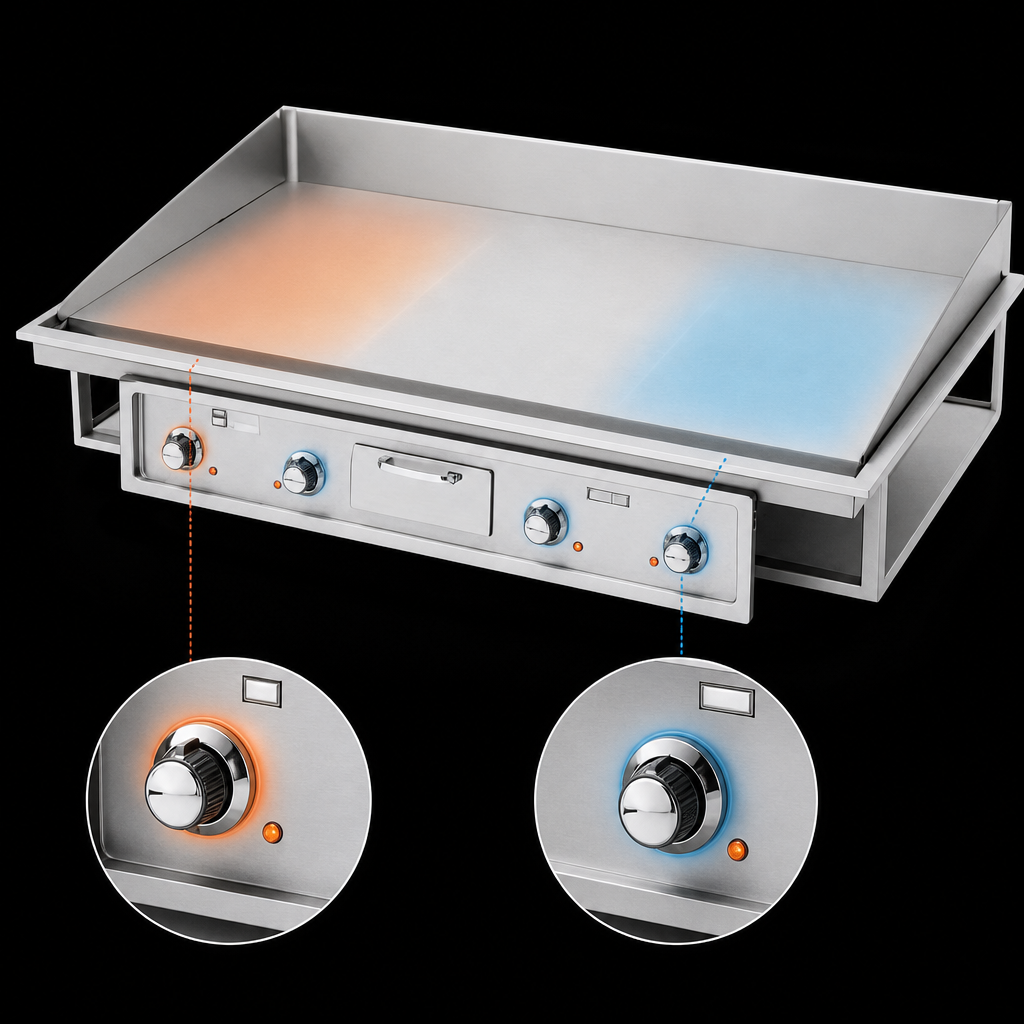

- Four positive-off thermostats create four distinct cooking zones.
- Stainless steel top, control panel, and removable three-sided splash guards.
- Extra-large 4 qt. front-mount grease drawer pulls out for quick emptying.
- Enclosed tubular elements are clamped to the plate for even heat distribution.
- Protective guard rings defend controls from accidental bumps.
- Wellslok® tabs allow fast, secure drop-in mounting to metal countertops.
- Meets NSF-4 sanitation standards; RU (UL) recognized for electrical safety.
- 1-year parts & labor warranty backed by Wells/Middleby.
High-volume production (smooth plate)
- Hamburgers: 86 per load / 1,450 per hour
- Steaks: 32 per load / 400 per hour
- Pancakes: 66 per load / 950 per hour
- Eggs: 70 per load / 1,190 per hour
Technical specifications
| Cooking surface (W × D) | 46.9" × 24.3" (1191 × 618 mm) |
|---|---|
| Overall dimensions (W × D × H) | 49" × 29.6" × 7.75" (1245 × 751 × 197 mm) |
| Plate thickness | ½" (13 mm) polished steel |
| Heat zones / thermostats | 4 independent, positive-off |
| Temperature range | 200-450 °F (93-232 °C) |
| Preheat to 400 °F | 9 minutes |
| Voltage / phase | 208 V or 480 V, 3-phase or single-phase field wired |
| Total wattage | 21.5 kW |
| Max amps (208 V) | 3-phase: 63.4/67.1/45.8 A | Single-phase: 103.3 A |
| Grease drawer capacity | 4 qt. (3.8 L) |
| Certifications | RU, NSF-4, CE (export models) |
| Shipping / installed weight | 331 lb (150 kg) / 300 lb (136 kg) |
| Minimum clearances | Back 1" | Sides 2" | Front 2" | Bottom 9" |
Unit ships without cord or plug; connection must be made by a qualified electrician in accordance with local codes. Production capacity figures are based on fresh (not frozen) product.
