Key specifications

Dimensions
36.5"W × 29.56"D
Type
Griddle
Style
Built-In/Drop-In
Material
Stainless Steel
Finish
Smooth Polished Steel
Country of Origin
USA
Spec sheet
Wells SKU: G-236

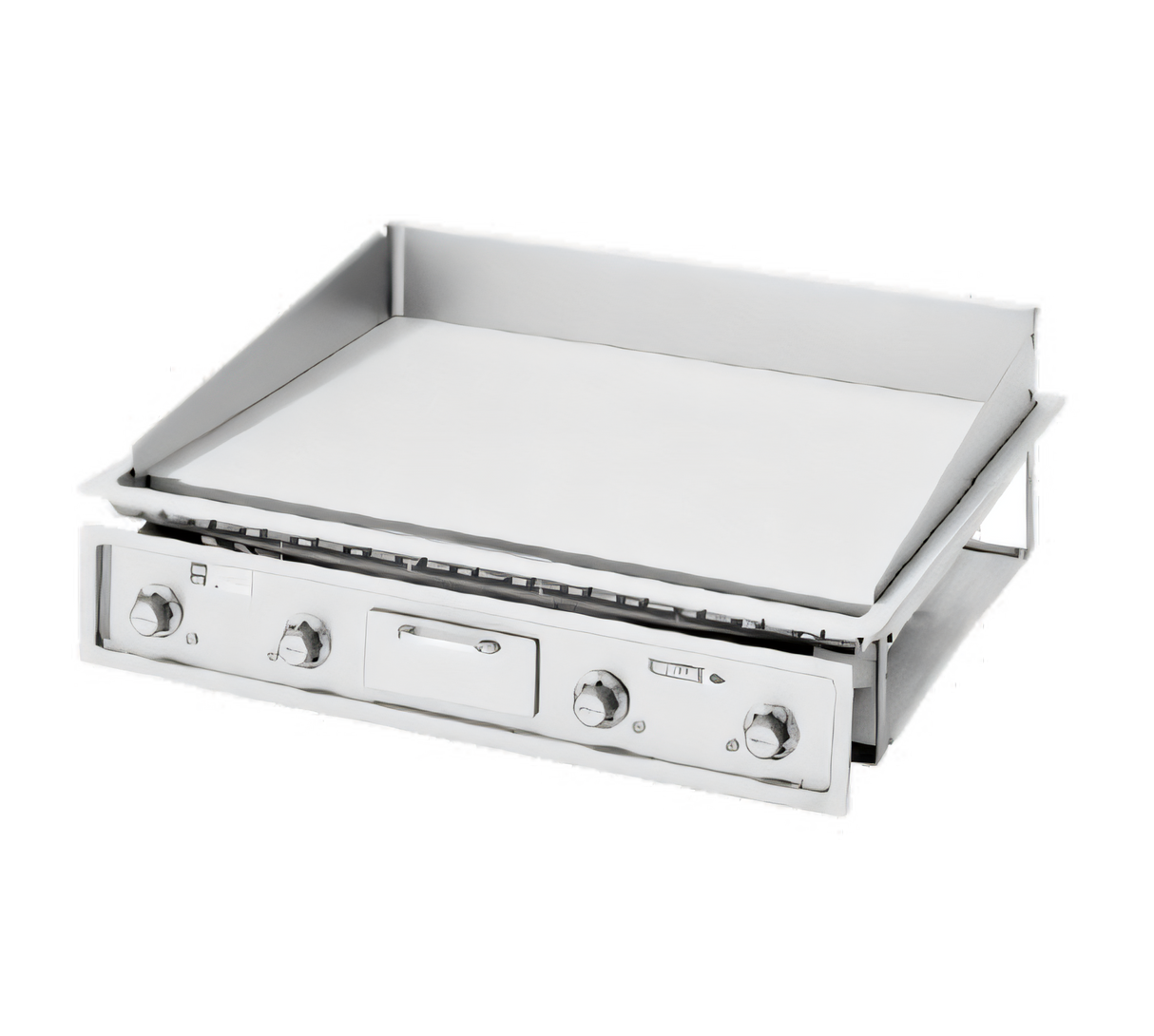

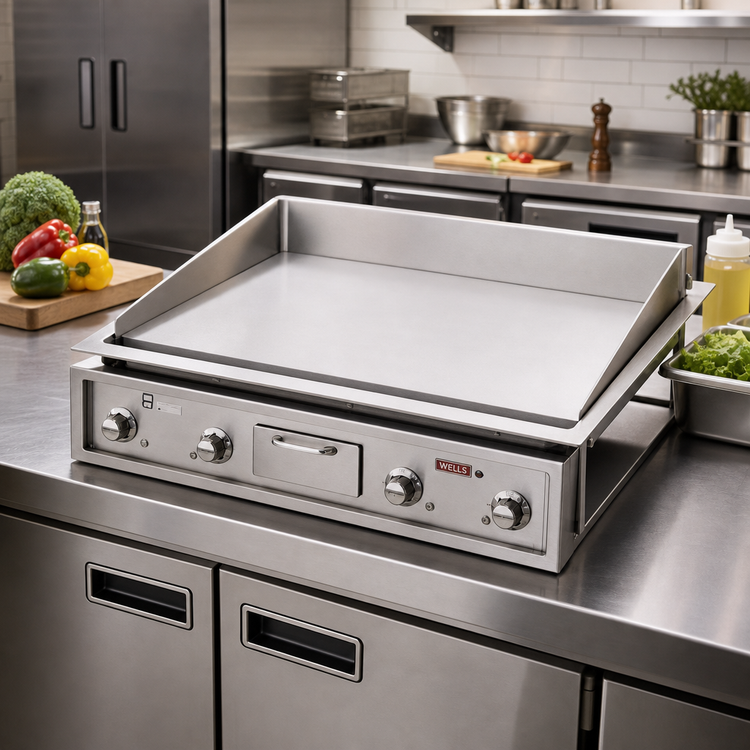

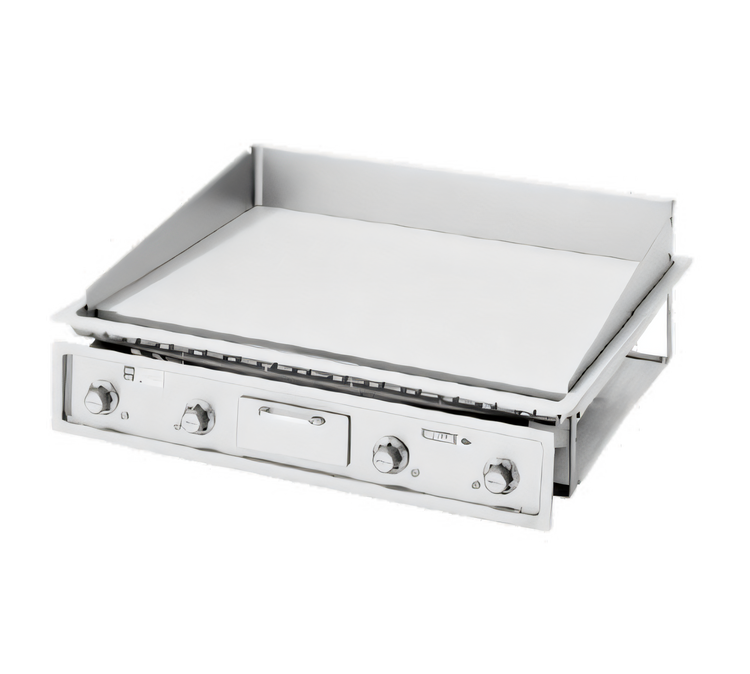

Wells G-236 34-Inch Built-In Electric Griddle

$7,393.00
/each
Estimated to ship in 29–32 business days
Plate size
Electrical
Griddle surface
Included: Wells warranty One-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $684/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Built-In/Drop-In
Material Stainless Steel
Finish Smooth Polished Steel
Country of Origin USA
Cooking Surface Width 34 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1/2 Inch
Controls Zoned Thermostatic
Thermostat Count 4
Temperature Range 200°F to 450°F
Voltage 208/240 Volts
Watts 16,000 Watts
Grease Drawer Capacity 4 Quarts
Griddle Plate Material Steel

Description

The Wells G-236 is an electric built-in/drop-in griddle with a smooth polished steel cooking plate measuring 34 inches wide by 24 inches deep.

It features stainless steel construction, four positive-off thermostats for individual zone temperature control, and an operating temperature range of 200°F to 450°F.

  • One-half-inch griddle plate
  • Removable splash guards
  • Front grease drawer with 4-quart capacity
  • Wellsloks for installation into metal countertops
  • Terminal block for field wiring connections

Overall Dimensions:

36.5"W x 29.56"D

Product Weight:

292.0 lb

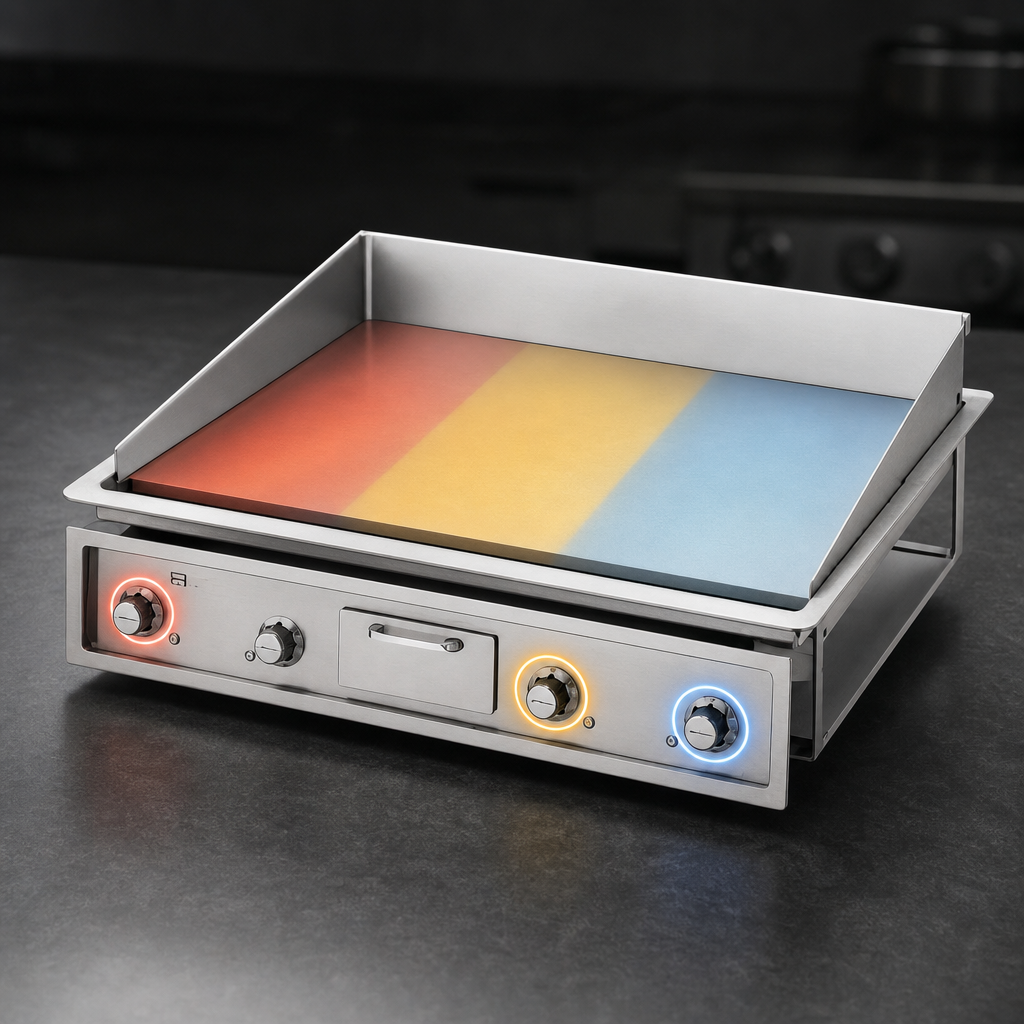

Zoned thermostatic control

Four positive-off thermostats provide individual zone temperature control from 200°F to 450°F.

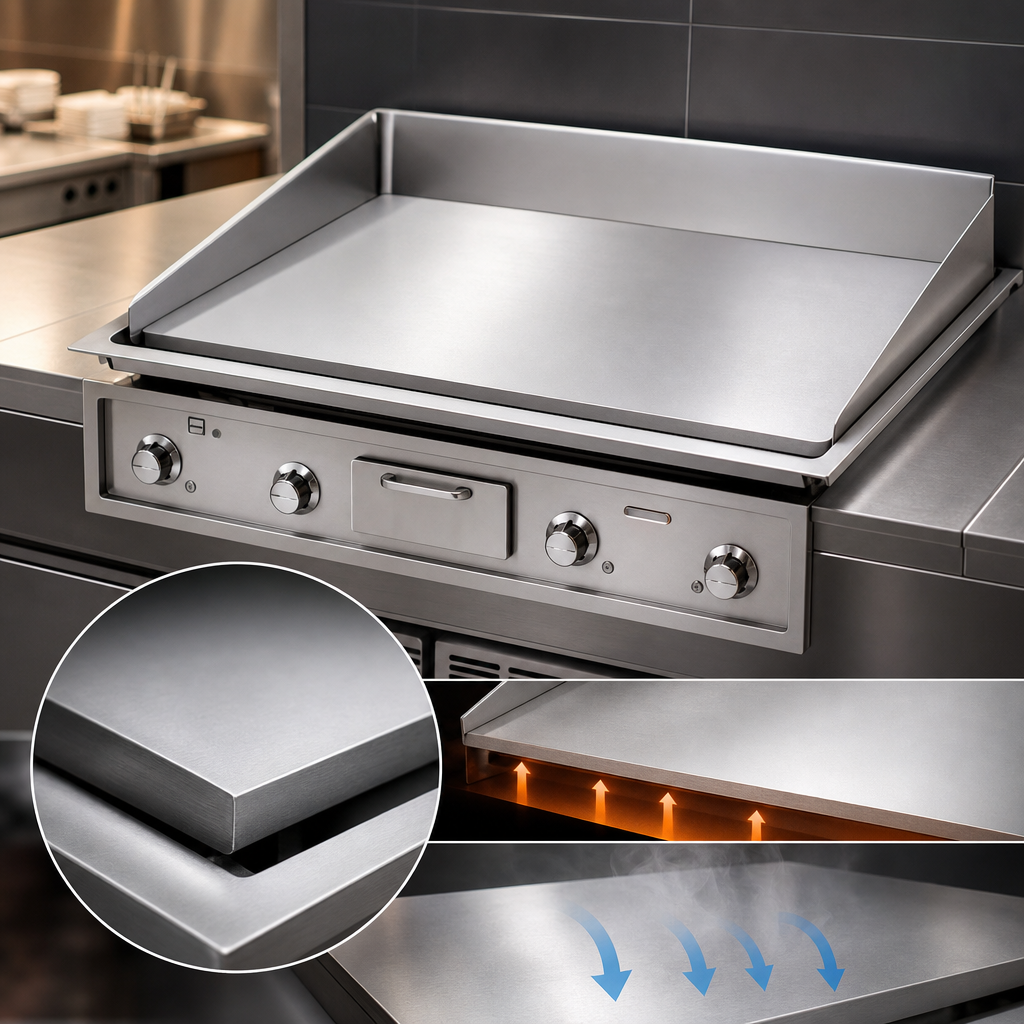

Smooth polished steel plate

The cooking surface measures 34 inches wide by 24 inches deep and uses a one-half-inch-thick steel plate.

Stainless steel construction

The griddle has stainless steel construction with a stainless steel top and control panel.

Removable splash guards

Removable splash guards support cleanup.

Grease drawer

The front grease drawer has a 4-quart capacity.

Built-in/drop-in installation

Wellsloks are provided for installation into metal countertops.

Field wiring connection

A terminal block is provided for field wiring connections.

Frequently Asked Questions

The G-236 has a 34-inch-wide by 24-inch-deep smooth polished steel cooking surface.
Four positive-off thermostats provide individual zone temperature control from 200°F to 450°F.
The G-236 is available for 208- or 240-volt electrical service and is rated at 16,000 watts.
It is designed for built-in/drop-in installation into a metal countertop and includes Wellsloks for installation.
The front grease drawer has a 4-quart capacity.
