Wells (Middleby) G-23 Electric Griddles
Description

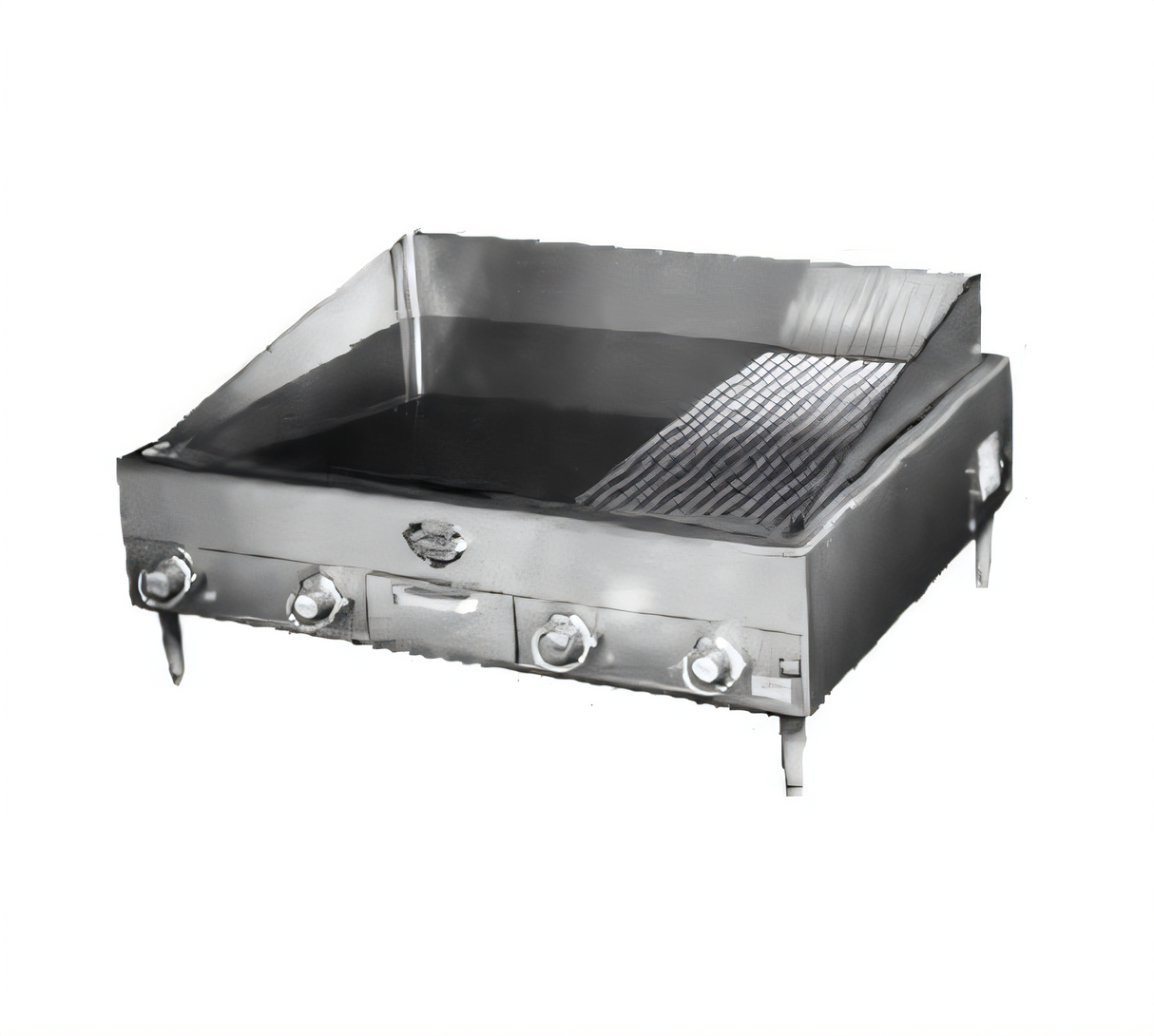

Wells G23 G-Series Electric Countertop Griddle
34-1/4" × 24-5/16" smooth steel plate • zoned thermostatic control • 16 kW†Built for breakfast rushes and late-night service alike, the Wells G23 delivers lightning-fast preheat, rock-solid temperature consistency and a generous 833 in² cooking surface—all in a compact countertop footprint.
Why You’ll Love It

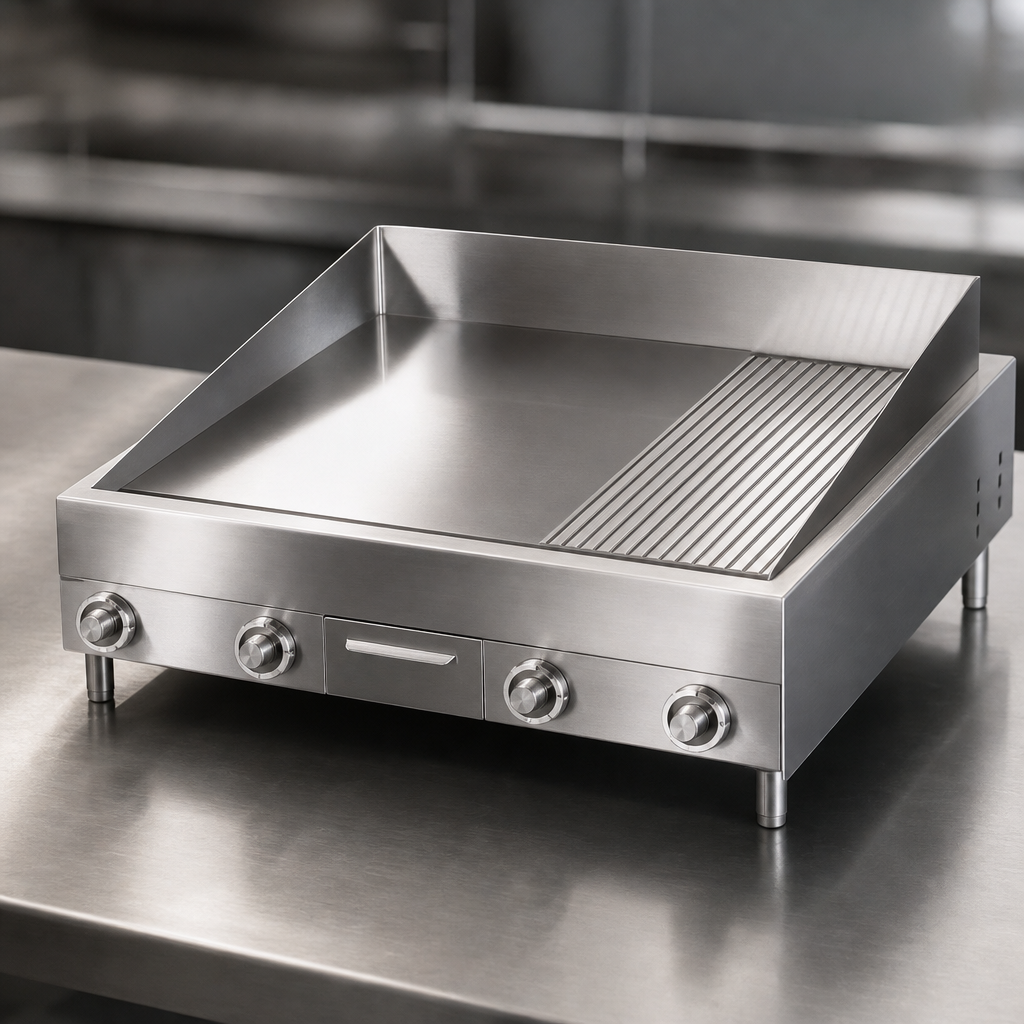

- 1/2" thick, smooth polished steel plate provides superb heat retention and easy release.
- Massive 34-1/4" W × 24-5/16" D cook zone—room for up to 65 burgers per load.

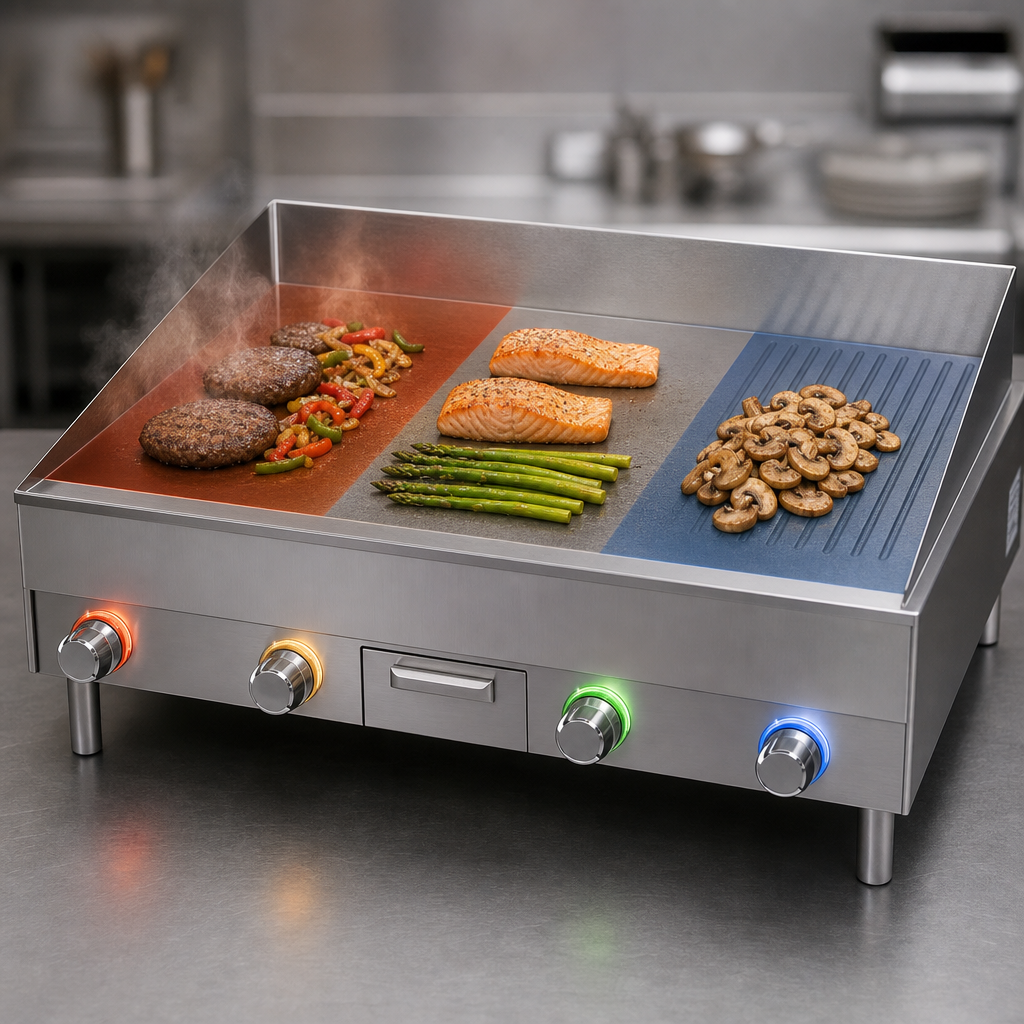

- Two independent thermostats (200–450 °F) with positive-off allow true zone cooking and energy savings during slow periods.
- Enclosed tubular elements are clamped to the plate for a 9-minute heat-up and rapid recovery.
- 4-qt front grease drawer slides out effortlessly for quick, mess-free disposal.
- Removable three-sided stainless-steel splashguard keeps walls, counters and staff protected.
- 4" adjustable legs simplify leveling and make cleanup underneath a breeze.
- Rugged all-stainless cabinet with guard rings that shield controls from accidental bumps or drips.
- Certified safe and sanitary: UL, NSF/ANSI 4, CE & CSA.
Technical Specifications
| Cooking surface (W × D) | 34-1/4" × 24-5/16" (833 in² / 0.54 m²) |
|---|---|
| Plate material & thickness | Polished steel, 1/2" |
| Temperature range | 200–450 °F (93–232 °C) |
| Heat-up to 400 °F | Approx. 9 minutes |
| Watts to maintain 400 °F | 2,200 W |
| Electrical rating | 208 V or 240 V, 16 kW, 1- or 3-phase (terminal block hard-wire) |
| Amps @ 208 V (3-ph) | L1 48.3 A L2 51.3 A L3 35 A |
| Amps @ 208 V (1-ph) | 76.9 A |
| Overall dimensions | 36-1/2" W × 29-9/16" D × 15-3/8" H |
| Shipping / installed weight | 260 lb (118 kg) / 204 lb (93 kg) |
| Grease drawer capacity | 4 qt |
| Warranty | 1-year parts & labor |
Throughput Estimates*
- Hamburgers: up to 65 per load / 720 per hour
- Steaks: up to 44 per load / 720 per hour
- Pancakes: up to 58 per load / 1,000 per hour
- Eggs: up to 56 per load / 1,008 per hour
*Using fresh (non-frozen) product; actual results will vary.
What’s in the Box
- Wells G23 electric countertop griddle
- Removable stainless-steel splashguard
- 4" stainless adjustable legs (installed)
- Front grease drawer
- Owner’s manual & warranty documentation
Looking to spread out your investment? Middleby Equipment Financing offers quick approvals and affordable monthly payments.
†16 kW rating at 208/240 V. Specifications subject to change without notice.
