Wells (Middleby) G-196 Electric Griddles
Description

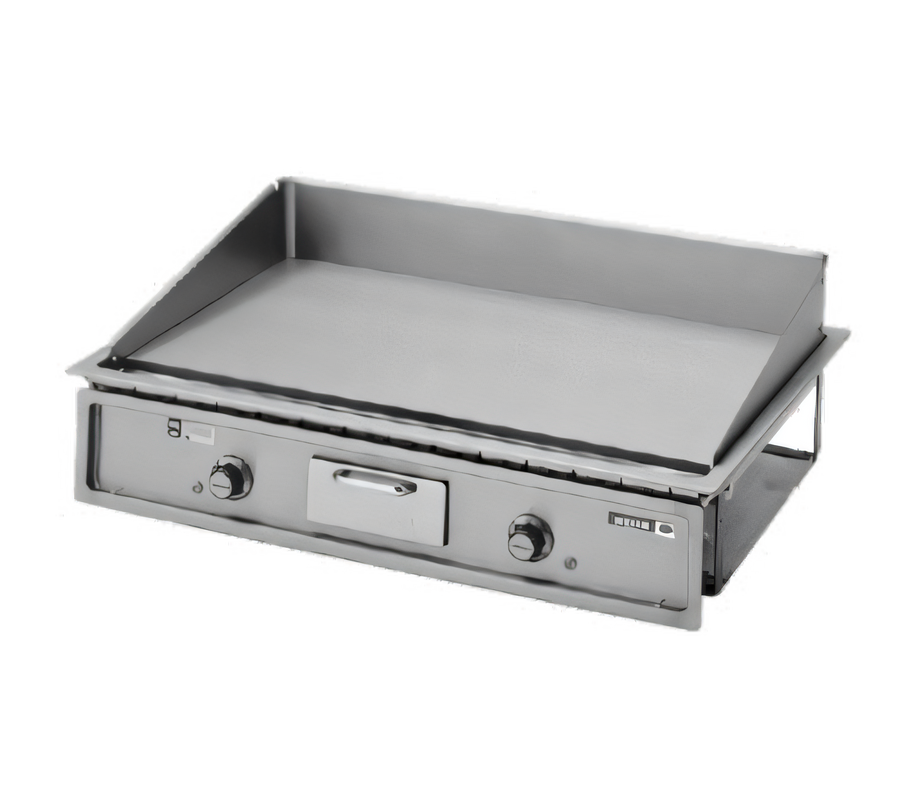

Wells G-Series Built-In Electric Griddle – 34" × 18"
Model G196 • Smooth ½" Steel Plate • 12 kW • 2-Zone Thermostatic ControlEngineered for flush, drop-in installation, the Wells G196 lets you add high-volume griddle power to any cook line without sacrificing counter space. A polished ½-inch steel plate heats lightning-fast, stays flat and recovers instantly, while dual positive-off thermostats give you precise control over two independent cooking zones. Rugged stainless steel construction, removable splash guards and an oversized 4-quart grease drawer make clean-up quick and painless—keeping your kitchen moving when every ticket counts.
Key Features

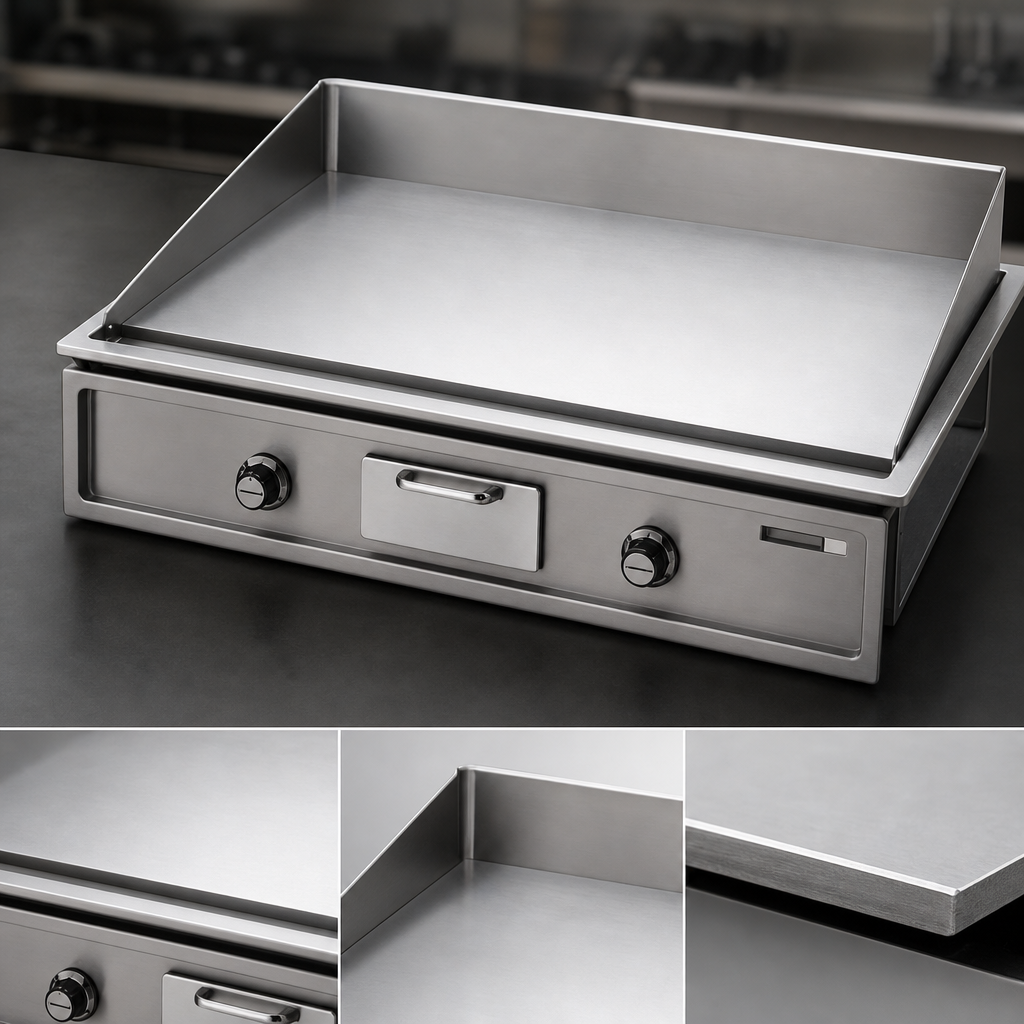

- 34" W × 18" D (625 in²) smooth polished ½" steel plate for rapid pre-heat & even heat distribution.

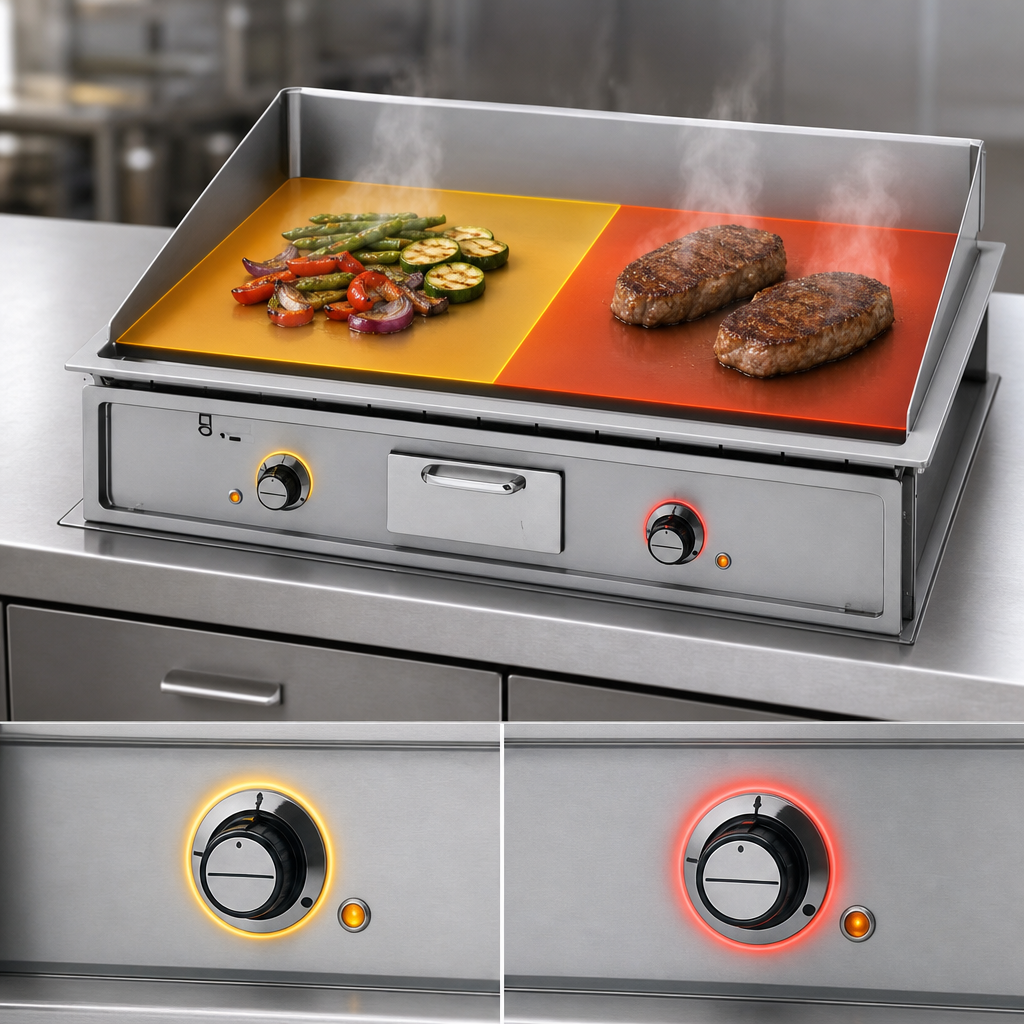

- Two independent thermostats (200–450 °F) create separate cook zones or allow one side to idle.
- Enclosed tubular elements are clamped directly to the plate for fast recovery and consistent searing.
- Durable stainless steel top, control panel and removable 3-sided splash guard.
- Extra-large 4-qt. front grease drawer slides out for easy, mess-free disposal.
- Protective guard rings shield controls from accidental bumps or spills.
- Wellslok® mounting system and terminal block included for quick, secure drop-in installation.
- cRUus & NSF-4 certified for commercial kitchens.
Typical Production Capacity*
| Food Item | Per Load | Per Hour |
|---|---|---|
| Hamburgers | 48 | 720 |
| Steaks | 18 | 220 |
| Pancakes | 35 | 500 |
| Eggs | 45 | 675 |
*Based on fresh product; actual results may vary.
Specifications
| Model | G196 (Built-In / Drop-In) |
|---|---|
| Cooking Surface | 34.25" W × 18.3" D (625 in²) |
| Plate Thickness | 0.5" smooth polished steel |
| Heat Zones | 2 independently-controlled |
| Temperature Range | 200 °F – 450 °F (93 °C – 232 °C) |
| Pre-Heat to 400 °F | ≈ 9 minutes |
| Total Output | 12 kW |
| Voltage Options | 208 V / 240 V / 480 V |
| Grease Drawer | 4-quart capacity, front-mounted & removable |
| Overall Dimensions | 36.5" W × 23.6" D × 7.75" H |
| Ship / Installed Weight | ≈ 180 lb. (82 kg) / 165 lb. (75 kg) |
| Certifications | cRUus, NSF-4 |
| Warranty | 1 year parts & labor |
Perfect For
- Diners, cafés & breakfast houses
- Quick-service & fast-casual cook lines
- Hotel, casino or corporate kitchen suites
- Convenience stores upgrading from countertop units
Looking for grill marks or ultra-fast cleanup? Chrome-plated and grooved plate options are available by special order.
