Wells (Middleby) G-136 Electric Griddles
Description
Wells G136 Built-In Electric Griddle
22" W × 18" D Smooth Polished Steel Plate • 2-Zone Thermostatic Control • NSF-4, RUDesigned for high-volume, high-precision cooking in a compact footprint, the Wells G136 drop-in griddle delivers even heat, lightning-fast recovery, and effortless clean-up. Its ½" thick steel plate provides the perfect sear on everything from burgers to breakfast favorites, while dual thermostats let you run two independent temperature zones across the 22 × 18 inch surface.
Why You’ll Love It
- 22" W × 18" D (412 in²) cooking surface handles up to 34 burgers per load or 420 per hour*

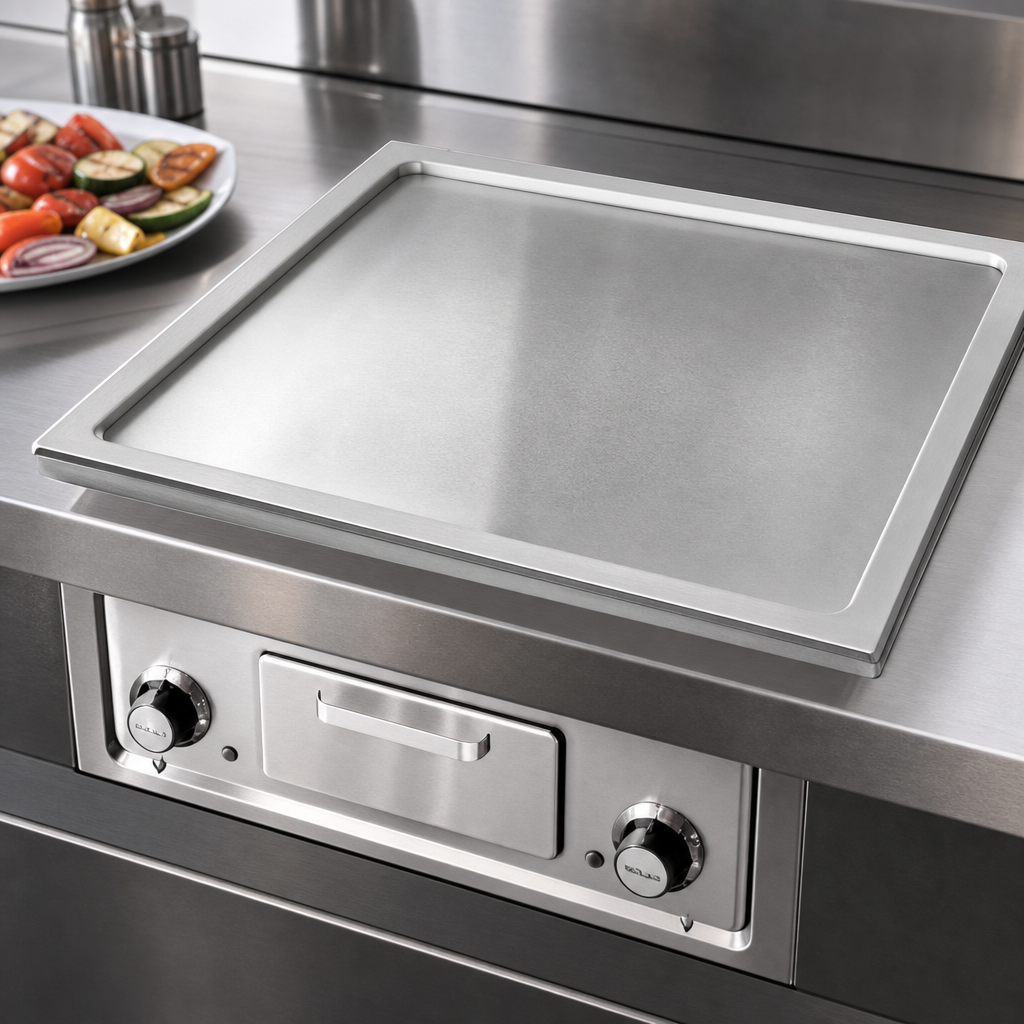

- ½" thick smooth polished steel plate heats to 400 °F in just 9 minutes and recovers quickly after loading

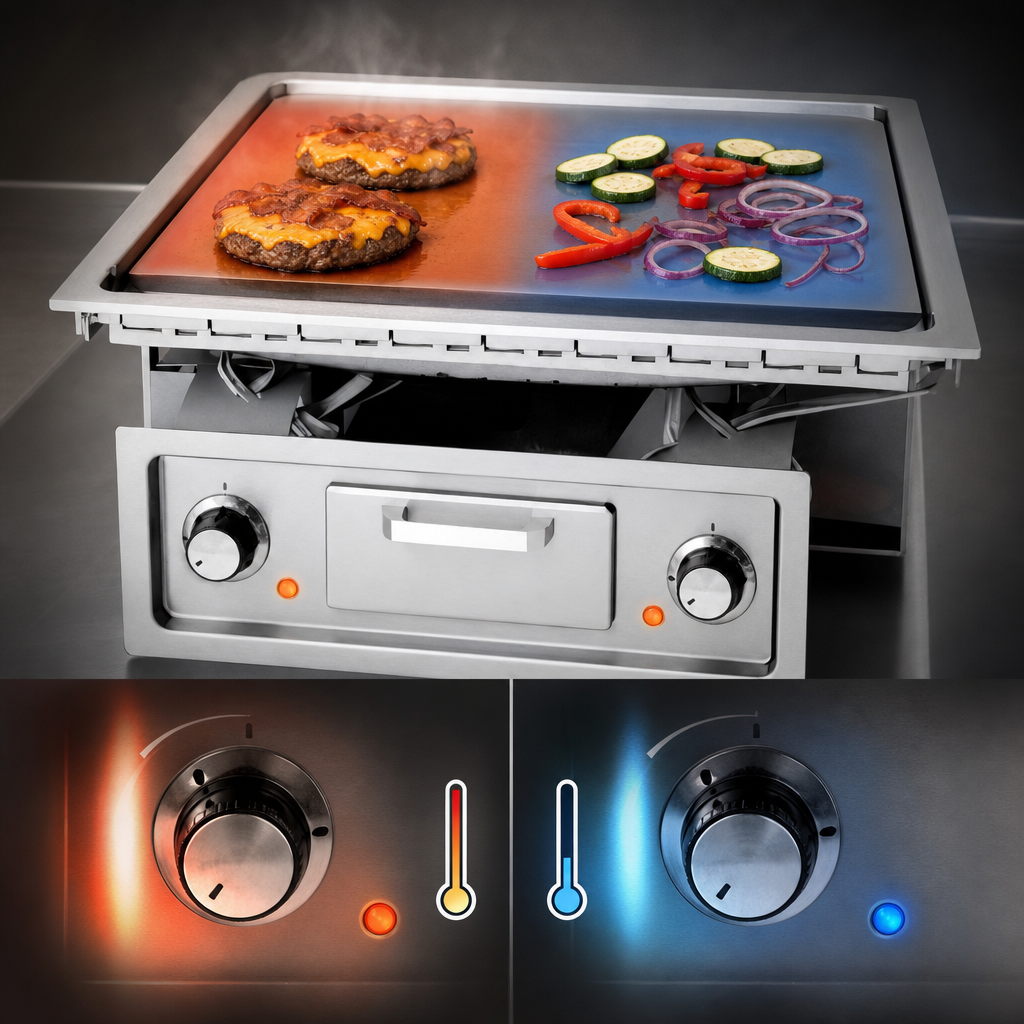

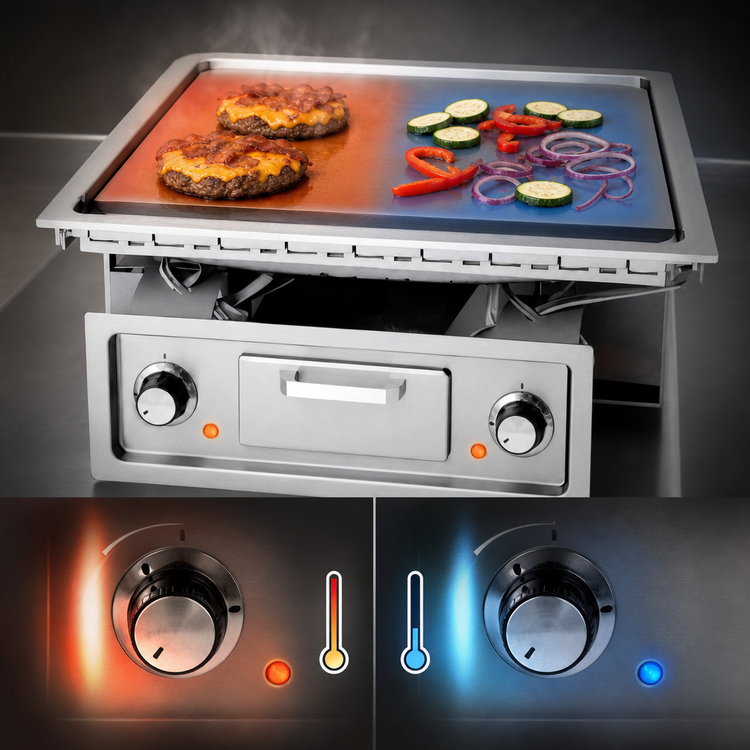

- Two positive-off thermostats (200 – 450 °F) create independent left/right heat zones for menu flexibility
- Stainless steel top, control panel, and removable splash guards stand up to the rigors of a busy kitchen
- Extra-large 4-quart front grease drawer slides out for mess-free disposal
- Protective guard rings shield controls from bumps and accidental adjustments
- Wellslok® mounting system drops into metal countertops for fast, secure installation
- NSF-4 sanitation listed and RU recognized for electrical safety
- 1-year parts & labor warranty backed by Wells’ nationwide service network
Production Estimates*
| Food Item | Per Load | Per Hour |
|---|---|---|
| Hamburgers (4 oz) | 34 | 420 |
| Steaks (6 oz) | 12 | 150 |
| Pancakes | 24 | 350 |
| Eggs | 28 | 560 |
*Based on fresh product; individual results may vary.
Technical Specifications
| Cooking Surface | 22 in W × 18 in D (412 in² / 0.27 m²) |
|---|---|
| Plate Thickness | ½ in smooth polished steel |
| Heat Zones / Thermostats | 2 (left / right) |
| Temperature Range | 200 °F – 450 °F (93 °C – 232 °C) |
| Pre-heat to 400 °F | Approx. 9 minutes |
| Electrical (choose one) | 208 V, 6.8 kW, 32.5 A | 240 V, 9 kW, 37.5 A | 380-415 V, 10.8 kW, 15 A per leg (3-phase) |
| Overall Dimensions | 24.8 in W × 23.6 in D × 7.75 in H (630 × 598 × 197 mm) |
| Ship / Installed Weight | 120 lb (54 kg) / 110 lb (51 kg) |
| Grease Drawer Capacity | 4 qt (3.8 L) |
| Certifications | NSF-4, RU |
| Warranty | 1 year parts & labor |
Installation Requirements
- Minimum clearances: 1" rear, 2" sides & front, 9" below to combustible surfaces
- Field wiring via included terminal block; unit is not supplied with cord & plug
- Mounts flush into metal countertops using factory-installed Wellsloks®
