Description

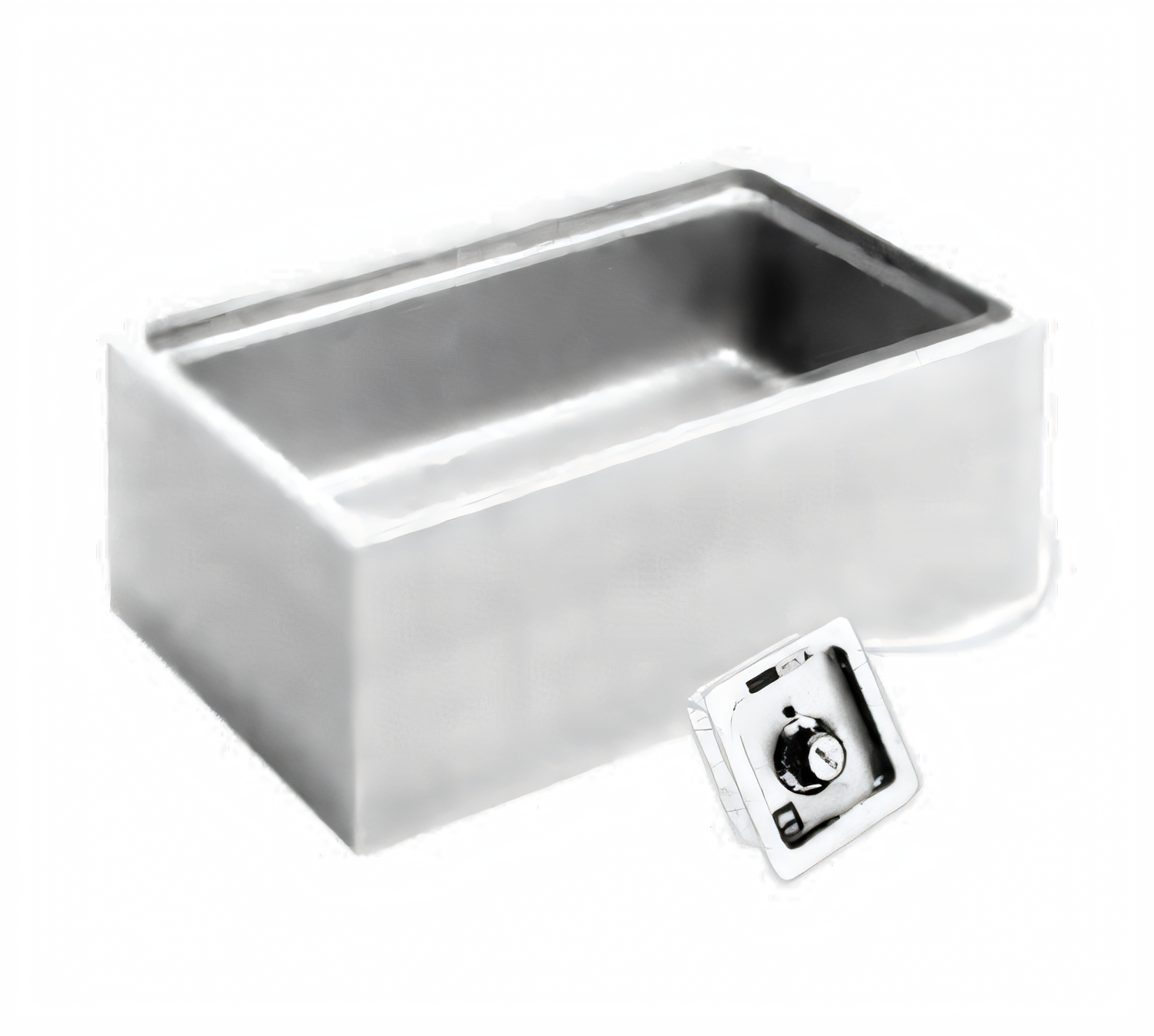

Wells BMW206RTDAFU Built-In AutoFill Food Warmer
12" × 20" bottom-mount rectangular well • thermostatic control • wet or dry • 208/240 VKeep menu items hot, fresh and ready for service—without constantly monitoring water levels. The BMW206RTDAFU combines Wells’ legendary stainless-steel construction with an automatic water-fill system, delivering consistent holding temperatures and labor-saving convenience in any commercial kitchen.
Key features
- Accepts one full-size 12" × 20" steam table pan or fractional combinations (adapter tops available).

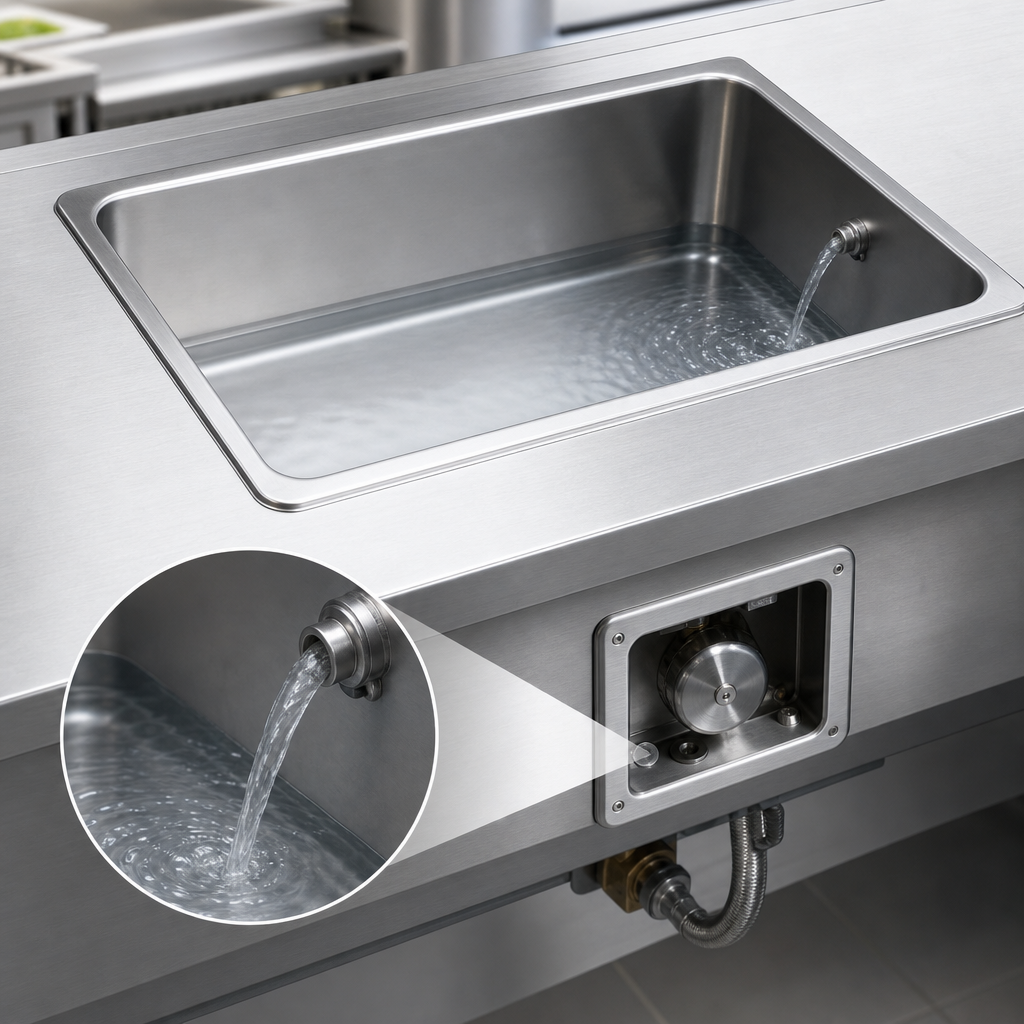

- AutoFill system maintains the correct water level automatically (¼" water connection required).
- Wet or dry operation—wet use recommended for maximum heat transfer.
- Precision thermostatic dial with temperature-ready indicator light for accurate holding.
- Fully insulated well, sides & bottom for quicker pre-heat, faster recovery and reduced energy costs.
- Heavy-gauge, deep-drawn stainless-steel well with smooth round corners for easy cleaning.
- Powerful tubular element delivers even heat across the entire pan area.
- Front ½" NPT drain speeds water removal and cleanup.
- 14" × 6-1/4" recessed stainless control panel protects settings and stays cool to the touch.
- Built-in high-limit safety shuts off the element to prevent overheating.
- Commercial approvals: NSF, UL, CSA.
- Backed by a 2-year limited parts / 1-year limited labor warranty.
Technical specifications
| Model | BMW206RTDAFU |
|---|---|
| Operation | Thermostatic, wet or dry, AutoFill |
| Voltage | 208/240 V, 1-phase |
| Wattage | 1 240 W @ 208 V / 1 650 W @ 240 V |
| Amperage | 6 A @ 208 V / 6.9 A @ 240 V |
| Pan opening | 12" × 20" (305 × 508 mm) |
| Overall dimensions | 13-7/8" W × 21-15/16" D × 8-5/16" H (352 × 557 × 211 mm) |
| Control panel size | 14" W × 6-1/4" H (356 × 159 mm) |
| Drain | ½" NPT with valve |
| Shipping weight | 24 lb (10.9 kg) |
| Minimum clearances | Back 2" • Sides 2" • Bottom 6-3/4" • Front 4-1/8" |
| Warranty | 2-year parts / 1-year labor |
| Certifications | NSF, UL, CSA |
Popular accessories (sold separately)
- Stainless adapter tops for 7-qt, 11-qt, 4-qt & 2-1/2-qt round insets.
- Drain valve extension kit (20385) for front-of-counter access.
- Stainless-steel insets with lids (2.5–11 qt) and 8 oz soup ladle.
