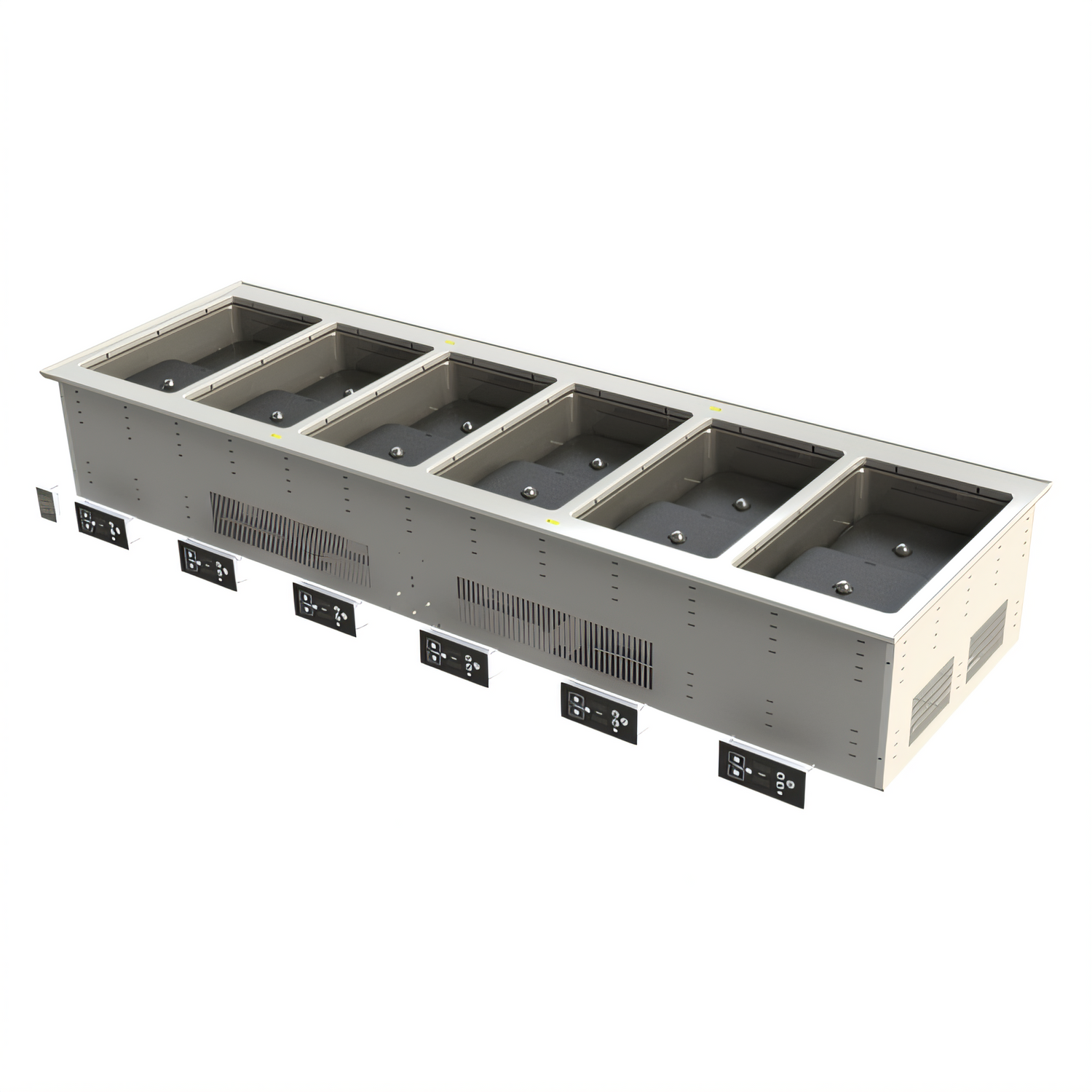

Vollrath Modular Induction Dry Well Drop-In – 6 Wells
Model FC-6IH-06208 | 81 ¼" W × 26" D | 208-240 VDeliver superior hot-food holding without the hassle of water baths. Vollrath’s six-well modular induction dry well uses twin induction capsules in every well to heat food evenly, precisely and efficiently—perfect for buffets, cafeterias and production lines that demand both flexibility and presentation-ready quality.
Key Features

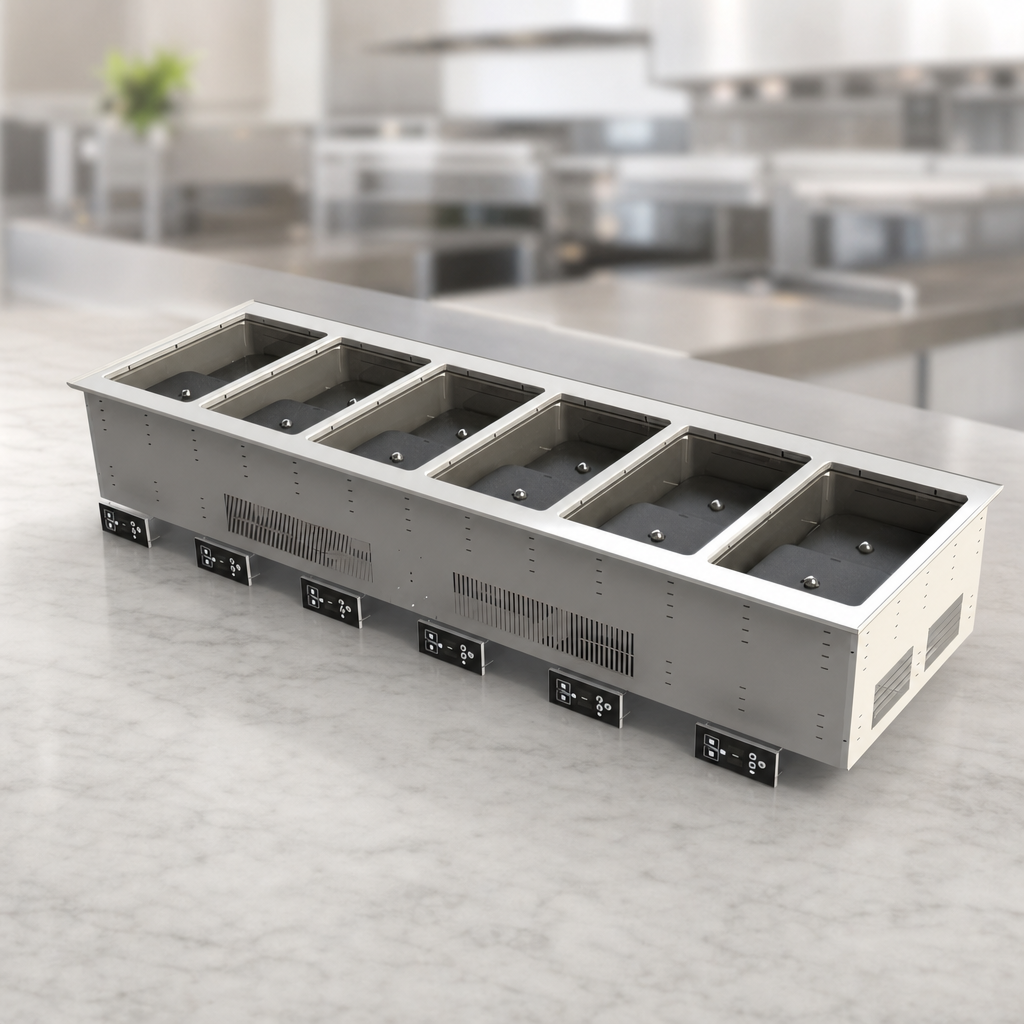

- Waterless design—no drains, plumbing or daily deliming required.
- Six independent wells with dedicated power & temperature controls.
- Three selectable power levels (Low / Medium / High) or set holding temps from 140–190 °F.
- Two induction capsules per well create 12 separate heat zones; operate each zone independently or sync for a full-pan heat blanket.
- Each well accepts :
- (1) full-size steam table pan, 2 ½" or 4" deep, or
- (2) half-size pans, 2 ½" or 4" deep (pans sold separately).
- Master power switch turns all wells on/off with a single touch.
- 300-series stainless steel flange and wells match surrounding equipment and resist corrosion.
- Sealed-well construction prevents spills from leaking into the base cabinet.
- Includes gasket & mounting clips for counters up to 3" thick; 55" control-panel cable for flexible placement.
- 6' power cord with NEMA 6-30P plug—no hard-wiring needed (dedicated circuit recommended).
- NSF, cULus & FCC listed; Made in the USA.
Technical Specifications
| Model | FC-6IH-06208 |
|---|---|
| Wells / Heat Zones | 6 wells / 12 zones |
| Temperature Range | 140° F – 190° F (60° C – 88° C) |
| Power Levels | 3 (Low, Medium, High) |
| Overall Dimensions (W × D) | 81 ¼" × 26" (206.4 × 66 cm) |
| Cut-Out Dimensions (W × D) | 80 ½" × 25 ¼" (204.5 × 64.1 cm) |
| Electrical | 208-240 V / 60 Hz / 1-phase |
| Total Wattage / Amps | 4,760 W / 19.8 A |
| Plug Type | NEMA 6-30P (6' cord) |
| Clearance Required | 2" on sides & ends; 6" below for ventilation (max intake air 110 °F) |
| Certifications | NSF, cULus, FCC |
| Country of Origin | Made in USA (made-to-order) |
Made-to-Order: This drop-in is built to order and cannot be cancelled or returned once production has begun.
Vollrath induction-ready pans are required for proper operation. Refer to VollrathFoodservice.com for complete warranty terms.
$10,324.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Vollrath FC-6IH-06208 induction hot food well, 6 wells with independent dual-zone controls, 140–190°F, NSF, energy-efficient, made in USA.
Manufacturer
Vollrath
Certifications
NSF, cULus, FCC, Made in USA
Height
15.0in
Width
81.25in
Depth
26.0in
Shipping Weight
290.0lbs
Construction
stainless steel
Insulated or Non-Insulated
non-insulated
Pan Capacity
(6) full size (12" x 20")
Controls
digital controls
Style
individual pans
Specifications
Induction Hot Food Well Drop-In, electric, dry operation, (6) well, 81-1/4"W x 26"D, individual heat & power controls per well, (3) power levels per well (low/medium/high), temperature range 140°-190°F, (2) induction capsules per well creates (2) heat zones in each well, (heat zones can operate independently or be synced), accommodates Vollrath induction-ready steam table pans (1) full-size (2-1/2" or 4" deep) or (2) half-size (2-1/2" or 4" deep) per well, 208-240v/60/1-ph, 4760 watts, 19.8 amps, cord with NEMA 6-30P, NSF, cULus, FCC, Made in USA (made to order) (Refer to vollrathfoodservice.com for full warranty policy)
