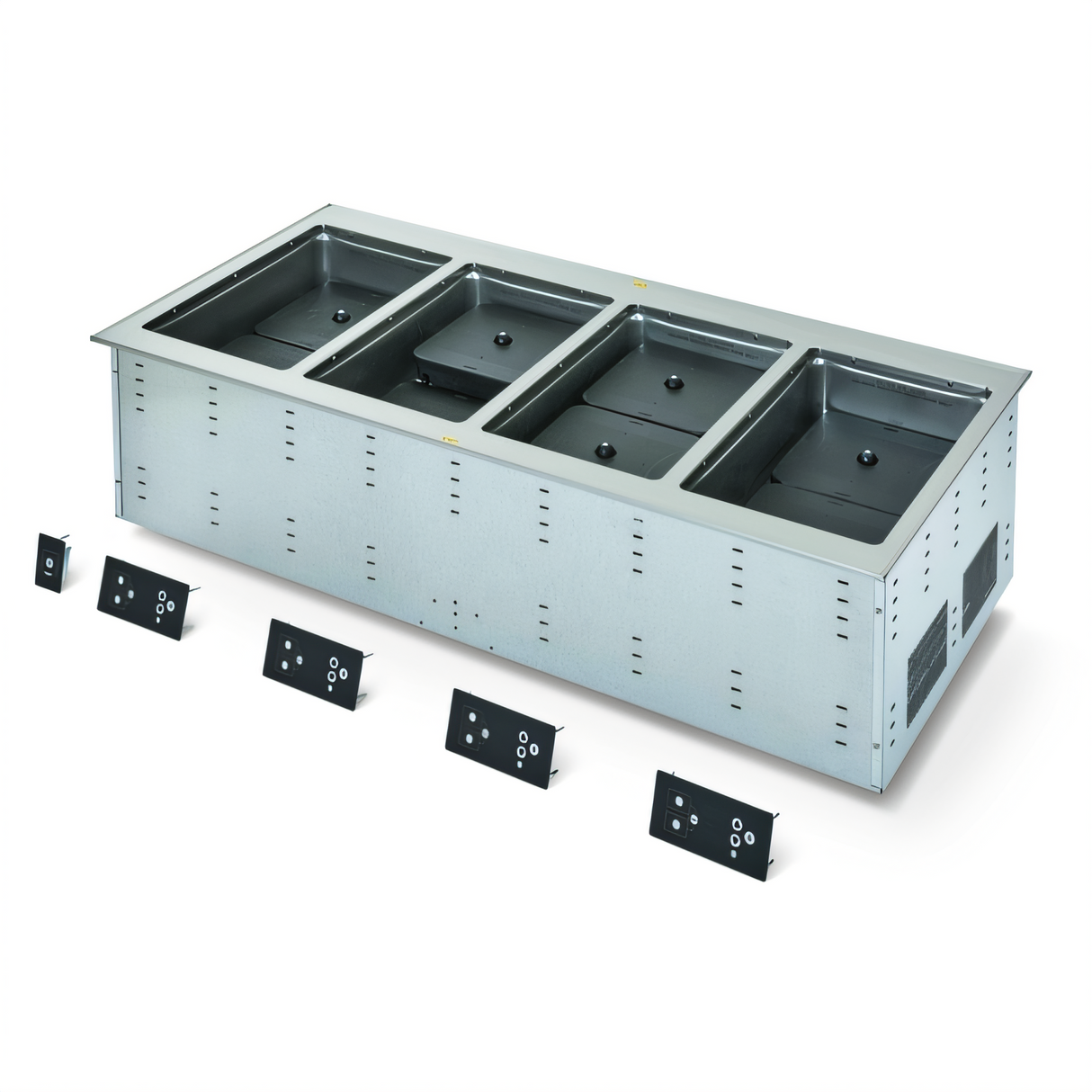

Vollrath FC-6IH-04208 Modular Induction Dry Well Drop-In
4-Well • Waterless Hot Food Holding • 208-240 VGive guests perfectly held entrées without the hassle of water baths. The FC-6IH-04208 uses next-generation induction to create two precise heat zones in every well—letting you mix and match menu items while keeping foods fresh, safe and ready to serve.
Key Advantages
- Four independent dry induction wells—no plumbing, drains or lime scale.
- Two induction capsules per well provide separate left/right zones that can be synced or controlled individually.
- Holding temperature range of 140-190 °F (60-88 °C) plus three quick-select power levels (Low/Medium/High).
- Accepts
- One full-size Vollrath induction-ready pan (2 ½" or 4" deep) per well, or
- Two half-size pans (2 ½" or 4" deep) per well.
- Individual heat & power controls for each well, plus a master power switch to shut the entire unit off at once.

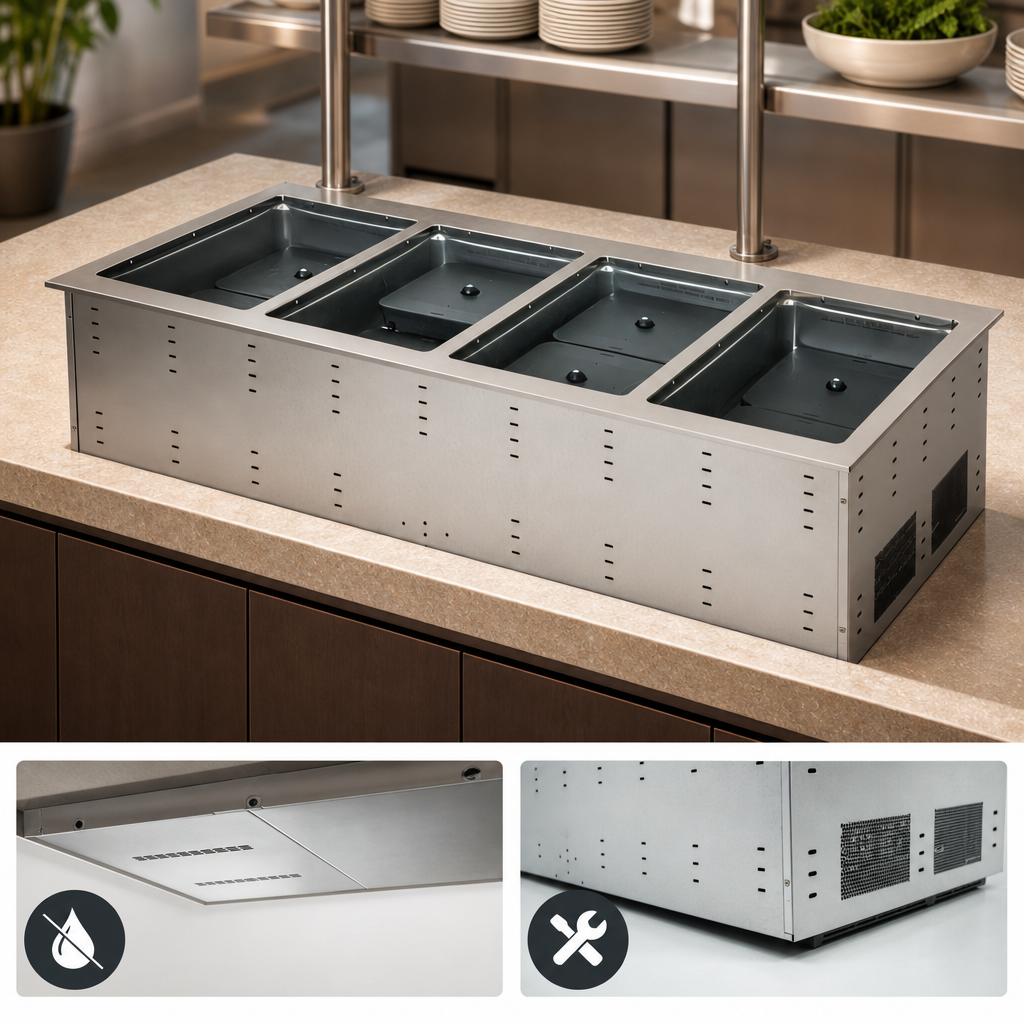

- Waterless design reduces energy use, food waste and cleanup time.
- Seamless stainless-steel flange blends with surrounding equipment; fits the same cut-out as other Vollrath drop-ins for easy retrofit.
- Ships with a 6 ft (1.8 m) cord and NEMA 6-20P plug—no hard-wiring required.
- NSF, cULus & FCC listed; Made in the USA.
Specifications
| Model | FC-6IH-04208 (made to order) |
|---|---|
| Wells / Heat zones | 4 wells / 8 zones |
| Temperature range | 140-190 °F (60-88 °C) |
| Power levels | 3 per well (Low • Medium • High) |
| Overall dimensions | 54 3⁄4" W × 26" D (139 cm × 66 cm) |
| Counter cut-out | 54" W × 25 1⁄4" D (137.2 cm × 64.1 cm) |
| Electrical | 208-240 V / 60 Hz / 1-phase, 3,180 W, 13.2 A |
| Plug type | NEMA 6-20P (6 ft / 1.8 m cord) |
| Required clearance | 2" (5.1 cm) on all sides; 6" (15.2 cm) below for ventilation |
| Compatible pans | Vollrath induction-ready full-size or half-size pans (sold separately) |
| Certifications | NSF, cULus, FCC |
Installation & Usage Tips
- Requires a dedicated 208-240 V / 20 A circuit.
- Use only Vollrath induction-ready steam-table pans to ensure proper heating and warranty coverage.
- Maintain ambient intake air below 110 °F (43 °C) for optimal performance.
- Indoor use only.
